Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#27917) — 341 parça

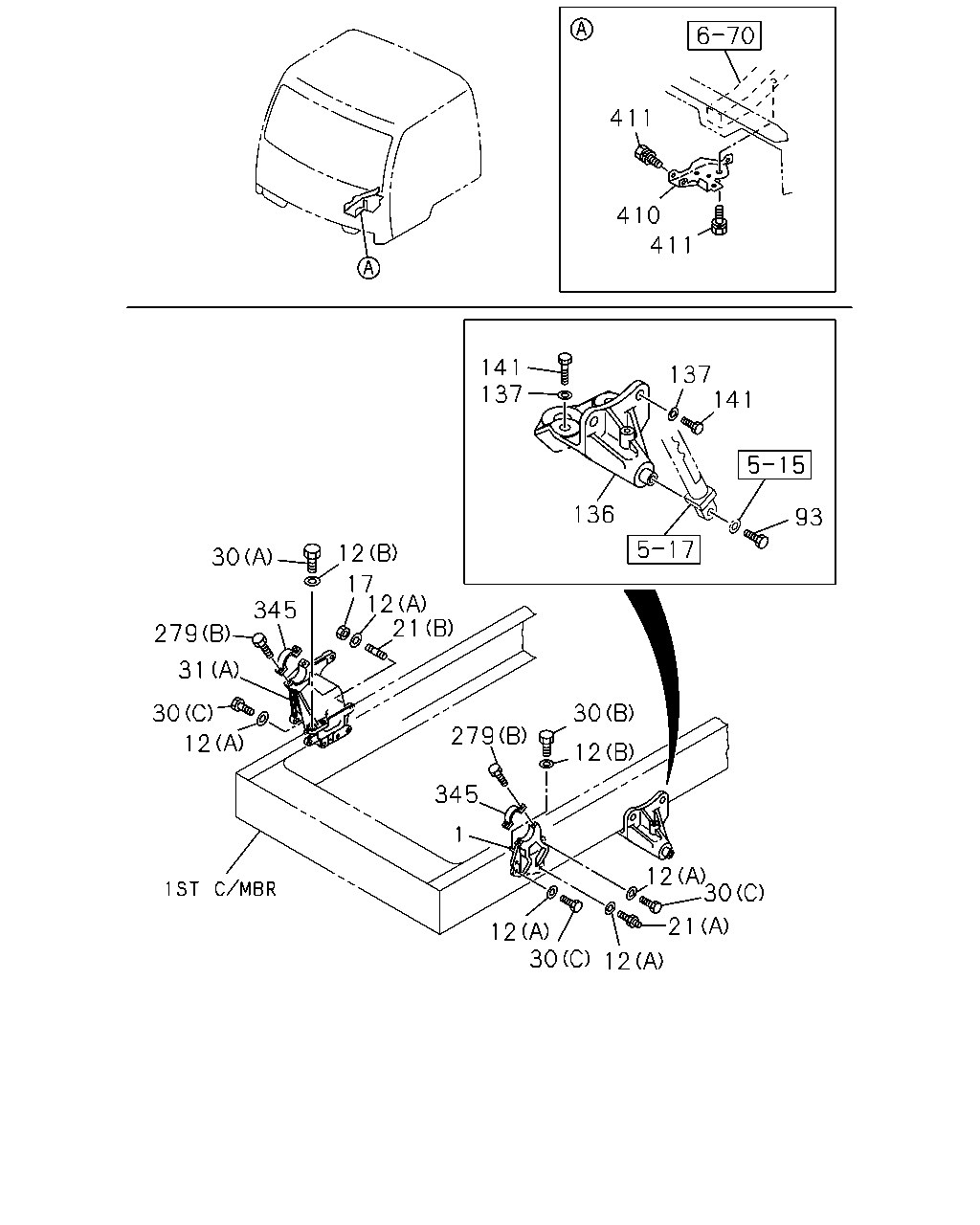

411 410 411 141 137 137 141 136 93 12 30 17 12 21 345 279 31 30 30 279 12 12 345 1 12 30 21 12 30 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG	1-53453-312-0	01	1	0610-0802	●	●
1	BRACKET; CAB MTG	8-98094-536-0	01	1	0803-	●	●
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-223-0	11	1	0610-	●	●
12	WASHER; LK,BRKT (B) ID=15	9-09651-069-0	04	1	0610-1201	●	●
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1202-	●	●
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	0610-	●	●
21	STUD; BRKT,CAB TILT (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	0610-	●	●
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	0610-	●	●
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	0610-	●	●
30	BOLT; CAB FRT FOOT (B) M14X45	9-92061-445-0	02	1	0610-	●	●
30	BOLT; CAB FRT FOOT (C) M16X45	9-92061-645-0	08	1	0610-	●	●
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-1	01	1	0810-		●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807	●
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807		●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0808-0809	●	●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-	●
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-		●
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-0	01	1	0806-0807		●
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0610-	●	●
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0610-	●	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0610-	●	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	0610-	●	●
31	BRACKET; CAB (C)	8-97606-793-0	01	1	0610-0805	●	●
31	BRACKET; CAB EXC. FACE LIFT<6NL> (C)	8-97606-793-0	01	1	0806-	●	●
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0610-	●	●
136	BRACKET; OIL CYL	1-53458-829-0	01	1	0610-	●	●
137	WASHER; PL,BRKT WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> FUEL TANK 300L AL<EBF> ID=15	8-98010-627-1	04	1	0909-1201	●
137	WASHER; PL,BRKT WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1> FUEL TANK 300L AL<EBF> ID=15	8-98010-627-1	04	1	0909-1201		●
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1202-	●	●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0610-0908	●	●
137	WASHER; PL,BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> ID=15	9-09651-069-0	04	1	0909-1201	●
137	WASHER; PL,BRKT WHEEL BASE 4900MM(49W) DUMP TRUCK<RA1> EXC. FUEL TANK 300L AL<EBF> ID=15	9-09651-069-0	04	1	0909-1201	●
137	WASHER; PL,BRKT WHEEL BASE 5300MM(53W) EXC. FUEL TANK 300L AL<EBF> ID=15	9-09651-069-0	04	1	0909-1201		●
137	WASHER; PL,BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) ID=15	9-09651-069-0	04	1	0909-1201		●
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	0610-	●	●
279	BOLT EXC. FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0806-	●	●
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	0610-	●	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	0610-	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0610-1510	●	●
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0610-0805	●	●
279	BOLT FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0806-	●	●
345	CAP; CAB	1-53458-336-3	02	1	0610-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0610-	●	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0610-0904	●	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-	●	●
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0610-	●	●

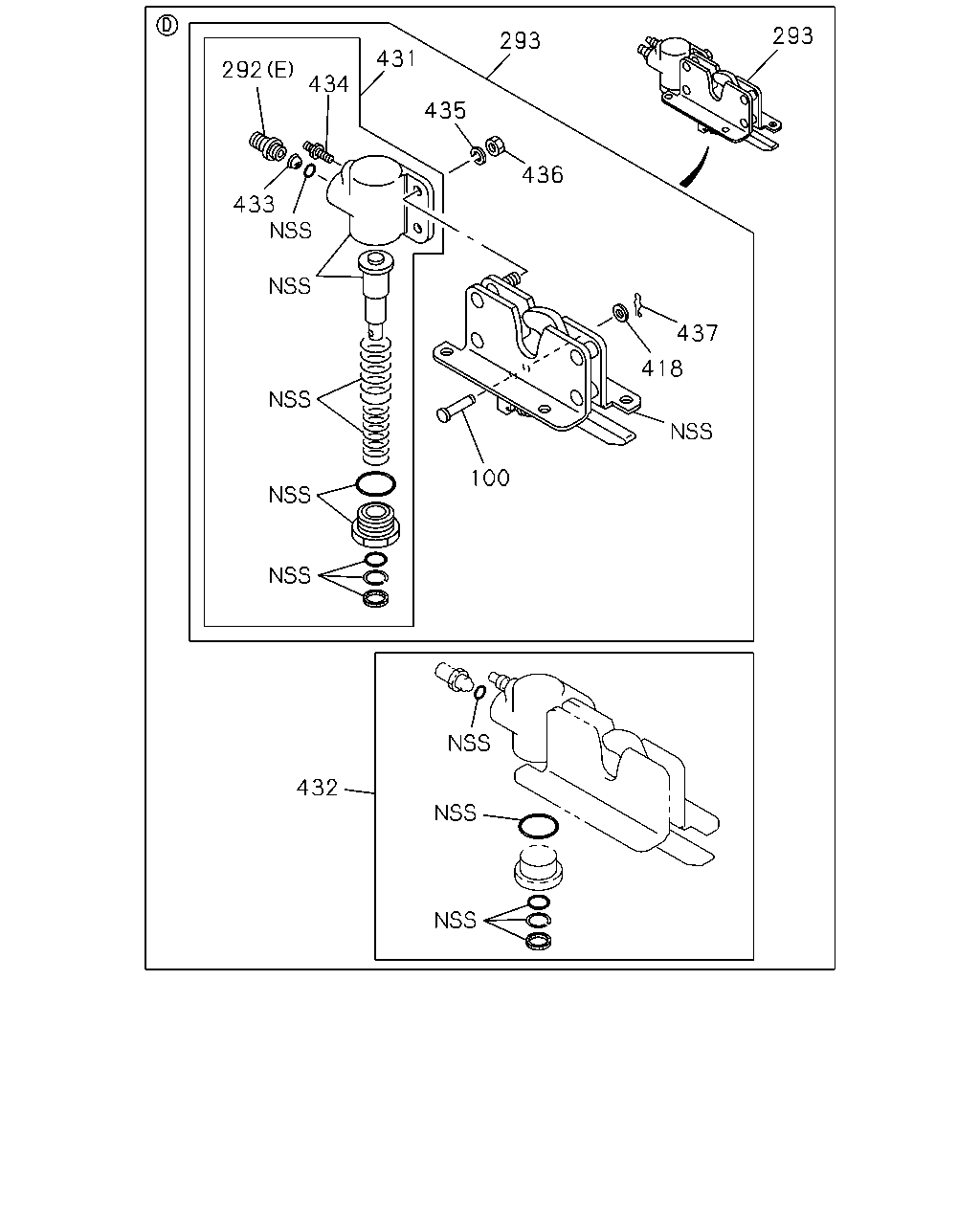

293 293 431 292 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	PIN; JOINT	1-53458-831-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	0610-	●	●
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0610-	●	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	0610-	●	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0610-	●	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0610-	●	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	0610-	●	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0610-	●	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0610-	●	●
436	NUT; AIR CYL	1-53458-528-0	02	1	0610-	●	●
437	PIN; SNAP	1-53458-526-0	01	1	0610-	●	●

202 202 294 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-1	01	1	1004-	●	●
173	MEMBER; CAB MTG RR	1-53450-675-1	01	1	0610-1003	●	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	1-53450-675-1	01	1	1004-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0610-1003	●	●
174	OUTRIGGER	8-98158-646-0	01	1	1004-	●	●
174	OUTRIGGER	1-53456-418-3	01	1	0610-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	0610-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0610-1007	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0610-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0610-	●	●
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0610-	●	●
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0610-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0610-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0610-	●	●
294	MEMBER; FLOATING	8-97613-760-1	01	1	0610-	●	●

202 69 72 204 205 70 65 204 203 202 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	0610-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0610-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0610-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0610-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0610-	●	●
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0806-0807		●
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0808-0809		●
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0810-		●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0610-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0610-1007	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0610-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0610-	●	●
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0610-	●	●
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0610-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0610-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0610-	●	●

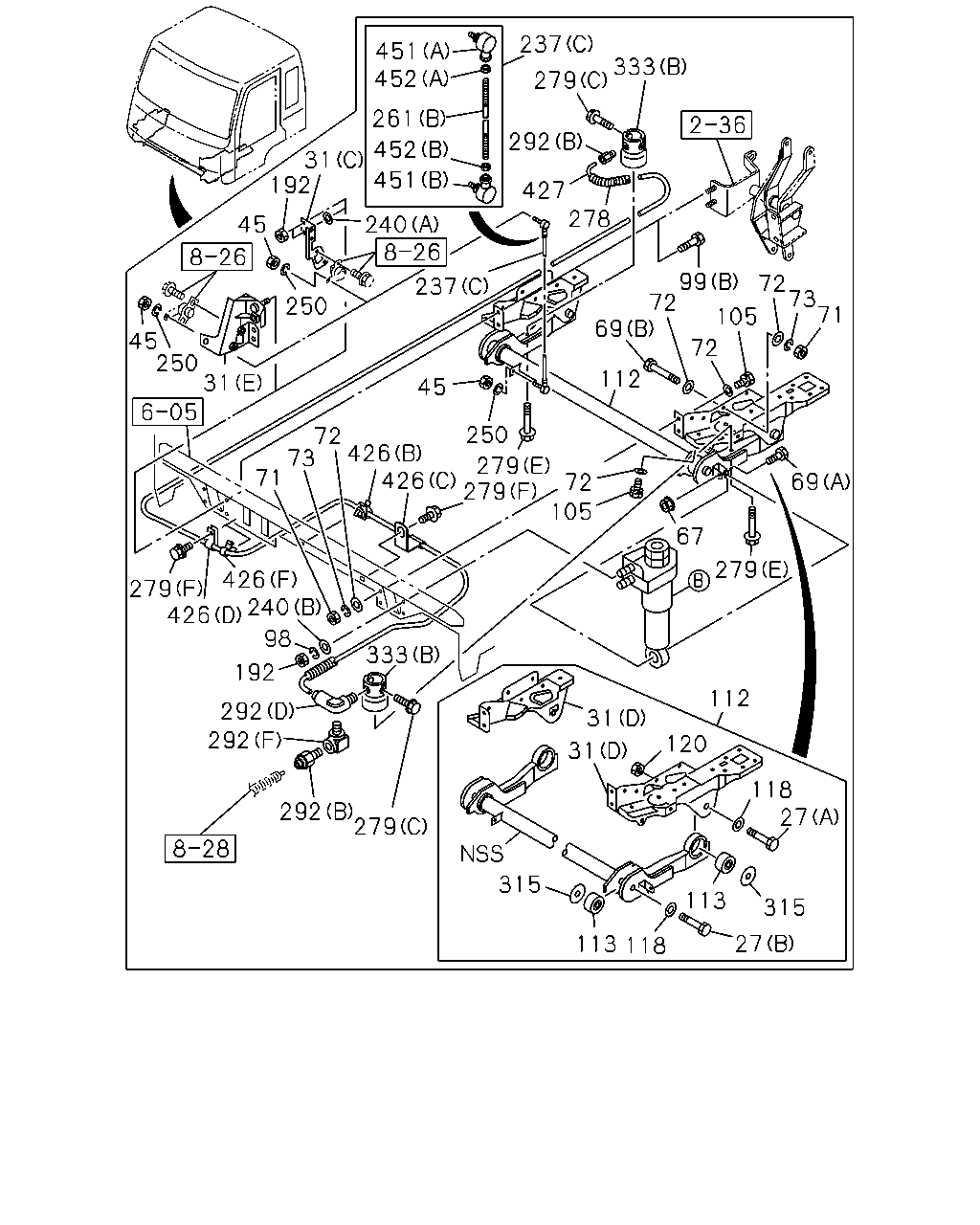

237 451 452 333 279 261 292 452 31 451 192 427 278 45 240 99 72 69 72 73 71 237 250 105 45 250 31 72 112 45 250 72 426 73 279 71 426 279 69 72 105 67 279 426 279 240 426 98 333 192 112 292 31 292 120 31 118 27 292 279 315 113 315 27 113 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0610-	●	●
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0610-	●	●
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-1	01	1	0810-		●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807	●
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807		●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0808-0809	●	●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-	●
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-		●
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-0	01	1	0806-0807		●
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0610-	●	●
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0610-	●	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0610-	●	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	0610-	●	●
31	BRACKET; CAB (C)	8-97606-793-0	01	1	0610-0805	●	●
31	BRACKET; CAB EXC. FACE LIFT<6NL> (C)	8-97606-793-0	01	1	0806-	●	●
45	NUT M5	0-91110-505-0	04	1	0610-	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0610-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0610-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0610-	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0610-	●	●
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0806-0807		●
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0808-0809		●
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0810-		●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0610-	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0610-	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0610-	●	●
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0810-		●
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0806-0807		●
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 FLANGE	0-28651-030-0	02	1	0610-0805		●
99	BOLT; BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	0806-0807		●
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0808-0809		●
99	BOLT; BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	0810-		●
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	0610-	●	●
112	ARM ASM; LINK,CAB FRT SUSP FACE LIFT<6NL>	8-98077-409-2	01	1	0806-	●	●
112	ARM ASM; LINK,CAB FRT SUSP	1-53450-684-0	01	1	0610-0805	●	●
112	ARM ASM; LINK,CAB FRT SUSP EXC. FACE LIFT<6NL>	1-53450-684-2	01	1	0806-	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	0610-	●	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0610-	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0610-	●	●
192	NUT; BRKT FIX FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M10	1-09984-142-0	01	1	0810-		●
192	NUT; BRKT FIX FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M10	1-09984-142-0	01	1	0806-0807		●
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	0610-0805	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	0806-0807	●
192	NUT; BRKT FIX EXC. FACE LIFT<6NL> M10	1-09984-142-0	02	1	0806-0807		●
192	NUT; BRKT FIX TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> M10	1-09984-142-0	02	1	0806-0807		●
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	0808-0809	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	0810-	●
192	NUT; BRKT FIX EXC. FACE LIFT<6NL> M10	1-09984-142-0	02	1	0810-		●
192	NUT; BRKT FIX TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> M10	1-09984-142-0	02	1	0810-		●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0610-	●	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	0610-	●	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	0610-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0610-	●	●
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0610-	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0610-0805	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807	●
240	WASHER; PL,BRKT EXC. FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807		●
240	WASHER; PL,BRKT TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807		●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0808-0809	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-	●
240	WASHER; PL,BRKT EXC. FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-		●
240	WASHER; PL,BRKT TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-		●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0610-	●	●
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	0610-	●	●
261	ROD; LINK (B)	0-84100-506-0	01	1	0610-	●	●
261	ROD; LINK (A)	9-08410-514-0	01	1	0610-	●	●
278	COVER L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0610-	●	●
279	BOLT EXC. FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0806-	●	●
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	0610-	●	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	0610-	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0610-1510	●	●
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0610-0805	●	●
279	BOLT FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0806-	●	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	0610-	●	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0610-	●	●
333	SPRING (B)	1-52110-142-4	02	1	0610-	●	●
333	SPRING (A)	1-52110-143-4	02	1	0610-	●	●
426	CLIP FACE LIFT<6NL> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-	●	●
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	0610-	●	●
426	CLIP (D) ID=11 L=16	0-95235-025-0	01	1	0610-0805	●	●
426	CLIP EXC. FACE LIFT<6NL> (D) ID=11 L=16	0-95235-025-0	01	1	0806-	●	●
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0610-	●	●
426	CLIP (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707	●	●
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	0610-	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-	●	●
451	JOINT; BALL (B)	1-09760-103-2	02	1	0610-	●	●
451	JOINT; BALL (A)	1-09760-104-2	02	1	0610-	●	●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	0610-	●	●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	0610-	●	●

298 297 244 243 299 240 299 55 300 294 99 237 301 55 174 309 333 321 291 274 173 189 296 300 191 325 220 449 295 188 66 188 174 279 191 264 191 288 195 183 175 288 447 287 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	0610-	●	●
66	BRACKET; S/ABS	1-53458-755-1	01	1	0610-1204	●	●
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-	●	●
66	BRACKET; S/ABS	1-53458-786-0	01	1	0610-	●	●
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0810-		●
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0806-0807		●
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 FLANGE	0-28651-030-0	02	1	0610-0805		●
99	BOLT; BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	0806-0807		●
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0808-0809		●
99	BOLT; BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	0810-		●
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-1	01	1	1004-	●	●
173	MEMBER; CAB MTG RR	1-53450-675-1	01	1	0610-1003	●	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	1-53450-675-1	01	1	1004-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0610-1003	●	●
174	OUTRIGGER	8-98158-646-0	01	1	1004-	●	●
174	OUTRIGGER	1-53456-418-3	01	1	0610-	●	●
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	0610-	●	●
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0610-1201	●	●
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1202-	●	●
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	0610-	●	●
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	0610-	●	●
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	0610-	●	●
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	0610-	●	●
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0610-	●	●
220	GUIDE; SPR	1-53458-648-1	02	1	0610-	●	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	0610-	●	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	0610-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0610-	●	●
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0610-	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0610-0805	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807	●
240	WASHER; PL,BRKT EXC. FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807		●
240	WASHER; PL,BRKT TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807		●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0808-0809	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-	●
240	WASHER; PL,BRKT EXC. FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-		●
240	WASHER; PL,BRKT TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-		●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0610-	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	0610-	●	●
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0610-	●	●
264	PANEL; BACK HONG KONG EQUIPMENT(PQ1)	1-53194-511-2	01	1	0610-0610	●	●
264	PANEL; BACK HONG KONG EQUIPMENT(PQ1)	8-98063-674-0	01	1	0610-	●	●
274	PIN	1-53458-996-0	01	1	0610-	●	●
279	BOLT EXC. FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0806-	●	●
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	0610-	●	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	0610-	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0610-1510	●	●
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0610-0805	●	●
279	BOLT FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0806-	●	●
287	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
288	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	03	1	0610-	●	●
290	RUBBER; MTG HONG KONG EQUIPMENT(PQ1)	1-53459-702-1	03	1	0610-	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0610-	●	●
294	MEMBER; FLOATING	8-97613-760-1	01	1	0610-	●	●
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0610-	●	●
296	STOPPER; UPR	1-53458-973-1	01	1	0610-	●	●
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0610-	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0610-	●	●
299	RUBBER; MTG (A)	1-53366-194-0	02	1	0610-	●	●
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	0610-	●	●
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0610-	●	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0610-	●	●
309	NUT M10 FLANGE	0-91180-210-0	04	1	0610-	●	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0610-	●	●
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	0610-	●	●
333	SPRING (B)	1-52110-142-4	02	1	0610-	●	●
333	SPRING (A)	1-52110-143-4	02	1	0610-	●	●
447	SEAL HONG KONG EQUIPMENT(PQ1) OD=45 BLACK	1-76798-017-0	02	1	0610-	●	●
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	0610-	●	●

333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 292 279 452 451 237 425 250 427 45 279 425 426 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-1	01	1	0810-		●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807	●
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807		●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0808-0809	●	●
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-	●
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-		●
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-0	01	1	0806-0807		●
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0610-	●	●
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0610-	●	●
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0610-	●	●
31	BRACKET; CAB (B)	1-53458-374-1	01	1	0610-	●	●
31	BRACKET; CAB (C)	8-97606-793-0	01	1	0610-0805	●	●
31	BRACKET; CAB EXC. FACE LIFT<6NL> (C)	8-97606-793-0	01	1	0806-	●	●
41	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
41	NUT (A) M12 FLANGE	0-91180-212-0	01	1	0610-	●	●
45	NUT M5	0-91110-505-0	04	1	0610-	●	●
173	MEMBER; CAB MTG RR EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-1	01	1	1004-	●	●
173	MEMBER; CAB MTG RR	1-53450-675-1	01	1	0610-1003	●	●
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1)	1-53450-675-1	01	1	1004-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0610-1003	●	●
174	OUTRIGGER	8-98158-646-0	01	1	1004-	●	●
174	OUTRIGGER	1-53456-418-3	01	1	0610-	●	●
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	0610-	●	●
237	ROD ASM; LATERAL (C)	1-33671-987-0	01	1	0610-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0610-	●	●
250	WASHER; LK ID=5.1	0-91510-505-0	04	1	0610-	●	●
261	ROD; LINK (B)	0-84100-506-0	01	1	0610-	●	●
261	ROD; LINK (A)	9-08410-514-0	01	1	0610-	●	●
279	BOLT EXC. FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0806-	●	●
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	0610-	●	●
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	0610-	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0610-1510	●	●
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	04	1	0610-	●	●
279	BOLT (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0610-0805	●	●
279	BOLT FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0806-	●	●
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0610-	●	●
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	0610-	●	●
333	SPRING (B)	1-52110-142-4	02	1	0610-	●	●
333	SPRING (A)	1-52110-143-4	02	1	0610-	●	●
425	PIPE ASM; AIR MIXER TRUCK<RA2> (B) L=367	1-49124-343-0	01	1	0610-	●
425	PIPE ASM; AIR (A) L=298	1-47494-961-1	01	1	0610-	●	●
425	PIPE ASM; AIR (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	0610-	●	●
425	PIPE ASM; AIR EXC. MIXER TRUCK<RA2> (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	0610-	●
425	PIPE ASM; AIR (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	0610-		●
426	CLIP FACE LIFT<6NL> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-	●	●
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	0610-	●	●
426	CLIP (D) ID=11 L=16	0-95235-025-0	01	1	0610-0805	●	●
426	CLIP EXC. FACE LIFT<6NL> (D) ID=11 L=16	0-95235-025-0	01	1	0806-	●	●
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0610-	●	●
426	CLIP (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707	●	●
426	CLIP (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	0610-	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-	●	●
427	TUBE SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-	●	●
438	UNION M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0610-	●	●
451	JOINT; BALL (B)	1-09760-103-2	02	1	0610-	●	●
451	JOINT; BALL (A)	1-09760-104-2	02	1	0610-	●	●
452	NUT; BALL JOINT (A) M5	0-91110-505-0	02	1	0610-	●	●
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	02	1	0610-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
