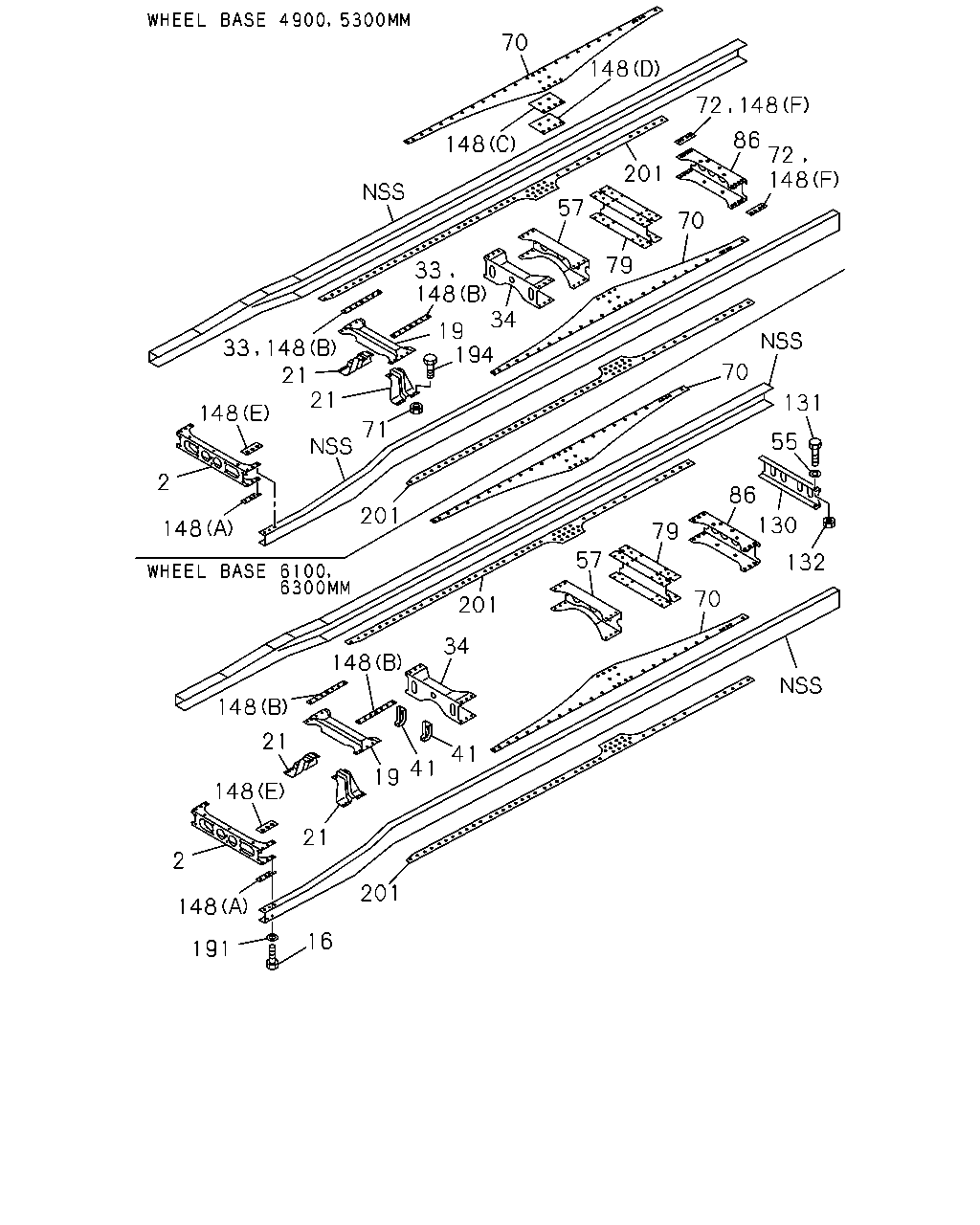

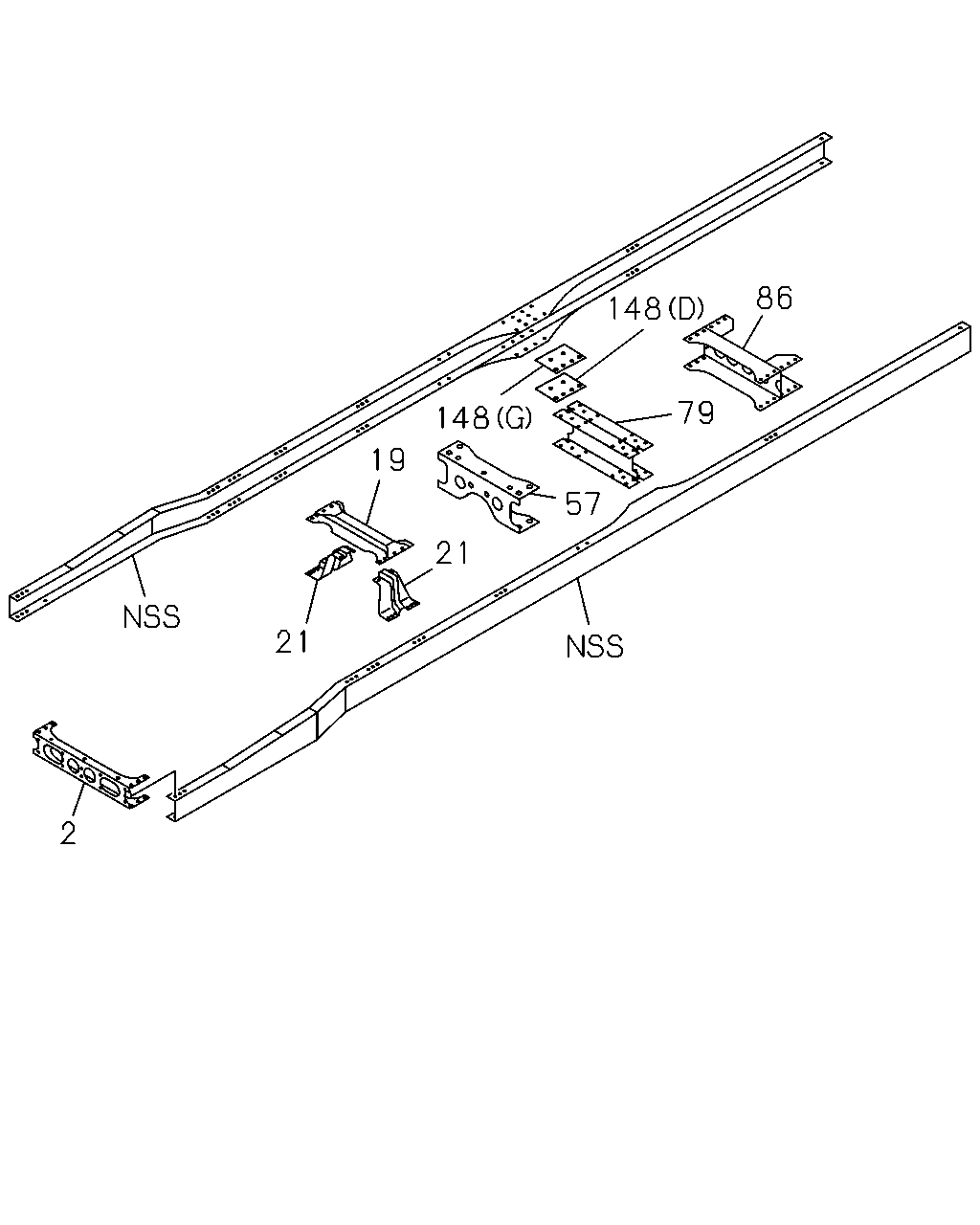

5-01 — FRAME AND OTHER PARTS (#27916) — 155 parça

86 148 79 148 19 57 21 21 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0610-	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0610-	●	●	●	●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	0610-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	0610-		●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0610-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	0610-		●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0610-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0610-				●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0610-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-609-3	01	1	0610-		●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-757-3	01	1	0610-				●	●
148	SPACER; C/MBR (G) T=8.0	1-53168-508-0	02	1	0610-	●
148	SPACER; C/MBR (D) T=7.0	1-53168-486-0	02	1	0610-	●	●	●
148	SPACER; C/MBR (C) T=7.5	1-53168-487-0	02	1	0610-0908		●	●
148	SPACER; C/MBR (C) T=7.5	1-53168-487-0	02	1	0909-		●	●
148	SPACER; C/MBR (F)	1-53168-489-0	02	1	0610-0908		●	●
148	SPACER; C/MBR EXC. FUEL TANK 300L AL<EBF> (F)	1-53168-489-0	02	1	0909-		●	●
148	SPACER; C/MBR (E)	1-53168-400-1	02	1	0610-		●	●	●	●
148	SPACER; C/MBR (A)	1-53168-403-1	02	1	0610-		●	●	●	●
148	SPACER; C/MBR (B)	1-53168-443-0	02	1	0610-0908		●	●	●	●
148	SPACER; C/MBR EXC. FUEL TANK 300L AL<EBF> (B)	1-53168-443-0	02	1	0909-		●	●
148	SPACER; C/MBR (B)	1-53168-443-0	02	1	0909-				●	●

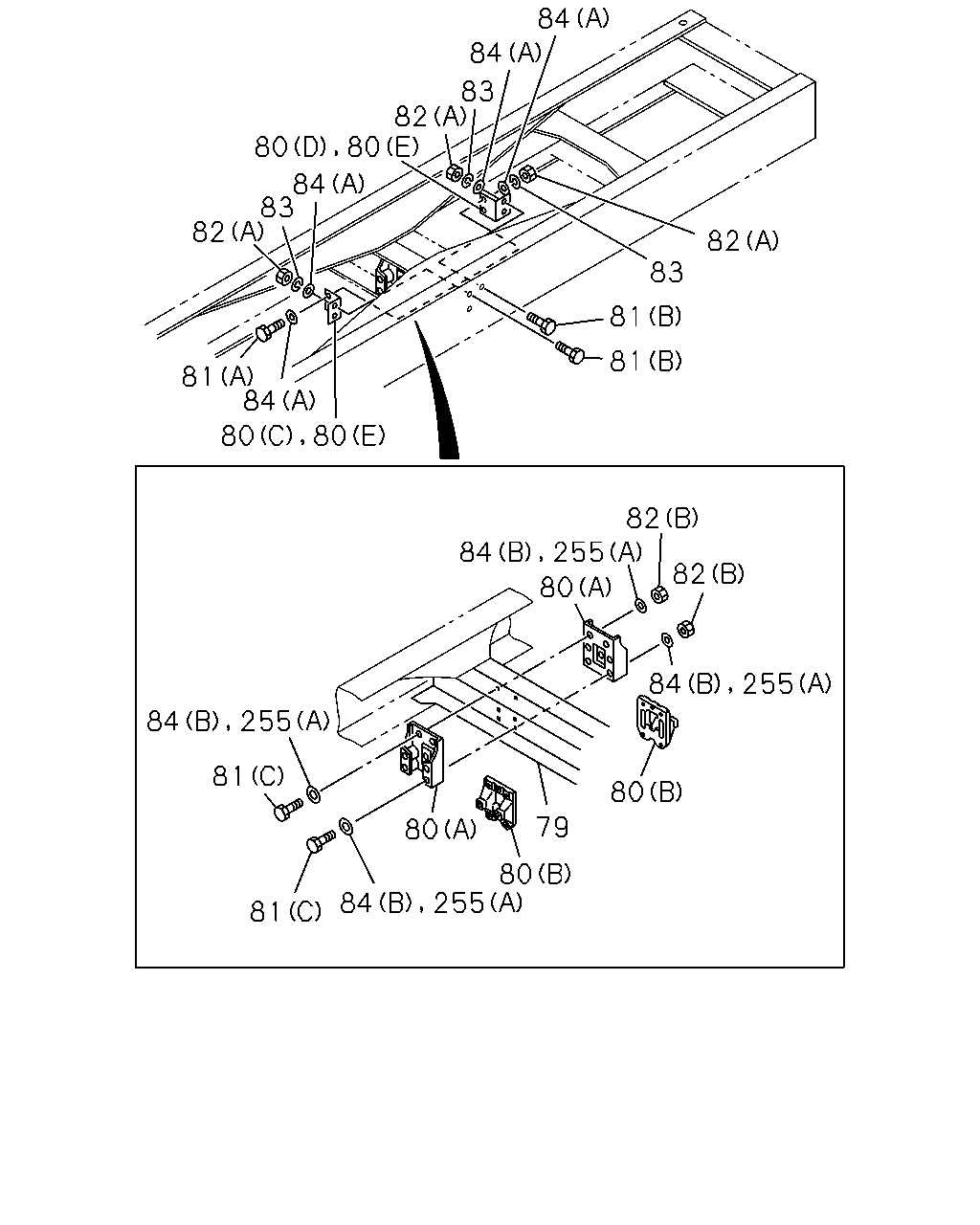

84 84 83 82 84 83 82 82 83 81 81 81 84 82 82 80 81 80 79 80 80 81 80 80 80 80 84 255 84 255 84 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0610-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0610-				●	●
80	BRACKET; C/MBR DUMP TRUCK<RA1> (C)	1-53167-665-1	02	1	0610-	●	●	●	●	●
80	BRACKET; C/MBR DUMP TRUCK<RA1> (D)	1-53167-666-1	02	1	0610-	●	●	●	●	●
80	BRACKET; C/MBR MIXER TRUCK<RA2> (E)	1-53167-288-1	04	1	0610-	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0610-	●	●	●	●
80	BRACKET; C/MBR (B)	1-53363-076-0	02	1	0610-					●
81	BOLT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M14X55	9-91066-455-0	04	1	0610-	●	●	●	●	●
81	BOLT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) M14X45	9-92061-445-0	08	1	0610-	●	●	●	●	●
81	BOLT; BRKT (C) M14X50	0-20951-450-0	02	1	0610-		●	●
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	0610-		●	●
81	BOLT; BRKT (C) M14X100	9-91066-400-0	04	1	0610-1504				●	●
81	BOLT; BRKT (C) M14X100	0-10956-400-0	04	1	1505-				●	●
81	BOLT; BRKT (C) M14X50	0-20951-450-0	02	1	0610-	●
81	BOLT; BRKT (C) M14X205	1-09000-147-0	02	1	0610-	●
82	NUT; BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M14	0-91110-514-0	12	1	0610-	●	●	●	●	●
82	NUT; BRKT (B) M14	0-91110-514-0	04	1	0610-0908	●			●	●
82	NUT; BRKT (B) M14	0-91110-514-0	04	1	0909-	●			●	●
82	NUT; BRKT FUEL TANK 300L AL<EBF> (B) M14	0-91110-514-0	04	1	0909-		●	●
82	NUT; BRKT (B) M14	0-91110-514-0	05	1	0610-0908		●	●
82	NUT; BRKT EXC. FUEL TANK 300L AL<EBF> (B) M14	0-91110-514-0	05	1	0909-		●	●
83	WASHER; LK,BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ID=14.2	0-91510-614-0	12	1	0610-	●	●	●	●	●
84	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (B) ID=15	8-98010-627-1	08	1	0909-1201		●	●
84	WASHER; PL,BRKT (B) ID=15	8-98010-627-1	08	1	1202-		●	●	●	●
84	WASHER; PL,BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) ID=15 OD=26	9-09164-514-0	16	1	0610-1104	●	●	●	●	●
84	WASHER; PL,BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●	●	●	●
84	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	08	1	0610-0908		●	●	●	●
84	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> (B) ID=15	9-09651-069-0	08	1	0909-1201		●	●
84	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	08	1	0909-1201				●	●
255	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (B) ID=15	8-98010-627-1	06	1	0909-		●	●
255	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	08	1	0610-1201	●
255	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1202-	●

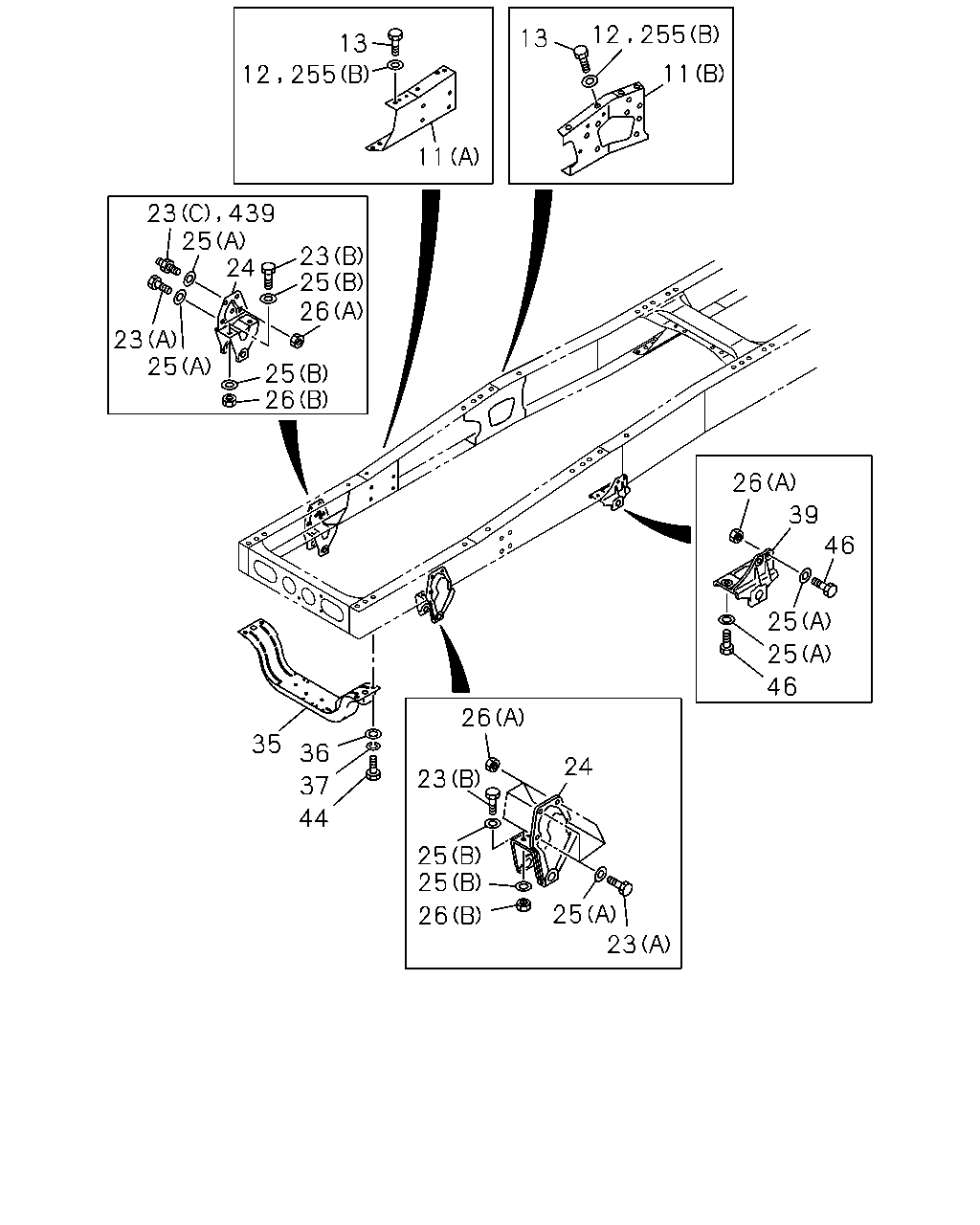

13 13 11 11 25 24 23 25 26 23 25 25 26 26 39 46 25 25 46 26 35 36 24 23 37 44 25 25 25 23 26 12 255 23 439 12 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0610-	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0610-	●
11	BRACKET; ENG MTG (B)	1-53239-139-1	01	1	0610-	●
11	BRACKET; ENG MTG (B)	8-97618-424-1	01	1	0610-	●
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0610-		●	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0610-		●	●	●	●
11	BRACKET; ENG MTG (B)	1-53221-226-4	01	1	0610-		●	●	●	●
11	BRACKET; ENG MTG (B)	1-53221-227-4	01	1	0610-		●	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	06	1	0610-1201	●			●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	06	1	1202-	●			●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	08	1	0610-0908		●	●
12	WASHER; PL,BRKT,ENG MTG EXC. FUEL TANK 300L AL<EBF> ID=15	9-09651-069-0	08	1	0909-1201		●	●
12	WASHER; PL,BRKT,ENG MTG EXC. FUEL TANK 300L AL<EBF> ID=15	8-98010-627-1	08	1	1202-		●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0610-0908	●			●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0909-	●			●	●
13	BOLT; BRKT,ENG MTG FUEL TANK 300L AL<EBF> M14X40	0-20951-440-0	06	1	0909-		●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	08	1	0610-0908		●	●
13	BOLT; BRKT,ENG MTG EXC. FUEL TANK 300L AL<EBF> M14X40	0-20951-440-0	08	1	0909-		●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	07	1	0610-	●	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0610-	●	●	●	●	●
23	BOLT; BRKT,SPR (C) M12X35,M14X45 L=100	1-09029-075-0	01	1	0610-0908	●	●	●	●	●
23	BOLT; BRKT,SPR (C) M12X35,M14X45 L=100	1-09029-075-0	01	1	0909-	●			●	●
23	BOLT; BRKT,SPR EXC. FUEL TANK 300L AL<EBF> (C) M12X35,M14X45 L=100	1-09029-075-0	01	1	0909-		●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0610-	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0610-	●	●	●	●	●
25	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (B) ID=16.2	1-09503-316-0	08	1	0909-1504		●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1505-	●	●	●	●	●
25	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (A) ID=15	8-98010-627-1	16	1	0909-1201		●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	16	1	1202-	●	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0610-0908	●	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0909-1504	●			●	●
25	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> (B) ID=16.2	1-09503-223-0	08	1	0909-1504		●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0610-0908	●	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	16	1	0909-1201	●			●	●
25	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> (A) ID=15	9-09651-069-0	16	1	0909-1201		●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	0610-	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0610-	●	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	12	1	0610-		●	●	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0610-	●	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0610-	●	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0610-	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-179-0	01	1	0610-	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-180-0	01	1	0610-	●	●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0610-	●	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0610-	●
46	BOLT; BRKT FIX M14X40	0-20951-440-0	04	1	0610-		●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	04	1	0610-		●	●	●	●
255	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (B) ID=15	8-98010-627-1	06	1	0909-		●	●
255	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	08	1	0610-1201	●
255	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1202-	●
439	STUD; BRKT,SPR FUEL TANK 300L AL<EBF> M12X35,M14X45 L=100	1-09029-075-0	01	1	0909-		●	●

148 70 148 86 72 148 57 33 148 34 201 70 19 194 79 21 21 70 131 148 71 55 2 86 201 201 130 148 79 57 132 70 34 148 148 21 41 41 19 148 21 2 201 148 16 191 72 148 33 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0610-	●	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	0610-				●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0610-	●	●	●	●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	0610-	●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	0610-		●	●	●	●
33	SPACER; 2ND C/MBR,UPR FUEL TANK 300L AL<EBF>	1-53168-443-0	02	1	0909-		●	●
34	MEMBER; CROSS,3RD	1-53182-072-1	01	1	0610-			●
34	MEMBER; CROSS,3RD	8-97615-230-0	01	1	0610-				●
34	MEMBER; CROSS,3RD	1-53181-639-3	01	1	0610-					●
41	BRACKET; CENTER BRG,FRAME SIDE L=305	1-53271-390-0	02	1	0610-				●
41	BRACKET; CENTER BRG,FRAME SIDE L=315	1-53271-377-0	02	1	0610-					●
55	WASHER; PL ID=15	9-09651-069-0	04	1	0610-1201				●	●
55	WASHER; PL ID=15	8-98010-627-1	04	1	1202-				●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0610-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	0610-		●	●	●	●
70	GUSSET; TRUNNION,UPR FUEL TANK 300L AL<EBF>	8-98157-791-0	02	1	0910-			●
70	GUSSET; TRUNNION,UPR	1-53161-894-0	02	1	0610-		●
70	GUSSET; TRUNNION,UPR	1-53161-932-0	02	1	0610-0909			●
70	GUSSET; TRUNNION,UPR EXC. FUEL TANK 300L AL<EBF>	1-53161-932-0	02	1	0910-			●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	0610-				●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0610-0908		●	●
71	NUT; 2ND C/MBR EXC. FUEL TANK 300L AL<EBF> M14	0-91110-514-0	08	1	0909-		●	●
72	SPACER; TRUNNION FUEL TANK 300L AL<EBF>	1-53168-489-0	02	1	0909-		●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0610-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-657-5	01	1	0610-				●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0610-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-609-3	01	1	0610-		●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-757-3	01	1	0610-				●	●
130	MEMBER; CROSS,END	1-53181-537-2	01	1	0610-				●	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0610-				●	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0610-				●	●
148	SPACER; C/MBR (G) T=8.0	1-53168-508-0	02	1	0610-	●
148	SPACER; C/MBR (D) T=7.0	1-53168-486-0	02	1	0610-	●	●	●
148	SPACER; C/MBR (C) T=7.5	1-53168-487-0	02	1	0610-0908		●	●
148	SPACER; C/MBR (C) T=7.5	1-53168-487-0	02	1	0909-		●	●
148	SPACER; C/MBR (F)	1-53168-489-0	02	1	0610-0908		●	●
148	SPACER; C/MBR EXC. FUEL TANK 300L AL<EBF> (F)	1-53168-489-0	02	1	0909-		●	●
148	SPACER; C/MBR (E)	1-53168-400-1	02	1	0610-		●	●	●	●
148	SPACER; C/MBR (A)	1-53168-403-1	02	1	0610-		●	●	●	●
148	SPACER; C/MBR (B)	1-53168-443-0	02	1	0610-0908		●	●	●	●
148	SPACER; C/MBR EXC. FUEL TANK 300L AL<EBF> (B)	1-53168-443-0	02	1	0909-		●	●
148	SPACER; C/MBR (B)	1-53168-443-0	02	1	0909-				●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-223-0	02	1	0610-1504				●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-316-0	02	1	1505-				●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0610-0908		●	●
194	BOLT; 2ND C/MBR EXC. FUEL TANK 300L AL<EBF> M14X60	0-20951-460-0	08	1	0909-		●	●
201	GUSSET; C/MBR	1-53161-890-1	02	1	0610-		●
201	GUSSET; C/MBR	1-53161-933-1	02	1	0610-			●
201	GUSSET; C/MBR	1-53161-892-1	02	1	0610-				●
201	GUSSET; C/MBR	1-53161-893-0	02	1	0610-					●
