4-65 — REAR LEAF SPRING (#27914) — 52 parça

35 10 9 8 7 36 6 5 4 3 34 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51410-294-0	1-51411-294-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97614-050-0	1-51411-300-2	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-240-0	01	1	-1109
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98101-101-1	8-98199-311-0	01	1	1110-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51410-294-0	1-51412-294-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97614-050-0	1-51412-300-2	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-241-0	01	1	-1109
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98101-101-1	8-98199-312-0	01	1	1110-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51410-294-0	1-51413-294-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97614-050-0	1-51413-300-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-242-0	01	1	-1109
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98101-101-1	8-98199-313-0	01	1	1110-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51410-294-0	1-51414-294-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97614-050-0	1-51414-300-2	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-243-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN W/CLIP ASM PART: A = 1-51410-294-0	1-51415-294-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97614-050-0	1-51415-300-2	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-244-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51410-294-0	1-51416-294-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51410-294-0	1-51417-294-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51410-294-0	1-51418-294-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51410-294-0	1-51419-294-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: A = 1-51410-294-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: B = 8-97614-050-0, C = 8-98101-101-1	1-51356-364-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51410-294-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: B = 8-97614-050-0, C = 8-98101-101-1	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-294-0	1-09000-326-0	01	1	-

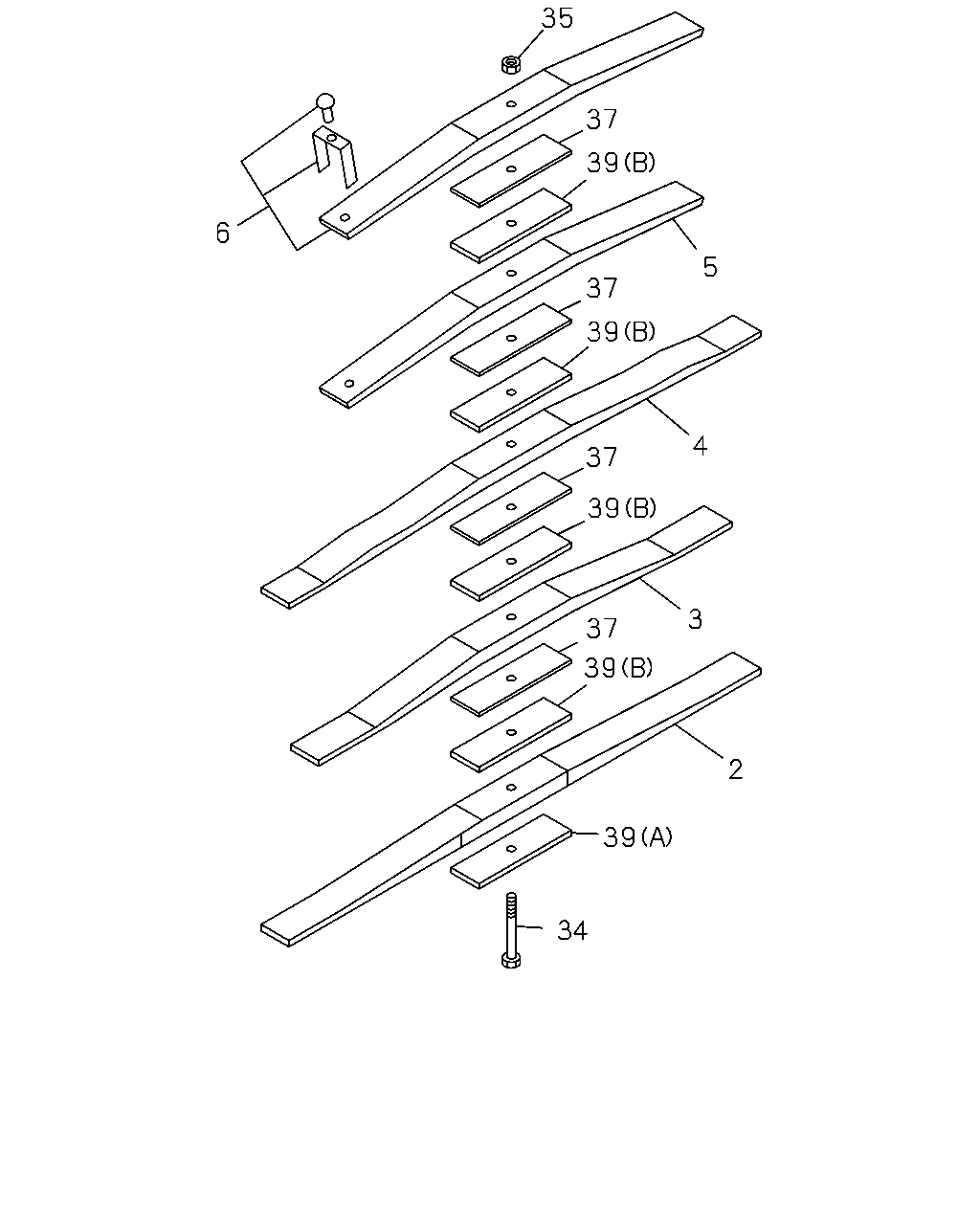

35 37 39 6 5 37 39 4 37 39 3 37 39 2 39 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51410-294-0	1-51411-294-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97614-050-0	1-51411-300-2	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-240-0	01	1	-1109
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98101-101-1	8-98199-311-0	01	1	1110-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51410-294-0	1-51412-294-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97614-050-0	1-51412-300-2	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-241-0	01	1	-1109
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-98101-101-1	8-98199-312-0	01	1	1110-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51410-294-0	1-51413-294-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97614-050-0	1-51413-300-2	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-242-0	01	1	-1109
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-98101-101-1	8-98199-313-0	01	1	1110-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51410-294-0	1-51414-294-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97614-050-0	1-51414-300-2	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-243-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN W/CLIP ASM PART: A = 1-51410-294-0	1-51415-294-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97614-050-0	1-51415-300-2	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-98101-101-1	8-98105-244-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: A = 1-51410-294-0	1-51356-120-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: B = 8-97614-050-0, C = 8-98101-101-1	1-51356-364-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51410-294-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: B = 8-97614-050-0, C = 8-98101-101-1	1-09400-061-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1.2 ASM PART: B = 8-97614-050-0, C = 8-98101-101-1	1-51359-037-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=6 ASM PART: B = 8-97614-050-0, C = 8-98101-101-1	1-51377-399-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=3.2 ASM PART: B = 8-97614-050-0, C = 8-98101-101-1	8-97615-292-0	01	1	-
