4-55 — FRONT LEAF SPRING (#27912) — 74 parça

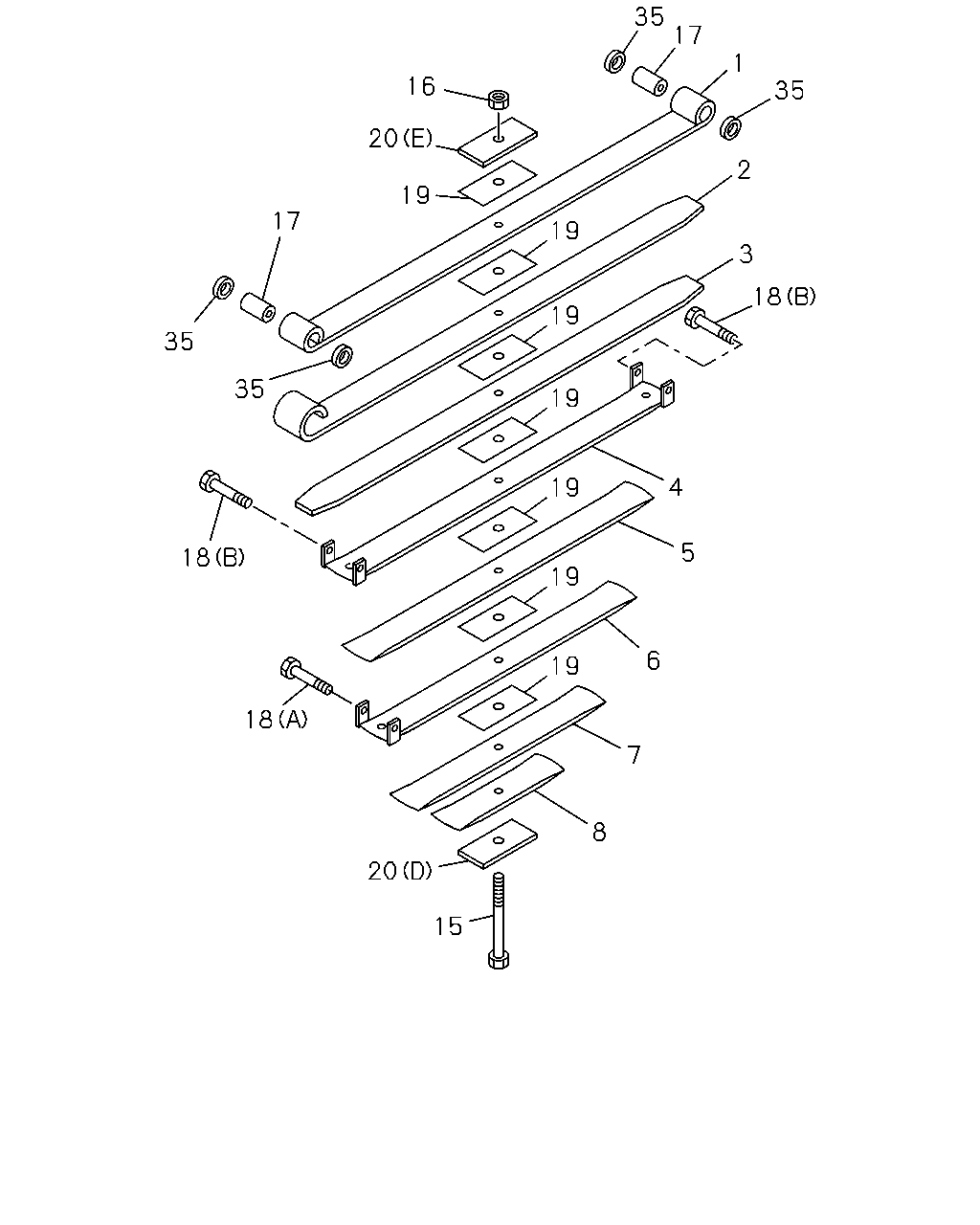

35 17 1 16 35 20 2 19 17 19 3 18 19 35 35 19 19 4 5 18 19 6 19 18 7 8 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-893-0	1-51131-849-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-97614-071-0	8-97615-360-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98140-089-0	8-98131-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98159-658-0	8-98165-029-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-893-0	1-51132-849-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-97614-071-0	8-97615-361-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98140-089-0	8-98131-825-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98159-658-0	8-98165-030-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-893-0	1-51133-893-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	8-97615-362-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98140-089-0	8-98131-826-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-893-0	1-51134-893-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	8-97615-363-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98140-089-0	8-98131-827-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	8-97615-364-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 8-98140-089-0	8-98131-828-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	8-97615-365-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 8-98140-089-0	8-98131-829-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	8-97615-366-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 8-98140-089-0	8-98131-830-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	8-97615-367-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 8-98140-089-0	8-98131-831-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: A = 1-51130-893-0	1-51156-344-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: C = 8-98140-089-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-893-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: C = 8-98140-089-0, D = 8-98159-658-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: B = 8-97614-071-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-893-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X102 ASM PART: A = 1-51130-893-0	1-09000-759-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-893-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=10 ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=14 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=11 ASM PART: A = 1-51130-893-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: A = 1-51130-893-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-893-0	1-51377-402-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-893-0, B = 8-97614-071-0	1-51177-321-0	04	1	-

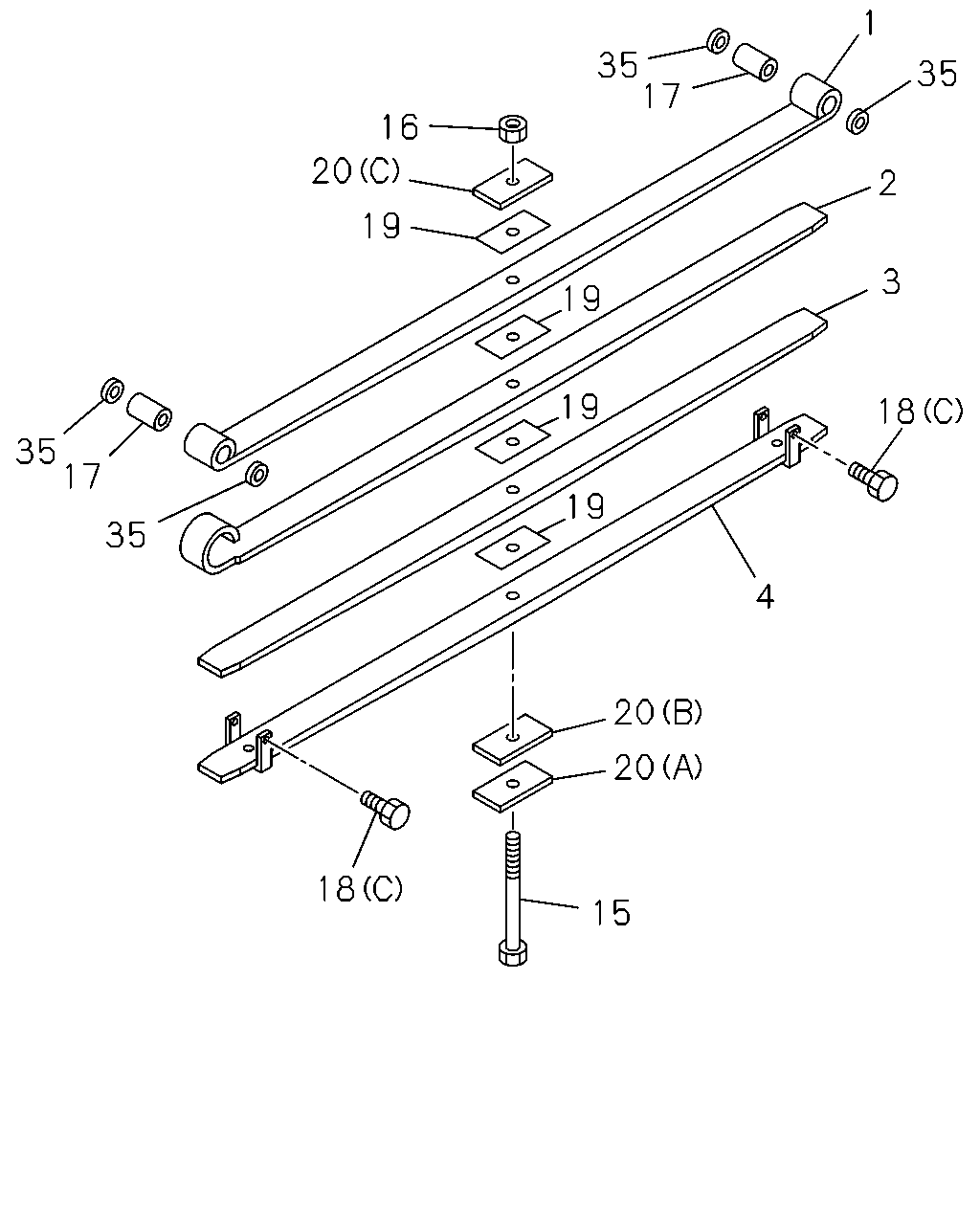

1 35 17 35 16 20 2 19 3 19 19 18 35 17 19 35 4 20 20 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-893-0	1-51131-849-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 8-97614-071-0	8-97615-360-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98140-089-0	8-98131-824-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98159-658-0	8-98165-029-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-893-0	1-51132-849-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 8-97614-071-0	8-97615-361-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98140-089-0	8-98131-825-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98159-658-0	8-98165-030-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-893-0	1-51133-893-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	8-97615-362-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 8-98140-089-0	8-98131-826-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-893-0	1-51134-893-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	8-97615-363-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 8-98140-089-0	8-98131-827-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: A = 1-51130-893-0	1-51156-344-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=175 ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	1-51156-345-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: C = 8-98140-089-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-893-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: C = 8-98140-089-0, D = 8-98159-658-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: B = 8-97614-071-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-893-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X102 ASM PART: A = 1-51130-893-0	1-09000-759-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-893-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (D), T=10 ASM PART: B = 8-97614-071-0, D = 8-98159-658-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=14 ASM PART: B = 8-97614-071-0, C = 8-98140-089-0, D = 8-98159-658-0	1-51177-097-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=11 ASM PART: A = 1-51130-893-0	1-51177-340-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=14 ASM PART: A = 1-51130-893-0	1-51377-400-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-893-0	1-51377-402-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-893-0, B = 8-97614-071-0	1-51177-321-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
