4-50 — FRONT SUSPENSION (#27911) — 67 parça

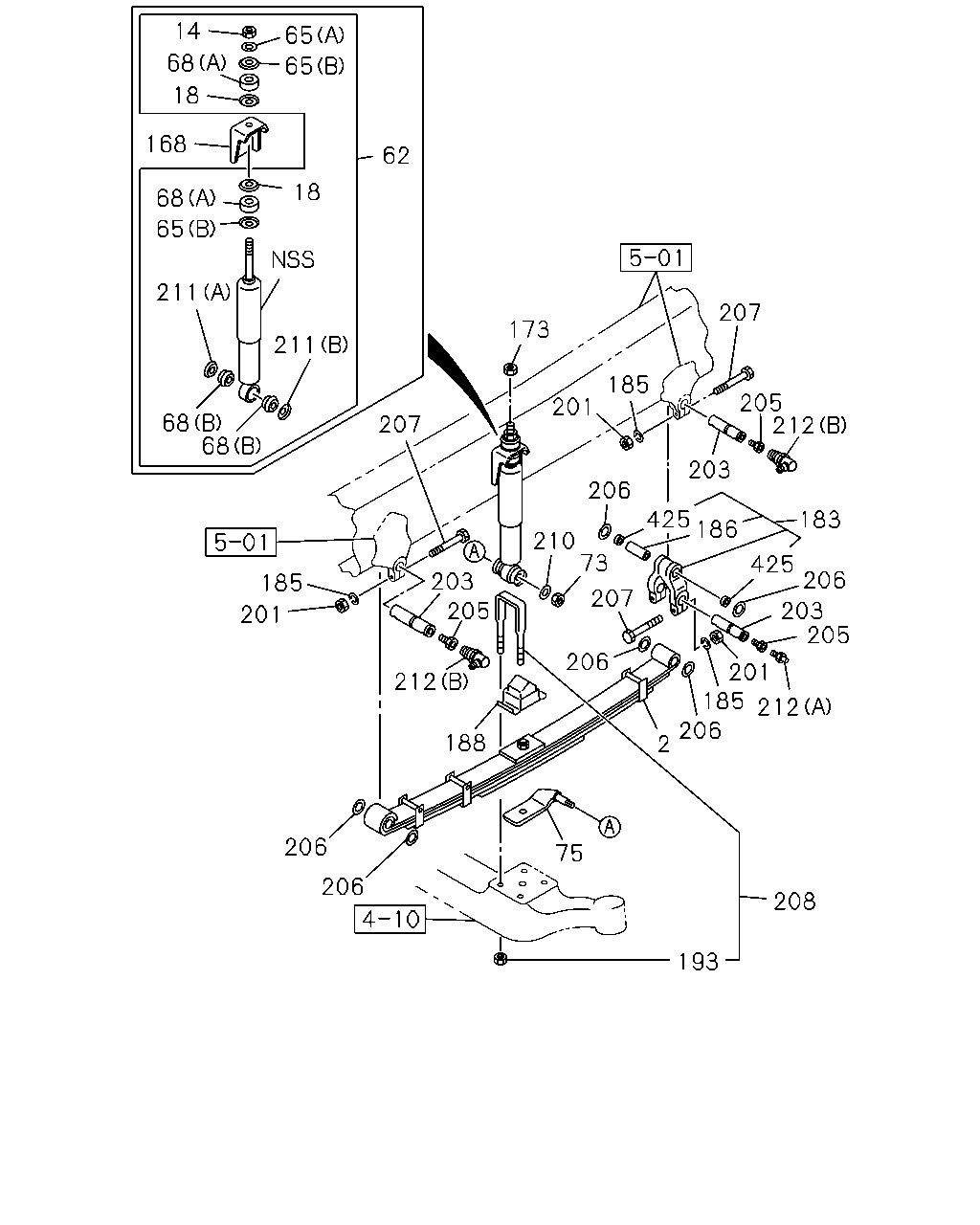

çizim 139939
14 65 68 65 18 168 62 18 68 65 211 207 173 211 185 205 212 201 68 68 207 203 206 425 186 183 210 73 425 206 203 185 207 203 205 205 201 206 201 185 212 212 206 2 188 206 75 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRONT AXLE LOW TYPE<BDH> 8-LEAF 		8-98140-089-0 02 1 1110- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 8-LEAF 		8-97614-071-0 02 1 0610-0912 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> 8-LEAF 		8-97614-071-0 02 1 0610-0912 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 8-LEAF 		8-98159-658-0 02 1 1001-1109 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> 8-LEAF 		8-98159-658-0 02 1 1001-1109 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT AXLE LOW TYPE<BDH> 8-LEAF 		8-98159-658-0 02 1 1110- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> 8-LEAF 		8-98159-658-0 02 1 1110- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 4-LEAF 		1-51130-893-0 02 1 0610- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. DUMP TRUCK<RA1> 4-LEAF 		1-51130-893-0 02 1 0610- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0610- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0610- ● ●
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-417-0 02 1 0610- ●
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1> 		1-51630-417-0 02 1 0610- ●
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> BEST VALUE PARTS 		1-87610-154-0 02 1 0610- ●
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1> BEST VALUE PARTS 		1-87610-154-0 02 1 0610- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-433-1 02 1 0610- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. DUMP TRUCK<RA1> 		1-51630-433-1 02 1 0610- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0610- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0610- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0610- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0610- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0610- ● ●
75 BRACKET; FRT S/ABS 1-51681-825-1 01 1 0610- ● ●
75 BRACKET; FRT S/ABS 1-51681-826-1 01 1 0610- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0610- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0610- ● ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 0610-1005 ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0610- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 0610-1005 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT AXLE LOW TYPE<BDH> 		1-51172-108-2 02 1 1110- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 0610-1109 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT AXLE LOW TYPE<BDH> 		1-51172-085-2 02 1 1110- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-085-2 02 1 1110- ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0610-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0610- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0610- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0610- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0610- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0610- ● ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FRONT AXLE LOW TYPE<BDH> L=240 		1-87870-376-2 04 1 1110- ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-269-2 04 1 0610-0711 ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1> L=230 		1-87870-269-2 04 1 0610-0711 ●
208 U-BOLT SET; FRT SPRING
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-269-2 04 1 0712-0712 ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-269-2 04 1 0712-0712 ●
208 U-BOLT SET; FRT SPRING
EXC. DUMP TRUCK<RA1> L=230 		1-87870-269-2 04 1 0712-0712 ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1> L=230 		1-87870-269-2 04 1 0712-0712 ●
208 U-BOLT SET; FRT SPRING
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-269-2 04 1 0712-1206 ●
208 U-BOLT SET; FRT SPRING
EXC. DUMP TRUCK<RA1> L=230 		1-87870-269-2 04 1 0712-1206 ●
208 U-BOLT SET; FRT SPRING
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-493-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
EXC. DUMP TRUCK<RA1> L=230 		1-87870-493-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=210 		1-87870-380-1 04 1 0610-0711 ●
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1> L=210 		1-87870-380-1 04 1 0610-0711 ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=250 		1-87870-343-1 04 1 0610-1109 ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=250 		1-87870-343-1 04 1 0610-1109 ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT AXLE LOW TYPE<BDH> L=250 		1-87870-343-1 04 1 1110-1206 ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=250 		1-87870-343-1 04 1 1110-1206 ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT AXLE LOW TYPE<BDH> L=250 		1-87870-494-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=250 		1-87870-494-0 04 1 1207- ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 0610- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0610- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0610- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0610- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 0610- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0610-1005 ● ●
