◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11038 - EXD RHD EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#27903) — 12 parça

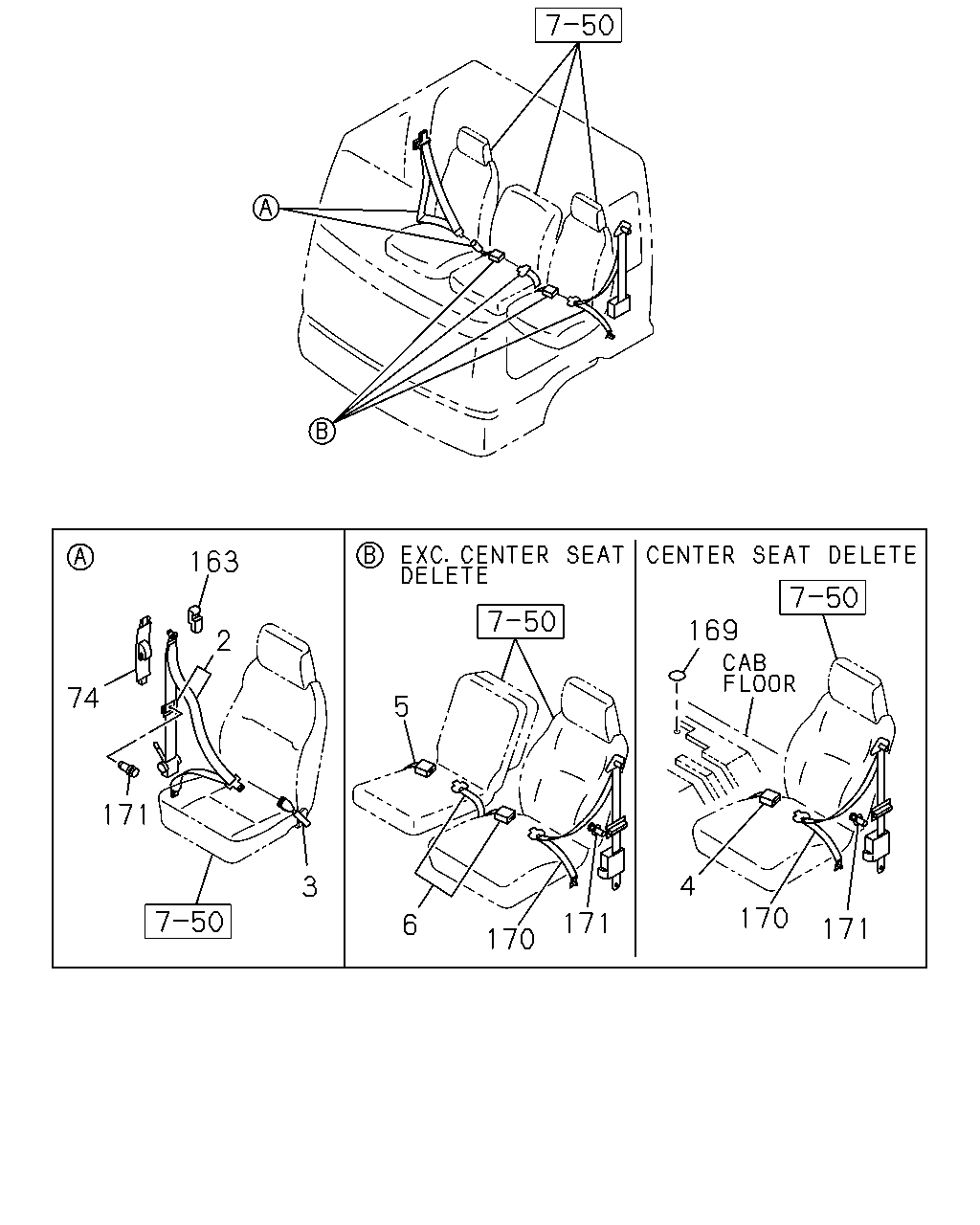

çizim 140084
163 169 2 74 5 171 4 3 170 171 6 171 170
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 8-97386-847-3 01 1 0610-
3 BELT; SEAT,BUCKLE SIDE 8-97386-846-0 01 1 0610-1401
3 BELT; SEAT,BUCKLE SIDE 8-98270-818-0 01 1 1402-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0610-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0610-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 0610-
74 RAIL ASM; SHOULDER ANCHOR 8-97386-855-2 01 1 0610-
163 COVER; ADJUSTER 8-97386-863-0 01 1 0610-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0610-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-588-3 01 1 0610-0805
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-820-1 01 1 0806-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
