7-50 — FRONT SEAT (#27902) — 573 parça
çizim 140410
506 360 175 176 16 188 189 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-75418-062-1 01 1 0610-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-762-0 01 1 0806-1011
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-329-1 01 1 1012-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-856-3 01 1 0610-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-602-3 01 1 0610-0805
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-602-3 01 1 0806-1011
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-328-1 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-191-0 01 1 0806-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-332-0 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-710-1 01 1 0610-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-156-2 01 1 0610-0805
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-156-2 01 1 0806-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-331-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-190-0 01 1 0806-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-326-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-696-1 01 1 0610-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-155-2 01 1 0610-0805
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-155-2 01 1 0806-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-324-0 01 1 1012-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-761-0 01 1 0806-1011
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-318-2 01 1 1012-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-845-4 01 1 0610-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-601-2 01 1 0610-0805
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-601-2 01 1 0806-1011
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-316-2 01 1 1012-
188 BOLT; BACK TO CUSHION
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 0610-
189 BUSHING; HINGE,CENTER SEAT BACK
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		8-97854-900-0 01 1 0610-
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72538-275-4 01 1 0610-1006
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (A) M4X16 		0-70080-416-0 06 1 0806-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0610-0612
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-0805
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 0610-0612
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0701-0805
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) M4X16 		0-70040-416-0 06 1 0806-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1007-1104
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0610-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		1-75538-207-0 04 1 0610-0703
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-09983-180-3 04 1 0610-1006
506 CAP; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-09983-180-3 02 1 1007-

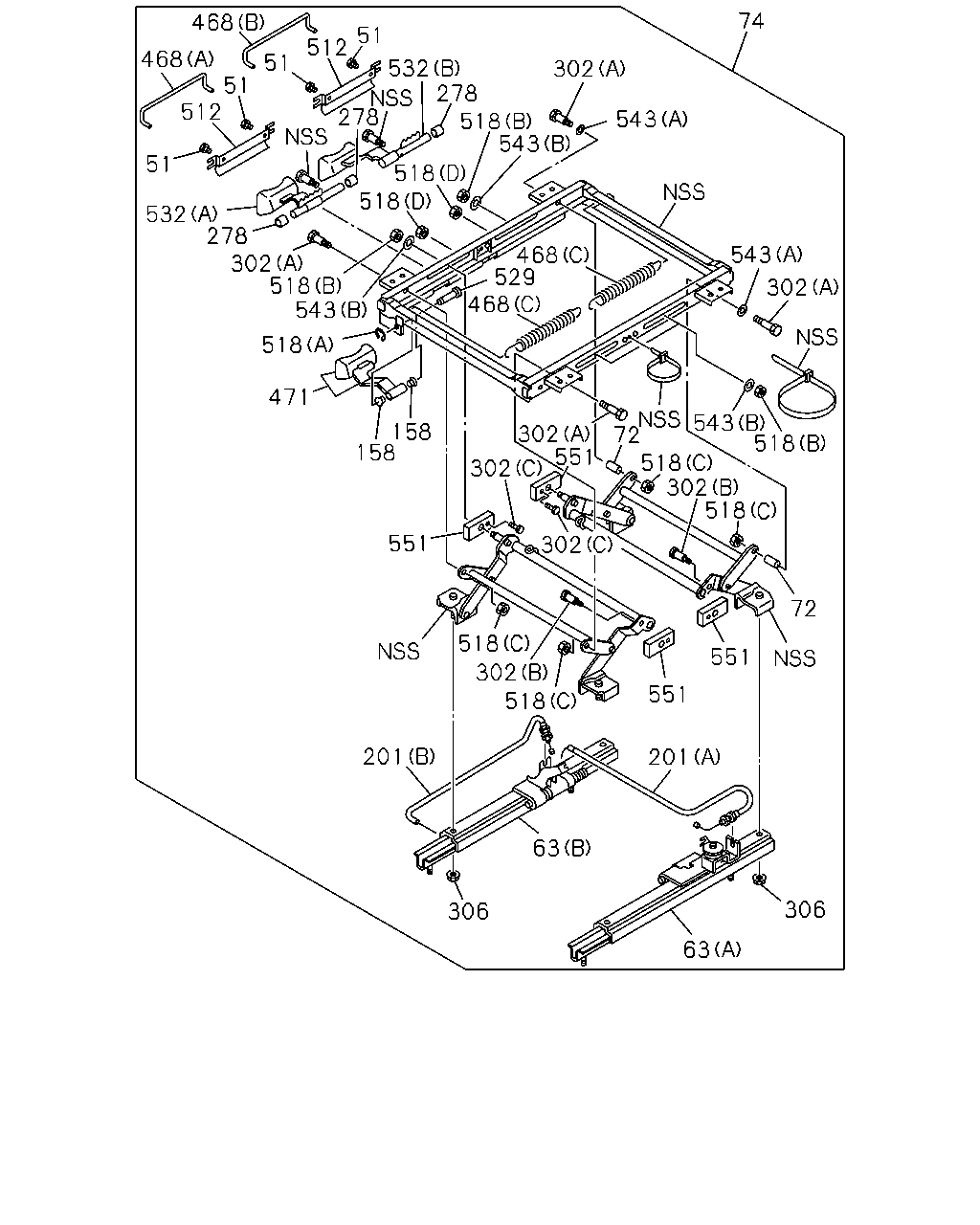

çizim 140421
74 468 51 512 468 51 532 278 518 543 302 51 512 278 543 51 518 518 532 278 302 518 543 543 468 529 468 302 518 471 551 518 302 543 518 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 72 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-1 04 1 0610-0805
51 SCREW; COVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-1 04 1 0610-0805
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-325-1 04 1 0610-0805
51 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-1 04 1 0806-
51 SCREW; COVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-1 04 1 0806-
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-325-1 04 1 0806-
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-325-1 04 1 0806-
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-199-1 01 1 0610-0805
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-199-1 01 1 0610-0805
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-199-1 01 1 0610-0805
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-199-1 01 1 0806-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-199-1 01 1 0806-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-199-1 01 1 0806-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-199-1 01 1 0806-
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-323-0 01 1 0610-0805
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-323-0 01 1 0610-0805
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-323-0 01 1 0610-0805
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-323-0 01 1 0806-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-323-0 01 1 0806-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-323-0 01 1 0806-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-323-0 01 1 0806-
72 SPACER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-1 02 1 0610-0805
72 SPACER; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-1 02 1 0610-0805
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-334-1 02 1 0610-0805
72 SPACER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-1 02 1 0806-1502
72 SPACER; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-1 02 1 0806-1502
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-334-1 02 1 0806-1502
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-334-1 02 1 0806-1502
72 SPACER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-668-0 02 1 1503-
72 SPACER; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-668-0 02 1 1503-
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98291-668-0 02 1 1503-
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-2 01 1 0610-0805
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-2 01 1 0610-0805
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-330-2 01 1 0610-0805
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-3 01 1 0806-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-3 01 1 0806-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-330-3 01 1 0806-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-330-3 01 1 0806-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-644-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-644-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98291-644-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98291-644-0 01 1 1503-
158 BUSHING; LINK ARM
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0610-0805
158 BUSHING; LINK ARM
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0610-0805
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-209-0 02 1 0610-0805
158 BUSHING; LINK ARM
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0806-
158 BUSHING; LINK ARM
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0806-
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-209-0 02 1 0806-
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-209-0 02 1 0806-
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0610-0805
201 CABLE; ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0610-0805
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) (A) L=667 		1-75518-288-0 01 1 0610-0805
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0806-
201 CABLE; ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0806-
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) L=667 		1-75518-288-0 01 1 0806-
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) L=667 		1-75518-288-0 01 1 0806-
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0610-0805
201 CABLE; ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0610-0805
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) (B) L=605 		1-75518-289-1 01 1 0610-0805
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0806-
201 CABLE; ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0806-
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) L=605 		1-75518-289-1 01 1 0806-
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) L=605 		1-75518-289-1 01 1 0806-
278 COLLAR; FRT SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0610-0805
278 COLLAR; FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0610-0805
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-244-0 03 1 0610-0805
278 COLLAR; FRT SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0806-
278 COLLAR; FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0806-
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-244-0 03 1 0806-
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-244-0 03 1 0806-
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-2 02 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-2 02 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-266-2 02 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-2 02 1 0806-
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-2 02 1 0806-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (C) 		1-75518-266-2 02 1 0806-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (C) 		1-75518-266-2 02 1 0806-
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-1 04 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-1 04 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-270-1 04 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-1 04 1 0806-1502
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-1 04 1 0806-1502
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-270-1 04 1 0806-1502
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-270-1 04 1 0806-1502
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-1 02 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-1 02 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-336-1 02 1 0610-0805
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-1 02 1 0806-
302 BOLT; ADJ,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-1 02 1 0806-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-336-1 02 1 0806-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-336-1 02 1 0806-
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0610-0805
306 NUT; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0610-0805
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0610-0805
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0806-
306 NUT; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0806-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> M8 FLANGE 		1-75538-207-0 14 1 0806-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M8 FLANGE 		1-75538-207-0 14 1 0806-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0610-0805
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0610-0805
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 0610-0805
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0806-
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-206-0 01 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-206-0 01 1 0806-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0610-0805
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0610-0805
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 0610-0805
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0806-
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-207-0 01 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-207-0 01 1 0806-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0610-0805
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0610-0805
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 0610-0805
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0806-
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (C) 		1-75518-208-0 02 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (C) 		1-75518-208-0 02 1 0806-
468 SPRING; RETURN
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0610-
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0610-0710
471 LEVER; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0610-0710
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-291-0 01 1 0610-0710
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98107-869-0 01 1 0711-0805
471 LEVER; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98107-869-0 01 1 0711-0805
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		8-98107-869-0 01 1 0711-0805
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98107-869-0 01 1 0806-
471 LEVER; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98107-869-0 01 1 0806-
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98107-869-0 01 1 0806-
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98107-869-0 01 1 0806-
512 COVER; LEVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-1 02 1 0610-0805
512 COVER; LEVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-1 02 1 0610-0805
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-243-1 02 1 0610-0805
512 COVER; LEVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-1 02 1 0806-
512 COVER; LEVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-1 02 1 0806-
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-243-1 02 1 0806-
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-243-1 02 1 0806-
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0610-0805
518 NUT; TILT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0610-0805
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-263-0 01 1 0610-0805
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0806-
518 NUT; TILT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0806-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-263-0 01 1 0806-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-263-0 01 1 0806-
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 		1-75518-264-0 04 1 0610-0805
518 NUT; TILT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 		1-75518-264-0 04 1 0610-0805
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (C) M8 		1-75518-264-0 04 1 0610-0805
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 		1-75518-264-0 04 1 0806-
518 NUT; TILT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 		1-75518-264-0 04 1 0806-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (C) M8 		1-75518-264-0 04 1 0806-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (C) M8 		1-75518-264-0 04 1 0806-
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0610-0805
518 NUT; TILT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0610-0805
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0610-0805
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0806-
518 NUT; TILT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0806-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0806-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0806-
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE 		8-94152-886-0 04 1 0610-0805
518 NUT; TILT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE 		8-94152-886-0 04 1 0610-0805
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (B) M8 FLANGE 		8-94152-886-0 04 1 0610-0805
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE 		8-94152-886-0 04 1 0806-
518 NUT; TILT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE 		8-94152-886-0 04 1 0806-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) M8 FLANGE 		8-94152-886-0 04 1 0806-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) M8 FLANGE 		8-94152-886-0 04 1 0806-
529 PIN; LINK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0610-0805
529 PIN; LINK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0610-0805
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-262-0 01 1 0610-0805
529 PIN; LINK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0806-
529 PIN; LINK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0806-
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-262-0 01 1 0806-
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-262-0 01 1 0806-
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0610-0805
532 LEVER ASM; TILT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0610-0805
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-203-0 01 1 0610-0805
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0806-
532 LEVER ASM; TILT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0806-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-203-0 01 1 0806-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-203-0 01 1 0806-
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0610-0805
532 LEVER ASM; TILT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0610-0805
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-204-1 01 1 0610-0805
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0806-
532 LEVER ASM; TILT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0806-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-204-1 01 1 0806-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-204-1 01 1 0806-
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 		9-09160-508-0 04 1 0610-0805
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 		9-09160-508-0 04 1 0610-0805
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) (B) ID=8.4 		9-09160-508-0 04 1 0610-0805
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 		9-09160-508-0 04 1 0806-
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 		9-09160-508-0 04 1 0806-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) ID=8.4 		9-09160-508-0 04 1 0806-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) ID=8.4 		9-09160-508-0 04 1 0806-
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0610-0805
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0610-0805
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-335-0 02 1 0610-0805
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0806-1502
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0806-1502
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-335-0 02 1 0806-1502
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-335-0 02 1 0806-1502
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
551 SLIDER; HEIGHT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0610-0805
551 SLIDER; HEIGHT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0610-0805
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-265-0 04 1 0610-0805
551 SLIDER; HEIGHT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0806-
551 SLIDER; HEIGHT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0806-
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-265-0 04 1 0806-
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-265-0 04 1 0806-

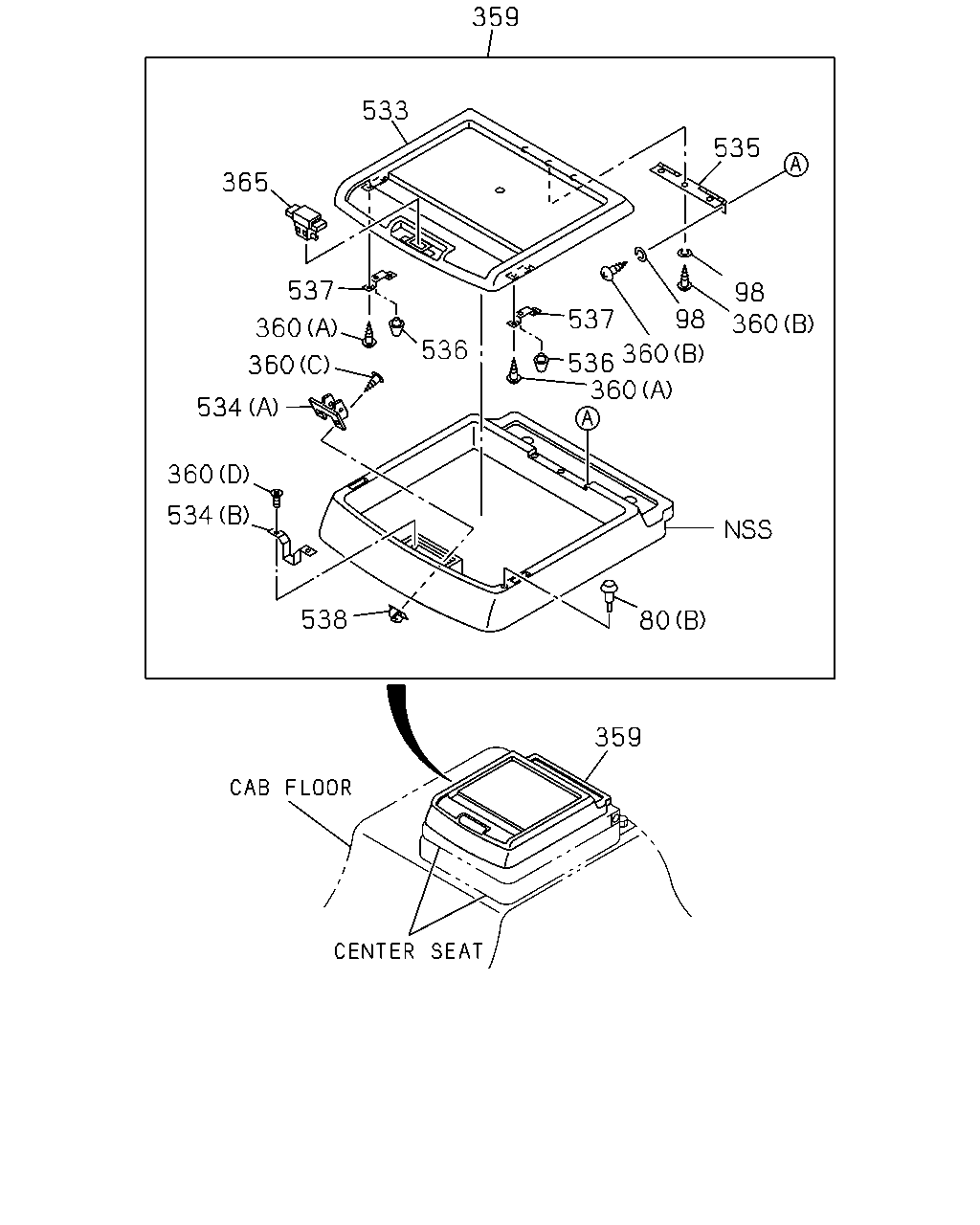

çizim 140423
359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 538 80 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0610-
98 WASHER; HINGE
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0610-
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72538-275-4 01 1 0610-1006
359 BOX; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (A) M4X16 		0-70080-416-0 06 1 0806-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0610-0612
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-0805
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 0610-0612
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0701-0805
360 SCREW; PARCEL
VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) M4X16 		0-70040-416-0 06 1 0806-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1007-1104
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0610-1006
360 SCREW; PARCEL
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72538-180-0 01 1 0610-
533 LID; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72538-277-1 01 1 0610-1006
533 LID; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (A) 		1-72538-181-0 01 1 0610-1006
534 STRIKER; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72447-391-1 01 1 0610-
536 RUBBER; CUSHION
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		5-09983-002-1 02 1 0610-1006
537 BRACKET; RUBBER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-72548-057-1 02 1 0610-1006
538 GROMMET; SCREW
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) 		1-09983-165-0 02 1 0610-1006

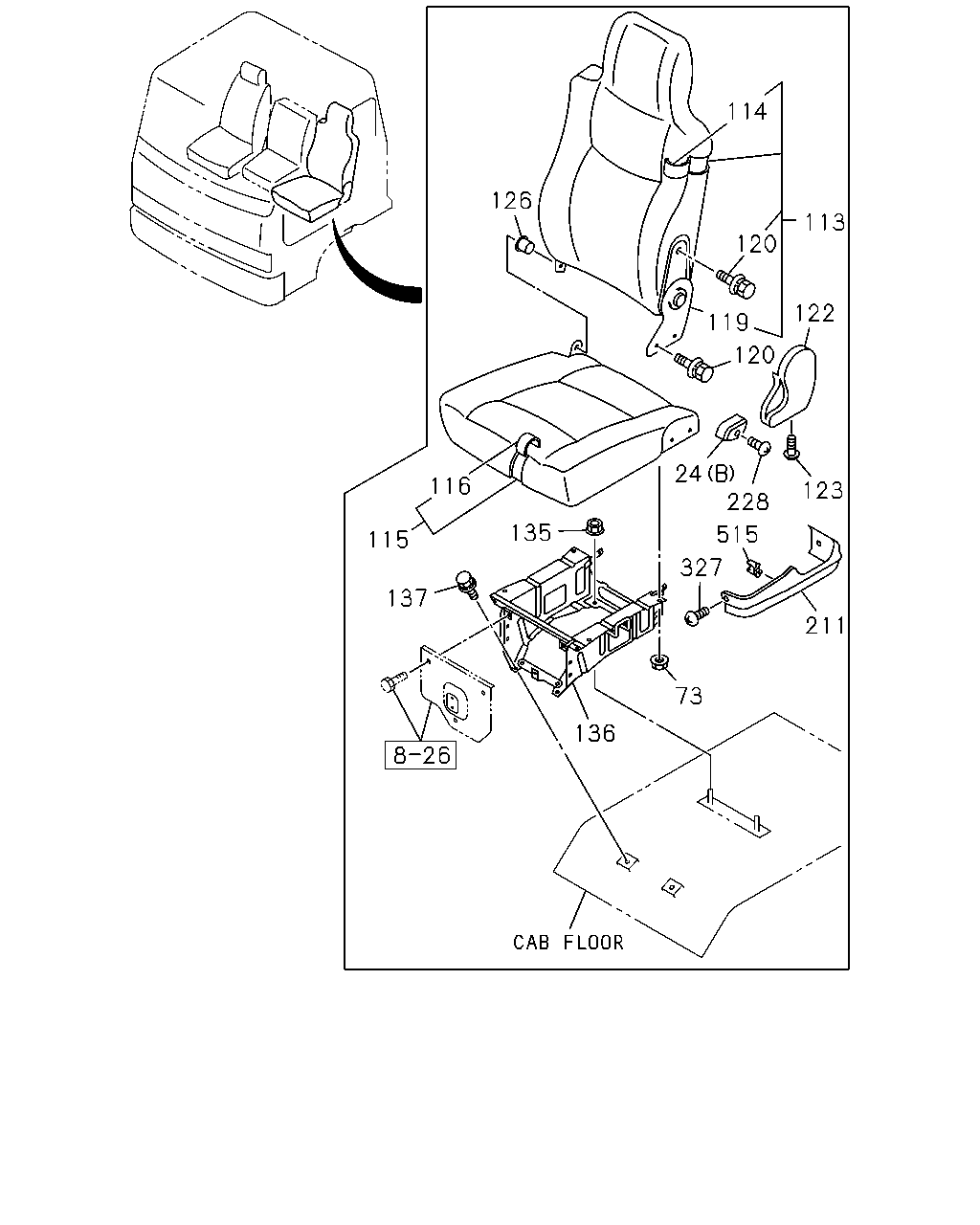

çizim 140432
114 126 113 120 122 119 120 24 228 116 123 135 515 115 327 137 211 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY 		8-97867-021-0 01 1 0610-0710
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY 		8-97867-021-0 01 1 0610-0710
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) DARK GRAY 		8-97867-021-0 01 1 0610-0710
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0711-0805
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0711-0805
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 0711-0805
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75418-066-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75418-066-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY 		8-97859-019-0 01 1 0610-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0610-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-759-0 01 1 0806-1009
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-280-0 01 1 1010-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-597-2 01 1 0610-0805
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-597-2 01 1 0806-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-273-0 01 1 1012-
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-652-2 01 1 0610-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-189-0 01 1 0806-1009
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-295-0 01 1 1010-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-152-2 01 1 0610-0805
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-152-2 01 1 0806-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-286-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-171-1 01 1 0610-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-771-0 01 1 0806-1009
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-131-0 01 1 1010-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-596-2 01 1 0610-0805
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-596-2 01 1 0806-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-124-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-300-0 01 1 0610-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-188-0 01 1 0806-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-270-0 01 1 1010-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-151-2 01 1 0610-0805
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-151-2 01 1 0806-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-134-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-124-0 01 1 0610-
119 ADJ; SEAT RECLINING,ASSIST SIDE
FABRIC SEAT W/RECLINING(SFQ) 		1-75417-597-0 01 1 0610-
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 04 1 0610-
120 BOLT; RECLINING ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 02 1 0610-
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) 		1-75417-598-0 01 1 0610-
122 COVER; ADJ,RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ) DARK GRAY 		8-97859-018-0 01 1 0610-
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) M6X12 		9-03490-612-0 01 1 0610-
123 SCREW; COVER,RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0610-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0610-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75558-522-8 01 1 0806-1305
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98242-290-0 01 1 1306-
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0610-0805
136 STAND; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75558-602-3 01 1 0806-1305
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75558-602-3 01 1 0806-1305
136 STAND; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		8-98242-299-0 01 1 1306-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0610-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
211 COVER; FRT SEAT 1-72538-274-0 01 1 0610-0805
211 COVER; FRT SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-72538-274-0 01 1 0806-
211 COVER; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-72538-274-0 01 1 0806-
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 0711-0805
228 SCREW; KNOB
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 0711-0805
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 0711-0805
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 0806-
228 SCREW; KNOB
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 0806-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 0806-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 0806-
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710
228 SCREW; KNOB
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ) PASSENGER M4X6 		8-97042-273-0 01 1 0711-
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0610-0805
327 CLIP; COVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0610-0805
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 02 1 0610-0805
327 CLIP; COVER 1-09987-273-0 02 1 0610-0805
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-09987-273-0 02 1 0806-
515 CLIP; PIPE
BLACK 		8-94227-248-1 01 1 0610-0805
515 CLIP; PIPE
EXC. FABRIC SEAT W/RECLINING(SFQ) BLACK 		8-94227-248-1 01 1 0806-
515 CLIP; PIPE
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> BLACK 		8-94227-248-1 01 1 0806-

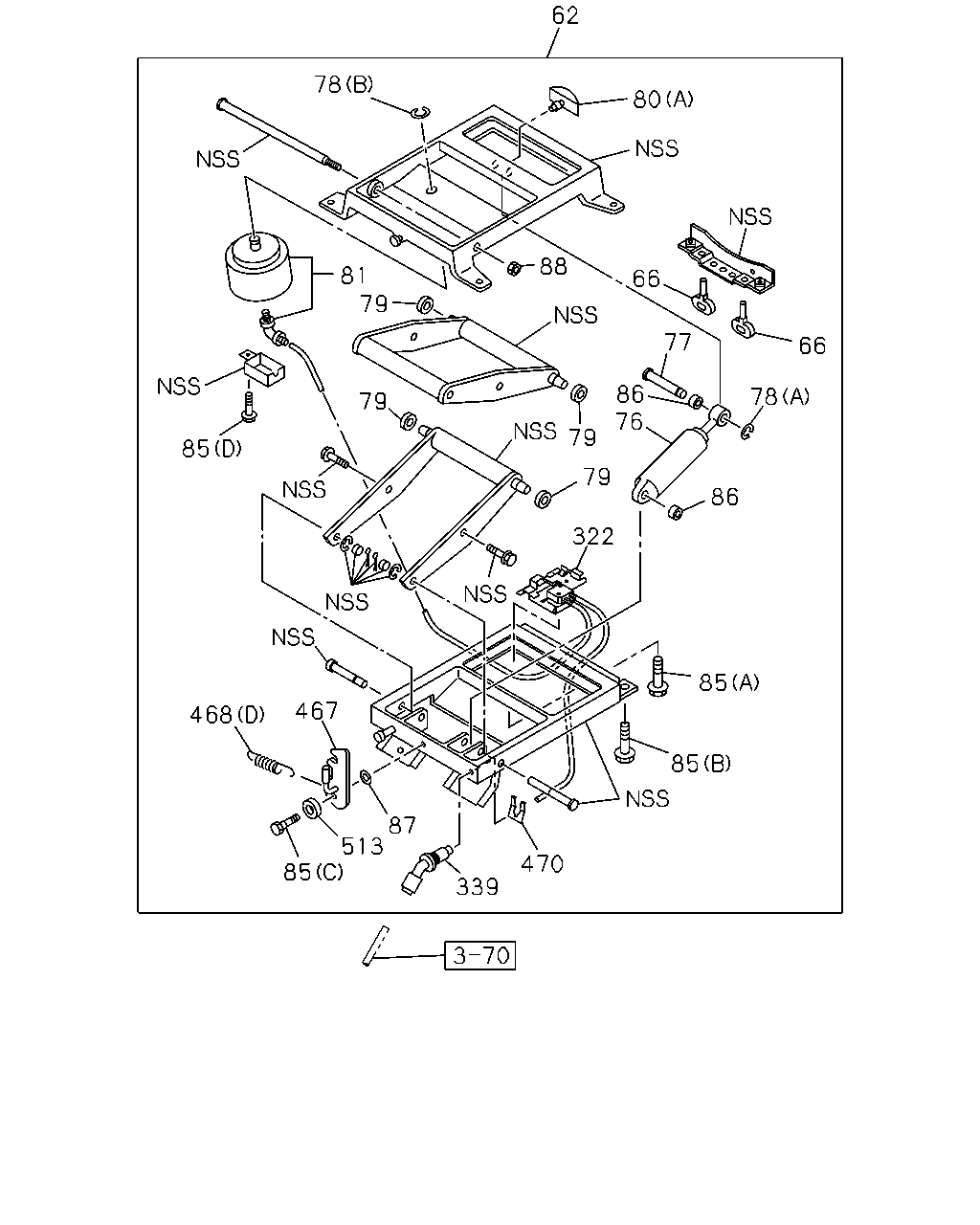

çizim 140435
78 62 80 66 66 78 86 86 76 79 322 85 85 470 339 87 513 85 467 468 85 79 81 88 79 77 79
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0610-1403
62 DAMPER ASM; SEAT SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
66 RUBBER; LWR STOPPER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0610-
76 DAMPER; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0610-
77 PIN; DAMPER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0610-
78 RING; SNAP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0610-
78 RING; SNAP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0610-
79 ROLLER ASM; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0610-1403
79 ROLLER ASM; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0610-
81 SPRING; AIR
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0610-1312
81 SPRING; AIR
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0610-
85 BOLT; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 0610-
85 BOLT; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0610-1312
85 BOLT; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0610-
87 WASHER; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0610-0710
87 WASHER; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711-
88 NUT; AIR SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 0610-
322 VALVE; AIR SPRING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-3 01 1 0610-
339 UNION; DRIVER SEAT
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0610-
467 LEVER; LOCK
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0610-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0610-0805
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0610-0805
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 0610-0805
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0806-
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75518-206-0 01 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75518-206-0 01 1 0806-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0610-0805
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0610-0805
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 0610-0805
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0806-
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (B) 		1-75518-207-0 01 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) 		1-75518-207-0 01 1 0806-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0610-0805
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0610-0805
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 0610-0805
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0806-
468 SPRING; RETURN
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (C) 		1-75518-208-0 02 1 0806-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (C) 		1-75518-208-0 02 1 0806-
468 SPRING; RETURN
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0610-
470 CLIP; HOSE
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0610-
513 SPACER; LEVER
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0610-

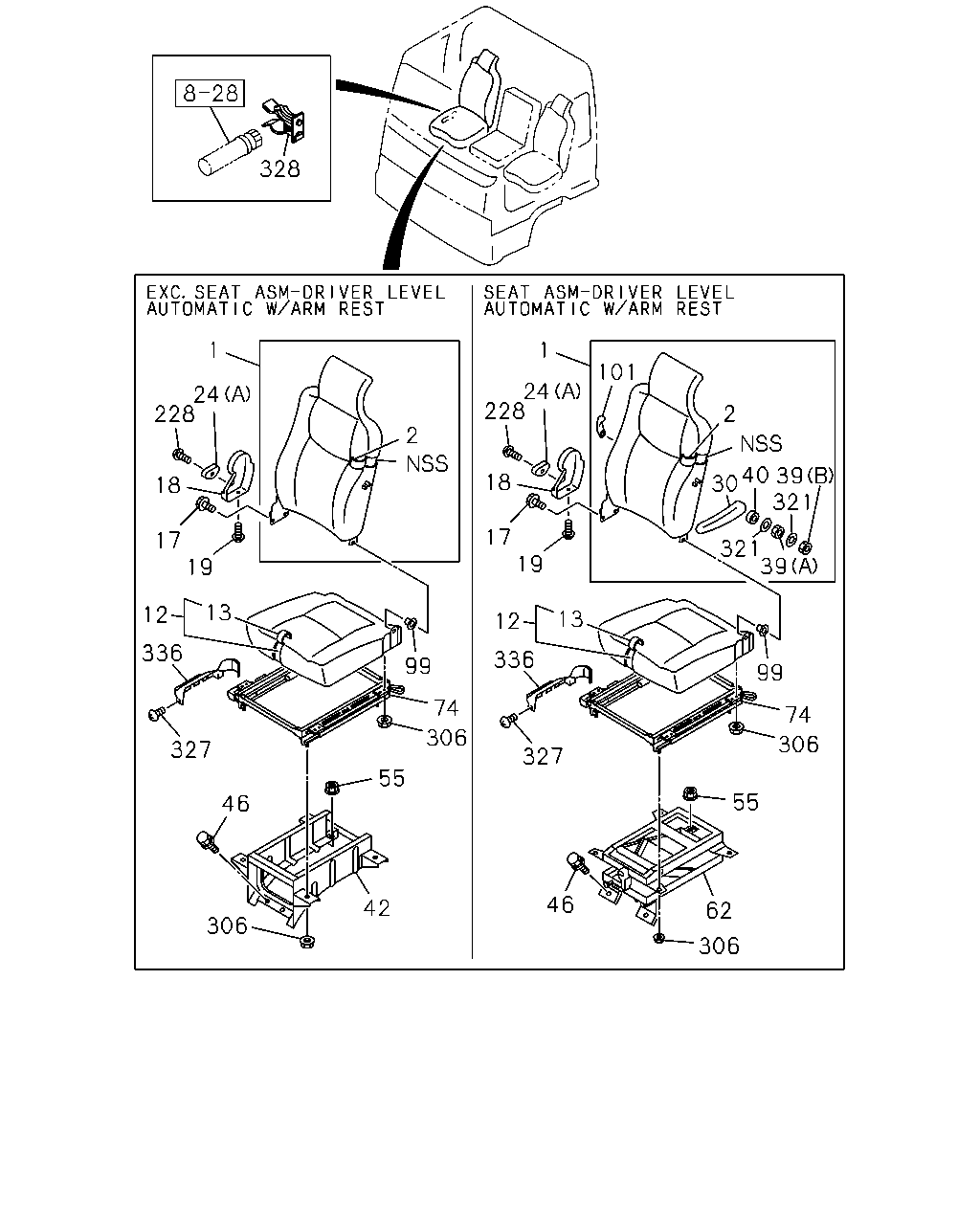

çizim 140438
328 1 1 101 24 228 24 228 2 2 30 321 321 39 18 18 17 19 17 19 13 12 13 12 336 336 99 99 74 74 306 306 327 327 55 55 46 46 42 62 306 306 40 39
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75207-756-0 01 1 0806-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98135-639-0 01 1 0902-1009
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-072-0 01 1 1010-
1 BACK ASM; SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-587-3 01 1 0610-0901
1 BACK ASM; SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-630-0 01 1 0902-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-586-3 01 1 0610-0805
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75207-586-3 01 1 0806-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98135-629-0 01 1 0902-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98168-067-0 01 1 1012-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-647-3 01 1 0610-0805
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75207-647-3 01 1 0806-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98135-636-0 01 1 0902-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98168-064-0 01 1 1012-
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-646-2 01 1 0610-0901
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-635-0 01 1 0902-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-187-0 01 1 0806-1009
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-089-0 01 1 1010-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-146-2 01 1 0610-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-145-2 01 1 0610-0805
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75127-145-2 01 1 0806-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98168-082-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-166-2 01 1 0610-0805
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75127-166-2 01 1 0806-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98168-083-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-165-1 01 1 0610-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75207-770-0 01 1 0806-1009
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-048-0 01 1 1010-
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-603-2 01 1 0610-
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-603-2 01 1 0610-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-584-4 01 1 0610-0805
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-584-4 01 1 0806-1011
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-042-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-186-0 01 1 0806-1009
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-081-0 01 1 1010-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-102-1 01 1 0610-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-102-1 01 1 0610-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-143-3 01 1 0610-0805
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-143-3 01 1 0806-1011
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-074-0 01 1 1012-
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0610-0805
17 BOLT; RECLINING
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0610-0805
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 02 1 0610-0805
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0806-
17 BOLT; RECLINING
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0806-
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> M8X20 		8-97255-906-0 02 1 0806-
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M8X20 		8-97255-906-0 02 1 0806-
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		8-97867-020-0 01 1 0610-0805
18 COVER; RECLINING
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		8-97867-020-0 01 1 0610-0805
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) DARK GRAY 		8-97867-020-0 01 1 0610-0805
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		8-97867-020-0 01 1 0806-
18 COVER; RECLINING
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		8-97867-020-0 01 1 0806-
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DARK GRAY 		8-97867-020-0 01 1 0806-
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DARK GRAY 		8-97867-020-0 01 1 0806-
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-0805
19 SCREW; COVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-0805
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-0805
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806-
19 SCREW; COVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806-
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806-
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY 		8-97867-021-0 01 1 0610-0710
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY 		8-97867-021-0 01 1 0610-0710
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) DARK GRAY 		8-97867-021-0 01 1 0610-0710
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0711-0805
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0711-0805
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 0711-0805
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75418-066-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> (A) 		1-75418-066-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) 		1-75418-066-0 01 1 0806-
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) (B) DARK GRAY 		8-97859-019-0 01 1 0610-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-185-0 01 1 0806-1009
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-091-0 01 1 1010-
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-015-1 01 1 0610-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-148-1 01 1 0610-0805
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75127-148-1 01 1 0806-
39 NUT; ARM REST
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0610-
39 NUT; ARM REST
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0610-
40 SPACER; ARM REST
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0610-
42 STAND; DRIVER SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-1 01 1 0610-0805
42 STAND; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-2 01 1 0806-
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75558-604-2 01 1 0806-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0610-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0610-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
62 DAMPER ASM; SEAT SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0610-1403
62 DAMPER ASM; SEAT SUSP
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-2 01 1 0610-0805
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-2 01 1 0610-0805
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-330-2 01 1 0610-0805
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-3 01 1 0806-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-330-3 01 1 0806-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-330-3 01 1 0806-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-330-3 01 1 0806-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-644-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-644-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98291-644-0 01 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98291-644-0 01 1 1503-
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0610-0805
99 BUSHING; SEAT BACK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0610-0805
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-97854-087-0 01 1 0610-0805
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0806-
99 BUSHING; SEAT BACK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0806-
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-97854-087-0 01 1 0806-
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-97854-087-0 01 1 0806-
101 LEVER ASM; LUMBAR
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0610-0901
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0902-
101 LEVER ASM; LUMBAR
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0902-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		5-75190-138-0 01 1 0902-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		5-75190-138-0 01 1 0902-
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 0711-0805
228 SCREW; KNOB
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 0711-0805
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 0711-0805
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 0806-
228 SCREW; KNOB
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 0806-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 0806-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 0806-
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710
228 SCREW; KNOB
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0610-0710
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ) PASSENGER M4X6 		8-97042-273-0 01 1 0711-
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0610-0805
306 NUT; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0610-0805
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 0610-0805
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0806-
306 NUT; SEAT ADJ
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0806-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> M8 FLANGE 		1-75538-207-0 14 1 0806-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> M8 FLANGE 		1-75538-207-0 14 1 0806-
321 WASHER; PL,ARM REST
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0610-
321 WASHER; PL,ARM REST
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0610-
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0610-0805
327 CLIP; COVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0610-0805
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 02 1 0610-0805
327 CLIP; COVER 1-09987-273-0 02 1 0610-0805
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-09987-273-0 02 1 0806-
328 CLIP; HANDY WARNING
VINYL SEAT(A83),FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-72537-239-0 01 1 0610-
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-303-0 01 1 0610-0805
336 COVER; DRIVER SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-303-0 01 1 0610-0805
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-303-0 01 1 0610-0805
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-303-0 01 1 0806-
336 COVER; DRIVER SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-303-0 01 1 0806-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75518-303-0 01 1 0806-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75518-303-0 01 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
