◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11038 - EXD RHD EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#27901) — 44 parça

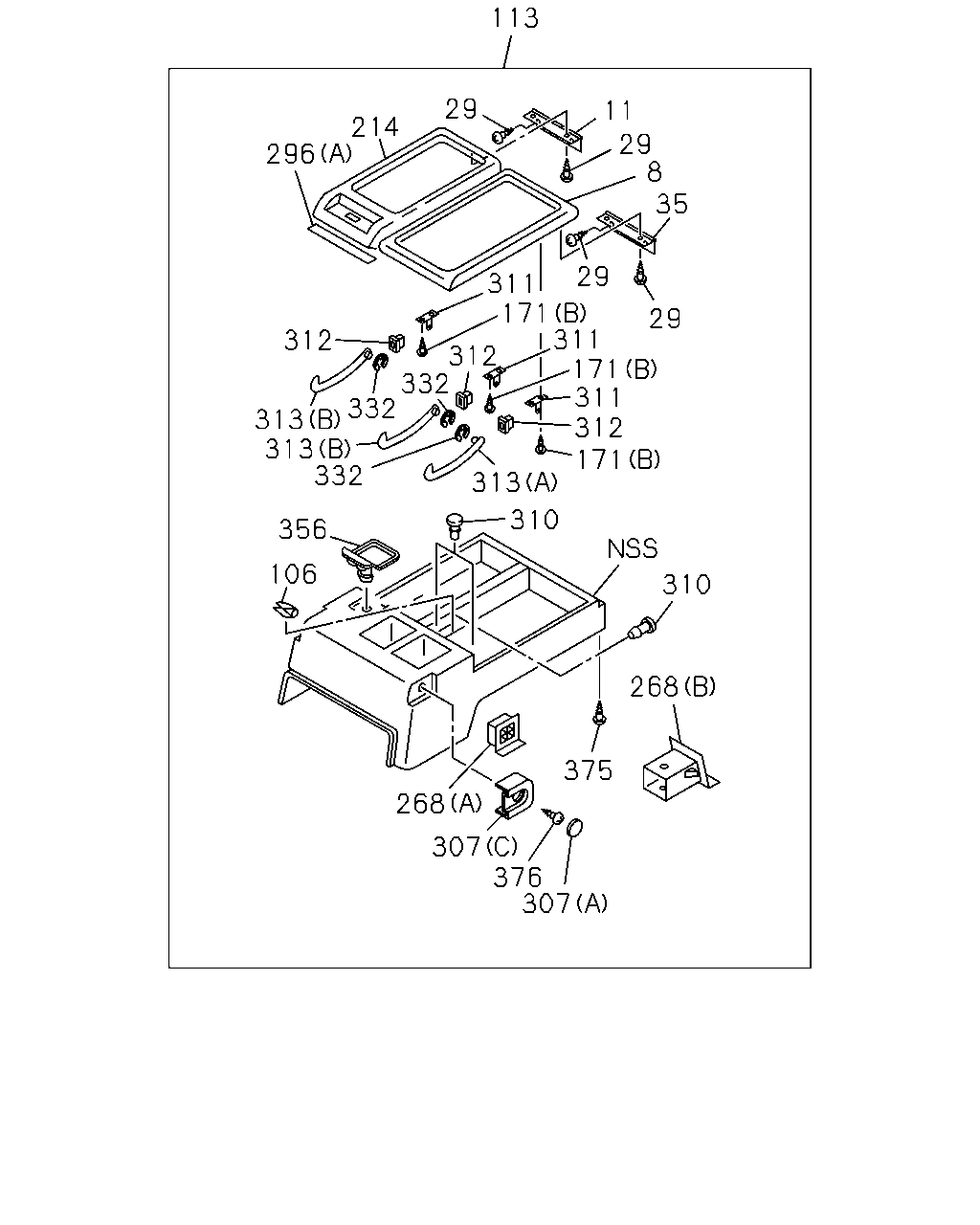

çizim 140411
113 29 11 214 29 8 35 296 29 311 171 311 171 311 312 171 29 312 312 332 332 313 313 332 313 310 356 106 310 268 375 268 307 376 307
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-185-0 01 1 0610-0705
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 0706-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 0610-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0610-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0610-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 0610-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 0610-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0610-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0610-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-186-0 01 1 0610-0705
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 0706-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-268-0 01 1 0610-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-269-0 01 1 0610-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0610-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0610-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0610-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 0610-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0610-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 0610-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 0610-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 0610-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0610-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 0610-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 0610-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) 		1-72537-271-1 01 1 0610-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 0610-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 0610-

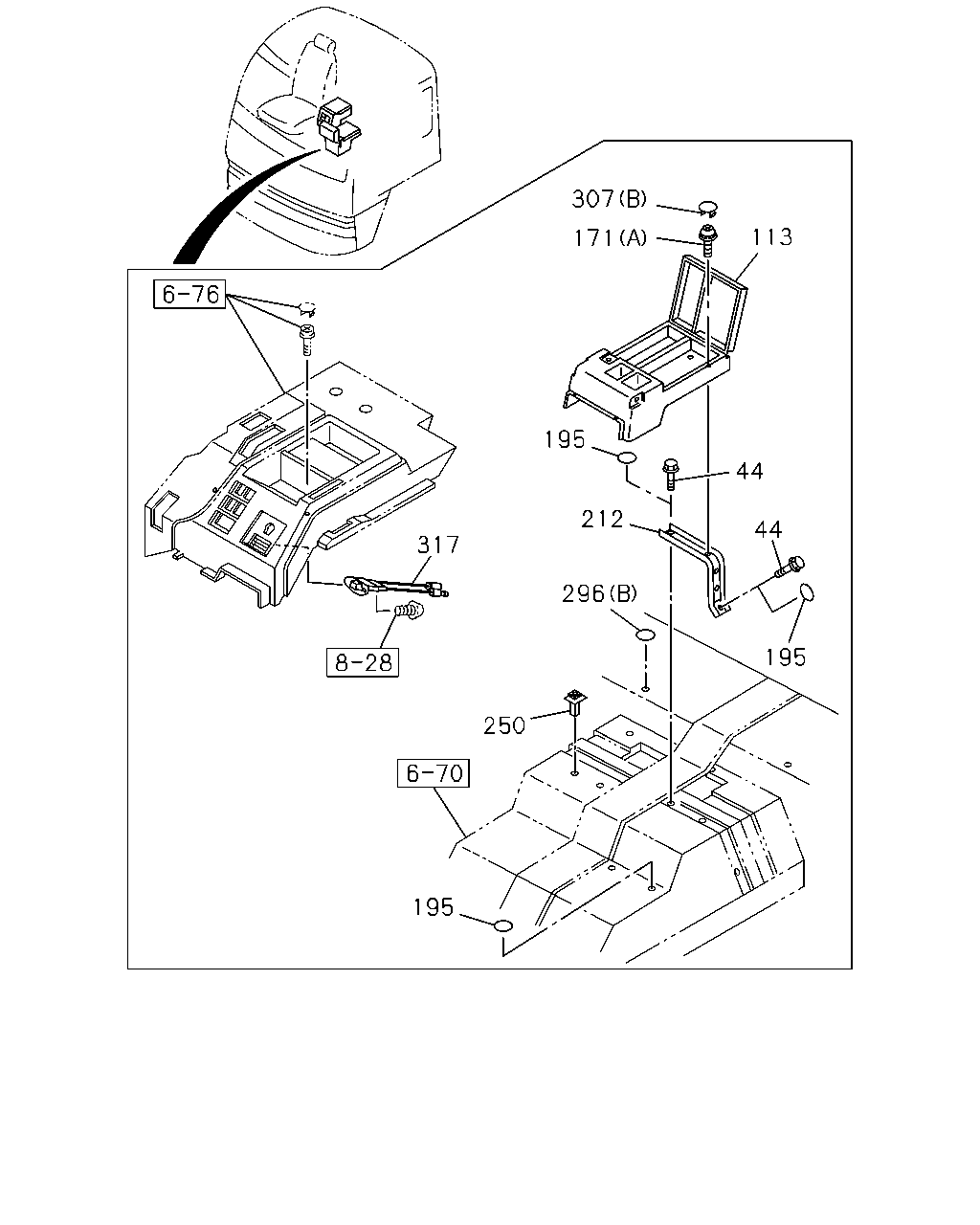

çizim 140419
307 113 171 195 44 212 44 317 296 195 250 195
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0610-0904
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 0610-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0610-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0610-
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0610-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0610-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0610-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0610-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0610-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0610-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 0610-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0610-
317 CONSENT 1-82523-020-2 01 1 0610-

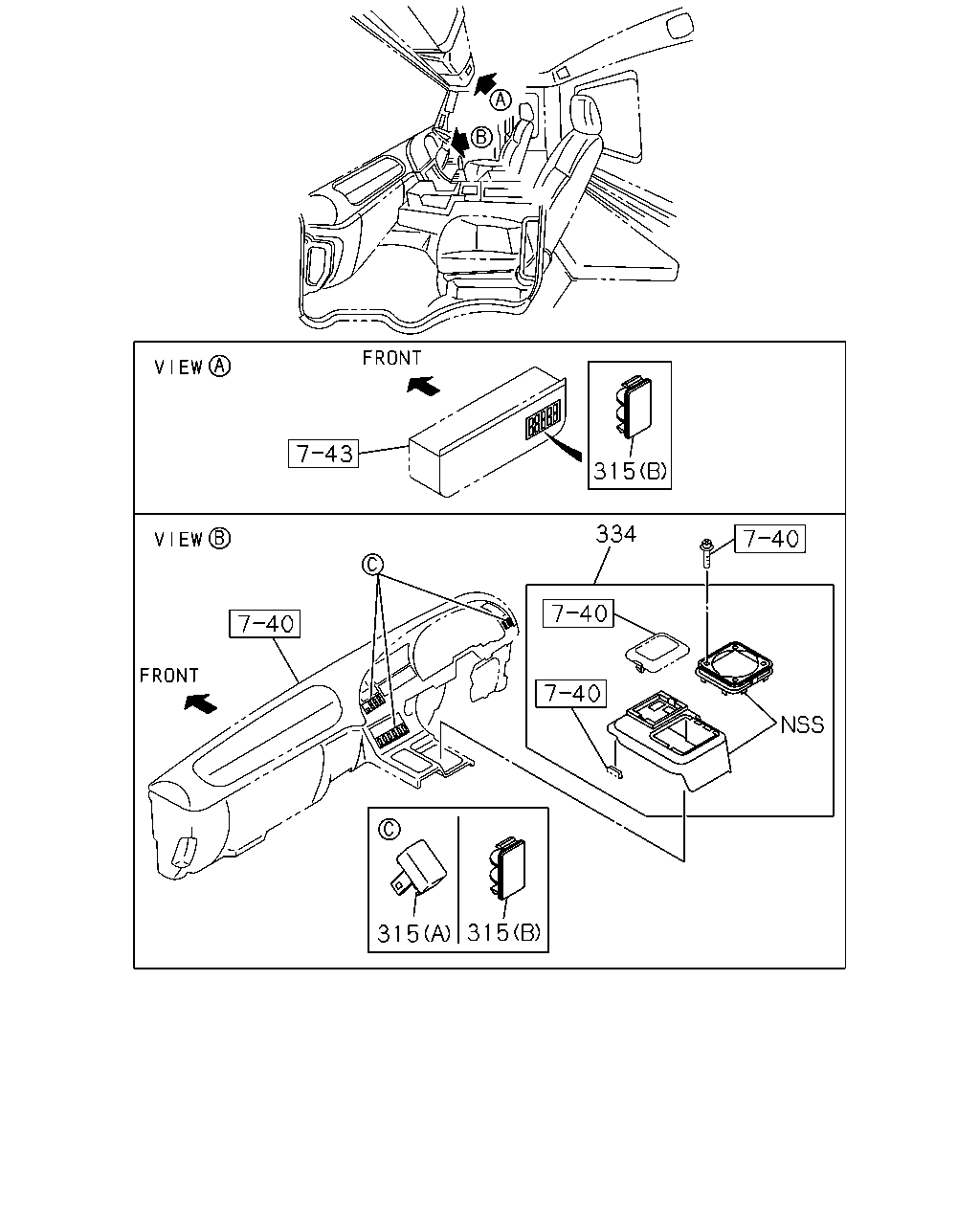

çizim 140422
315 334 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0610-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0610-
334 COVER; CHANGE LEVER 1-72447-969-1 01 1 0610-
