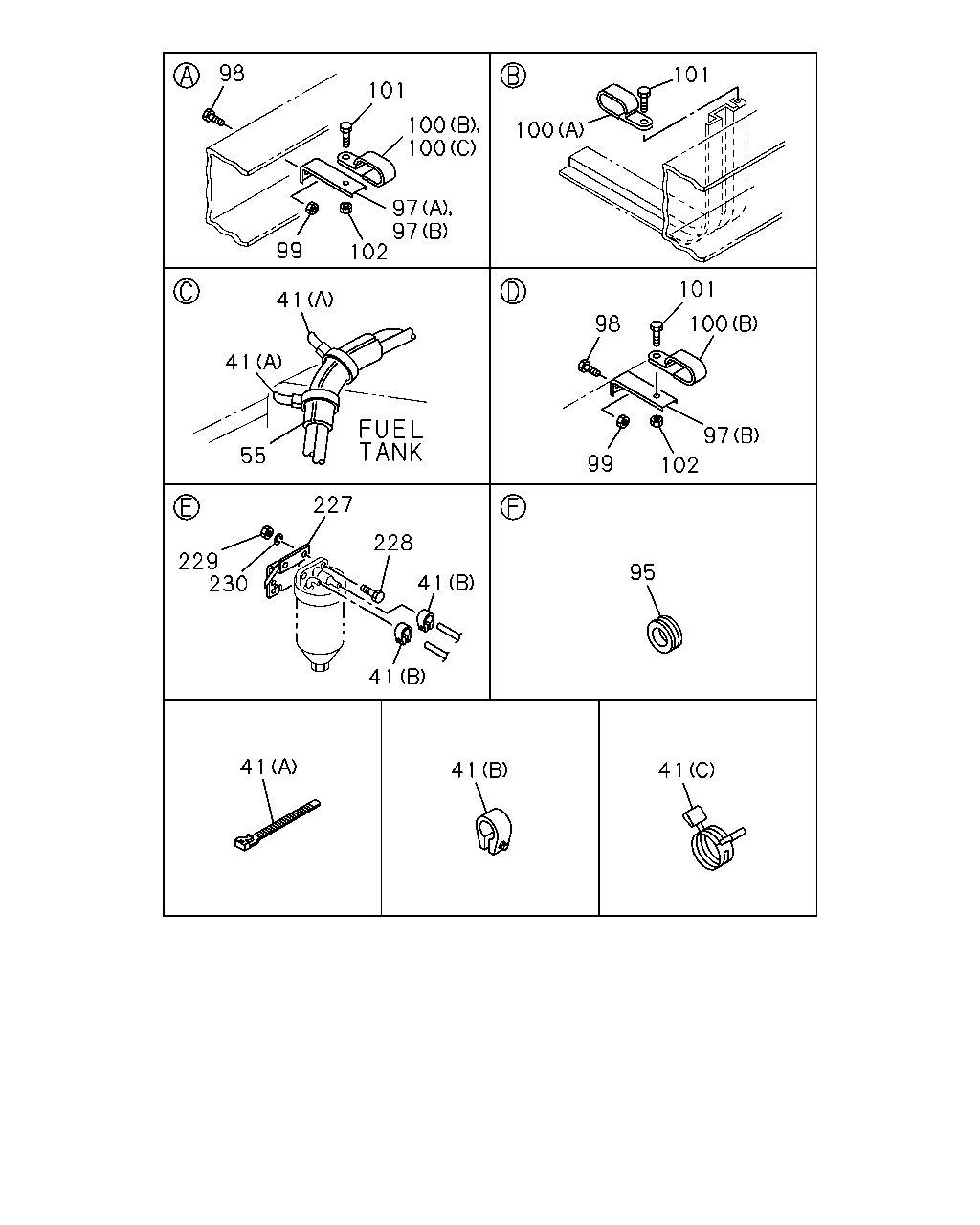

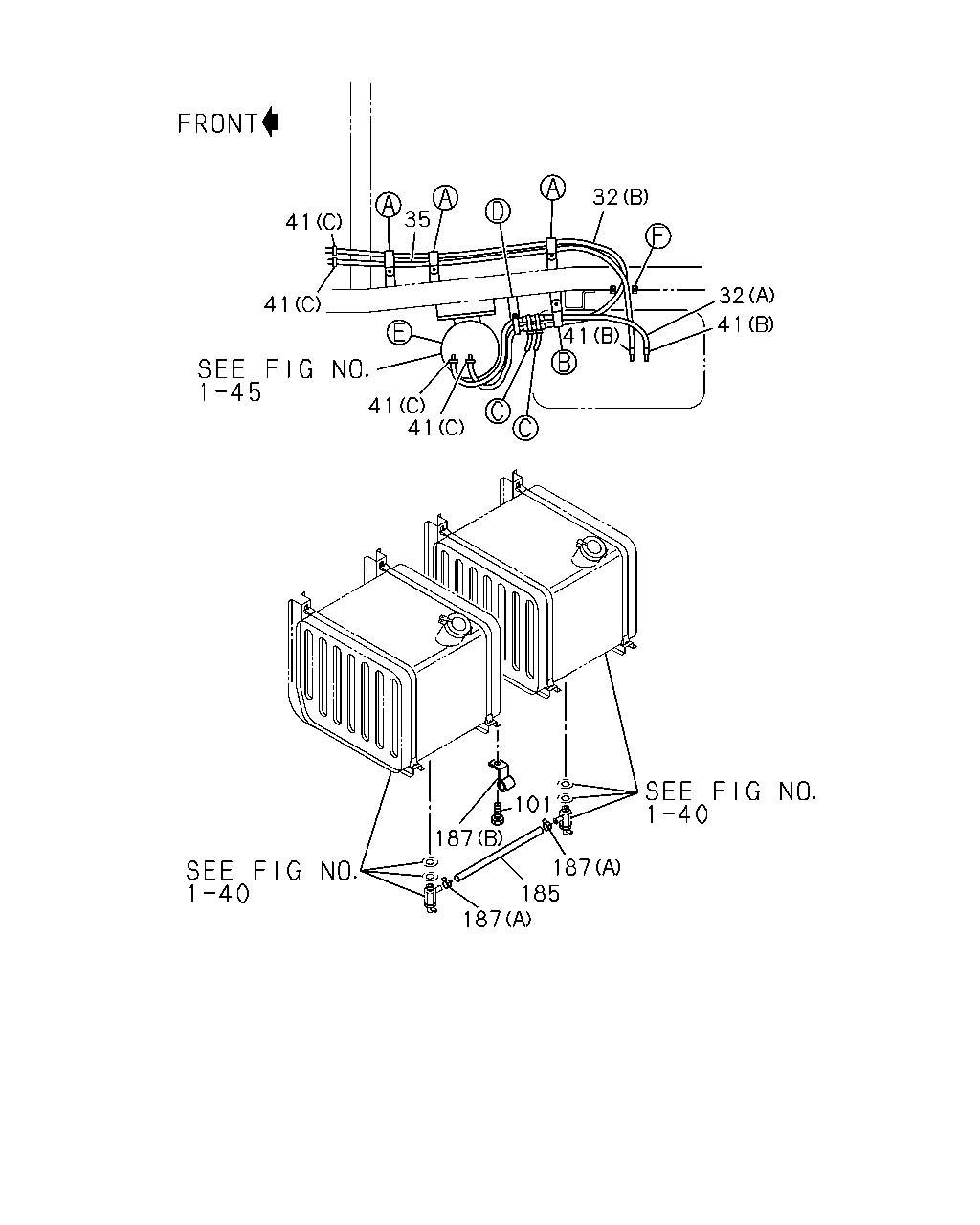

1-41B — FUEL PIPING; CHASSIS (#2790) — 73 parça

41 35 32 32 41 41 41 41 41 187 101 187 185 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) L=970 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
32	PIPE; DELIVERY,FUEL TANK FULLER M/T<X9B> (B) L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9002-		●
32	PIPE; DELIVERY,FUEL TANK ISUZU M/T<X9A> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	9002-	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 300L<RF5> L=4250	0-01160-425-0	01	1	9002-9307		●
35	PIPE; FUEL TANK,RETURN L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 300L<RF5> L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9002-9307		●
35	PIPE; FUEL TANK,RETURN L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9002-9307	●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	02	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) L=250	5-09707-030-1	02	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) (A) L=250	5-09707-030-0	04	1	9002-9306		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) (A) L=250	5-09707-030-1	01	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	9002-9306		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9002-9306		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9002-	●	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
101	BOLT; CLIP,FUEL PIPE MIXER TRUCK<RA2> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
101	BOLT; CLIP,FUEL PIPE MIXER TRUCK<RA2> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	02	1	9002-9306		●
185	PIPE; FUEL TANK TO TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L+200L<NF7> L=900 ID=12	1-09366-106-0	01	1	9002-9306		●
185	PIPE; FUEL TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> L=900 ID=12	1-09366-106-0	01	1	9002-9306		●
185	PIPE; FUEL TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●	●
185	PIPE; FUEL TANK TO TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L+200L<NF7> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9307-		●
185	PIPE; FUEL TANK TO TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L+200L<NF7> L=750	9-09914-879-0	01	1	9002-9306		●
185	PIPE; FUEL TANK TO TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L+200L<NF7> L=750 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=17	1-09700-840-0	02	1	9002-	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=18	1-09707-011-1	02	1	9002-	●	●

98 101 100 100 97 97 102 99 100 101 41 41 55 98 101 100 99 102 97 229 230 227 228 41 41 95 41 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	02	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) L=250	5-09707-030-1	02	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) (A) L=250	5-09707-030-0	04	1	9002-9306		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5000MM(50W) (A) L=250	5-09707-030-1	01	1	9307-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	9002-9306		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9002-9306		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●	●
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. FUEL TANK 300L<RF5> L=150	1-09369-006-1	01	1	9002-9004		●
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) L=150	1-09369-006-1	01	1	9005-9306		●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9307-		●
55	COVER; PIPE,FUEL TANK WHEEL BASE 5300MM(53W) L=1300	1-09360-677-1	01	1	9307-	●
95	BUSHING; PIPE,FUEL TANK FRAME EQUIPMENT HEAVY DUTY<F03> ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-	●	●
95	BUSHING; PIPE,FUEL TANK EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-	●	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	02	1	9002-	●	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	01	1	9002-	●	●
97	BRACKET; CLIP MIXER TRUCK<RA2> (A) L=55	1-47475-304-0	01	1	9307-	●
98	BOLT; BRKT,FUEL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	02	1	9002-		●
98	BOLT; BRKT,FUEL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●	●
98	BOLT; BRKT,FUEL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
98	BOLT; BRKT,FUEL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8X30 FLANGE	0-28080-830-0	01	1	9002-9306		●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9002-	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	02	1	9002-	●	●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	01	1	9002-9306		●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9307-	●	●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 300L<RF5> TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> M8	9-09110-408-0	01	1	9307-		●
99	NUT; BRKT,CLIP,FUEL TANK MIXER TRUCK<RA2> M8	9-09110-408-0	01	1	9307-	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	02	1	9002-	●	●
100	CLIP; FUEL PIPE WHEEL BASE 5000MM(50W) (B) ID=16X2 L=20	9-09535-536-0	02	1	9002-		●
100	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) (B) ID=16X2 L=20	9-09535-536-0	02	1	9002-	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 300L<RF5> (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-	●	●
100	CLIP; FUEL PIPE MIXER TRUCK<RA2> (C)	8-94107-545-0	01	1	9307-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9002-	●	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	02	1	9307-		●
101	BOLT; CLIP,FUEL PIPE MIXER TRUCK<RA2> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●	●
101	BOLT; CLIP,FUEL PIPE MIXER TRUCK<RA2> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	02	1	9002-9306		●
102	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 300L<RF5> M8	9-09110-408-0	01	1	9307-	●	●
102	NUT; CLIP,FUEL PIPE MIXER TRUCK<RA2> M8	9-09110-408-0	03	1	9307-	●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	9002-	●	●
228	BOLT; BRKT,SEDIMENTER M12X35	9-92061-235-0	04	1	9002-	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9002-	●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-	●	●
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	04	1	9002-	●	●
