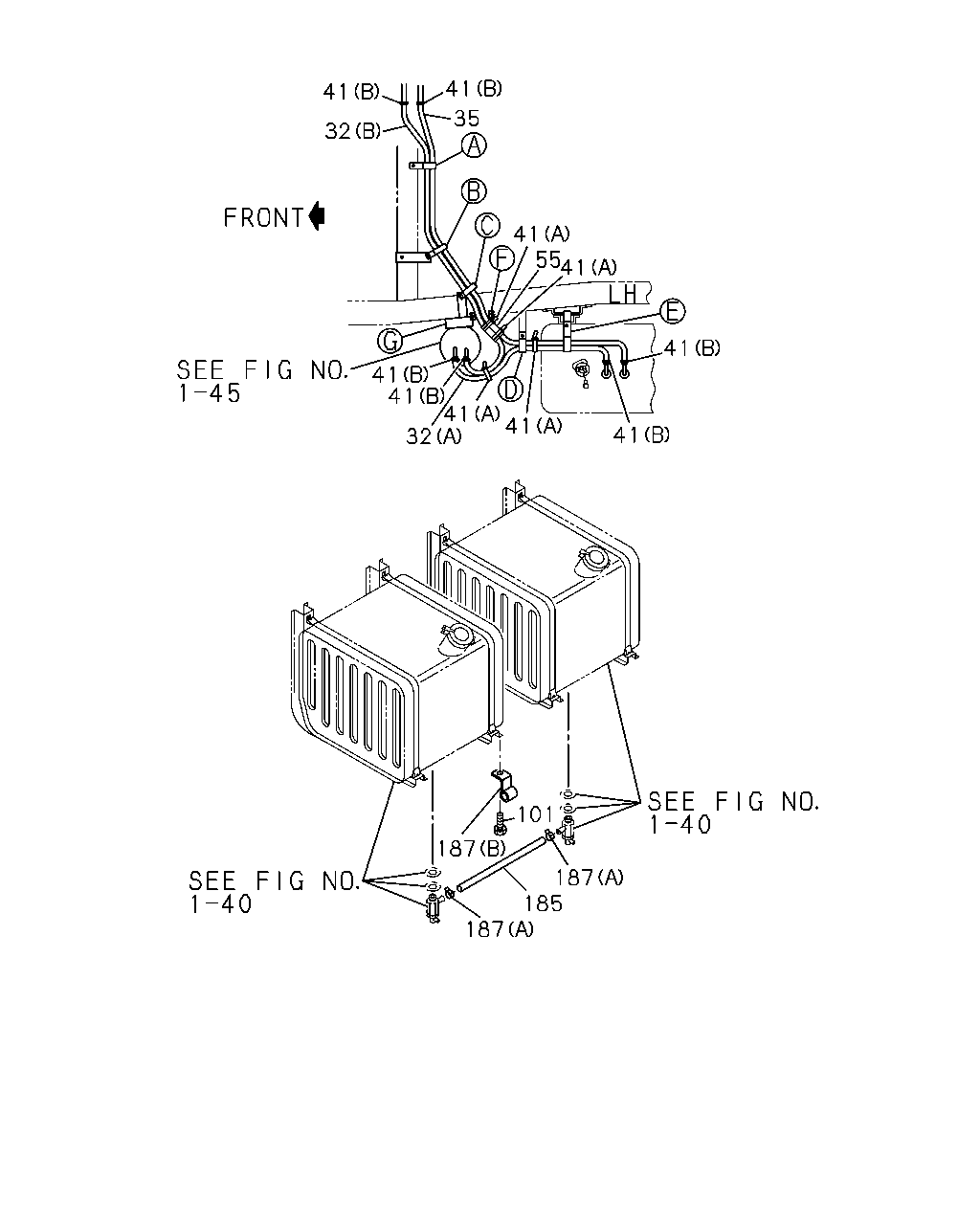

1-41A — FUEL PIPING; CHASSIS (#2789) — 71 parça

101 100 97 100 101 48 100 101 97 102 99 98 95 101 100 97 100 101 98 99 102 228 228 227 229 229 230 41 41 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	06	1	9002-9306	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	02	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. SUB AIR TANK<SJD> (A) L=250	5-09707-030-1	02	1	9307-			●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) (A) L=250	5-09707-030-0	04	1	9002-9306	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●		●
48	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9002-9302	●	●	●
48	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=150	1-09369-006-1	01	1	9002-9004	●
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) L=150	1-09369-006-1	01	1	9005-9306	●		●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9307-	●
55	COVER; PIPE,FUEL TANK EXC. SUB AIR TANK<SJD> L=1300	1-09360-677-1	01	1	9307-			●
95	BUSHING; PIPE,FUEL TANK FRAME EQUIPMENT HEAVY DUTY<F03> ID=28 OD=35 T=25	1-09332-011-1	01	1	9002-	●	●	●
95	BUSHING; PIPE,FUEL TANK EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-	●	●	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	02	1	9002-	●	●	●
97	BRACKET; CLIP (A) L=158	1-47475-395-0	01	1	9002-	●	●	●
97	BRACKET; CLIP NYLON TUBE AIR PIPING<Z29> (B) L=135	1-22518-099-0	01	1	9002-	●	●	●
98	BOLT; BRKT,FUEL PIPE NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9002-		●	●
98	BOLT; BRKT,FUEL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	02	1	9002-	●
98	BOLT; BRKT,FUEL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●
98	BOLT; BRKT,FUEL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9307-			●
98	BOLT; BRKT,FUEL PIPE NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-			●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9002-	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	02	1	9002-	●	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9307-	●		●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	02	1	9002-	●	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-	●	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	02	1	9002-	●		●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-	●		●
100	CLIP; FUEL PIPE NYLON TUBE AIR PIPING<Z29> (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-			●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9002-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9002-9302	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●
101	BOLT; CLIP,FUEL PIPE NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9002-9306	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9307-	●		●
101	BOLT; CLIP,FUEL PIPE NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-			●
102	NUT; CLIP,FUEL PIPE M8	9-09110-408-0	01	1	9307-	●		●
227	BRACKET; FUEL SEDIMENTER NYLON TUBE AIR PIPING<Z29>	1-22518-087-1	01	1	9002-	●	●	●
228	BOLT; BRKT,SEDIMENTER NYLON TUBE AIR PIPING<Z29> M12X35	9-92061-235-0	04	1	9002-	●	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9002-	●		●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-	●		●
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	04	1	9002-	●	●	●

41 35 41 32 41 55 41 41 41 41 32 41 41 41 187 101 187 185 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (A) L=970 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=2200 SERVICED BY L=3000	0-01260-300-0	01	1	9002-	●		●
35	PIPE; FUEL TANK,RETURN L=1840 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●	●
35	PIPE; FUEL TANK,RETURN L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9307-	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	06	1	9002-9306	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	02	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. SUB AIR TANK<SJD> (A) L=250	5-09707-030-1	02	1	9307-			●
41	CLIP; FUEL PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) (A) L=250	5-09707-030-0	04	1	9002-9306	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9307-	●		●
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=150	1-09369-006-1	01	1	9002-9004	●
55	COVER; PIPE,FUEL TANK SHORT CHASSIS(CXZ5MC) L=150	1-09369-006-1	01	1	9005-9306	●		●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9307-	●
55	COVER; PIPE,FUEL TANK EXC. SUB AIR TANK<SJD> L=1300	1-09360-677-1	01	1	9307-			●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9002-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9002-9302	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●
101	BOLT; CLIP,FUEL PIPE NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9002-9306	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9307-	●		●
101	BOLT; CLIP,FUEL PIPE NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9307-			●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=900 ID=12	1-09366-106-0	01	1	9002-9306		●
185	PIPE; FUEL TANK TO TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L+200L<NF7> L=900 ID=12	1-09366-106-0	01	1	9002-9306	●		●
185	PIPE; FUEL TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> L=900 ID=12	1-09366-106-0	01	1	9002-9306	●		●
185	PIPE; FUEL TANK TO TANK WHEEL BASE 5000MM(50W) FUEL TANK 200L+200L<NF7> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●		●
185	PIPE; FUEL TANK TO TANK LONG CHASSIS(CXZ5MF) FUEL TANK 200L+200L<NF7> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●		●
185	PIPE; FUEL TANK TO TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L+200L<NF7> L=750	9-09914-879-0	01	1	9002-9306	●		●
185	PIPE; FUEL TANK TO TANK WHEEL BASE 4500MM(45W) FUEL TANK 200L+200L<NF7> L=750 SERVICED BY L=10000	9-09914-914-0	01	1	9307-	●		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=17	1-09700-840-0	02	1	9002-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=18	1-09707-011-1	02	1	9002-	●	●	●
