6-47 — MUD GUARD AND INSULATOR (#27883) — 198 parça
çizim 140145
130 251 74 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0610-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0610-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 0610-
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0610-
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0610-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0610-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0610-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0610-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0610-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0610-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-072-1 01 1 0610-
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 0610-1207
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0610-
162 BRACKET
(A) 		1-53441-520-0 02 1 0610-
162 BRACKET
(B) 		1-53441-521-2 01 1 0610-
162 BRACKET
(C) 		1-53441-522-0 01 1 0610-
162 BRACKET
(D) 		1-71907-521-0 01 1 0610-0701
162 BRACKET
(E) 		1-71907-815-0 01 1 0702-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0610-
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 0610-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0610-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0610-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0610-
çizim 140358
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0610-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0610-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0610-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0610-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0610-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-072-1 01 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 15 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0610-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0610-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0610-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0610-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0610-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0610-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0610-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 0610-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0610-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0610-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0610-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 0610-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 0610-

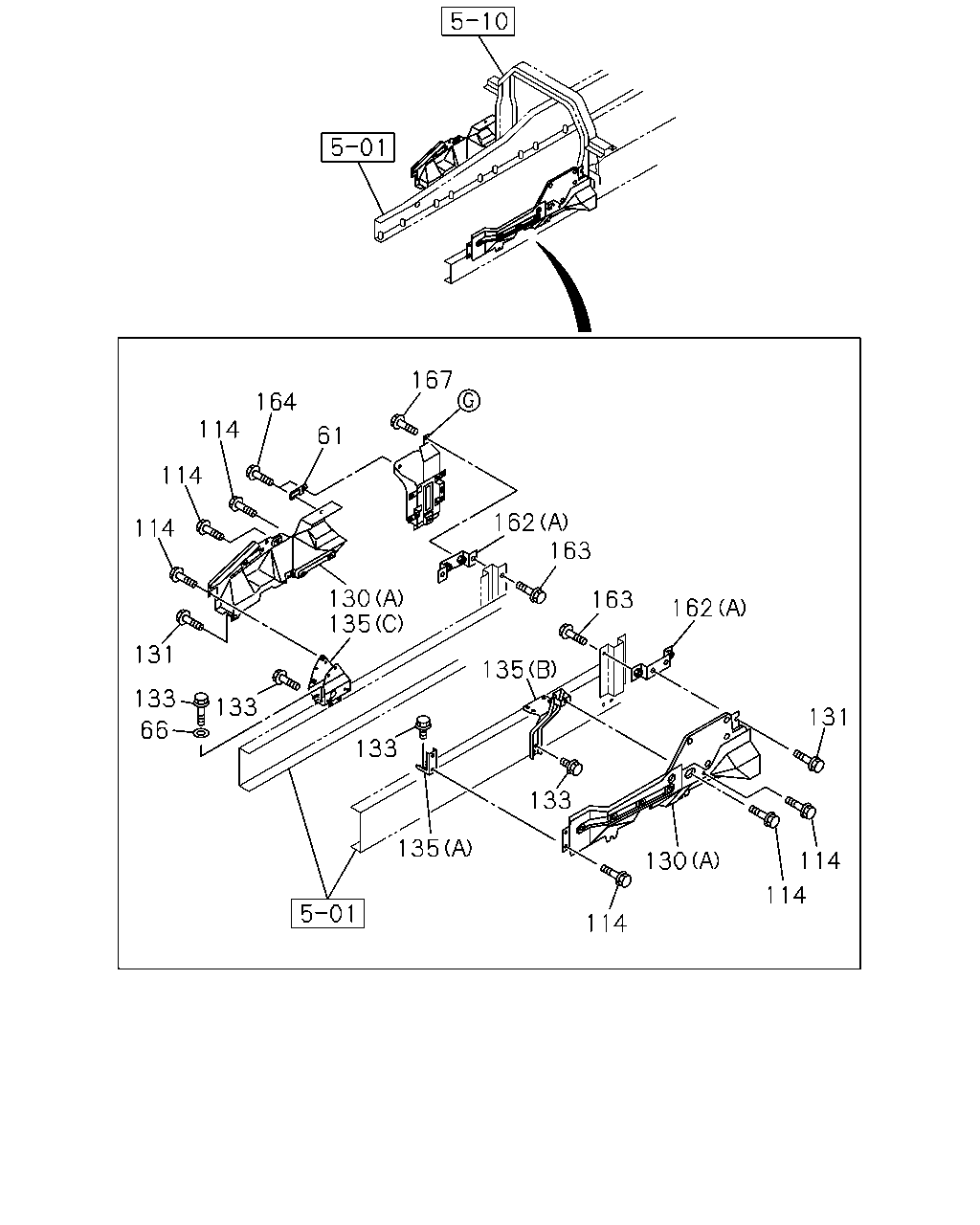

çizim 140370
167 164 114 61 114 162 163 114 130 135 163 162 131 135 133 133 131 66 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 01 1 0610-0803
61 BRACKET; COVER 8-98039-501-1 01 1 0804-
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0610-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 0610-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0610-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0610-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0610-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0610-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0610-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0610-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-072-1 01 1 0610-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0610-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0610-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0610-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0610-
135 BRACKET; SIDE PANEL
(C) 		1-33657-840-1 01 1 0610-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0610-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0610-
162 BRACKET
(A) 		1-53441-520-0 02 1 0610-
162 BRACKET
(B) 		1-53441-521-2 01 1 0610-
162 BRACKET
(C) 		1-53441-522-0 01 1 0610-
162 BRACKET
(D) 		1-71907-521-0 01 1 0610-0701
162 BRACKET
(E) 		1-71907-815-0 01 1 0702-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0610-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0610-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0610-

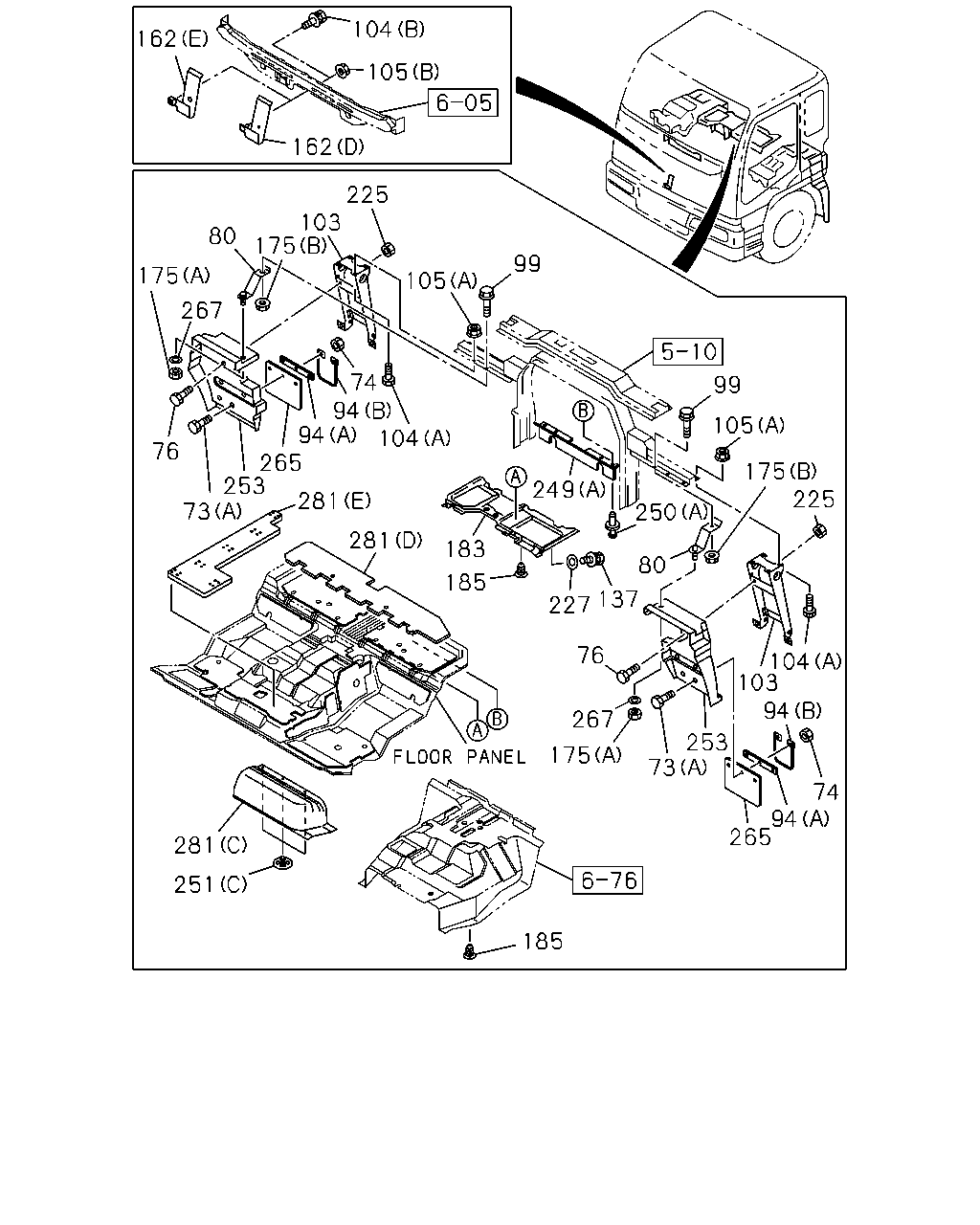

çizim 140377
104 162 105 162 225 103 175 80 99 175 105 267 74 94 94 104 265 253 73 99 105 76 175 225 249 281 250 281 183 80 185 137 227 104 103 94 76 267 253 73 175 74 94 265 281 251 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0610-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0610-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
M8 FLANGE 		0-91180-108-0 07 1 0610-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0610-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0610-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0610-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0610-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0610-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 0610-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0610-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 0610-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 0610-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-893-0 01 1 1503-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0702-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0610-
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 0610-
105 NUT; BRKT
(B) M6 CAP NUT FLANGE 		1-65471-734-0 01 1 0610-0701
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0610-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(A) 		1-53441-520-0 02 1 0610-
162 BRACKET
(B) 		1-53441-521-2 01 1 0610-
162 BRACKET
(C) 		1-53441-522-0 01 1 0610-
162 BRACKET
(D) 		1-71907-521-0 01 1 0610-0701
162 BRACKET
(E) 		1-71907-815-0 01 1 0702-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0610-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0610-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 15 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0610-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0610-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0610-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0610-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0610-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0610-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0610-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0610-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0610-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0610-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0610-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0610-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0610-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0610-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0610-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0610-
253 GUARD; MUD 1-79931-064-7 01 1 0610-0901
253 GUARD; MUD 8-98134-759-0 01 1 0902-
253 GUARD; MUD 1-79931-066-7 01 1 0610-0901
253 GUARD; MUD 8-98134-766-1 01 1 0902-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0610-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0610-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 0610-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0610-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0610-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0610-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 0610-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 0610-

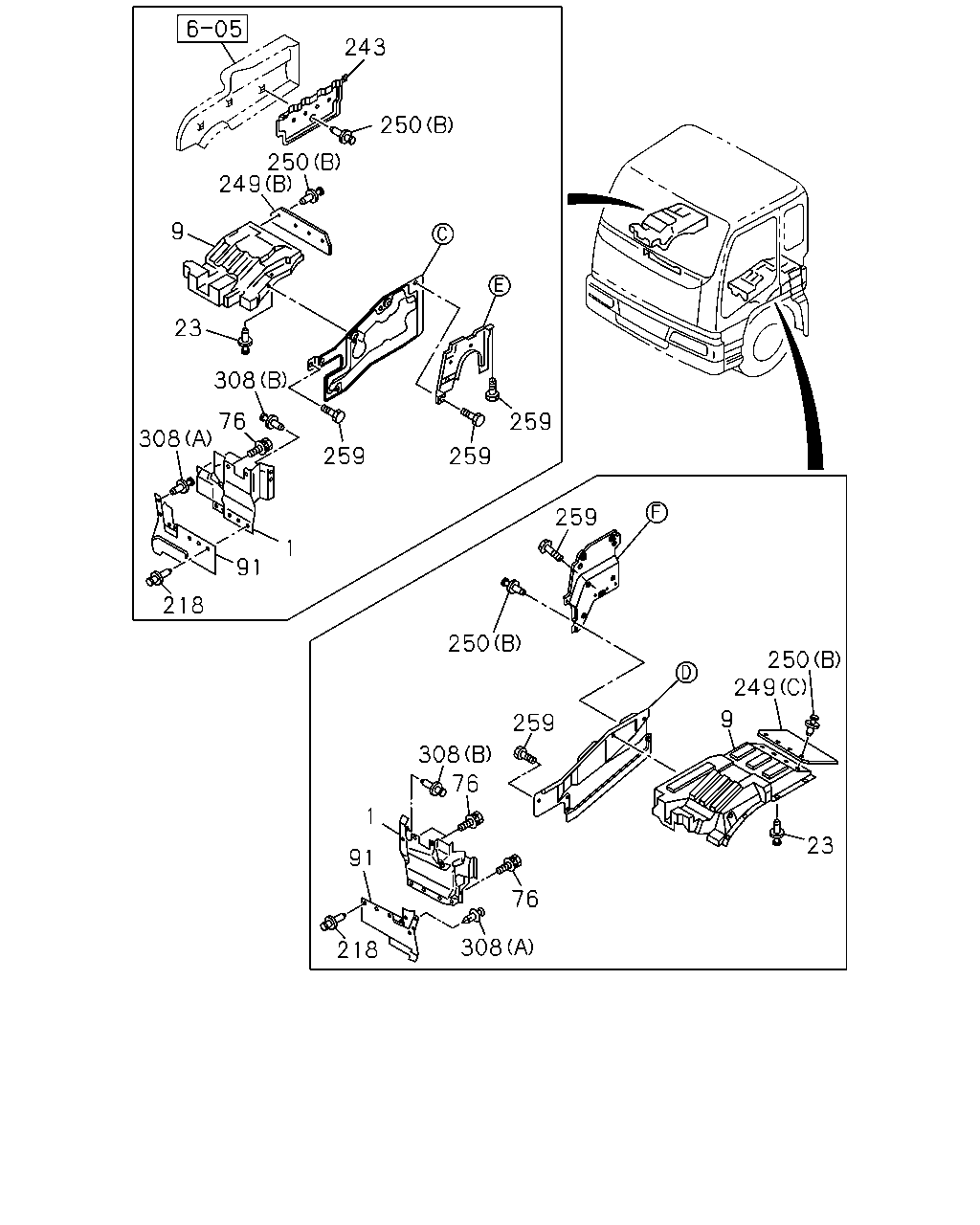

çizim 140378
243 250 250 249 9 23 308 76 259 308 259 259 259 1 91 218 250 250 249 9 259 308 76 1 23 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0610-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0610-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0610-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0610-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0610-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0610-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0610-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0610-
91 COVER; MUD,FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98134-825-1 01 1 0906-1001
91 COVER; MUD,FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98134-826-1 01 1 0906-1001
91 COVER; MUD,FRT 1-79931-203-1 01 1 0610-0905
91 COVER; MUD,FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-79931-203-1 01 1 0906-1001
91 COVER; MUD,FRT 1-79931-203-1 01 1 1002-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0610-0905
91 COVER; MUD,FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-79931-204-1 01 1 0906-1001
91 COVER; MUD,FRT 1-79931-204-1 01 1 1002-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0610-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0610-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0610-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0610-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0610-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0610-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0610-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0610-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0610-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 0610-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0610-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0610-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0610-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0610-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0610-
çizim 140456
130 185 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0610-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-380-2 01 1 0610-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0610-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0610-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0610-
130 PANEL; SHUTTER NOISE
(C) 		1-79947-072-1 01 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 15 1 0610-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0610-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0610-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0610-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0610-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0610-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0610-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0610-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D) 		1-73237-445-4 01 1 0610-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0610-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0610-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0610-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-71907-742-0 01 1 0610-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-931-0 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
