Isuzu WW
▶
TRUCKS
▶
EXD
▶
11038 - EXD RHD EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

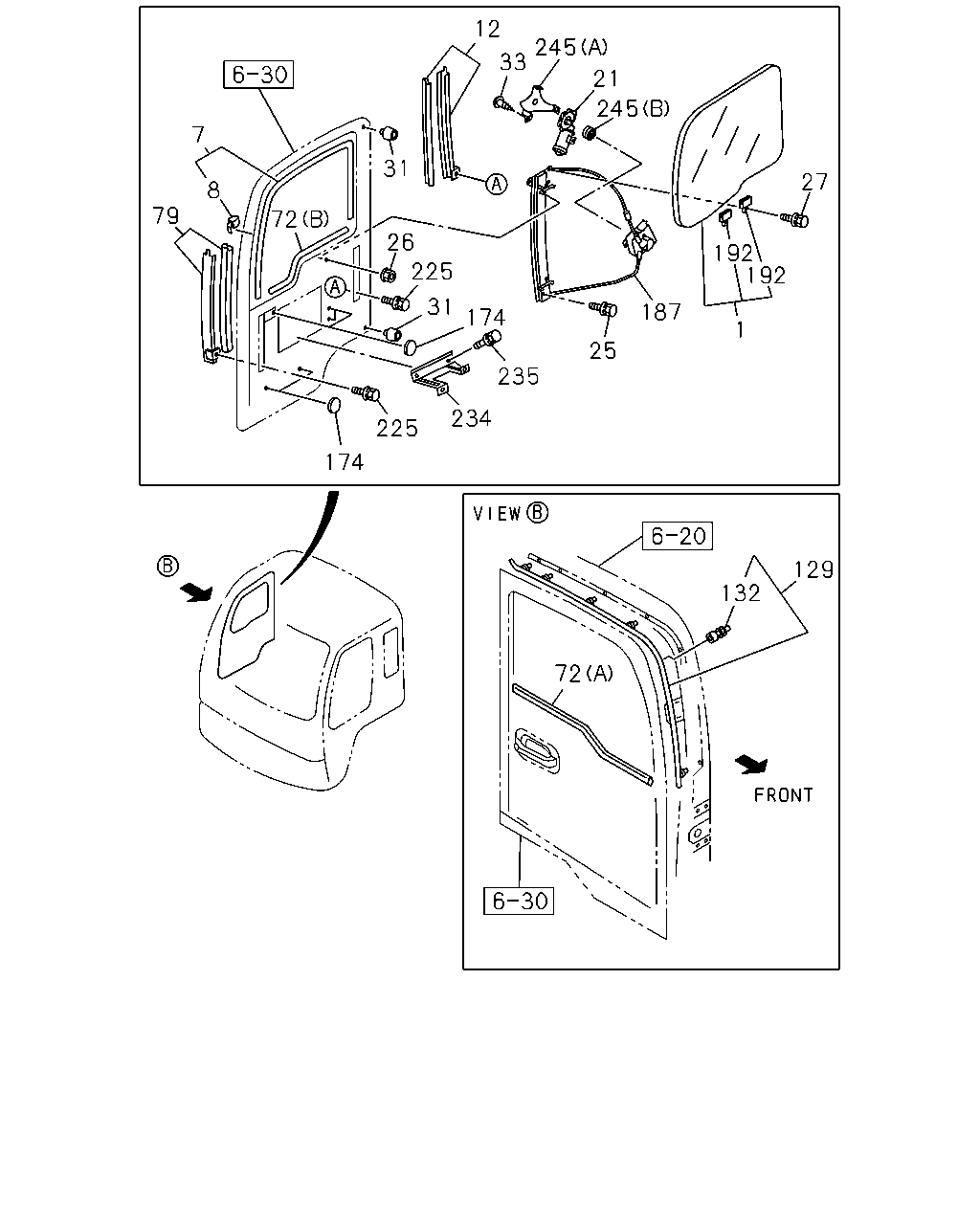

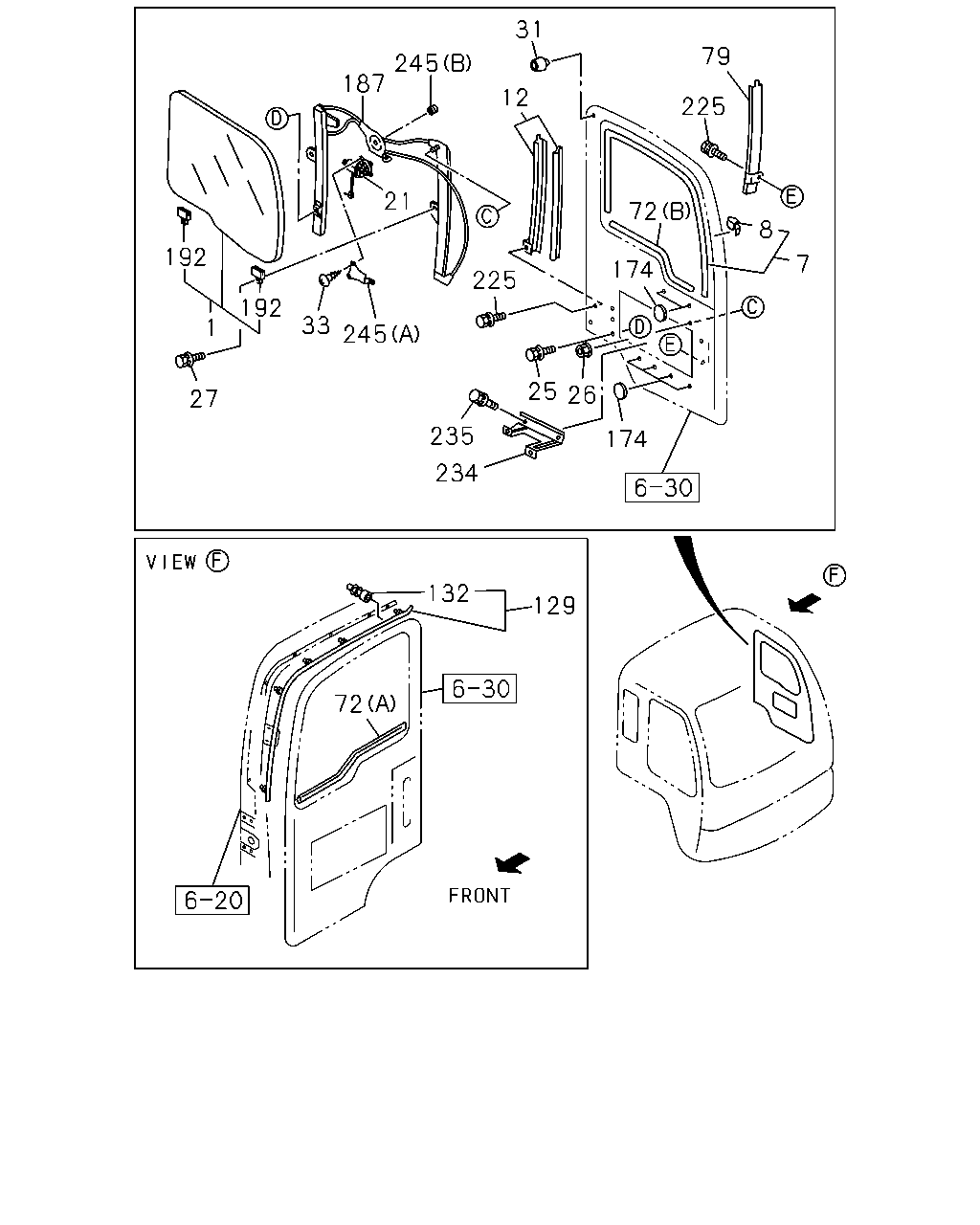

6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#27878) — 76 parça
◀
[631A] LH (38 parça)
[631A] RH (38 parça)
▶
72
129
132
234
235
25
26
174
174
72
8
7
225
79
31
12
245
187
21
225
245
33
192
1
27
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
1-76148-095-2
01
1
0610-
1
GLASS; FRT DOOR
1-76167-177-2
01
1
0610-
7
GLASS RUN; FRT DOOR
1-74318-021-8
01
1
0610-
7
GLASS RUN; FRT DOOR
1-74318-022-8
01
1
0610-
8
CLIP; GLASS GUIDE
1-74318-029-1
02
1
0610-
12
CHANNEL; GLASS RUN,FRT
1-74338-070-3
01
1
0610-
12
CHANNEL; GLASS RUN,FRT
1-74338-071-3
01
1
0610-
21
MOTOR; POWER WINDOW REG,FRT DOOR
1-74418-176-0
01
1
0610-
21
MOTOR; POWER WINDOW REG,FRT DOOR
1-74418-177-0
01
1
0610-
25
BOLT; WINDOW REG
M6X16 FLANGE
0-28050-616-0
10
1
0610-0710
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
10
1
0711-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
1-09984-141-0
06
1
0610-
27
BOLT; GLASS FIX
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
0610-
31
STOPPER; RUBBER,DOOR INNER
1-09983-169-0
04
1
0610-
33
SCREW; REG MOTOR
8-98099-646-0
06
1
1204-
72
SEAL; WAIST,FRT DOOR
(A) OUTER
1-76738-088-9
01
1
0610-1207
72
SEAL; WAIST,FRT DOOR
(A) OUTER
8-98219-039-0
01
1
1208-
72
SEAL; WAIST,FRT DOOR
(A) OUTER
1-76738-089-9
01
1
0610-1207
72
SEAL; WAIST,FRT DOOR
(A) OUTER
8-98219-040-0
01
1
1208-
72
SEAL; WAIST,FRT DOOR
(B) INNER
1-76738-091-6
01
1
0610-
72
SEAL; WAIST,FRT DOOR
(B) INNER
1-76738-092-6
01
1
0610-
79
CHANNEL; DOOR GLASS,FRT
1-74338-068-3
01
1
0610-
79
CHANNEL; DOOR GLASS,FRT
1-74338-069-3
01
1
0610-
129
SEAL; DOOR,SUB UPR
1-76718-198-0
01
1
0610-
129
SEAL; DOOR,SUB UPR
1-76718-199-0
01
1
0610-
132
CLIP; SEAL,DOOR
NATURAL
1-09987-253-1
06
1
0610-
132
CLIP; SEAL,DOOR
YELLOW
1-09987-254-1
06
1
0610-
174
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
16
1
0610-
187
REGULATOR ASM; DOOR
1-74418-178-3
01
1
0610-
187
REGULATOR ASM; DOOR
1-74418-179-3
01
1
0610-
192
HOLDER; DOOR GLASS
1-74427-170-0
04
1
0610-
225
BOLT; FRT CHANNEL
M6X10 FLANGE
0-28050-610-0
04
1
0610-
234
BRACKET; OK WINDOW
1-74998-057-4
01
1
0610-
234
BRACKET; OK WINDOW
1-74998-062-4
01
1
0610-
235
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0610-
245
DAMPER; WINDOW REGULATOR
(B)
1-74417-074-0
02
1
0610-
245
DAMPER; WINDOW REGULATOR
(A)
1-74418-180-0
01
1
0610-
245
DAMPER; WINDOW REGULATOR
(A)
1-74418-181-0
01
1
0610-
7
31
8
79
72
12
21
33
245
245
27
192
1
187
25
235
234
225
174
26
31
225
174
132
129
72
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
1-76148-095-2
01
1
0610-
1
GLASS; FRT DOOR
1-76167-177-2
01
1
0610-
7
GLASS RUN; FRT DOOR
1-74318-021-8
01
1
0610-
7
GLASS RUN; FRT DOOR
1-74318-022-8
01
1
0610-
8
CLIP; GLASS GUIDE
1-74318-029-1
02
1
0610-
12
CHANNEL; GLASS RUN,FRT
1-74338-070-3
01
1
0610-
12
CHANNEL; GLASS RUN,FRT
1-74338-071-3
01
1
0610-
21
MOTOR; POWER WINDOW REG,FRT DOOR
1-74418-176-0
01
1
0610-
21
MOTOR; POWER WINDOW REG,FRT DOOR
1-74418-177-0
01
1
0610-
25
BOLT; WINDOW REG
M6X16 FLANGE
0-28050-616-0
10
1
0610-0710
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
10
1
0711-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
1-09984-141-0
06
1
0610-
27
BOLT; GLASS FIX
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
0610-
31
STOPPER; RUBBER,DOOR INNER
1-09983-169-0
04
1
0610-
33
SCREW; REG MOTOR
8-98099-646-0
06
1
1204-
72
SEAL; WAIST,FRT DOOR
(A) OUTER
1-76738-088-9
01
1
0610-1207
72
SEAL; WAIST,FRT DOOR
(A) OUTER
8-98219-039-0
01
1
1208-
72
SEAL; WAIST,FRT DOOR
(A) OUTER
1-76738-089-9
01
1
0610-1207
72
SEAL; WAIST,FRT DOOR
(A) OUTER
8-98219-040-0
01
1
1208-
72
SEAL; WAIST,FRT DOOR
(B) INNER
1-76738-091-6
01
1
0610-
72
SEAL; WAIST,FRT DOOR
(B) INNER
1-76738-092-6
01
1
0610-
79
CHANNEL; DOOR GLASS,FRT
1-74338-068-3
01
1
0610-
79
CHANNEL; DOOR GLASS,FRT
1-74338-069-3
01
1
0610-
129
SEAL; DOOR,SUB UPR
1-76718-198-0
01
1
0610-
129
SEAL; DOOR,SUB UPR
1-76718-199-0
01
1
0610-
132
CLIP; SEAL,DOOR
NATURAL
1-09987-253-1
06
1
0610-
132
CLIP; SEAL,DOOR
YELLOW
1-09987-254-1
06
1
0610-
174
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
16
1
0610-
187
REGULATOR ASM; DOOR
1-74418-178-3
01
1
0610-
187
REGULATOR ASM; DOOR
1-74418-179-3
01
1
0610-
192
HOLDER; DOOR GLASS
1-74427-170-0
04
1
0610-
225
BOLT; FRT CHANNEL
M6X10 FLANGE
0-28050-610-0
04
1
0610-
234
BRACKET; OK WINDOW
1-74998-057-4
01
1
0610-
234
BRACKET; OK WINDOW
1-74998-062-4
01
1
0610-
235
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0610-
245
DAMPER; WINDOW REGULATOR
(B)
1-74417-074-0
02
1
0610-
245
DAMPER; WINDOW REGULATOR
(A)
1-74418-180-0
01
1
0610-
245
DAMPER; WINDOW REGULATOR
(A)
1-74418-181-0
01
1
0610-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
