6-01 — FRONT BUMPER (#27872) — 70 parça

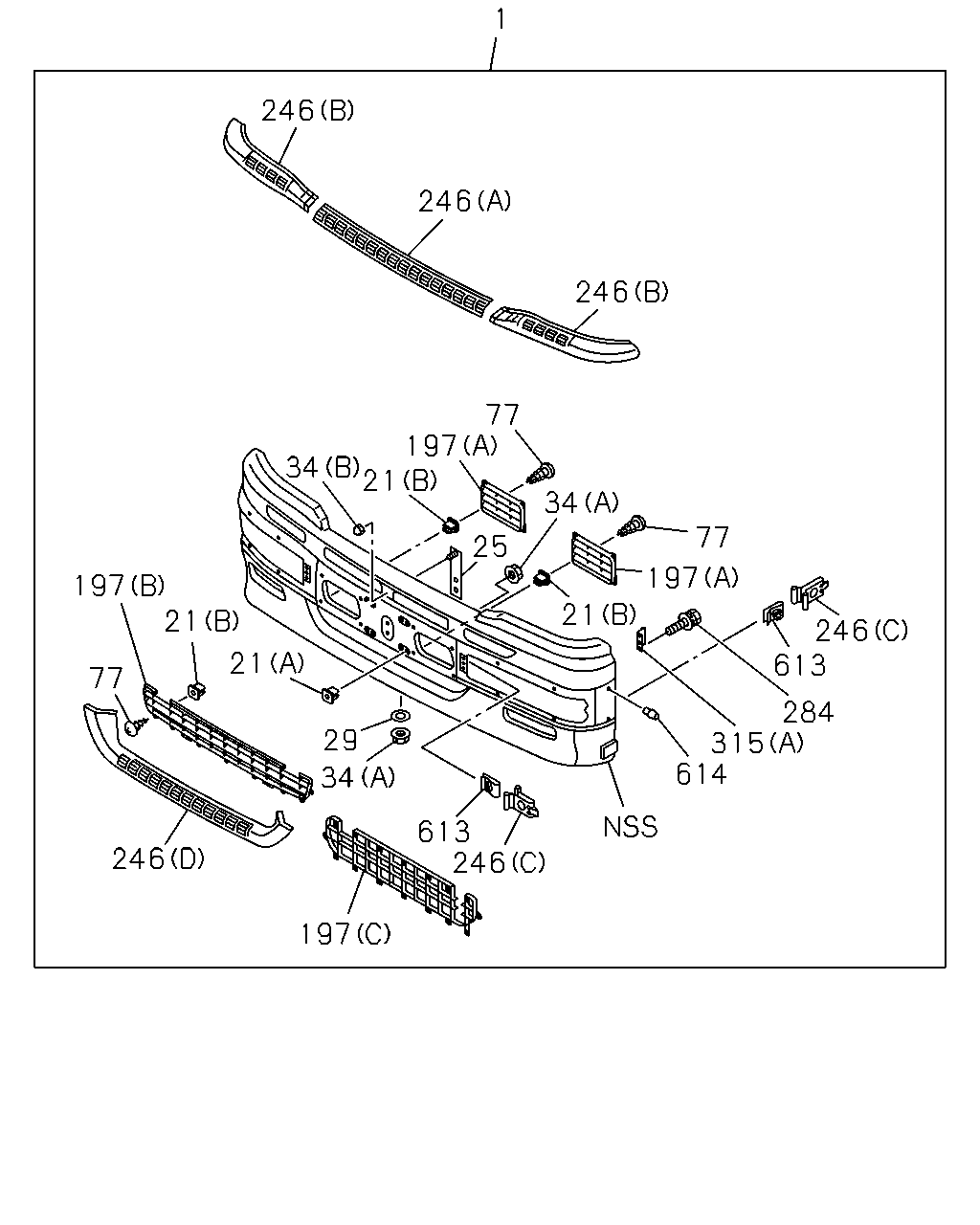

çizim 140083
1 246 246 246 77 197 34 21 34 77 25 197 197 21 21 246 613 21 77 284 315 614 29 34 613 246 246 197
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FACE LIFT<6NL> WHITE 		8-98098-599-1 01 1 0806-
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0610-0805
1 BUMPER ASM; FRT
EXC. FACE LIFT<6NL> WHITE 		1-71211-419-2 01 1 0806-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 22 1 0610-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0610-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0610-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0610-
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0610-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0610-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0610-
77 SCREW; BRKT
EXC. FACE LIFT<6NL> M5X16 TAPPING 		0-71240-516-0 22 1 0806-
77 SCREW; BRKT
M5X16 TAPPING 		0-71240-516-0 22 1 0610-0805
77 SCREW; BRKT
FACE LIFT<6NL> M5X16 TAPPING 		0-71240-516-0 36 1 0806-
197 GRILLE; BUMPER
FACE LIFT<6NL> (A) 		8-97619-503-0 01 1 0806-
197 GRILLE; BUMPER
FACE LIFT<6NL> (A) 		8-97619-504-0 01 1 0806-
197 GRILLE; BUMPER
(A) 		1-71260-115-1 01 1 0610-0805
197 GRILLE; BUMPER
EXC. FACE LIFT<6NL> (A) 		1-71260-115-1 01 1 0806-
197 GRILLE; BUMPER
(A) 		1-71260-116-1 01 1 0610-0805
197 GRILLE; BUMPER
EXC. FACE LIFT<6NL> (A) 		1-71260-116-1 01 1 0806-
197 GRILLE; BUMPER
(B) 		1-71260-210-1 01 1 0610-0610
197 GRILLE; BUMPER
(C) 		8-97617-998-0 01 1 0611-
246 PROTECTOR; BUMPER
FACE LIFT<6NL> (A) 		8-97619-479-1 01 1 0806-
246 PROTECTOR; BUMPER
FACE LIFT<6NL> (B) 		8-97619-480-1 01 1 0806-
246 PROTECTOR; BUMPER
FACE LIFT<6NL> (B) 		8-97619-481-1 01 1 0806-
246 PROTECTOR; BUMPER
FACE LIFT<6NL> (D) 		8-97619-484-0 01 1 0806-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-1 01 1 0610-0805
246 PROTECTOR; BUMPER
EXC. FACE LIFT<6NL> (B) 		1-71260-094-2 01 1 0806-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-1 01 1 0610-0805
246 PROTECTOR; BUMPER
EXC. FACE LIFT<6NL> (B) 		1-71260-095-2 01 1 0806-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-0 01 1 0610-0805
246 PROTECTOR; BUMPER
EXC. FACE LIFT<6NL> (A) 		1-71260-155-1 01 1 0806-
246 PROTECTOR; BUMPER
(D) 		1-71260-156-1 01 1 0610-0805
246 PROTECTOR; BUMPER
EXC. FACE LIFT<6NL> (D) 		1-71260-156-1 01 1 0806-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0610-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0610-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0610-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0610-
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0610-
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0610-
613 CLIP 1-71260-174-0 06 1 0610-
614 STOPPER; LID 1-71260-163-0 12 1 0610-

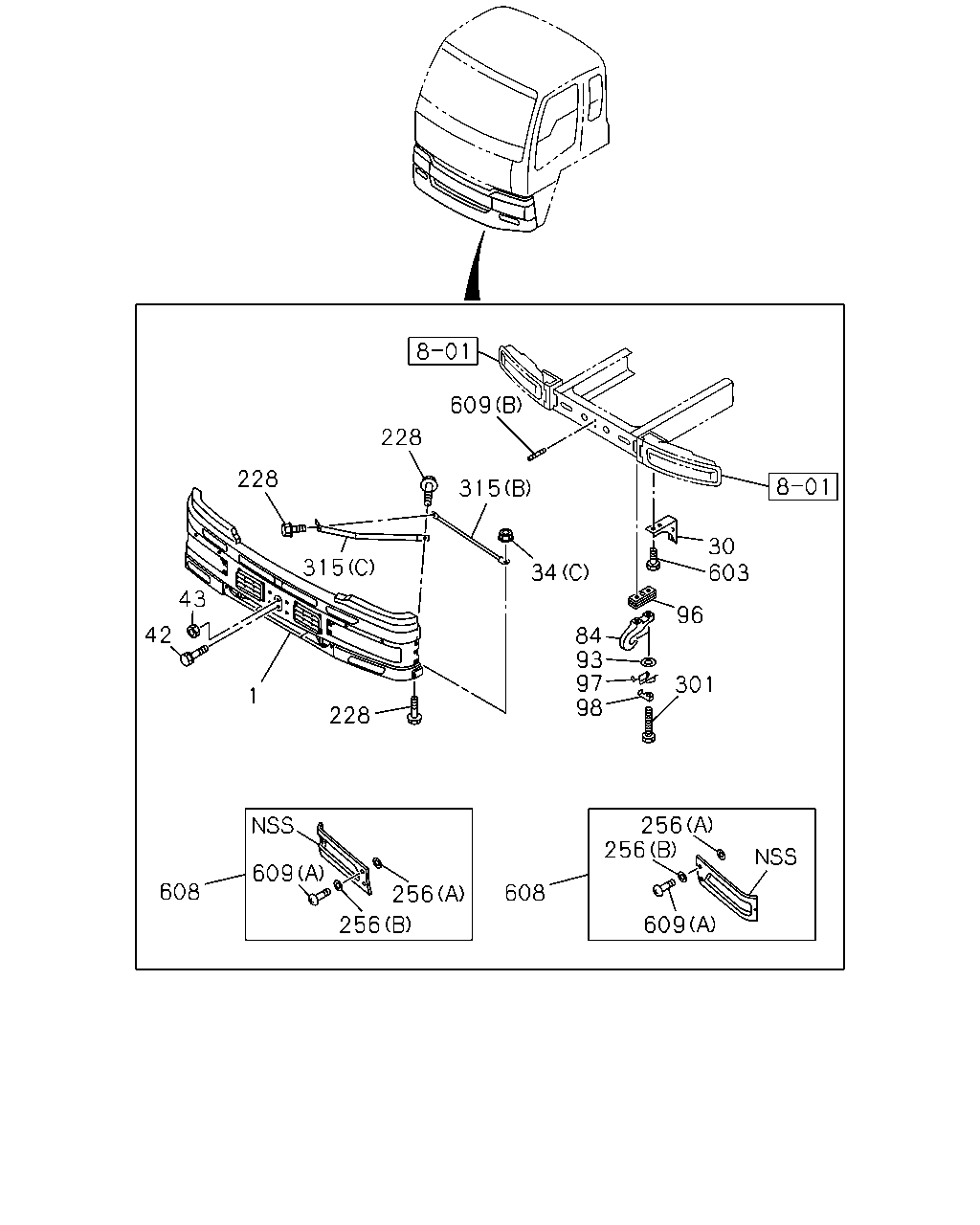

çizim 140362
609 228 228 315 30 603 315 34 43 96 42 84 93 97 98 301 1 228 256 256 609 608 608 256 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
FACE LIFT<6NL> WHITE 		8-98098-599-1 01 1 0806-
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0610-0805
1 BUMPER ASM; FRT
EXC. FACE LIFT<6NL> WHITE 		1-71211-419-2 01 1 0806-
30 BRACKET; FRT BUMPER 1-71230-428-0 01 1 0610-
30 BRACKET; FRT BUMPER 1-71230-429-0 01 1 0610-
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0610-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 17 1 0610-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0610-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0610-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0610-
84 HOOK 1-57181-027-1 01 1 0610-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0610-
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0610-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0610-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0610-
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0610-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0610-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0610-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0610-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0610-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0610-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0610-
315 STAY; BUMPER
(C) 		1-71230-435-0 02 1 0610-
315 STAY; BUMPER
(B) 		8-97608-941-0 02 1 0610-
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0610-
608 LID; BUMPER 1-71210-752-6 01 1 0610-
608 LID; BUMPER 1-71210-753-6 01 1 0610-
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0610-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0610-
