Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#27859) — 320 parça

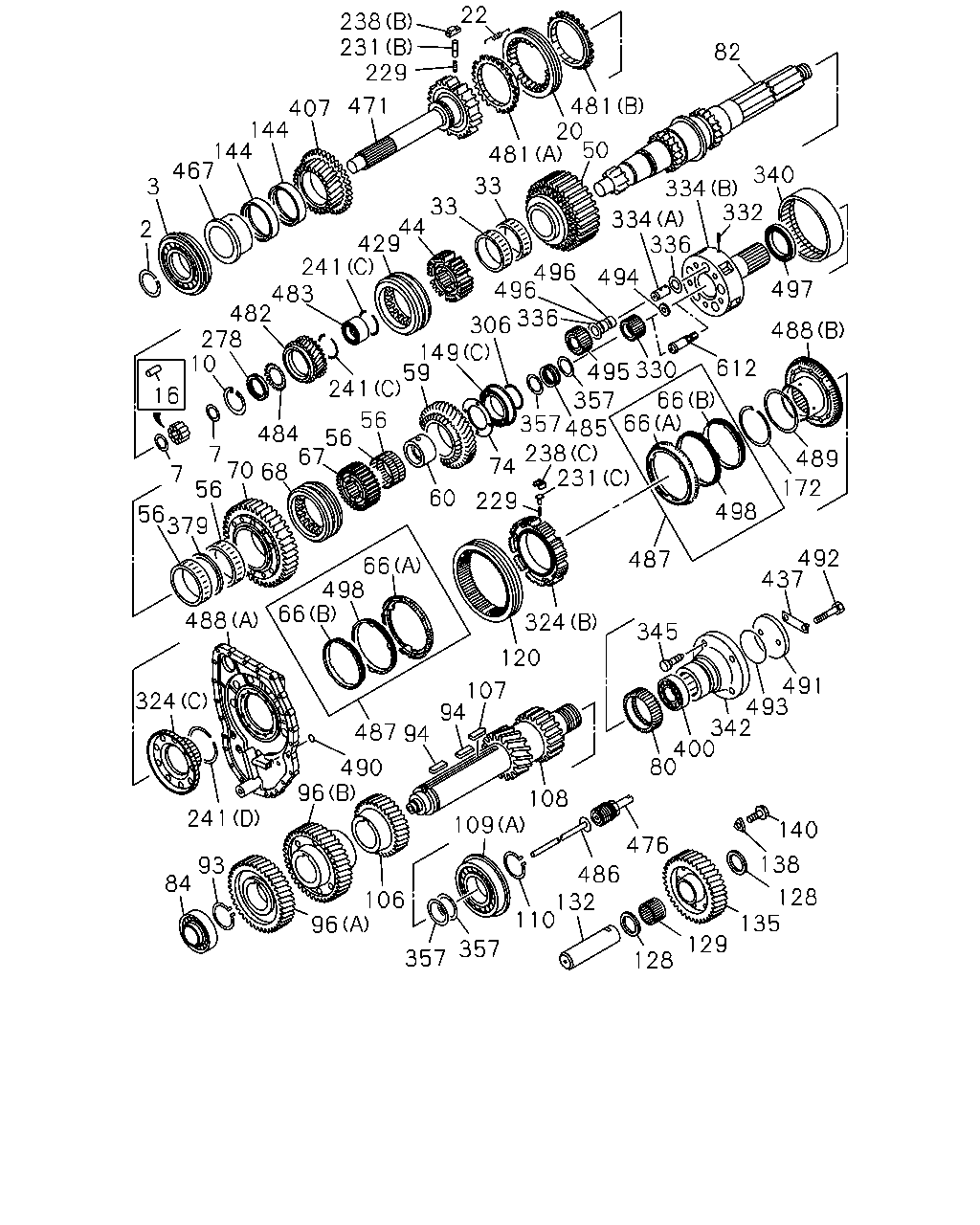

22 238 231 229 471 407 144 144 467 3 2 16 10 278 482 483 241 429 44 33 33 481 20 481 82 50 340 334 334 332 336 494 496 496 306 336 149 59 241 484 56 56 67 68 70 7 7 56 379 497 488 612 66 495 330 489 172 498 487 66 357 485 357 74 238 231 229 60 66 498 66 488 324 241 84 96 93 490 487 107 324 120 94 94 96 109 108 345 106 357 110 357 132 486 476 140 138 128 135 129 128 80 491 493 342 400 437 492 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0610-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0610-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0610-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0610-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0610-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0610-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0610-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0610-	●	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0610-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0610-1511	●
16	BEARING; PILOT,MAINSHAFT NTN	8-98316-648-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0610-1511	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0610-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0610-		●
20	SLEEVE	1-33262-222-0	01	1	0610-	●
20	SLEEVE	1-33262-216-1	01	1	0610-		●
22	SPRING; BLOCK,INSERT	1-09583-363-0	03	1	0610-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0610-1311	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0610-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-378-0	02	1	0610-1308		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-379-0	02	1	0610-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0610-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-278-1	01	1	0610-		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0610-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-423-0	01	1	0610-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0610-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0610-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-436-0	04	1	0610-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0610-	●
59	GEAR; REV MAINSHAFT Z=42	1-33257-090-0	01	1	0610-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0610-	●
60	COLLAR; REV MAIN	1-33234-098-1	01	1	0610-		●
66	RING; BLOCK,SYN (A)	1-33265-588-0	02	1	0610-1312		●
66	RING; BLOCK,SYN (A)	8-98239-909-1	02	1	1401-		●
66	RING; BLOCK,SYN (B)	1-33265-590-0	02	1	0610-1307		●
66	RING; BLOCK,SYN (B)	8-98239-294-0	02	1	1308-1312		●
66	RING; BLOCK,SYN (B)	8-98239-911-1	02	1	1401-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0610-	●
67	HUB; CLU,1ST TO REV	1-33261-285-0	01	1	0610-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0610-	●
68	SLEEVE; 1ST TO REV	1-33262-232-0	01	1	0610-		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0610-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-079-0	01	1	0610-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0610-1506	●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0610-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0610-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0610-		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0610-1506	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-	●
82	SHAFT; MAIN,TRANS Z=37-40-19	1-33231-331-1	01	1	0610-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0610-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0610-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0610-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0610-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0610-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0610-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0610-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	0610-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0610-		●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0610-		●
106	GEAR; 2ND,COUNTER Z=35	1-33338-391-1	01	1	0610-		●
107	KEY; FEATHER,2ND COUNTER L=75.3	1-09735-042-0	01	1	0610-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0610-	●
108	SHAFT; COUNTER Z=23-23	1-33311-329-0	01	1	0610-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0610-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0610-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0610-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0610-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0610-	●	●
120	SLEEVE	1-33262-229-0	01	1	0610-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0610-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0610-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0610-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0610-	●
132	SHAFT; REV	1-33351-035-1	01	1	0610-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0610-	●
135	GEAR; REV IDLER Z=30	1-33361-089-0	01	1	0610-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0610-	●	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0610-	●	●
144	BEARING; NEEDLE,INPUT GEAR NTN	1-09811-436-0	02	1	0610-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	0610-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	0610-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	0610-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	0610-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	0610-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	0610-		●
172	RING; SNAP,CLU HUB OD=121.2	1-09587-031-0	01	1	0610-		●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0610-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0610-1403		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-		●
231	PLUNGER (A)	1-33263-020-0	03	1	0610-	●
231	PLUNGER (B)	1-33263-033-0	06	1	0610-1403		●
231	PLUNGER (B)	8-98273-831-0	06	1	1404-		●
231	PLUNGER (C)	1-33263-038-1	09	1	0610-		●
238	INSERT (A)	1-33263-025-2	06	1	0610-	●
238	INSERT (B)	1-33263-036-0	06	1	0610-		●
238	INSERT (C)	1-33263-039-0	09	1	0610-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	0610-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	0610-	●
241	RING; SNAP (C)	1-09587-023-0	02	1	0610-		●
241	RING; SNAP (D)	1-09587-104-0	01	1	0610-		●
278	NUT; BRG	1-09449-080-0	01	1	0610-		●
306	RING; SNAP,MAINSHAFT	1-09588-149-0	01	1	0610-		●
324	HUB; CLU (A)	1-33261-238-0	01	1	0610-	●
324	HUB; CLU (B)	1-34231-015-0	01	1	0610-		●
324	HUB; CLU (C)	1-34371-017-0	01	1	0610-1307		●
324	HUB; CLU (C)	8-98239-089-0	01	1	1308-		●
330	GEAR; SUN Z=24	1-34311-010-0	01	1	0610-		●
332	PIN; LOCK,SHAFT	1-09748-025-0	05	1	0610-		●
334	SHAFT; PLANETARY GEAR (A)	1-34353-010-1	05	1	0610-		●
334	SHAFT; PLANETARY GEAR (B)	1-34372-034-0	01	1	0610-1307		●
334	SHAFT; PLANETARY GEAR (B)	8-98238-294-0	01	1	1308-		●
336	WASHER; THRUST,PLANETARY GEAR	1-09503-230-0	10	1	0610-		●
340	GEAR; RING Z=86 OKUBO GEAR	1-34371-014-0	01	1	0610-		●
340	GEAR; RING Z=86 NIPPON GEAR	1-34371-018-0	01	1	0610-		●
340	GEAR; RING Z=86 ISUZU	1-34371-019-0	01	1	0610-		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0610-1211	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1212-	●
342	FLANGE; OUTPUT	1-37243-400-2	01	1	0610-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0610-	●	●
357	RING	1-31349-015-0	01	1	0610-	●
357	RING	1-31349-044-0	04	1	0610-		●
379	PIECE; DIST,MAINSHAFT	1-33363-034-0	01	1	0610-		●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	1-09810-254-0	01	1	0610-0910		●
400	BEARING; OUTPUT SHAFT RR NSK W/SNAP RING	8-98153-252-0	01	1	0911-		●
400	BEARING; OUTPUT SHAFT RR NTN W/SNAP RING	1-09810-255-0	01	1	0610-0910		●
407	GEAR; PRIMARY MAIN Z=33	1-33253-717-0	01	1	0610-		●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0610-	●
429	SLEEVE; 2ND & 3RD	1-33262-222-0	01	1	0610-		●
437	PLATE; LOCK	1-34252-032-0	01	1	0610-		●
467	COLLAR; SHAFT	1-33234-091-1	01	1	0610-		●
471	SHAFT; INPUT	1-33215-019-0	01	1	0610-		●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	0610-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0610-		●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	0610-1407		●
481	RING; BLOCK (A) HIGH	8-98239-518-1	01	1	1408-1410		●
481	RING; BLOCK (A) HIGH	1-33265-516-1	01	1	1411-		●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	0610-1407		●
481	RING; BLOCK (B) LOW	8-98239-519-1	01	1	1408-1410		●
481	RING; BLOCK (B) LOW	1-33265-532-1	01	1	1411-		●
482	GEAR; PRIMARY Z=29	1-33253-720-0	01	1	0610-		●
483	BEARING; TAPER NTN	1-09810-281-0	01	1	0610-1007		●
483	BEARING; TAPER NTN	8-98174-410-0	01	1	1008-1504		●
483	BEARING; TAPER NTN	8-98316-126-0	01	1	1505-		●
484	PLATE; SETTING	1-33313-023-0	01	1	0610-		●
485	PIECE; GUIDE	1-33363-040-1	01	1	0610-		●
486	NOZZLE; CONT SHAFT	1-33219-271-1	01	1	0610-0907		●
486	NOZZLE; CONT SHAFT	1-33219-254-1	01	1	0908-		●
487	SYNCHRONIZER; RANGE CHANGE	1-33265-616-0	02	1	0610-1307		●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-293-0	02	1	1308-1312		●
487	SYNCHRONIZER; RANGE CHANGE	8-98239-908-1	02	1	1401-		●
488	CLUTCH; DOG,RANGE (A)	1-34252-037-1	01	1	0610-0703		●
488	CLUTCH; DOG,RANGE (A)	8-98060-771-1	01	1	0704-1307		●
488	CLUTCH; DOG,RANGE (A)	8-98239-163-0	01	1	1308-		●
488	CLUTCH; DOG,RANGE (B)	1-34254-006-1	01	1	0610-1211		●
488	CLUTCH; DOG,RANGE (B)	8-98218-291-0	01	1	1212-1307		●
488	CLUTCH; DOG,RANGE (B)	8-98238-509-0	01	1	1308-		●
489	WASHER; THRUST	1-09503-308-0	01	1	0610-		●
490	GASKET; SEAL,CASE ID=10	1-09623-369-0	01	1	0610-		●
491	PLATE; OUTPUT SHAFT	1-34252-035-1	01	1	0610-		●
492	BOLT; PLATE	1-09000-750-0	02	1	0610-		●
493	GASKET; OUTPUT SHAFT	9-09561-385-0	01	1	0610-		●
494	PLATE; OUTPUT SHAFT	1-34379-020-0	01	1	0610-1307		●
495	PINION; PLANETARY Z=30	1-34361-023-0	05	1	0610-		●
496	BEARING; PLANETARY	1-09811-437-0	10	1	0610-		●
497	BEARING; RING GEAR NSK	1-09810-276-0	01	1	0610-1307		●
497	BEARING; RING GEAR NTN	1-09810-277-0	01	1	0610-1307		●
497	BEARING; RING GEAR NTN	8-98239-433-0	01	1	1308-		●
498	CONE; SYN	1-33265-617-0	02	1	0610-1312		●
498	CONE; SYN	8-98239-910-0	02	1	1401-		●
612	GALLERY; OIL	8-98239-463-0	01	1	1308-		●

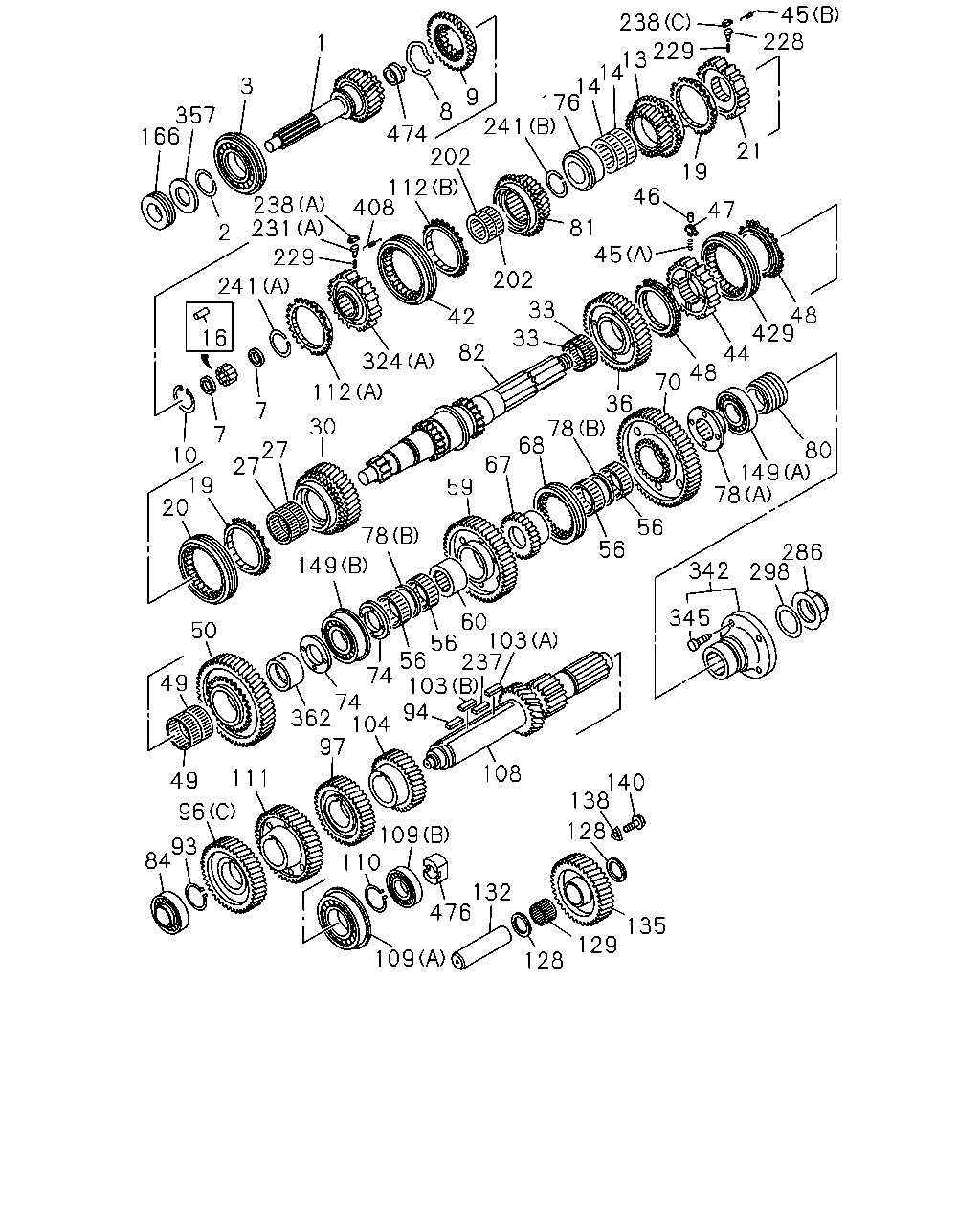

128 109 138 128 129 132 140 135 345 286 298 342 476 110 111 96 93 84 49 97 109 108 49 50 362 56 74 56 74 103 94 104 103 237 60 56 78 56 149 80 1 3 357 166 238 228 45 229 13 14 14 176 241 202 474 8 9 112 408 231 238 2 241 229 16 10 7 7 112 324 42 202 81 46 21 19 45 33 33 82 30 27 27 19 20 149 59 78 67 68 78 36 70 48 44 429 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0610-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0610-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0610-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0610-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0610-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0610-	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0610-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-278-0	01	1	0610-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0610-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0610-	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0610-	●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0610-	●	●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0610-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0610-1311	●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0610-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0610-1511	●
16	BEARING; PILOT,MAINSHAFT NTN	8-98316-648-0	16	1	1512-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0610-1511	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-260-0	16	1	0610-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-261-0	16	1	0610-		●
19	RING; BLOCK,4TH & 5TH Z=66	1-33265-545-1	02	1	0610-	●
20	SLEEVE	1-33262-222-0	01	1	0610-	●
20	SLEEVE	1-33262-216-1	01	1	0610-		●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0610-	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	0610-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	0610-	●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-691-0	01	1	0610-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0610-1311	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0610-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-378-0	02	1	0610-1308		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-379-0	02	1	0610-		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0610-	●
42	SLEEVE	1-33262-222-0	01	1	0610-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0610-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-278-1	01	1	0610-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0610-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0610-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0610-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0610-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0610-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0610-1308	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0610-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0610-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-423-0	01	1	0610-		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0610-1311	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0610-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-436-0	04	1	0610-		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0610-	●
59	GEAR; REV MAINSHAFT Z=42	1-33257-090-0	01	1	0610-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0610-	●
60	COLLAR; REV MAIN	1-33234-098-1	01	1	0610-		●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0610-	●
67	HUB; CLU,1ST TO REV	1-33261-285-0	01	1	0610-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0610-	●
68	SLEEVE; 1ST TO REV	1-33262-232-0	01	1	0610-		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0610-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-079-0	01	1	0610-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0610-1506	●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1507-	●
74	WASHER; THRUST,REV GEAR	1-33239-308-0	01	1	0610-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0610-	●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0610-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0610-	●
80	GEAR; SPD DRIVE Z=11	1-33371-069-0	01	1	0610-		●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0610-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	0610-1506	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1507-	●
82	SHAFT; MAIN,TRANS Z=37-40-19	1-33231-331-1	01	1	0610-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0610-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0610-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0610-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0610-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0610-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0610-	●
94	KEY; FEATHER,COUNTER SHAFT L=70	1-09735-046-0	02	1	0610-		●
96	GEAR; COUNTER DRIVE (C) Z=41	1-33331-272-0	01	1	0610-	●
96	GEAR; COUNTER DRIVE (A) Z=35	1-33331-258-2	01	1	0610-		●
96	GEAR; COUNTER DRIVE (B) Z=38	1-33338-374-3	01	1	0610-		●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0610-	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0610-	●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0610-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0610-	●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0610-	●
108	SHAFT; COUNTER Z=23-23	1-33311-329-0	01	1	0610-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0610-	●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0610-	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0610-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0610-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0610-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0610-	●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	0610-	●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	0610-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0610-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0610-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0610-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0610-	●
132	SHAFT; REV	1-33351-035-1	01	1	0610-		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0610-	●
135	GEAR; REV IDLER Z=30	1-33361-089-0	01	1	0610-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0610-	●	●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	0610-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	0610-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	0610-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	0610-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	0610-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-256-0	01	1	0610-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-257-0	01	1	0610-		●
166	PIECE; DIST	1-33363-032-1	01	1	0610-	●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0610-	●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0610-1311	●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0610-	●
228	PLUNGER; SYN	1-33263-020-0	03	1	0610-	●
229	SPRING; PLUNGER D=3.8	1-09580-395-0	06	1	1404-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0610-	●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	15	1	0610-1403		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	09	1	1404-		●
231	PLUNGER (A)	1-33263-020-0	03	1	0610-	●
231	PLUNGER (B)	1-33263-033-0	06	1	0610-1403		●
231	PLUNGER (B)	8-98273-831-0	06	1	1404-		●
231	PLUNGER (C)	1-33263-038-1	09	1	0610-		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0610-	●
238	INSERT (A)	1-33263-025-2	06	1	0610-	●
238	INSERT (B)	1-33263-036-0	06	1	0610-		●
238	INSERT (C)	1-33263-039-0	09	1	0610-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	0610-	●
241	RING; SNAP (B)	1-09588-189-0	01	1	0610-	●
241	RING; SNAP (C)	1-09587-023-0	02	1	0610-		●
241	RING; SNAP (D)	1-09587-104-0	01	1	0610-		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0610-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0610-	●
324	HUB; CLU (A)	1-33261-238-0	01	1	0610-	●
324	HUB; CLU (B)	1-34231-015-0	01	1	0610-		●
324	HUB; CLU (C)	1-34371-017-0	01	1	0610-1307		●
324	HUB; CLU (C)	8-98239-089-0	01	1	1308-		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0610-1211	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1212-	●
342	FLANGE; OUTPUT	1-37243-400-2	01	1	0610-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0610-	●	●
357	RING	1-31349-015-0	01	1	0610-	●
357	RING	1-31349-044-0	04	1	0610-		●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0610-	●
408	SPRING	1-09583-171-0	03	1	0610-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0610-	●
429	SLEEVE; 2ND & 3RD	1-33262-222-0	01	1	0610-		●
474	NOZZLE; OIL	1-33219-257-1	01	1	0610-	●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	0610-	●
476	ADAPTER; PUMP DRIVE	1-33339-091-1	01	1	0610-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
