2-07 — CLUTCH BOOSTER; MINIPACK (#27854) — 200 parça

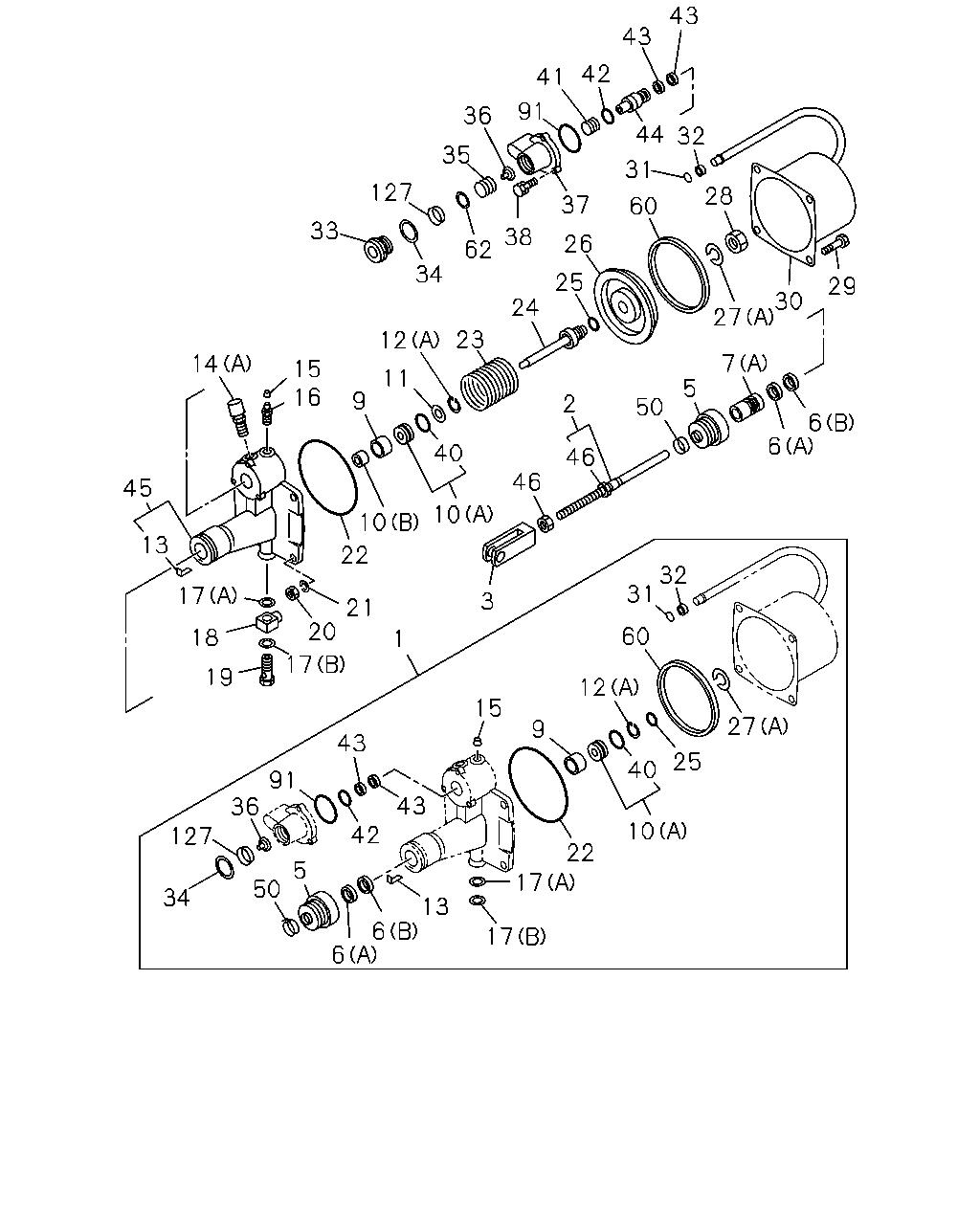

çizim 139400
43 43 42 41 91 36 35 127 33 34 62 38 37 31 44 32 28 60 26 25 24 23 12 15 14 16 45 9 17 13 18 19 20 22 17 21 10 40 10 1 3 46 46 2 50 5 7 27 30 29 32 31 60 12 9 15 43 91 36 127 34 5 50 42 13 6 6 43 17 17 10 22 40 25 27 6 6 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-507-0 01 1 0610-1105 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1106- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 0610- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-213-0 01 1 0610-1105 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1106- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0610- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1106- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0610-1105 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-486-0 01 1 0610-1105 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-441-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-442-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(E) 		1-31829-443-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(F) 		1-31829-444-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(C) 		1-31821-081-0 01 1 0610- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0610- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0610- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0610- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0610- ● ●
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 0610- ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-511-0 01 1 0610-1105 ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1106- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0610- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 0610- ●
13 PIN; SPR 1-31829-109-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-564-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 0610- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0610- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0610- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0610- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0610- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0610- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0610- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1106- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0610-1105 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1106- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0610- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0610- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0610- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 0610- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0610- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 0610- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0610- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0610- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 0610- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0610- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-02041-045-0 04 1 0610-1105 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1106- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0610- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0610- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 0610- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0610- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0610- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0610- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0610- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0610- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0610- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0610- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0610- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0610- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0610- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0610- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0610- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0610- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0610- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0610- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0610- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 0610-1105 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1106- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0610- ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0610- ●
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 0610- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1106- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0610-1105 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1106- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0610- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 0610- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0610- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0610- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0610- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 0610- ● ●

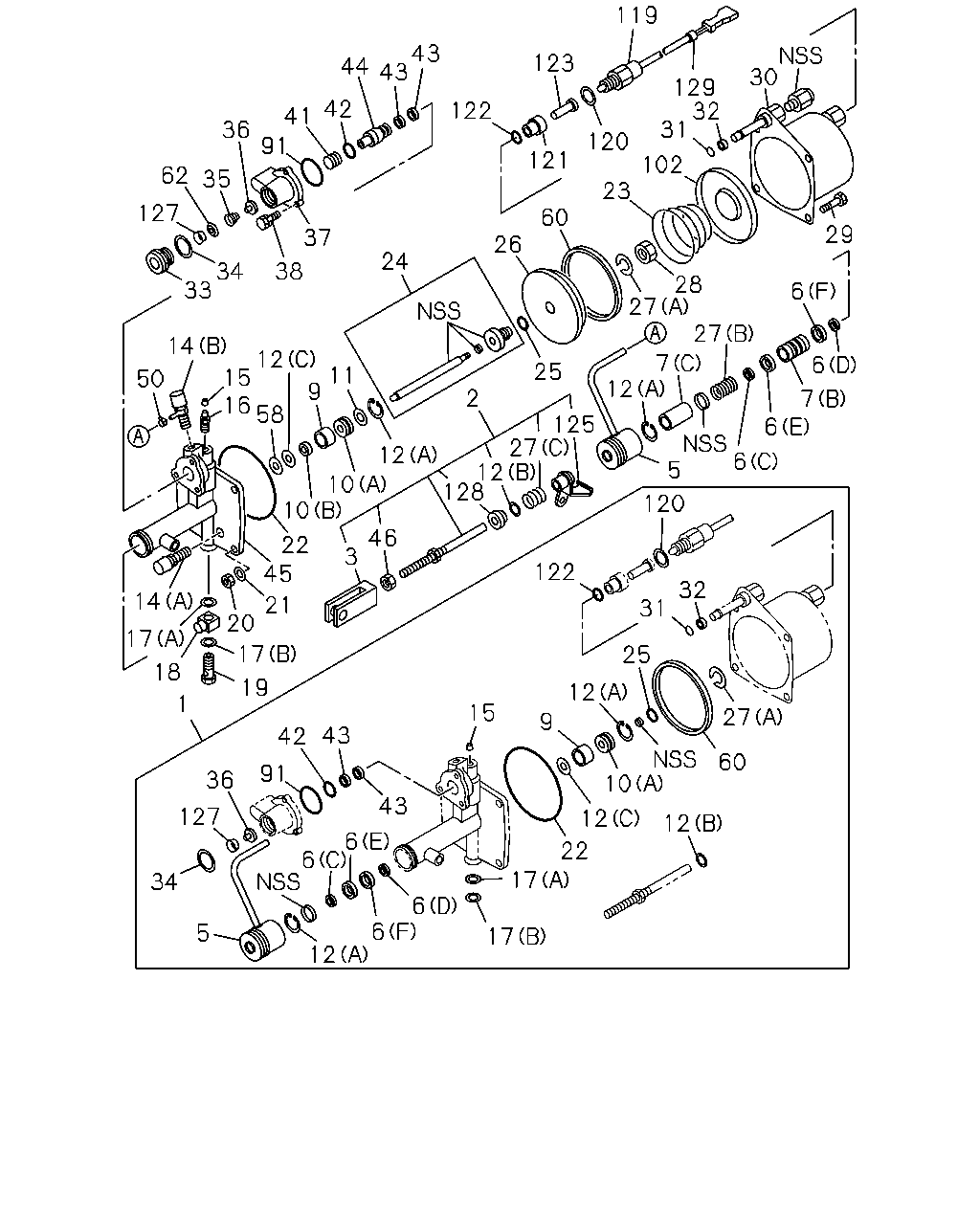

çizim 139403
119 30 129 123 32 31 120 102 43 122 121 23 60 29 6 28 26 43 44 42 41 91 36 35 62 127 37 38 34 24 33 14 12 27 27 7 6 7 6 6 5 12 25 2 11 9 15 50 16 58 12 125 27 12 128 10 10 22 46 3 45 21 14 20 17 18 17 19 1 120 122 32 31 25 27 12 9 60 10 12 12 15 43 42 91 36 127 34 43 6 22 17 17 6 6 6 12 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-507-0 01 1 0610-1105 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1106- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 0610- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-213-0 01 1 0610-1105 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1106- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0610- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1106- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0610-1105 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-486-0 01 1 0610-1105 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1106- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-441-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-442-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(E) 		1-31829-443-0 01 1 0610- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(F) 		1-31829-444-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(A) 		1-31821-048-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 0610- ●
7 PISTON; CLU BOOSTER
(C) 		1-31821-081-0 01 1 0610- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0610- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0610- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0610- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0610- ● ●
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 0610- ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-511-0 01 1 0610-1105 ●
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1106- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0610- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-564-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 0610- ●
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 0610- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0610- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0610- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0610- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0610- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0610- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0610- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1106- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0610-1105 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1106- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0610- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0610- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0610- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 0610- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0610- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 0610- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0610- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0610- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 0610- ●
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 0610- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0610- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-02041-045-0 04 1 0610-1105 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1106- ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0610- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0610- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 0610- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0610- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0610- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0610- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0610- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0610- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0610- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0610- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0610- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0610- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0610- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0610- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0610- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0610- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0610- ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0610- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 0610-1105 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1106- ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0610- ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 0610- ●
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 0610- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1106- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0610-1105 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1106- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0610- ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 0610- ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 0610- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0610- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0610- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0610- ● ●
102 PLATE; BOOSTER 1-31829-508-0 01 1 0610- ●
119 SWITCH; CLU BOOSTER 1-31824-178-0 01 1 0610- ●
120 GASKET; SWITCH 1-31829-361-0 01 1 0610- ●
121 GUIDE; ROD 1-31824-165-0 01 1 0610- ●
122 GASKET; ROD 1-31829-360-0 01 1 0610- ●
123 ROD; SWITCH
L=23.2 		1-31824-167-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=23.2 		1-31824-167-0 AR 1 1106- ●
123 ROD; SWITCH
L=24.0 		1-31824-168-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=24.0 		1-31824-168-0 AR 1 1106- ●
123 ROD; SWITCH
L=22.5 		1-31824-176-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=22.5 		1-31824-176-0 AR 1 1106- ●
123 ROD; SWITCH
L=24.5 		1-31824-189-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=24.5 		1-31824-189-0 AR 1 1106- ●
123 ROD; SWITCH
L=25.0 		1-31824-212-0 01 1 0610-1105 ●
123 ROD; SWITCH
L=25.0 		1-31824-212-0 AR 1 1106- ●
125 BRACKET; CLU BOOSTER 1-31829-512-0 01 1 0610-1105 ●
125 BRACKET; CLU BOOSTER 1-31829-622-0 01 1 1106- ●
127 FILTER; POPPET 1-31829-488-0 01 1 0610- ● ●
128 COLLAR; ROD,CLU BOOSTER 1-31829-509-0 01 1 0610-1105 ●
129 CONNECTOR ASM; CLU BOOSTER 1-09656-753-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
