2-05 — CLUTCH PIPING (#27853) — 145 parça

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0610-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0610-
56	BRACKET; FLEX HOSE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98151-406-1	01	1	0907-
56	BRACKET; FLEX HOSE	1-47471-200-0	01	1	0610-0906
56	BRACKET; FLEX HOSE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-47471-200-0	01	1	0907-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1418 SERVICED BY L=1550	1-47428-766-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2049 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0610-0702
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0703
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0704-0705
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0706-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-0610
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
167	BRACKET; UNION	1-71117-183-3	01	1	0610-

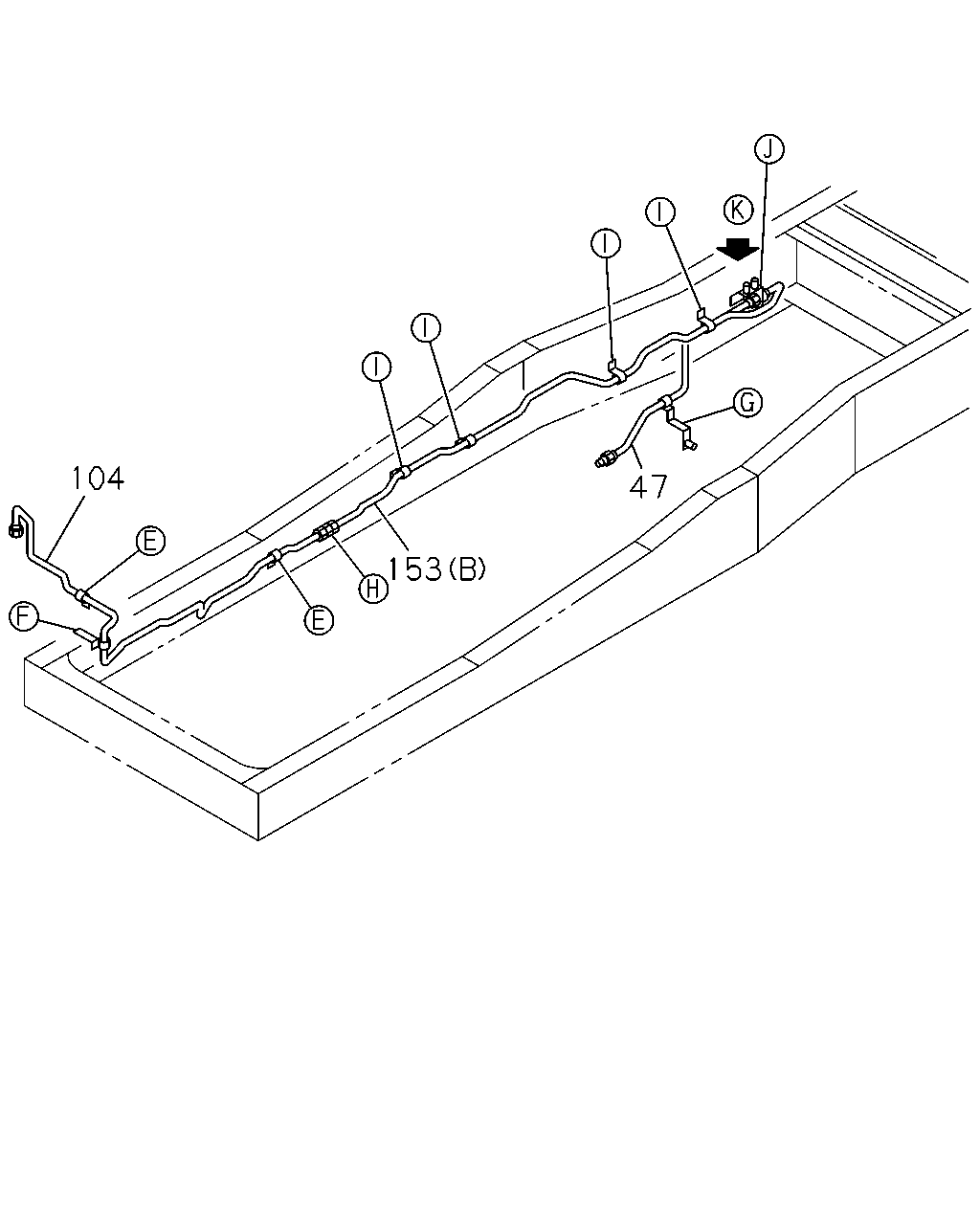

104 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) L=580	1-09365-349-0	01	1	0610-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=550	1-09364-434-0	01	1	0610-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0610-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1418 SERVICED BY L=1550	1-47428-766-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2049 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0610-0702
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0703
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0704-0705
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0706-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-0610
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-

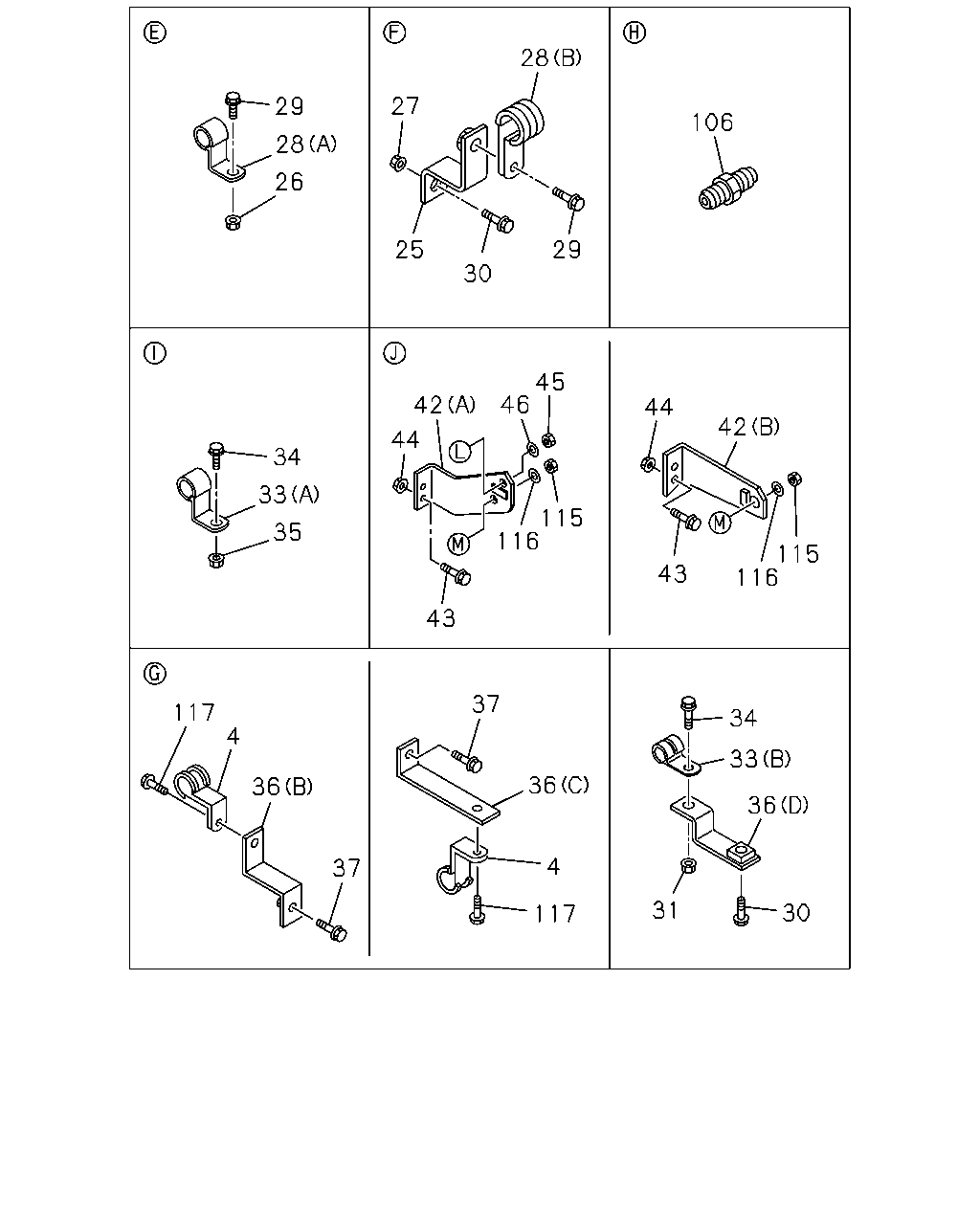

28 27 29 106 28 26 25 29 30 45 46 42 44 42 44 34 33 115 116 35 115 116 43 43 37 117 34 4 33 36 36 36 4 37 31 30 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0610-
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	0610-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0610-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0610-
27	NUT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0610-1110
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1111-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0610-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0610-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0610-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0610-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-0610
30	BOLT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X35 FLANGE	0-28650-835-0	01	1	0610-0610
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-
31	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	0610-0610
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
33	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0610-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0610-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0610-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0610-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0610-
36	BRACKET; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-191-1	01	1	0610-1110
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1111-
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-103-0	01	1	0610-
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	0610-
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D) L=80 H=20	1-82699-304-0	01	1	0610-0610
36	BRACKET; CLIP (D) L=80 H=20	1-82699-304-0	01	1	0610-
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	0610-
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	0610-
42	BRACKET; FLEX HOSE,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-650-0	01	1	0610-
42	BRACKET; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> (A)	1-47471-203-0	01	1	0610-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0610-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0610-
45	NUT; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> M12	9-09840-280-0	01	1	0610-
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7 M/T<Y9E> ID=12.2	0-91510-512-0	01	1	0610-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0610-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0610-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0610-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	0610-

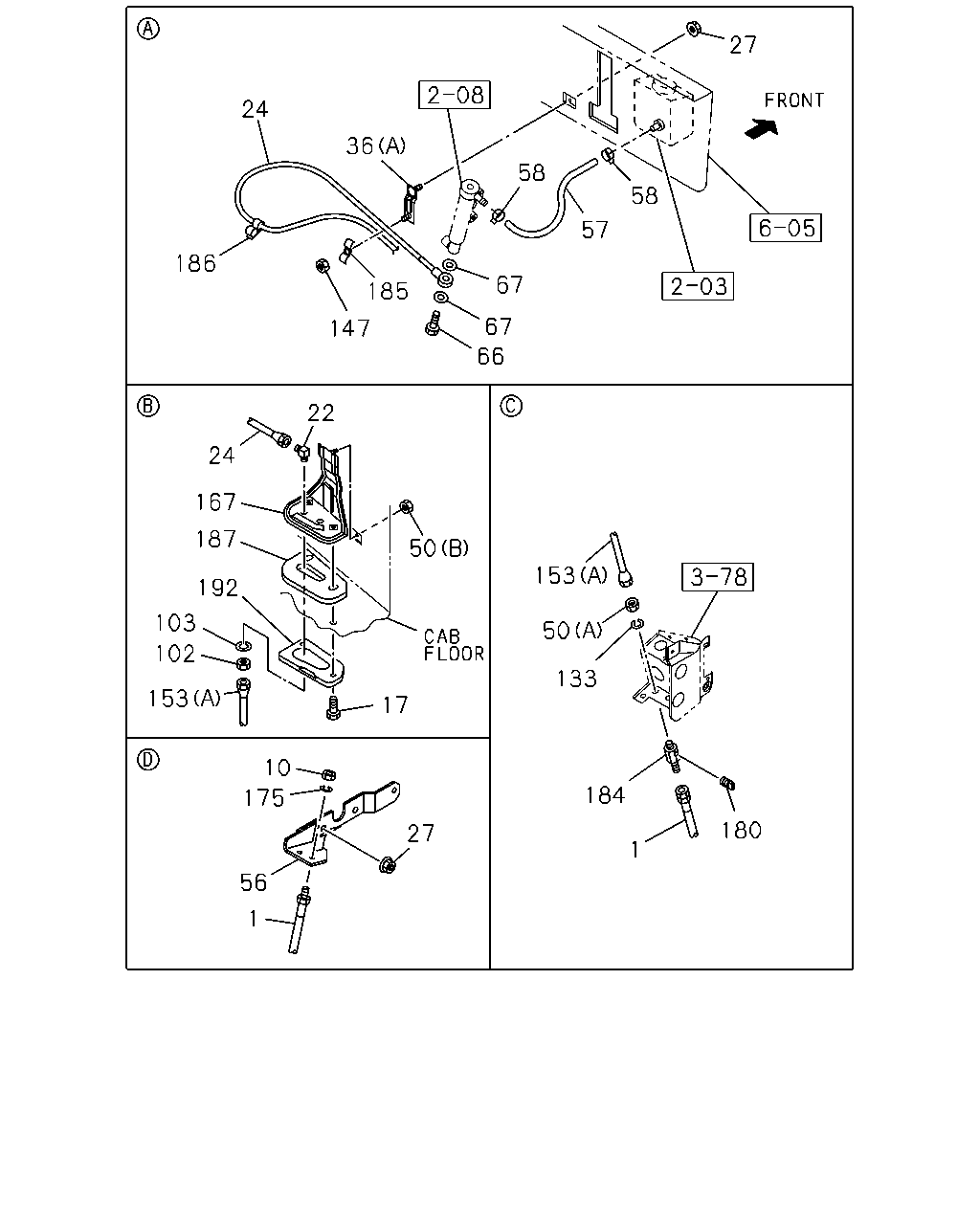

27 24 36 58 58 57 186 67 185 67 147 66 22 24 167 187 50 153 192 103 50 102 133 153 17 10 184 175 180 27 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0610-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0610-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0610-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0610-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0610-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0610-
27	NUT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0610-1110
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1111-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
36	BRACKET; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-191-1	01	1	0610-1110
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1111-
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-103-0	01	1	0610-
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	0610-
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D) L=80 H=20	1-82699-304-0	01	1	0610-0610
36	BRACKET; CLIP (D) L=80 H=20	1-82699-304-0	01	1	0610-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0610-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0610-
56	BRACKET; FLEX HOSE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98151-406-1	01	1	0907-
56	BRACKET; FLEX HOSE	1-47471-200-0	01	1	0610-0906
56	BRACKET; FLEX HOSE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-47471-200-0	01	1	0907-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0610-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0610-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0610-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0610-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0610-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0610-0711
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0610-
147	NUT; CLIP FIX SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0610-1110
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX MJX12P M/T SMOOTHER-G(Y4S) (B) L=2049 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0610-0702
153	PIPE ASM; CLU,UNION TO FLEX (A) L=534	1-49166-190-0	01	1	0703-0703
153	PIPE ASM; CLU,UNION TO FLEX (A) L=469	1-49162-810-0	01	1	0704-0705
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0706-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-0610
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
167	BRACKET; UNION	1-71117-183-3	01	1	0610-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0610-
180	PLUG; PIPE MJX12P M/T SMOOTHER-G(Y4S) BRAKE SYSTEM HSA<SLD>	9-09204-510-0	01	1	0610-0804
180	PLUG; PIPE EXC. BRAKE SYSTEM HSA<SLD>	9-09204-510-0	01	1	0610-0804
184	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) BRAKE SYSTEM HSA<SLD> STRAIGHT 2WAY	1-09654-435-0	01	1	0805-
184	UNION; FLEX HOSE EXC. BRAKE SYSTEM HSA<SLD> STRAIGHT 2WAY	1-09654-435-0	01	1	0805-
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0610-0804
184	UNION; FLEX HOSE BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) STRAIGHT 3WAY	1-09656-679-0	01	1	0805-
185	CLIP; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=9 L=20	0-95405-308-0	01	1	0610-1110
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	1111-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0610-
187	SEAL; BRKT	1-71117-222-0	01	1	0610-
192	PLATE	1-71117-221-0	01	1	0610-

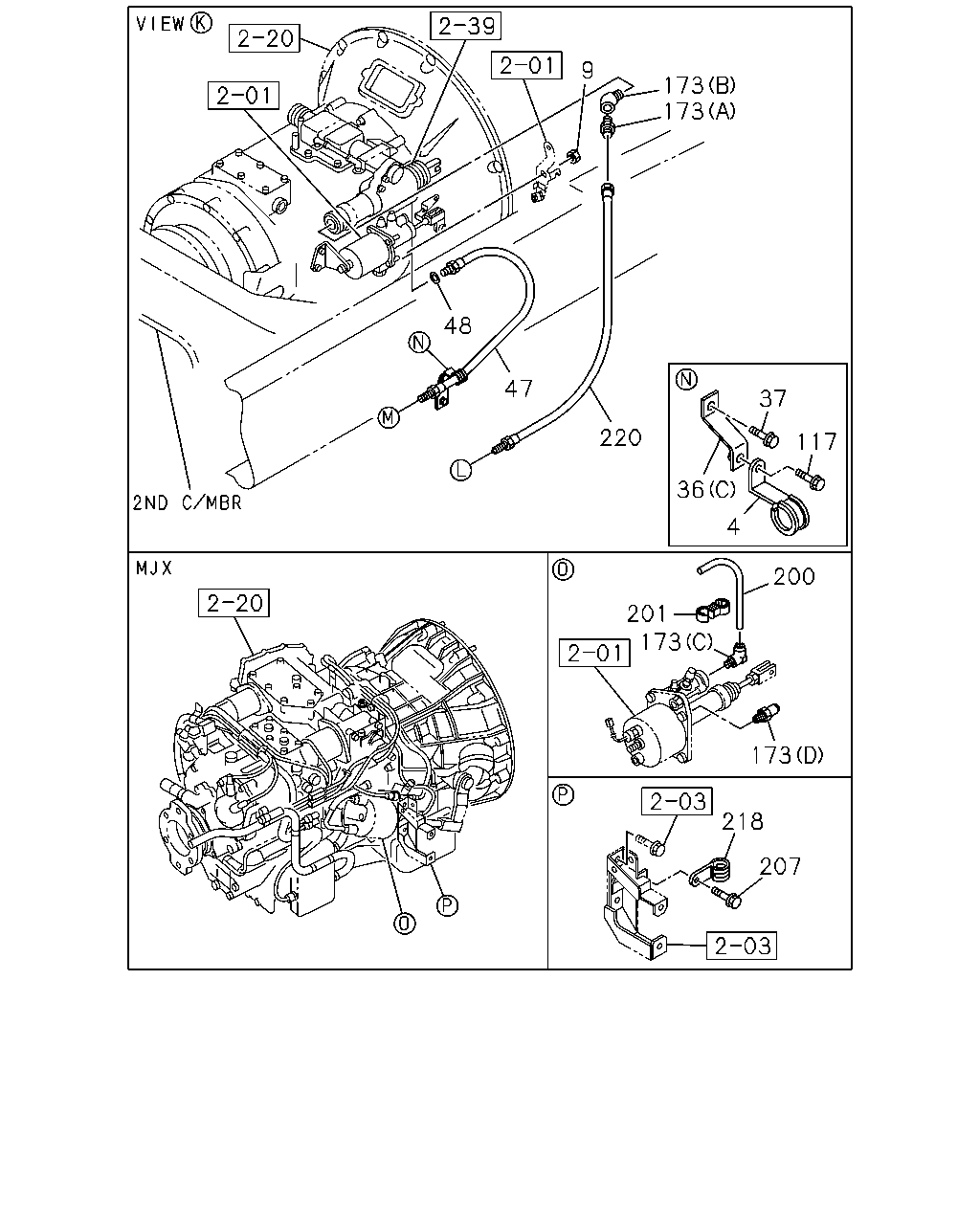

9 173 173 48 47 37 220 117 36 4 200 201 173 173 218 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0610-
9	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	0610-
36	BRACKET; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-191-1	01	1	0610-1110
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1111-
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (C)	8-97610-103-0	01	1	0610-
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	0610-
36	BRACKET; CLIP MJX12P M/T SMOOTHER-G(Y4S) (D) L=80 H=20	1-82699-304-0	01	1	0610-0610
36	BRACKET; CLIP (D) L=80 H=20	1-82699-304-0	01	1	0610-
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	0610-
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	0610-
47	HOSE; FLEX,CLU CONT MJX12P M/T SMOOTHER-G(Y4S) L=580	1-09365-349-0	01	1	0610-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=550	1-09364-434-0	01	1	0610-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0610-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0610-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	0610-
173	CONNECTOR MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0610-
173	CONNECTOR MJT7S M/T(Y3E) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0610-
173	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0610-
173	CONNECTOR MJX12P M/T SMOOTHER-G(Y4S) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0610-
200	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0610-
201	CLIP; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) ID=6.35 & 12	1-09709-275-1	01	1	0610-
207	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	0610-
218	CLIP MJX12P M/T SMOOTHER-G(Y4S) ID=11 L=20	0-95235-035-0	01	1	0610-
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=300	1-09363-608-0	01	1	0610-
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	0610-
