2-03 — CLUTCH PEDAL AND CONTROL (#27852) — 67 parça

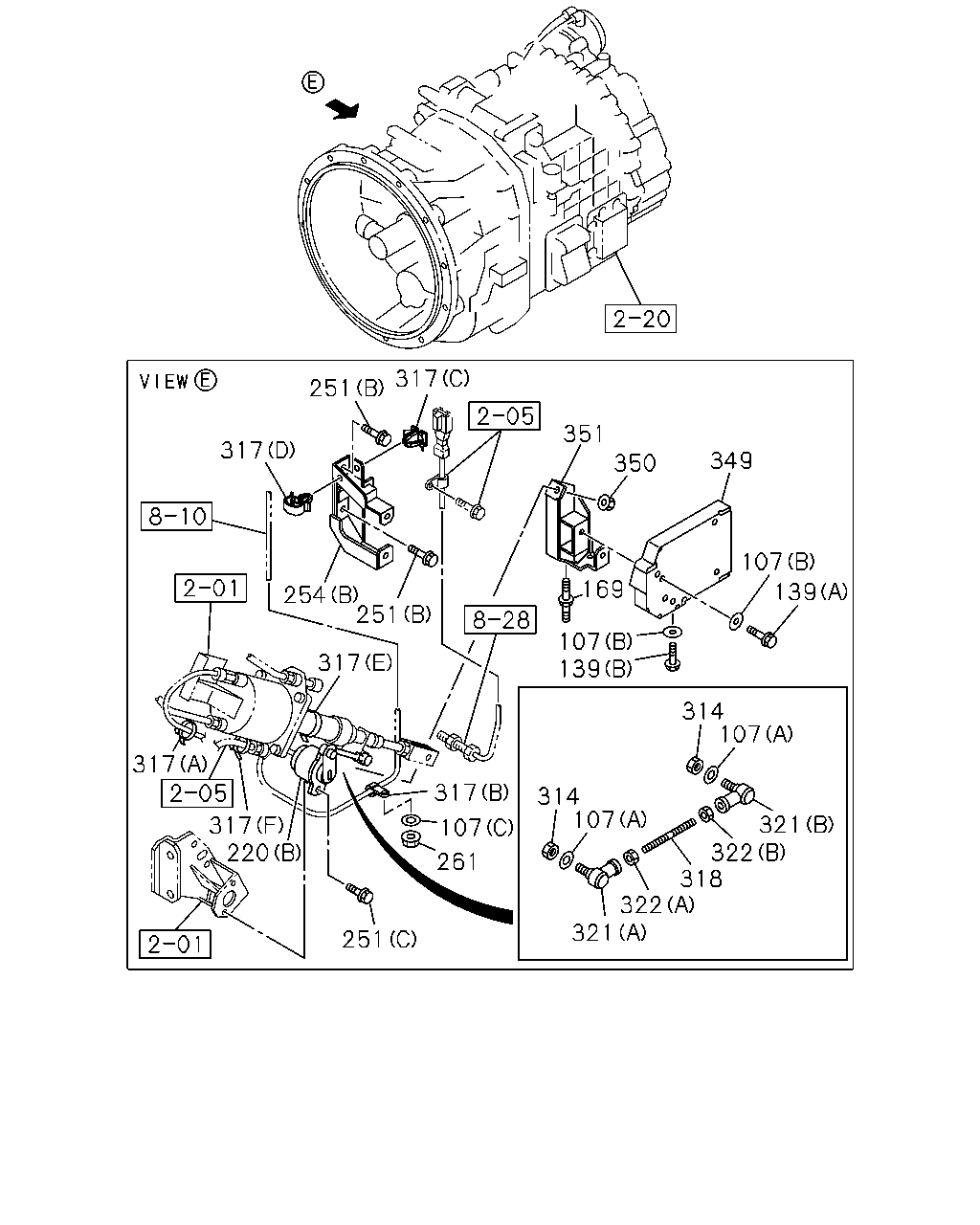

317 251 351 317 349 350 169 107 139 254 251 107 139 317 314 107 317 317 314 107 321 322 318 322 321 317 220 107 261 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	WASHER; PL SMOOTHER-G(C1W) (C) ID=8.4 OD=16	0-91610-508-0	01	1	0610-
107	WASHER; PL SMOOTHER-G(C1W) (B) ID=8.4 OD=22	0-91610-708-0	06	1	0610-
107	WASHER; PL SMOOTHER-G(C1W) (A) ID=5.3 OD=16	0-91614-705-0	02	1	0610-
139	BOLT; COVER SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28050-816-0	05	1	0610-
139	BOLT; COVER SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28650-835-0	01	1	0610-
169	BOLT; CLIP SMOOTHER-G(C1W) M8X15,M8X17 L=40	8-97320-627-0	01	1	0610-0805
169	BOLT; CLIP SMOOTHER-G(C1W) M8X15,M8X17 L=40	8-98009-913-0	01	1	0806-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	0610-
220	SENSOR; CLUTCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	0610-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	1-81541-109-0	01	1	0610-1502
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	8-98297-149-0	01	1	1503-
251	BOLT; SENSOR SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
251	BOLT; SENSOR BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
251	BOLT; SENSOR MJX12P M/T SMOOTHER-G(Y4S) (B) M10X25 FLANGE	0-28751-025-0	02	1	0610-
251	BOLT; SENSOR SMOOTHER-G(C1W) (C) M6X16 FLANGE	0-28650-616-0	02	1	0610-
254	BRACKET; CLU SENSOR MJX12P M/T SMOOTHER-G(Y4S) (B)	1-31349-076-1	01	1	0610-
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	0610-
261	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-208-0	01	1	0610-0811
261	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0812-
314	NUT; ROD SMOOTHER-G(C1W) M5	0-91110-505-0	02	1	0610-
317	CLIP; CABLE SMOOTHER-G(C1W) (E) L=250	5-09707-030-1	01	1	0610-0610
317	CLIP; CABLE SMOOTHER-G(C1W) (F) L=140	5-09707-031-1	01	1	0610-0610
317	CLIP; CABLE SMOOTHER-G(C1W) (B) ID=11 L=32	0-95235-065-0	01	1	0610-
317	CLIP; CABLE SMOOTHER-G(C1W) (A) L=180	1-09707-162-1	01	1	0610-
317	CLIP; CABLE SMOOTHER-G(C1W) (C) OD=9 H=6	1-09709-178-0	01	1	0610-
317	CLIP; CABLE SMOOTHER-G(C1W) (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-
318	ROD; CLU SMOOTHER-G(C1W)	0-84100-506-0	01	1	0610-
321	END; ROD SMOOTHER-G(C1W) (A)	1-09760-103-2	01	1	0610-
321	END; ROD SMOOTHER-G(C1W) (B)	1-09760-104-2	01	1	0610-
322	NUT; ROD END SMOOTHER-G(C1W) (A) M5	0-91110-505-0	01	1	0610-
322	NUT; ROD END SMOOTHER-G(C1W) (B) M5 LH THREAD	9-09840-277-0	01	1	0610-
349	COVER; SENSOR SMOOTHER-G(C1W)	1-31349-077-0	01	1	0610-
350	NUT; COVER SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	01	1	0610-
351	BRACKET; COVER SMOOTHER-G(C1W)	1-31349-078-1	01	1	0610-

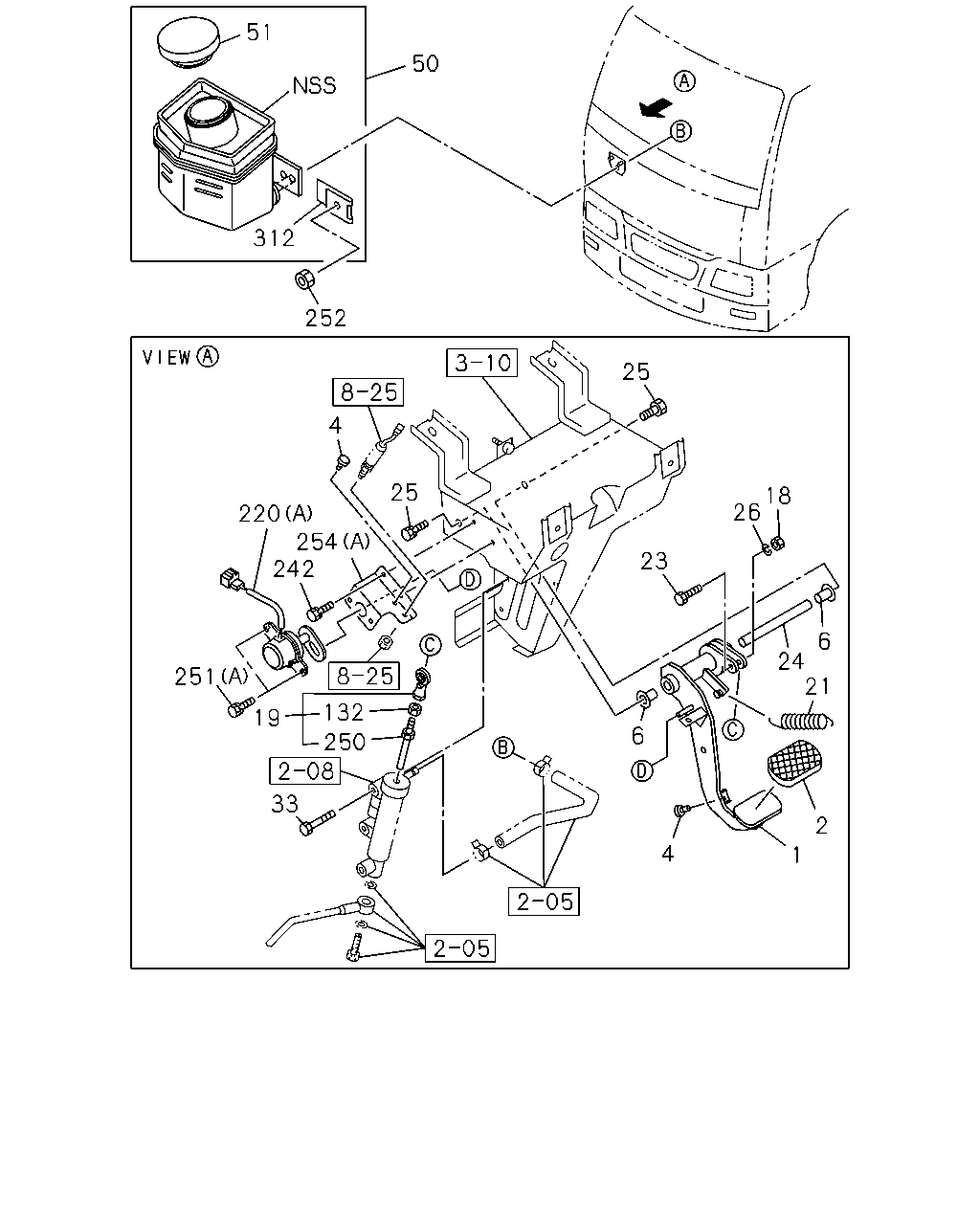

51 50 312 252 25 4 25 18 26 220 254 242 23 6 24 21 251 132 19 6 250 33 2 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU AIR BAG(TFQ)	1-73907-474-1	01	1	0610-
1	PEDAL; CLU EXC. AIR BAG(TFQ)	1-73907-321-4	01	1	0610-
2	COVER; CLU PEDAL	8-97893-618-1	01	1	0610-
4	STOPPER; CLU PEDAL	1-47319-014-1	04	1	0610-
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	0610-
18	NUT; PUSH ROD M8	0-91110-508-0	01	1	0610-
19	ROD ASM; PUSH,CLU	1-73907-320-1	01	1	0610-
21	SPRING; RETURN,CLU PEDAL	1-73908-265-0	01	1	0610-
23	BOLT; PUSH ROD M8X39.7	1-09009-150-0	01	1	0610-
24	SHAFT; CLU PEDAL AIR BAG(TFQ)	1-73908-195-1	01	1	0610-
24	SHAFT; CLU PEDAL EXC. AIR BAG(TFQ)	1-73998-936-1	01	1	0610-
25	BOLT; PEDAL AIR BAG(TFQ) M10X35 W/LK WASHER	0-50051-035-0	02	1	0610-
25	BOLT; PEDAL EXC. AIR BAG(TFQ) M10X25 W/LK WASHER	0-50051-025-0	02	1	0610-
26	WASHER; LK,PUSH ROD ID=8.2	0-91510-608-0	01	1	0610-
33	BOLT; CLU M/CYL TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0610-
50	TANK; OIL,CLU	1-47530-182-0	01	1	0610-
51	CAP; OIL TANK,CLU	8-94136-483-1	01	1	0610-
132	NUT; LK,PUSH ROD M8	0-91110-508-0	01	1	0610-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	0610-
220	SENSOR; CLUTCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	0610-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	1-81541-109-0	01	1	0610-1502
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	8-98297-149-0	01	1	1503-
242	BOLT; BRKT,CLUTCH AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	04	1	0610-
242	BOLT; BRKT,CLUTCH EXC. AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	02	1	0610-
250	ROD; PUSH,CLU	1-73996-219-0	01	1	0610-
251	BOLT; SENSOR SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
251	BOLT; SENSOR BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
251	BOLT; SENSOR MJX12P M/T SMOOTHER-G(Y4S) (B) M10X25 FLANGE	0-28751-025-0	02	1	0610-
251	BOLT; SENSOR SMOOTHER-G(C1W) (C) M6X16 FLANGE	0-28650-616-0	02	1	0610-
252	NUT; OIL TANK M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0610-
254	BRACKET; CLU SENSOR MJX12P M/T SMOOTHER-G(Y4S) (B)	1-31349-076-1	01	1	0610-
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	0610-
312	PLATE; OIL TANK,CLU	1-21249-007-1	01	1	0610-
