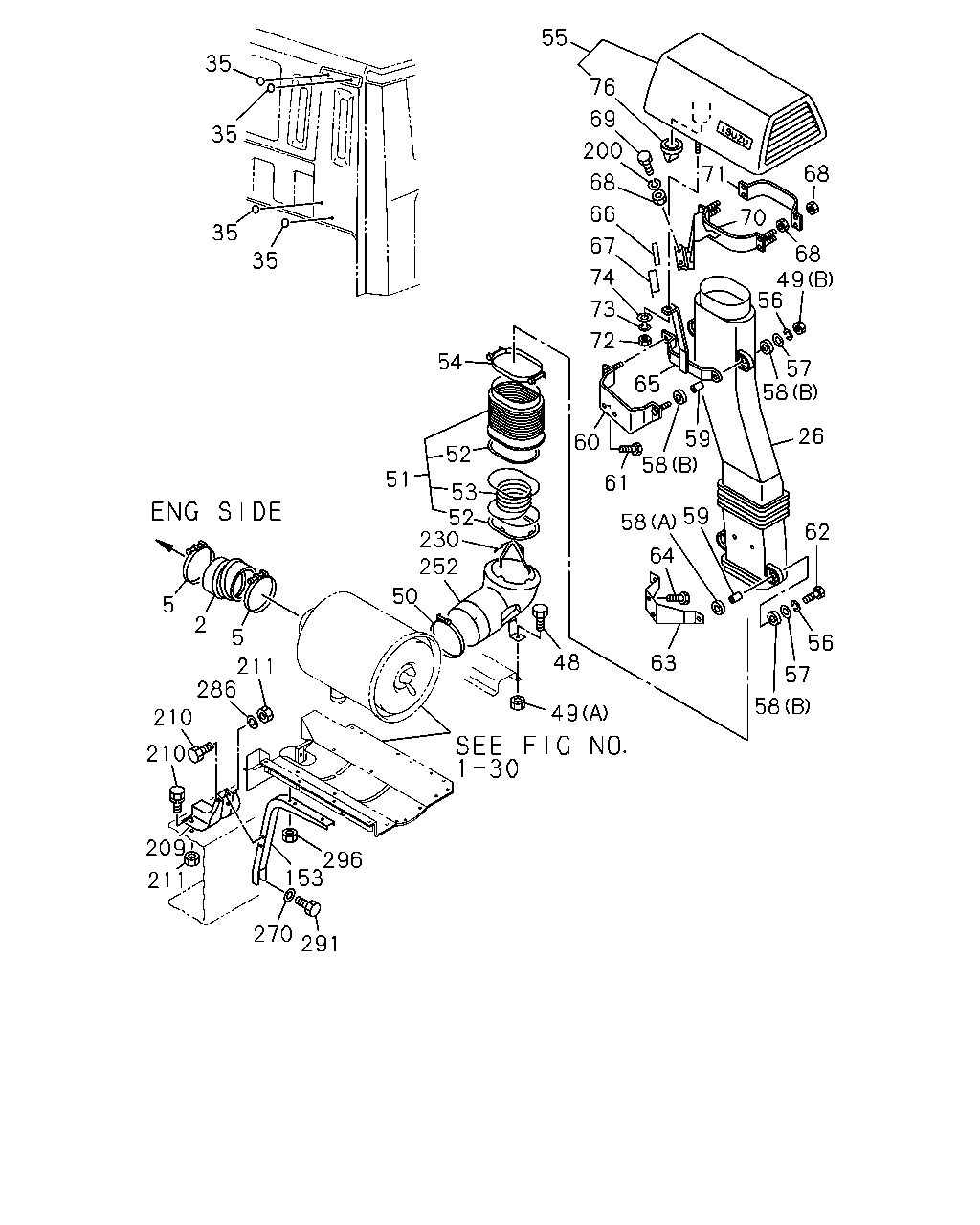

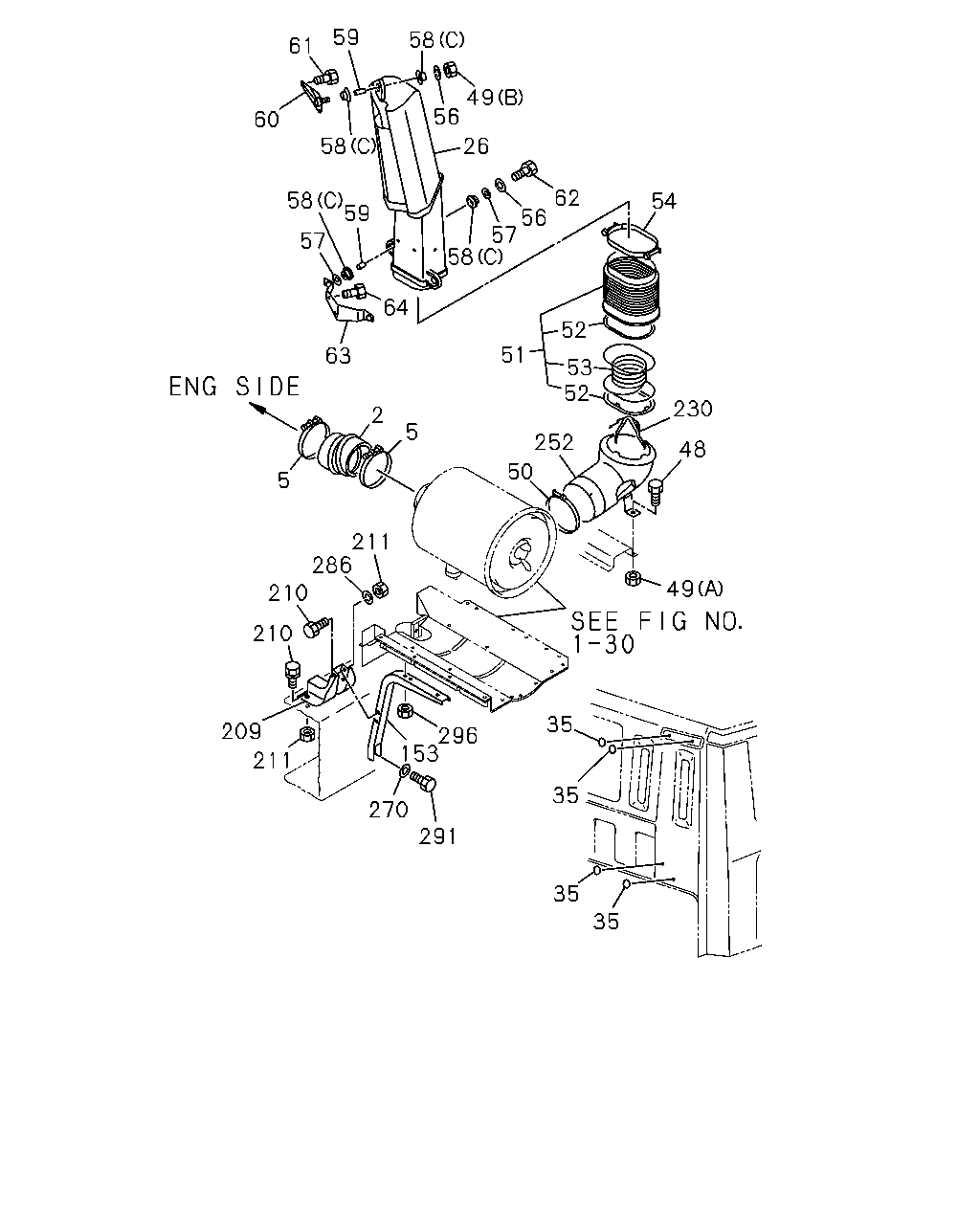

1-31B — AIR DUCT (#2785) — 138 parça

35 35 35 35 55 76 69 200 68 66 67 74 73 72 71 68 68 70 49 56 57 58 26 62 59 65 60 61 58 58 59 64 56 57 58 63 48 49 54 52 53 52 230 252 50 51 5 2 5 211 286 210 210 209 211 296 153 270 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-811-0	01	1	9002-9306	●
2	HOSE; ACL	1-14231-811-0	01	1	9307-	●
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-811-0	01	1	9307-		●
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-441-0	01	1	9307-		●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9002-9306	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-9306	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9307-	●
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9307-		●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9307-	●	●
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9307-		●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9002-9306	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9307-	●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9307-		●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9307-		●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-495-0	01	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
65	BRACKET; PRE ACL PRE CLEANER<W17>	1-14239-157-1	01	1	9002-	●	●
66	GASKET; SPACER PRE CLEANER<W17>	1-14239-170-0	01	1	9002-	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9002-	●	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	08	1	9002-9306	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	10	1	9307-	●	●
69	BOLT; DUCT CLIP PRE CLEANER<W17>	1-09000-372-0	02	1	9002-	●	●
70	CLIP; BAND,ACL TO DUCT PRE CLEANER<W17>	1-14239-197-0	01	1	9002-	●	●
71	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9002-	●	●
72	NUT; ACL TO BRKT PRE CLEANER<W17> M10	1-09400-053-0	01	1	9002-	●	●
73	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	9002-	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	01	1	9002-	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9002-	●	●
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108	●
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-	●	●
200	WASHER; PL,CLAMP PRE CLEANER<W17> ID=10.5	1-09985-107-0	02	1	9307-	●	●
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108	●
209	BRACKET; ACL	1-53419-248-0	01	1	9109-	●	●
210	BOLT; ACL BRKT M8X65	9-01055-865-0	02	1	9002-9005	●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9006-	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306	●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-	●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-		●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-		●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
296	NUT; ACL M12	9-99110-412-0	02	1	9002-9304	●
296	NUT; ACL M12	9-99110-512-0	02	1	9305-	●	●

58 59 61 60 58 56 49 26 62 56 57 58 54 59 58 57 64 63 51 52 53 52 230 48 252 50 5 2 5 211 286 210 210 209 211 153 296 35 35 35 35 291 270 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-811-0	01	1	9002-9306	●
2	HOSE; ACL	1-14231-811-0	01	1	9307-	●
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-811-0	01	1	9307-		●
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-441-0	01	1	9307-		●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9002-9306	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-9306	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9307-	●
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9307-		●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9307-	●	●
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9307-		●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9002-9306	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9307-	●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9307-		●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9307-		●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108	●
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-	●	●
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108	●
209	BRACKET; ACL	1-53419-248-0	01	1	9109-	●	●
210	BOLT; ACL BRKT M8X65	9-01055-865-0	02	1	9002-9005	●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9006-	●	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005	●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306	●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-	●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-		●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-		●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-	●	●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●
296	NUT; ACL M12	9-99110-412-0	02	1	9002-9304	●
296	NUT; ACL M12	9-99110-512-0	02	1	9305-	●	●
