1-50 — EXHAUST PIPE AND SILENCER (#27848) — 73 parça

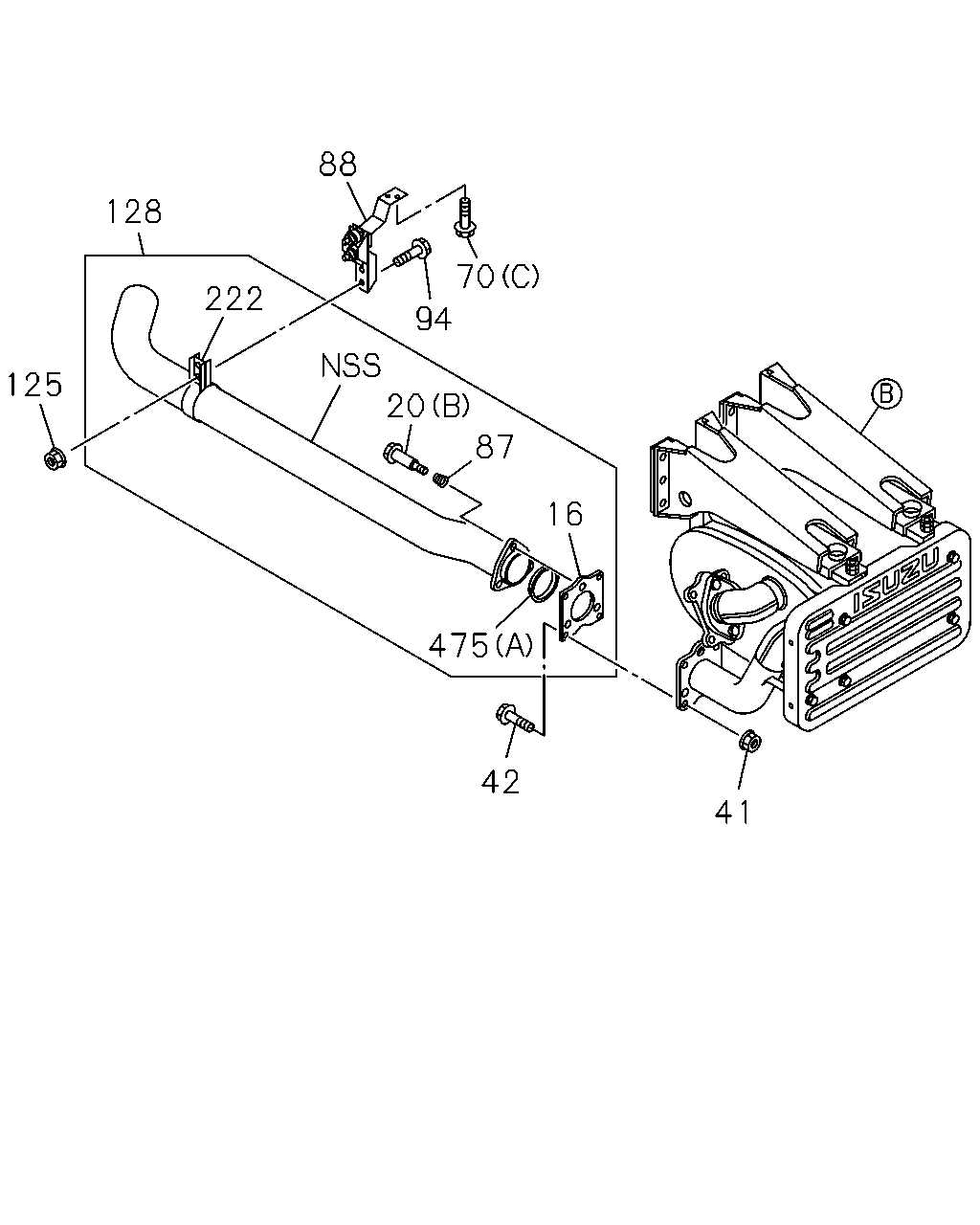

88 128 70 222 94 20 125 87 16 475 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	FLANGE; EXH PIPE CATALYSIS CONTROL<6MZ>	1-22115-194-0	01	1	0610-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	05	1	0610-0701
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	03	1	0702-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (A) M10X49.8	8-97039-586-0	02	1	0610-
41	NUT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12	0-91110-512-0	08	1	0610-
42	BOLT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	08	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X30 FLANGE	0-28651-030-0	02	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X50 FLANGE	0-28051-050-0	04	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X35 FLANGE	0-28651-035-0	04	1	0610-
87	SPRING; PRE SILENCER CATALYSIS CONTROL<6MZ>	8-94141-851-0	03	1	0610-
88	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ>	1-22151-976-2	01	1	0610-
94	BOLT; CLAMP CATALYSIS CONTROL<6MZ> M8X40 FLANGE	0-28650-840-0	02	1	0610-
125	NUT; CLAMP CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	02	1	0610-
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ>	8-97611-407-1	01	1	0610-
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ>	1-22133-276-0	01	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	02	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-0	02	1	0610-

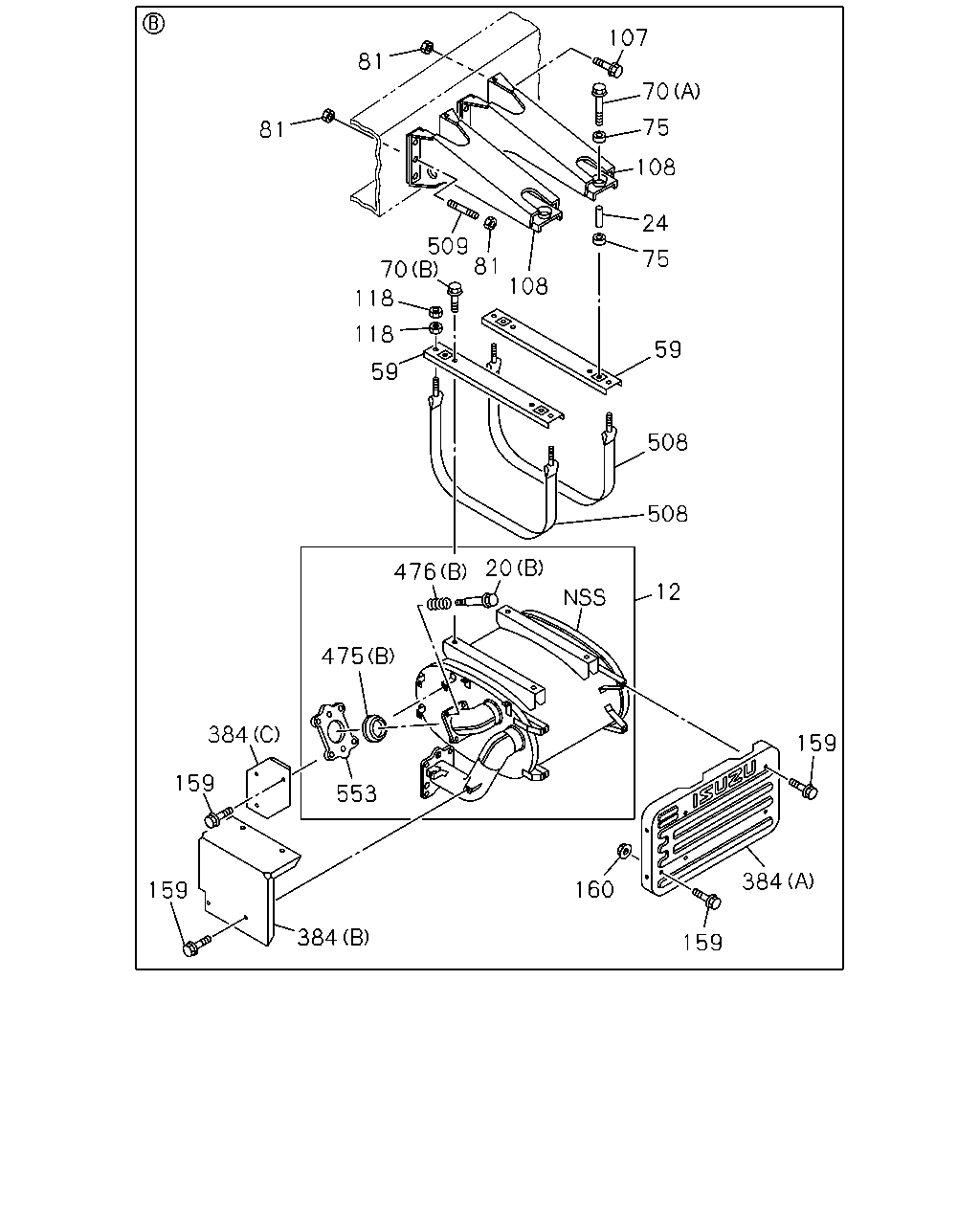

107 81 70 75 81 108 24 509 70 81 75 108 118 118 59 59 508 508 20 476 12 475 384 159 159 553 384 160 159 384 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ>	8-97611-401-0	01	1	0610-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	05	1	0610-0701
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	03	1	0702-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (A) M10X49.8	8-97039-586-0	02	1	0610-
24	COLLAR; DIST,CLAMP CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	04	1	0610-
59	BRACKET; EXH SILENCER,FRT CATALYSIS CONTROL<6MZ>	1-22134-147-1	02	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X30 FLANGE	0-28651-030-0	02	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X50 FLANGE	0-28051-050-0	04	1	0610-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X35 FLANGE	0-28651-035-0	04	1	0610-
75	RUBBER; SUPPORT,BRKT CATALYSIS CONTROL<6MZ> OD=40	1-22159-094-0	08	1	0610-
81	NUT; BRKT CATALYSIS CONTROL<6MZ> M12 FLANGE	0-91180-212-0	12	1	0610-
107	BOLT; BRKT CATALYSIS CONTROL<6MZ> M12X45 FLANGE	0-28051-245-0	09	1	0610-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ>	1-22134-148-3	02	1	0610-
118	NUT; SILENCER MTG BRKT CATALYSIS CONTROL<6MZ> M10	0-91110-510-0	08	1	0610-
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0610-
160	NUT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	01	1	0610-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (B)	8-97611-403-0	01	1	0610-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (A)	1-22119-556-0	01	1	0610-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (C)	1-22119-562-0	01	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	02	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-0	02	1	0610-
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94141-851-0	04	1	0610-
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-09583-248-0	04	1	0610-
508	BAND; EXHAUST SILENCER CATALYSIS CONTROL<6MZ>	1-22159-384-0	02	1	0610-
509	STUD; BRKT CATALYSIS CONTROL<6MZ> M12X40 L=56	1-09300-123-0	03	1	0610-
553	FLANGE; SILENCER CATALYSIS CONTROL<6MZ>	1-22115-148-1	01	1	0610-

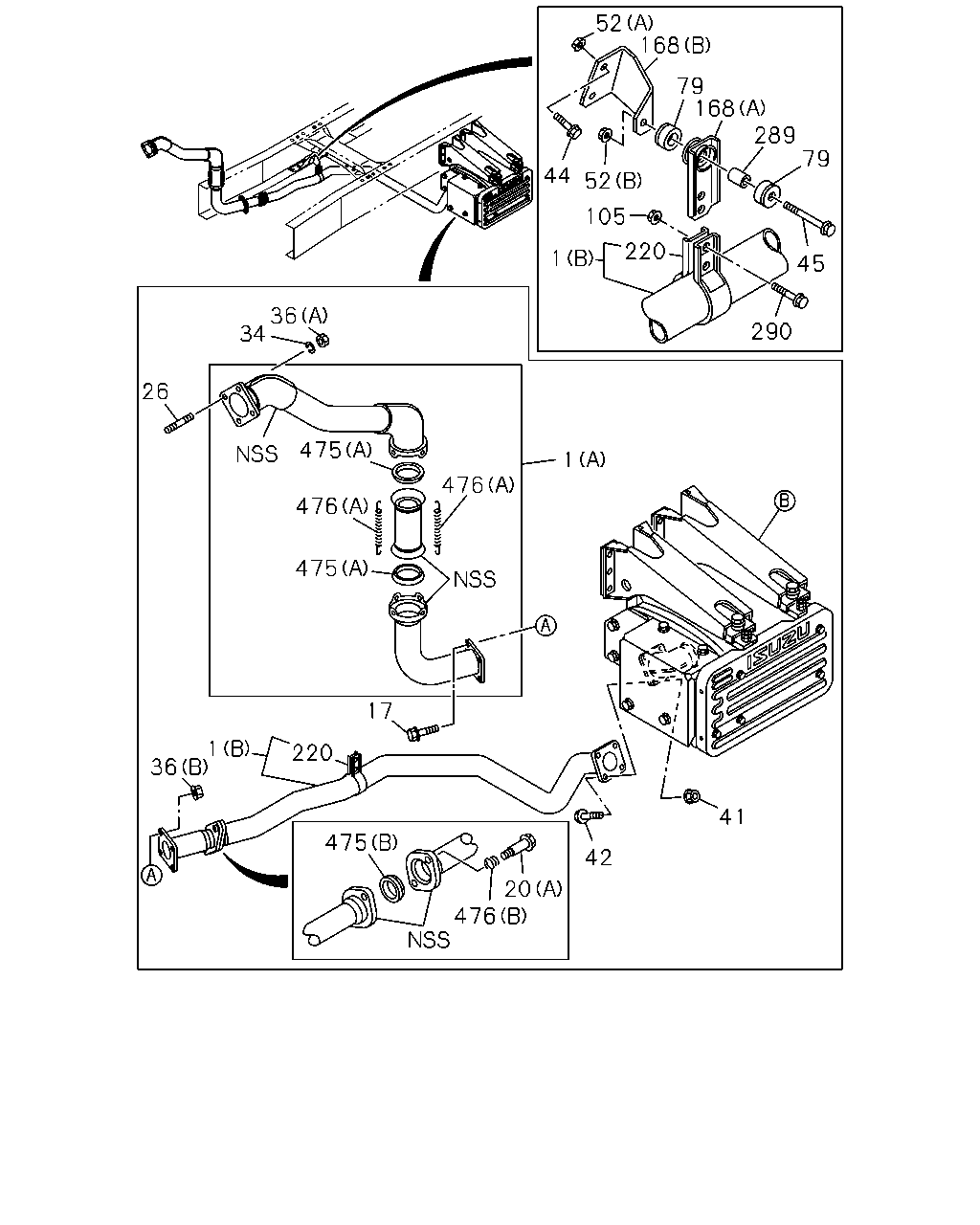

52 168 79 168 289 79 44 52 105 220 1 45 36 34 290 26 475 1 476 476 475 17 1 36 220 41 475 42 20 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (B)	8-97612-249-0	01	1	0610-
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (A)	8-98045-763-0	01	1	0610-
17	BOLT; EXH PIPE CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	04	1	0610-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	1-09009-167-0	05	1	0610-0701
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	03	1	0702-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (A) M10X49.8	8-97039-586-0	02	1	0610-
26	STUD; EXH MANIF CATALYSIS CONTROL<6MZ> M12X140 L=160	1-09302-163-0	04	1	0610-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0610-
36	NUT; EXH PIPE CATALYSIS CONTROL<6MZ> (B) M12	0-91110-512-0	04	1	0610-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0610-
41	NUT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12	0-91110-512-0	08	1	0610-
42	BOLT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	08	1	0610-
44	BOLT; BRKT CATALYSIS CONTROL<6MZ> M8X30 FLANGE	0-28650-830-0	02	1	0610-
45	BOLT; BRKT CATALYSIS CONTROL<6MZ> M10X50 FLANGE	0-28051-050-0	01	1	0610-
52	NUT; BRKT CATALYSIS CONTROL<6MZ> (A) M8 FLANGE	0-91180-108-0	02	1	0610-
52	NUT; BRKT CATALYSIS CONTROL<6MZ> (B) M10 FLANGE	0-91180-210-0	01	1	0610-
79	SUPPORT; BRKT CATALYSIS CONTROL<6MZ> OD=40	1-22159-094-0	02	1	0610-
105	NUT; CLAMP CATALYSIS CONTROL<6MZ> M8	0-91110-508-0	02	1	0610-
168	BRACKET; EXH PIPE,FRT CATALYSIS CONTROL<6MZ> (A)	1-22131-780-0	01	1	0610-
168	BRACKET; EXH PIPE,FRT CATALYSIS CONTROL<6MZ> (B)	1-22134-213-0	01	1	0610-
220	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ> D=101.4	1-22133-170-1	01	1	0610-
289	COLLAR; DIST,SUPPORT RUBBER CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	01	1	0610-
290	BOLT; CLAMP CATALYSIS CONTROL<6MZ> M8X40 FLANGE	0-28650-840-0	02	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	02	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0610-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-0	02	1	0610-
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94141-851-0	04	1	0610-
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-09583-248-0	04	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
