1 |

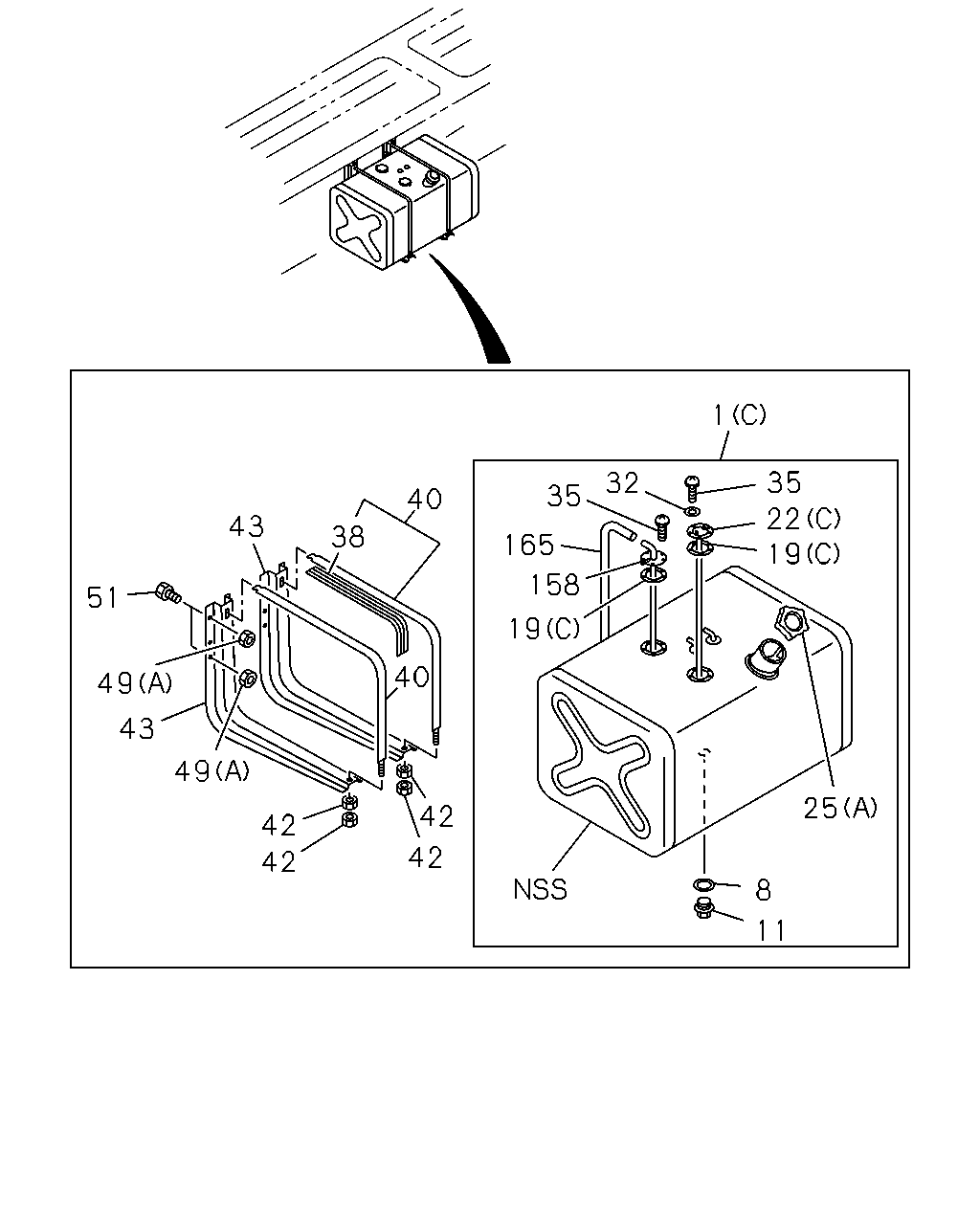

TANK; FUEL
FUEL TANK 300L AL<EBF>
(C)
790X730X635 300L
|
8-98115-603-1 |
01 |
1 |
0909-1308 |
| |
1 |
TANK; FUEL
FUEL TANK 300L AL<EBF>
(C)
790X730X635 300L
|
8-98248-751-0 |
01 |
1 |
1309- |
| |
1 |
TANK; FUEL
FUEL TANK 200L AL<THF>
(A)
745X650X480 200L
|
1-87411-169-0 |
01 |
1 |
0706- |
| |
1 |
TANK; FUEL
FUEL TANK 300L<RF5>
(B)
880X649X549 300L
|
1-22401-108-2 |
01 |
1 |
0610-1505 |
| |
1 |
TANK; FUEL
FUEL TANK 300L<RF5>
(B)
880X649X549 300L
|
8-98298-799-0 |
01 |
1 |
1506- |
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
(A)
1050X680X625 400L
|
1-87411-173-1 |
01 |
1 |
0610-0810 |
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
(A)
1050X680X625 400L
|
1-87411-699-1 |
01 |
1 |
0811-1109 |
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
(A)
1050X680X625 400L
|
1-87411-788-3 |
01 |
1 |
1110- |
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 400L<SDH>
|
8-98217-749-0 |
01 |
1 |
1211- |
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 200L AL<THF>
|
8-98217-750-0 |
01 |
1 |
1211- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
1211- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 300L AL<EBF>
|
1-22416-006-0 |
01 |
1 |
0909- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 300L<RF5>
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0610- |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
M18X12
|
0-92002-418-0 |
01 |
1 |
1211- |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 300L AL<EBF>
M36
|
1-09604-052-0 |
01 |
1 |
0909- |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 300L<RF5>
M14X14
|
9-09862-156-0 |
01 |
1 |
0610- |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 400L<SDH>
M18X12
|
0-92002-418-0 |
01 |
1 |
0610-0705 |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
M18X12
|
0-92002-418-0 |
01 |
1 |
0706-1210 |
| |
16 |
GASKET; PLUG
FUEL TANK 400L<SDH>
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0610-0705 |
| |
16 |
GASKET; PLUG
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0706-1210 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L AL<EBF>
(C)
|
1-22459-001-1 |
02 |
1 |
0909-1308 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L AL<EBF>
(C)
|
1-22459-001-1 |
01 |
1 |
1309- |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L<RF5>
(B)
ID=45 OD=67
|
1-83149-003-0 |
01 |
1 |
0610-1308 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L AL<EBF>,FUEL TANK 300L<RF5>
(B)
ID=45 OD=67
|
1-83149-003-0 |
01 |
1 |
1309- |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>
(A)
ID=58
|
1-83149-005-0 |
01 |
1 |
0610-0705 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
(A)
ID=58
|
1-83149-005-0 |
01 |
1 |
0706-1210 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
(A)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1211- |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 300L AL<EBF>
(C)
|
1-83141-146-0 |
01 |
1 |
0909-1308 |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 300L AL<EBF>
(C)
|
8-98232-859-0 |
01 |
1 |
1309- |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L AL<THF>
(A)
|
1-83141-131-0 |
01 |
1 |
0706-1210 |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 300L<RF5>
(B)
|
1-83141-118-0 |
01 |
1 |
0610-1505 |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 300L<RF5>
(B)
|
8-98296-673-0 |
01 |
1 |
1506- |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 400L<SDH>
(A)
|
1-83141-132-0 |
01 |
1 |
0610-1210 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(A)
|
8-98182-306-0 |
01 |
1 |
1110-1210 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
FUEL TANK 400L<SDH>
(C)
|
8-98108-595-0 |
01 |
1 |
0806-0911 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH>
FUEL TANK CAP KEY LOCK<N05>
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
(C)
|
8-98108-595-0 |
01 |
1 |
0912- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
FUEL TANK 200L AL<THF>
(C)
|
1-22440-057-2 |
01 |
1 |
0806- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF>
(A)
|
1-22440-056-0 |
01 |
1 |
0706- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L<RF5>
(B)
|
1-22440-046-1 |
01 |
1 |
0610- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(A)
|
1-22440-063-1 |
01 |
1 |
0610-0810 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(A)
|
8-98115-780-0 |
01 |
1 |
0811-0908 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH>
(A)
|
8-98115-780-0 |
01 |
1 |
0909-1109 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
(A)
|
8-98182-306-0 |
01 |
1 |
1110-1210 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH>
(A)
|
8-98182-306-0 |
01 |
1 |
1211- |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 300L AL<EBF>
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
0909- |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 300L<RF5>
M4X10 W/PL WASHER
|
0-36210-410-0 |
05 |
1 |
0610-1505 |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 300L<RF5>
M4X10 W/LK WASHER
|
0-36220-410-0 |
05 |
1 |
1506- |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L AL<THF>
L=960
|
1-22553-044-0 |
02 |
1 |
0706- |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 300L<RF5>
L=1000
|
1-22553-028-1 |
02 |
1 |
0610- |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH>
L=1156
|
1-22553-039-1 |
02 |
1 |
0610-0908 |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH>
L=1156
|
1-22553-039-1 |
02 |
1 |
0909- |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L AL<THF>
L=1045
|
1-22550-262-0 |
02 |
1 |
0706- |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 300L<RF5>
L=1125
|
1-22550-225-2 |
02 |
1 |
0610- |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH>
L=1210
|
1-22550-261-0 |
02 |
1 |
0610-0908 |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH>
L=1210
|
1-22550-261-0 |
02 |
1 |
0909-1110 |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH>
L=1210
|
8-98202-448-0 |
02 |
1 |
1111- |
| |
42 |
NUT; SUPPORT BELT
M10
|
0-91110-510-0 |
04 |
1 |
0610- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 300L AL<EBF>
|
8-97620-945-0 |
02 |
1 |
0909- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L AL<THF>
|
1-53461-543-0 |
02 |
1 |
0706- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 300L<RF5>
|
1-53461-435-2 |
02 |
1 |
0610- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
|
1-53461-525-1 |
02 |
1 |
0610- |
| |
49 |
NUT; BRKT
FUEL TANK 300L<RF5>
(A)
M12
|
0-91110-512-0 |
08 |
1 |
0610-0705 |
| |
49 |
NUT; BRKT
FUEL TANK 300L<RF5>,FUEL TANK 200L AL<THF>
(A)
M12
|
0-91110-512-0 |
08 |
1 |
0706- |
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
(A)
M12
|
0-91110-512-0 |
12 |
1 |
0610-0908 |
| |
49 |
NUT; BRKT
FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH>
(A)
M12
|
0-91110-512-0 |
12 |
1 |
0909- |
| |
49 |
NUT; BRKT
WHEEL BASE 6600MM(66W)
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0610-0705 |
| |
49 |
NUT; BRKT
WHEEL BASE 6300MM(63W)
FUEL TANK 200L AL<THF>
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0706- |
| |
49 |
NUT; BRKT
WHEEL BASE 6600MM(66W)
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0706- |
| |
110 |
NUT; PROTECTOR
WHEEL BASE 6300MM(63W)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0610-0705 |
| |
110 |
NUT; PROTECTOR
WHEEL BASE 6300MM(63W)
FUEL TANK 200L AL<THF>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0706- |
| |
110 |
NUT; PROTECTOR
WHEEL BASE 6600MM(66W)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0706- |
| |
110 |
NUT; PROTECTOR
WHEEL BASE 6600MM(66W)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0610-0705 |
| |
110 |
NUT; PROTECTOR
WHEEL BASE 6300MM(63W)
EXC. FUEL TANK 200L AL<THF>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0706- |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF>
L=340
|
1-22553-043-2 |
02 |
1 |
0706- |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF>
L=540
|
1-22553-064-1 |
02 |
1 |
0706- |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH>
|
1-22553-037-1 |
04 |
1 |
0610- |
| |
261 |
BOLT; PROTECTOR
WHEEL BASE 6300MM(63W)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0610-0705 |
| |
261 |
BOLT; PROTECTOR
WHEEL BASE 6300MM(63W)
FUEL TANK 200L AL<THF>
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0706- |
| |
261 |
BOLT; PROTECTOR
WHEEL BASE 6600MM(66W)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0706- |
| |
261 |
BOLT; PROTECTOR
WHEEL BASE 6600MM(66W)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0610-0705 |
| |
261 |
BOLT; PROTECTOR
WHEEL BASE 6300MM(63W)
EXC. FUEL TANK 200L AL<THF>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0706- |
| |
274 |
CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 400L<SDH>
|
1-83149-006-0 |
02 |
1 |
0610-0705 |
| |
274 |
CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
|
1-83149-006-0 |
02 |
1 |
0706-1210 |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 200L AL<THF>
M12X35 FLANGE
|
0-28051-235-0 |
08 |
1 |
0706- |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 300L<RF5>
M12X50 FLANGE
|
0-28051-250-0 |
08 |
1 |
0610- |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 400L<SDH>
M12X40 FLANGE
|
0-28051-240-0 |
12 |
1 |
0610- |
| |
324 |
PROTECTOR; FUEL SEDIMENTER
|
1-47471-216-0 |
01 |
1 |
0610- |
| |
516 |
GASKET; CAP
FUEL TANK 200L AL<THF>
ID=78
|
8-98259-383-0 |
01 |
1 |
0706- |
| |
631 |
BRACKET; PROTECTOR
WHEEL BASE 6600MM(66W)
|
1-82698-358-0 |
02 |
1 |
0610-0705 |
| |
631 |
BRACKET; PROTECTOR
WHEEL BASE 6300MM(63W)
FUEL TANK 200L AL<THF>
|
1-82698-358-0 |
02 |
1 |
0706- |
| |
631 |
BRACKET; PROTECTOR
WHEEL BASE 6600MM(66W)
|
1-82698-358-0 |
02 |
1 |
0706- |
