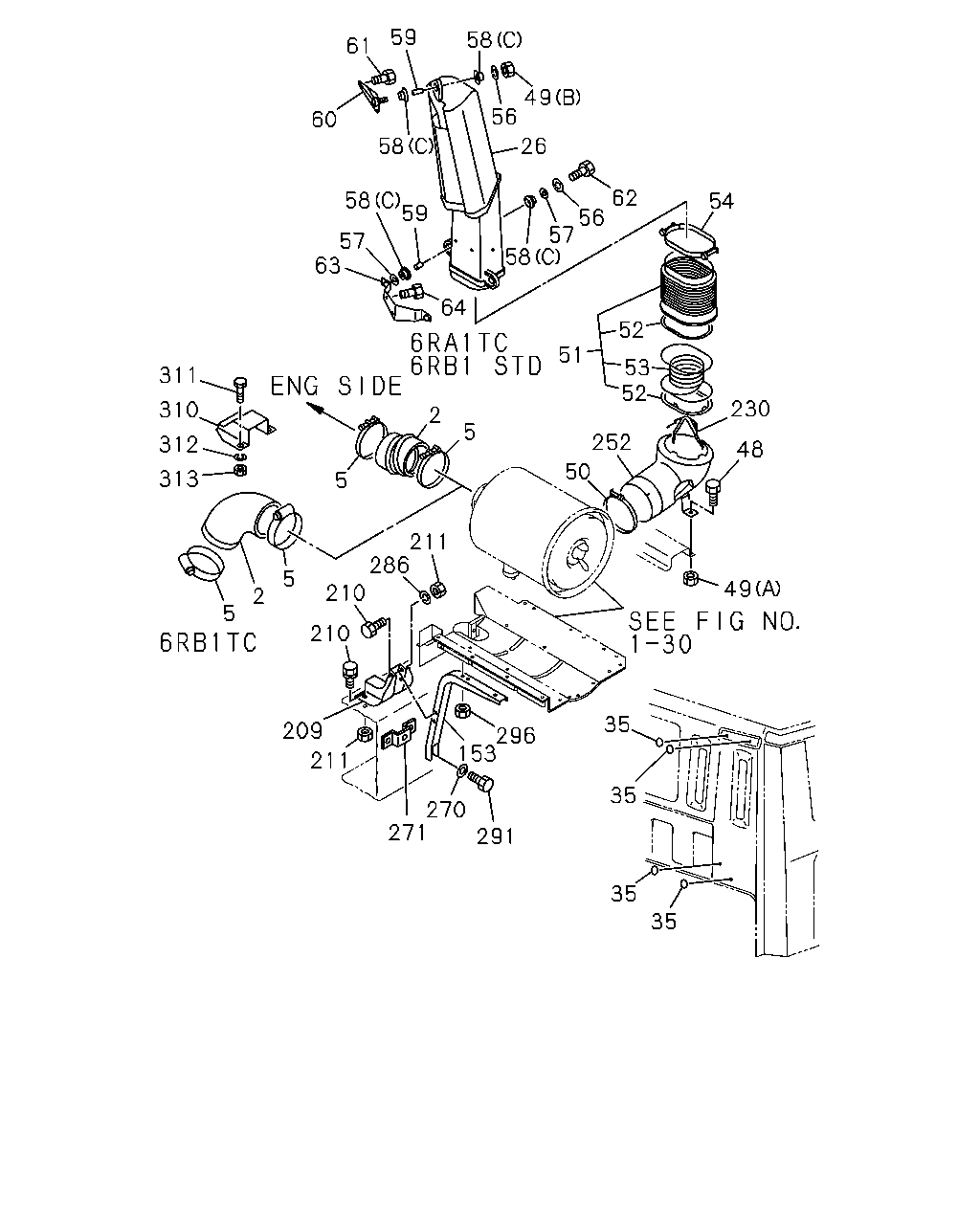

1-31A — AIR DUCT (#2784) — 182 parça

61 59 58 60 58 56 49 26 58 57 63 59 58 57 56 62 54 64 311 310 312 313 5 2 5 5 2 5 211 286 210 210 209 211 271 270 291 153 296 35 35 35 35 50 252 51 52 53 52 230 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-769-1	01	1	9002-9306	●
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-500-0	01	1	9002-		●
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-501-0	01	1	9002-		●
2	HOSE; ACL	1-14231-649-1	01	1	9002-			●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9002-9306	●
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9002-9306		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-9306	●		●
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9002-9306		●
5	CLIP; AIR DUCT ID=87-116	1-09707-144-0	01	1	9002-		●
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9307-		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9307-			●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9307-			●
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9307-		●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204	●	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9002-9306	●		●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9002-9306		●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9307-		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9307-			●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9002-9306		●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9307-		●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-	●	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●
153	BRACKET; ACL,FRT EXC. CAB UP 110MM(W60)	1-53419-149-2	01	1	9002-9108	●	●	●
153	BRACKET; ACL,FRT EXC. CAB UP 110MM(W60)	1-53419-247-0	01	1	9109-	●	●	●
153	BRACKET; ACL,FRT CAB UP 110MM(W60)	8-94300-329-3	01	1	9002-			●
209	BRACKET; ACL EXC. CAB UP 110MM(W60)	1-53419-150-1	01	1	9002-9108	●	●	●
209	BRACKET; ACL EXC. CAB UP 110MM(W60)	1-53419-248-0	01	1	9109-	●	●	●
209	BRACKET; ACL CAB UP 110MM(W60)	1-53419-171-0	01	1	9002-			●
210	BOLT; ACL BRKT EXC. CAB UP 110MM(W60) M8X65	9-01055-865-0	02	1	9002-9005	●	●	●
210	BOLT; ACL BRKT EXC. CAB UP 110MM(W60) M8X65	0-10805-865-0	02	1	9006-	●	●	●
210	BOLT; ACL BRKT EXC. CAB UP 110MM(W60) M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005	●	●	●
210	BOLT; ACL BRKT EXC. CAB UP 110MM(W60) M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●	●	●
210	BOLT; ACL BRKT CAB UP 110MM(W60) M8X65	9-01055-865-0	03	1	9002-9005			●
210	BOLT; ACL BRKT CAB UP 110MM(W60) M8X65	0-10805-865-0	03	1	9006-			●
210	BOLT; ACL BRKT CAB UP 110MM(W60) M12X30 W/LK WASHER	9-01911-230-0	03	1	9002-9005			●
210	BOLT; ACL BRKT CAB UP 110MM(W60) M12X30 W/LK WASHER	0-50041-230-0	03	1	9006-			●
211	NUT; BRKT EXC. CAB UP 110MM(W60) M8	9-09110-408-0	02	1	9002-	●	●	●
211	NUT; BRKT CAB UP 110MM(W60) M8	9-09110-408-0	03	1	9002-			●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306	●		●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14231-400-2	01	1	9002-9306		●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-		●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-			●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-399-2	01	1	9002-9306		●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-		●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●	●
271	SPACER; BRKT,ACL CAB UP 110MM(W60)	1-53497-111-0	01	1	9002-			●
286	WASHER; LK,BRKT EXC. CAB UP 110MM(W60) ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
286	WASHER; LK,BRKT CAB UP 110MM(W60) ID=8.2	9-09150-508-0	03	1	9002-			●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●	●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●	●
296	NUT; ACL M12	9-99110-412-0	02	1	9002-9304	●	●	●
296	NUT; ACL M12	9-99110-512-0	02	1	9305-	●	●	●
310	PROTECTOR; HEAT,ACL	1-53497-199-0	01	1	9002-			●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	9-01960-816-0	02	1	9002-9204			●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9205-9306			●
311	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9307-			●
312	WASHER; PL,HEAT PROTECTOR ID=8.4	9-09160-508-0	02	1	9002-			●
313	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9002-			●

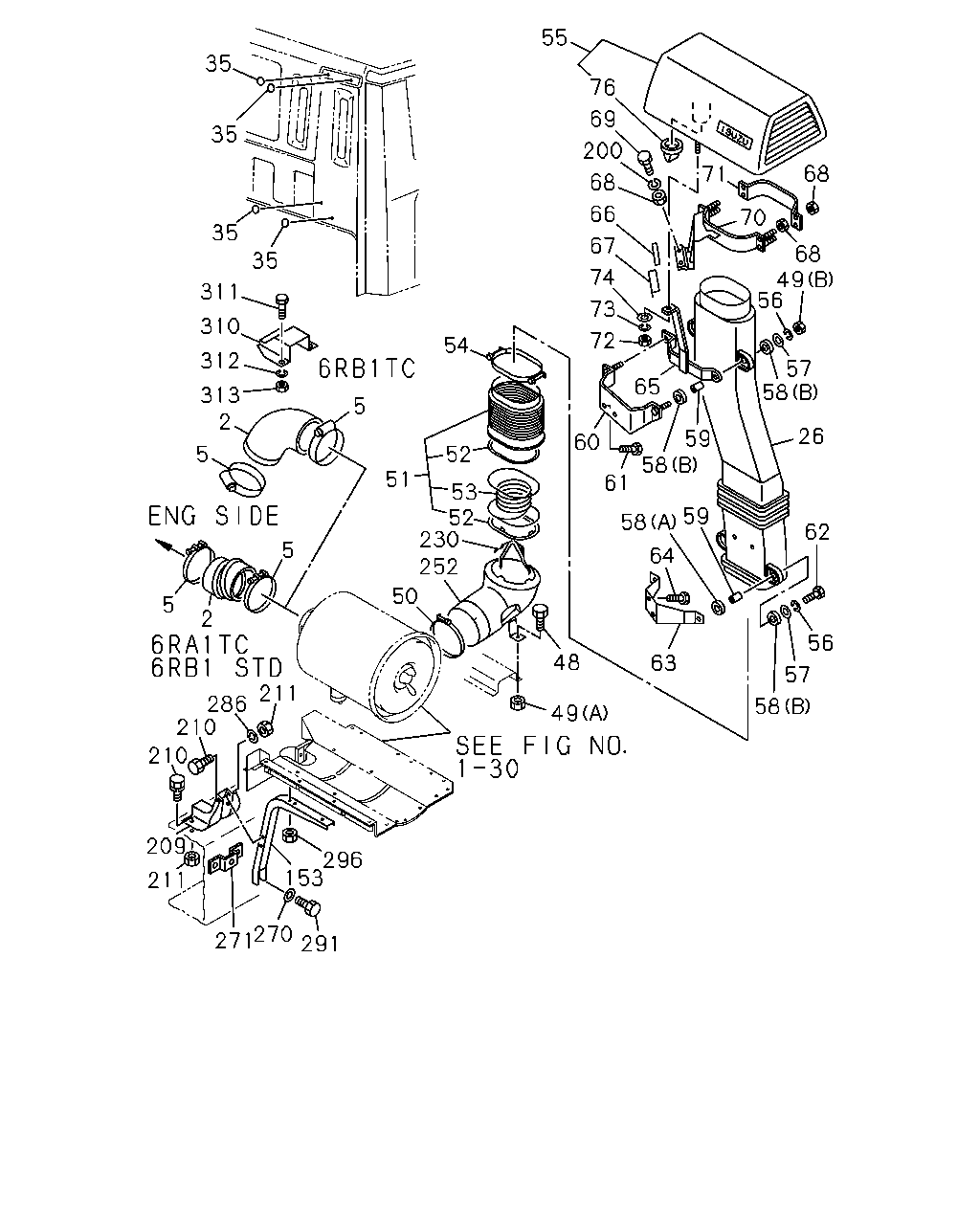

55 76 69 200 68 71 68 70 68 49 56 57 58 26 62 56 57 58 66 67 74 73 72 65 59 60 61 58 59 58 64 63 35 35 35 35 311 310 312 313 5 54 52 53 52 230 252 51 2 5 5 5 2 211 50 48 49 286 210 210 209 211 296 153 271 270 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-769-1	01	1	9002-9306	●
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-500-0	01	1	9002-		●
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-501-0	01	1	9002-		●
2	HOSE; ACL	1-14231-649-1	01	1	9002-			●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9002-9306	●
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9002-9306		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-9306	●		●
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9002-9306		●
5	CLIP; AIR DUCT ID=87-116	1-09707-144-0	01	1	9002-		●
5	CLIP; AIR DUCT AIR CLEANER HEAVY DUTY<K45> ID=130-169	1-09707-157-0	01	1	9307-		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9307-			●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9307-			●
5	CLIP; AIR DUCT EXC. AIR CLEANER HEAVY DUTY<K45> ID=104-142	1-09707-155-0	01	1	9307-		●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204	●	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9002-9306	●		●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9002-9306		●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9307-		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9307-			●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9002-9306		●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9307-		●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-495-0	01	1	9002-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-	●	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●
65	BRACKET; PRE ACL PRE CLEANER<W17>	1-14239-157-1	01	1	9002-	●	●	●
66	GASKET; SPACER PRE CLEANER<W17>	1-14239-170-0	01	1	9002-	●	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9002-	●	●	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	08	1	9002-9306	●	●	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	10	1	9307-		●	●
69	BOLT; DUCT CLIP PRE CLEANER<W17>	1-09000-372-0	02	1	9002-	●	●	●
70	CLIP; BAND,ACL TO DUCT PRE CLEANER<W17>	1-14239-197-0	01	1	9002-	●	●	●
71	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9002-	●	●	●
72	NUT; ACL TO BRKT PRE CLEANER<W17> M10	1-09400-053-0	01	1	9002-	●	●	●
73	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	9002-	●	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	01	1	9002-	●	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9002-	●	●	●
153	BRACKET; ACL,FRT EXC. CAB UP 110MM(W60)	1-53419-149-2	01	1	9002-9108	●	●	●
153	BRACKET; ACL,FRT EXC. CAB UP 110MM(W60)	1-53419-247-0	01	1	9109-	●	●	●
153	BRACKET; ACL,FRT CAB UP 110MM(W60)	8-94300-329-3	01	1	9002-			●
200	WASHER; PL,CLAMP PRE CLEANER<W17> ID=10.5	1-09985-107-0	02	1	9307-	●	●	●
209	BRACKET; ACL EXC. CAB UP 110MM(W60)	1-53419-150-1	01	1	9002-9108	●	●	●
209	BRACKET; ACL EXC. CAB UP 110MM(W60)	1-53419-248-0	01	1	9109-	●	●	●
209	BRACKET; ACL CAB UP 110MM(W60)	1-53419-171-0	01	1	9002-			●
210	BOLT; ACL BRKT EXC. CAB UP 110MM(W60) M8X65	9-01055-865-0	02	1	9002-9005	●	●	●
210	BOLT; ACL BRKT EXC. CAB UP 110MM(W60) M8X65	0-10805-865-0	02	1	9006-	●	●	●
210	BOLT; ACL BRKT EXC. CAB UP 110MM(W60) M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005	●	●	●
210	BOLT; ACL BRKT EXC. CAB UP 110MM(W60) M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●	●	●
210	BOLT; ACL BRKT CAB UP 110MM(W60) M8X65	9-01055-865-0	03	1	9002-9005			●
210	BOLT; ACL BRKT CAB UP 110MM(W60) M8X65	0-10805-865-0	03	1	9006-			●
210	BOLT; ACL BRKT CAB UP 110MM(W60) M12X30 W/LK WASHER	9-01911-230-0	03	1	9002-9005			●
210	BOLT; ACL BRKT CAB UP 110MM(W60) M12X30 W/LK WASHER	0-50041-230-0	03	1	9006-			●
211	NUT; BRKT EXC. CAB UP 110MM(W60) M8	9-09110-408-0	02	1	9002-	●	●	●
211	NUT; BRKT CAB UP 110MM(W60) M8	9-09110-408-0	03	1	9002-			●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306	●		●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14231-400-2	01	1	9002-9306		●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-		●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-			●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-399-2	01	1	9002-9306		●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-		●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●	●
271	SPACER; BRKT,ACL CAB UP 110MM(W60)	1-53497-111-0	01	1	9002-			●
286	WASHER; LK,BRKT EXC. CAB UP 110MM(W60) ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
286	WASHER; LK,BRKT CAB UP 110MM(W60) ID=8.2	9-09150-508-0	03	1	9002-			●
291	BOLT; ACL M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●	●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●	●
296	NUT; ACL M12	9-99110-412-0	02	1	9002-9304	●	●	●
296	NUT; ACL M12	9-99110-512-0	02	1	9305-	●	●	●
310	PROTECTOR; HEAT,ACL	1-53497-199-0	01	1	9002-			●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	9-01960-816-0	02	1	9002-9204			●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9205-9306			●
311	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9307-			●
312	WASHER; PL,HEAT PROTECTOR ID=8.4	9-09160-508-0	02	1	9002-			●
313	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9002-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
