1-30B — AIR CLEANER (#2783) — 133 parça

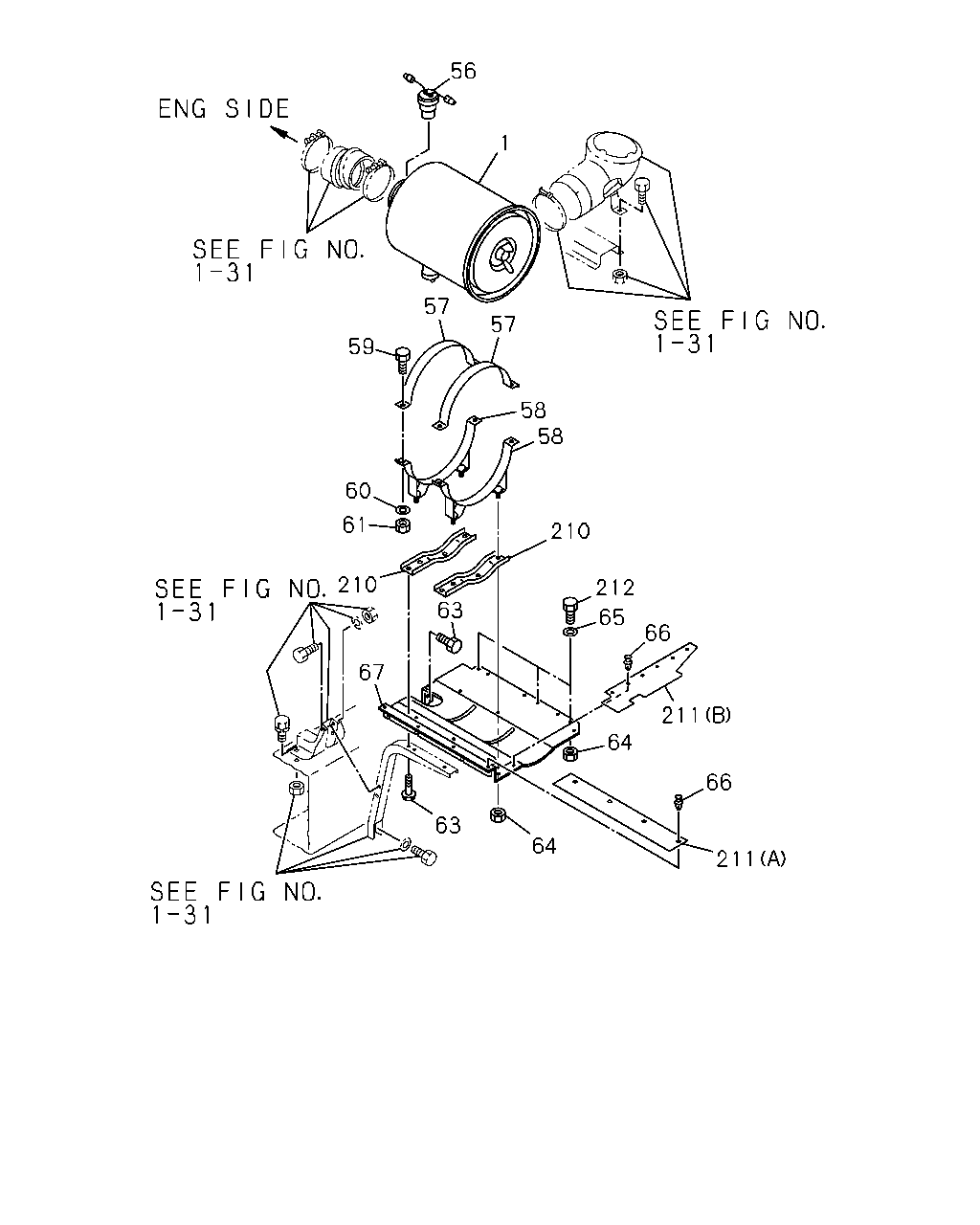

56 1 57 57 59 58 58 210 212 65 66 211 64 66 211 60 61 210 67 63 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9002-9306	●
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9307-	●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9307-		●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-498-3	01	1	9307-		●
56	SWITCH; ACL	1-81530-011-0	01	1	9002-9306	●
56	SWITCH; ACL	1-81530-016-0	01	1	9307-	●	●
57	BAND; ACL	1-53419-131-1	02	1	9002-9304	●
57	BAND; ACL	1-53419-252-0	02	1	9305-	●
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-252-0	02	1	9305-		●
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-251-0	02	1	9307-		●
58	BRACKET; ACL BAND	1-53419-146-3	02	1	9002-9106	●
58	BRACKET; ACL BAND	1-53419-250-0	02	1	9107-	●
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-250-0	02	1	9107-		●
58	BRACKET; ACL BAND EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-124-3	01	1	9307-		●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204	●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-	●	●
60	WASHER; PL,ACL BAND ID=10.5 OD=22	9-09164-610-0	04	1	9002-	●	●
61	NUT; ACL BAND M10	9-09110-510-0	04	1	9002-	●	●
63	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9009	●
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9010-9302	●
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9303-9304	●
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9305-	●	●
64	NUT; BAND BRKT M10 FLANGE	5-09440-006-0	04	1	9002-	●	●
64	NUT; BAND BRKT M8	9-09110-408-0	01	1	9002-	●	●
64	NUT; BAND BRKT M10	9-09110-410-0	05	1	9002-9009	●
64	NUT; BAND BRKT M10	9-09110-510-0	04	1	9010-	●	●
65	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9002-	●	●
65	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9002-9304	●
65	WASHER; PL ID=10.5 OD=26	9-09160-710-0	03	1	9002-	●	●
66	CLIP; ACL	5-09987-033-0	08	1	9002-9410	●	●
66	CLIP; ACL EXC. ANTI NOISE EQUIPMENT<SV9>	5-09987-033-0	08	1	9411-	●
66	CLIP; ACL	5-09987-033-0	08	1	9411-		●
66	CLIP; ACL ANTI NOISE EQUIPMENT<SV9> (A)	5-09987-033-0	12	1	9411-	●
66	CLIP; ACL ANTI NOISE EQUIPMENT<SV9> (B)	8-94279-048-0	07	1	9411-	●
67	COVER; ACL	1-53419-214-0	01	1	9002-9306	●
67	COVER; ACL	1-53419-214-0	01	1	9307-9410	●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9307-9410		●
67	COVER; ACL EXC. ANTI NOISE EQUIPMENT<SV9>	1-53419-214-0	01	1	9411-	●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9411-		●
67	COVER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-123-9	01	1	9307-		●
67	COVER; ACL ANTI NOISE EQUIPMENT<SV9>	1-53419-206-5	01	1	9411-	●
210	BRACKET; ACL MTG	1-53419-208-0	02	1	9002-9202	●
210	BRACKET; ACL MTG	1-53419-239-0	02	1	9203-9306	●
210	BRACKET; ACL MTG	1-53419-239-0	02	1	9307-	●
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-239-0	02	1	9307-		●
210	BRACKET; ACL MTG EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-209-0	02	1	9307-		●
211	RUBBER; SEAL (B)	1-53499-006-0	01	1	9002-	●	●
211	RUBBER; SEAL (A)	1-79930-358-1	01	1	9002-	●	●
212	BOLT; MUD COVER M10X25	9-01911-025-0	05	1	9002-9002	●
212	BOLT; MUD COVER M10X25 W/LK WASHER	0-50041-025-0	05	1	9003-9506	●	●
212	BOLT; MUD COVER M10X20 FLANGE	0-28081-020-0	05	1	9507-	●	●

1 26 2 3 8 4 3 2 110 3 2 27 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9002-9306	●
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9307-	●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9307-		●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-498-3	01	1	9307-		●
2	NUT; WING,ELEMENT (A)	1-14217-003-0	01	1	9002-	●	●
2	NUT; WING,ELEMENT (B)	1-14217-049-0	01	1	9002-	●	●
2	NUT; WING,ELEMENT (C)	1-14217-050-0	01	1	9002-	●	●
3	WASHER; SEAL,WING NUT (A)	1-14219-032-0	01	1	9002-	●	●
3	WASHER; SEAL,WING NUT (B)	1-14219-118-0	01	1	9002-	●	●
3	WASHER; SEAL,WING NUT (C)	1-14219-156-0	01	1	9002-	●	●
4	GASKET; COVER TO BODY	1-14219-130-0	01	1	9002-9306	●
4	GASKET; COVER TO BODY	1-14219-130-0	01	1	9307-	●
4	GASKET; COVER TO BODY AIR CLEANER HEAVY DUTY<K45>	1-14219-130-0	01	1	9307-		●
4	GASKET; COVER TO BODY EXC. AIR CLEANER HEAVY DUTY<K45>	1-14219-128-0	01	1	9307-		●
8	COVER ASM; ACL	1-14212-091-0	01	1	9002-9306	●
8	COVER ASM; ACL	1-14212-091-0	01	1	9307-	●
8	COVER ASM; ACL AIR CLEANER HEAVY DUTY<K45>	1-14212-091-0	01	1	9307-		●
8	COVER ASM; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14212-099-0	01	1	9307-		●
26	FILTER; ACL,INNER	1-14215-127-0	01	1	9002-9306	●
26	FILTER; ACL,INNER	1-14215-127-0	01	1	9307-	●
26	FILTER; ACL,INNER AIR CLEANER HEAVY DUTY<K45>	1-14215-127-0	01	1	9307-		●
26	FILTER; ACL,INNER EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-125-0	01	1	9307-		●
27	FILTER; ACL,OUTER	1-14215-192-0	01	1	9002-9306	●
27	FILTER; ACL,OUTER	1-14215-192-0	01	1	9307-	●
27	FILTER; ACL,OUTER AIR CLEANER HEAVY DUTY<K45>	1-14215-192-0	01	1	9307-		●
27	FILTER; ACL,OUTER EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-183-0	01	1	9307-		●
94	VALVE; VACUATOR	1-14219-129-0	01	1	9002-	●	●
110	ADAPTER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14219-175-0	01	1	9307-		●

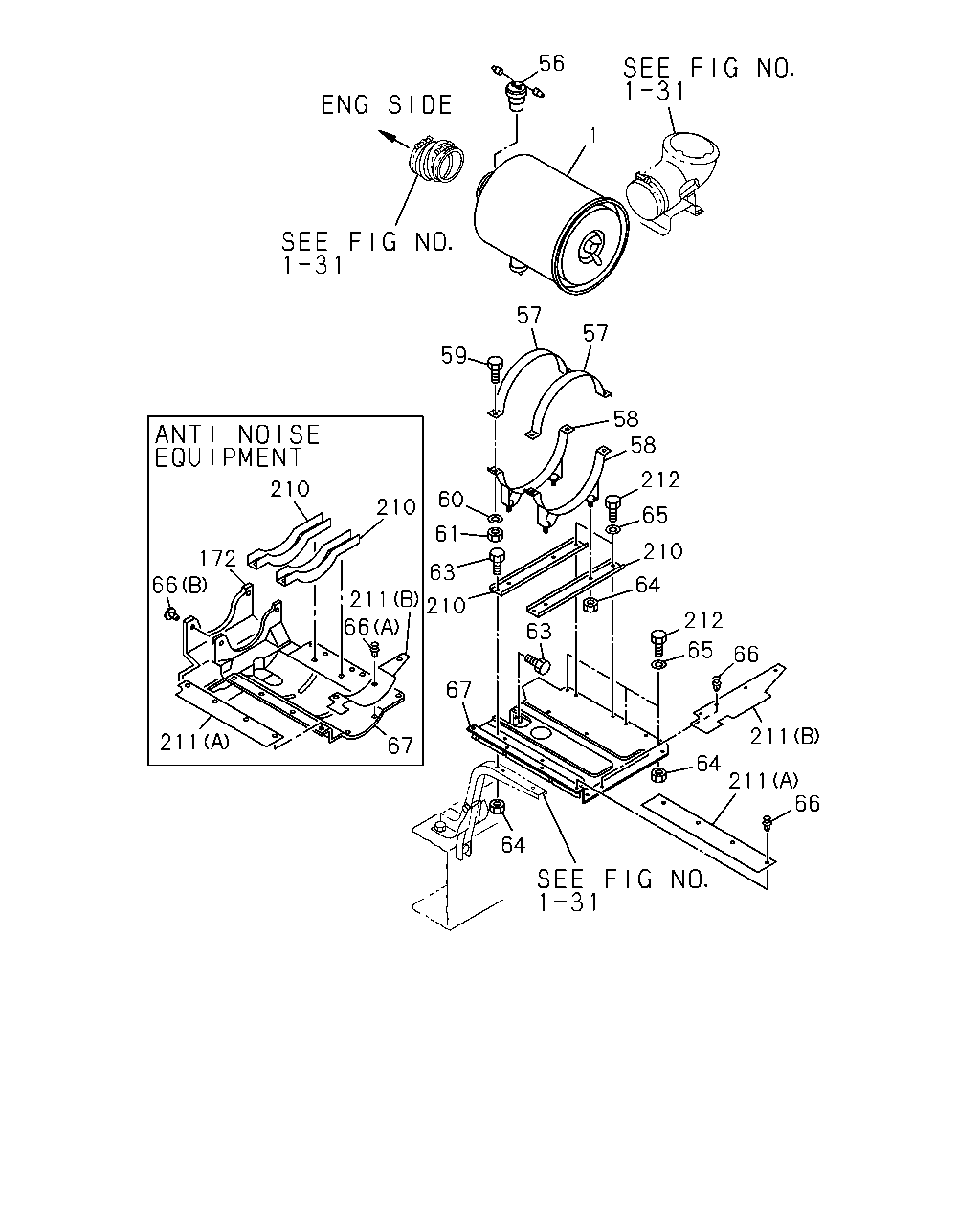

1 57 57 59 58 58 212 65 210 64 212 65 66 211 64 211 66 60 61 63 210 63 67 64 67 210 210 172 66 211 66 211 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9002-9306	●
1	CLEANER ASM; AIR	1-14210-433-5	01	1	9307-	●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-433-5	01	1	9307-		●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-498-3	01	1	9307-		●
56	SWITCH; ACL	1-81530-011-0	01	1	9002-9306	●
56	SWITCH; ACL	1-81530-016-0	01	1	9307-	●	●
57	BAND; ACL	1-53419-131-1	02	1	9002-9304	●
57	BAND; ACL	1-53419-252-0	02	1	9305-	●
57	BAND; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-252-0	02	1	9305-		●
57	BAND; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-251-0	02	1	9307-		●
58	BRACKET; ACL BAND	1-53419-146-3	02	1	9002-9106	●
58	BRACKET; ACL BAND	1-53419-250-0	02	1	9107-	●
58	BRACKET; ACL BAND AIR CLEANER HEAVY DUTY<K45>	1-53419-250-0	02	1	9107-		●
58	BRACKET; ACL BAND EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-124-3	01	1	9307-		●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204	●
59	BOLT; BAND,ACL M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-	●	●
60	WASHER; PL,ACL BAND ID=10.5 OD=22	9-09164-610-0	04	1	9002-	●	●
61	NUT; ACL BAND M10	9-09110-510-0	04	1	9002-	●	●
63	BOLT; BRKT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9009	●
63	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9010-9302	●
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9303-9304	●
63	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9305-	●	●
64	NUT; BAND BRKT M10 FLANGE	5-09440-006-0	04	1	9002-	●	●
64	NUT; BAND BRKT M8	9-09110-408-0	01	1	9002-	●	●
64	NUT; BAND BRKT M10	9-09110-410-0	05	1	9002-9009	●
64	NUT; BAND BRKT M10	9-09110-510-0	04	1	9010-	●	●
65	WASHER; PL ID=10.5 OD=22	9-09160-610-0	02	1	9002-	●	●
65	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9002-9304	●
65	WASHER; PL ID=10.5 OD=26	9-09160-710-0	03	1	9002-	●	●
66	CLIP; ACL	5-09987-033-0	08	1	9002-9410	●	●
66	CLIP; ACL EXC. ANTI NOISE EQUIPMENT<SV9>	5-09987-033-0	08	1	9411-	●
66	CLIP; ACL	5-09987-033-0	08	1	9411-		●
66	CLIP; ACL ANTI NOISE EQUIPMENT<SV9> (A)	5-09987-033-0	12	1	9411-	●
66	CLIP; ACL ANTI NOISE EQUIPMENT<SV9> (B)	8-94279-048-0	07	1	9411-	●
67	COVER; ACL	1-53419-214-0	01	1	9002-9306	●
67	COVER; ACL	1-53419-214-0	01	1	9307-9410	●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9307-9410		●
67	COVER; ACL EXC. ANTI NOISE EQUIPMENT<SV9>	1-53419-214-0	01	1	9411-	●
67	COVER; ACL AIR CLEANER HEAVY DUTY<K45>	1-53419-214-0	01	1	9411-		●
67	COVER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-123-9	01	1	9307-		●
67	COVER; ACL ANTI NOISE EQUIPMENT<SV9>	1-53419-206-5	01	1	9411-	●
172	INSULATOR; NOISE ANTI NOISE EQUIPMENT<SV9>	1-53446-408-3	01	1	9411-	●
210	BRACKET; ACL MTG	1-53419-208-0	02	1	9002-9202	●
210	BRACKET; ACL MTG	1-53419-239-0	02	1	9203-9306	●
210	BRACKET; ACL MTG	1-53419-239-0	02	1	9307-	●
210	BRACKET; ACL MTG AIR CLEANER HEAVY DUTY<K45>	1-53419-239-0	02	1	9307-		●
210	BRACKET; ACL MTG EXC. AIR CLEANER HEAVY DUTY<K45>	1-53419-209-0	02	1	9307-		●
211	RUBBER; SEAL (B)	1-53499-006-0	01	1	9002-	●	●
211	RUBBER; SEAL (A)	1-79930-358-1	01	1	9002-	●	●
212	BOLT; MUD COVER M10X25	9-01911-025-0	05	1	9002-9002	●
212	BOLT; MUD COVER M10X25 W/LK WASHER	0-50041-025-0	05	1	9003-9506	●	●
212	BOLT; MUD COVER M10X20 FLANGE	0-28081-020-0	05	1	9507-	●	●
