9-01 — TOOLS (#27803) — 42 parça

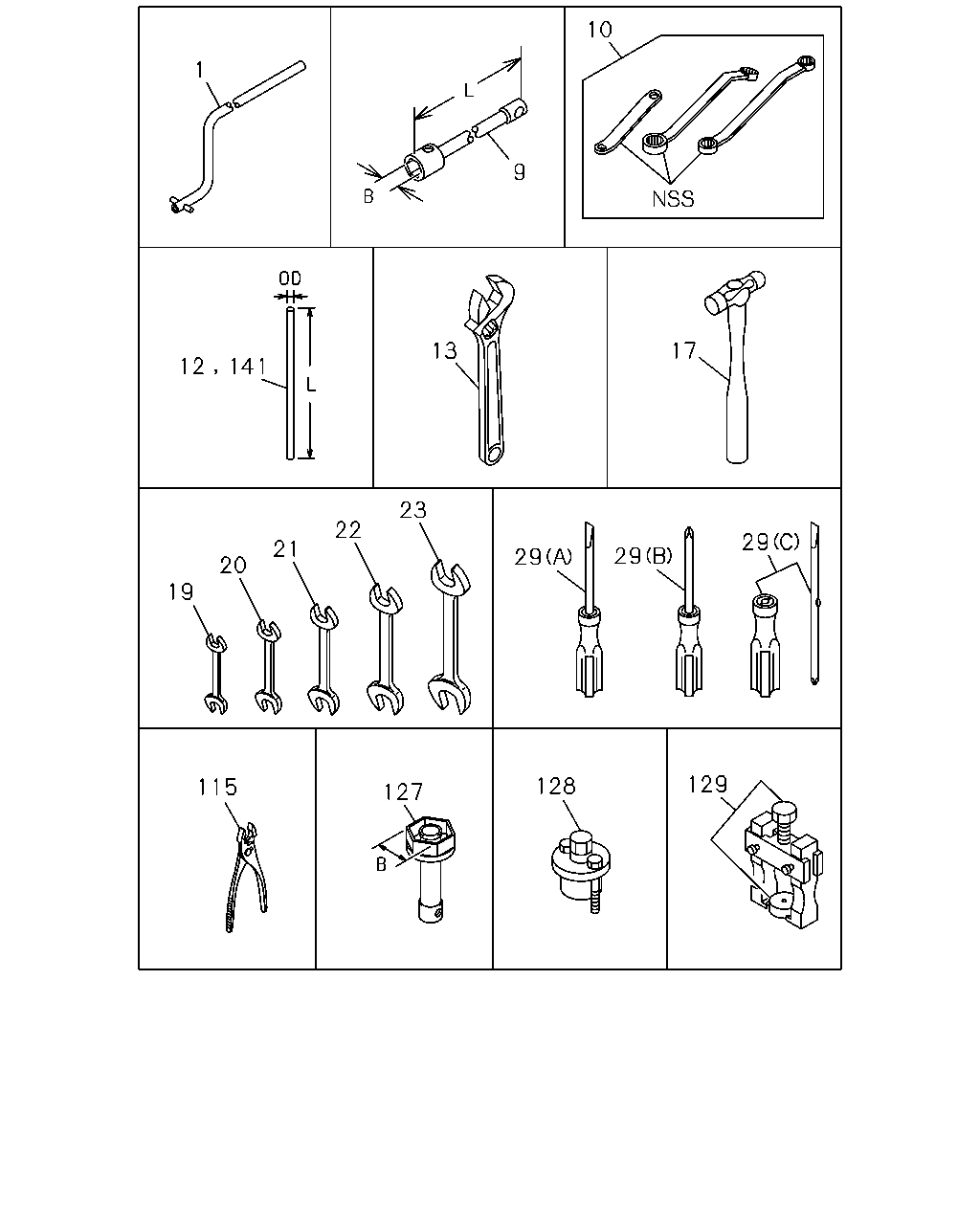

çizim 139211
10 1 9 13 17 12 141 23 22 29 21 29 29 20 19 129 128 115 127
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHL CARRIER(SFB) 		1-23111-004-0 01 1 0612-
9 WRENCH; WHEEL PIN
INTERNATIONAL STD ISO<B3V> TOOL A KIT(SK9),TOOL B KIT(SL1) B=33X30 L=450 		1-85111-033-1 01 1 0612-
9 WRENCH; WHEEL PIN
TOOL A KIT(SK9),TOOL B KIT(SL1) EXC. INTERNATIONAL STD ISO<B3V> B=41X21 L=440 		1-85113-015-1 01 1 0612-
10 WRENCH KIT; BRK ADJ 9-85110-013-0 01 1 0612-
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT(SK9),TOOL B KIT(SL1) OD=25 L=480 		1-85116-011-0 01 1 0612-1501
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT(SK9),TOOL B KIT(SL1) OD=25 L=480 		8-98257-407-0 01 1 1502-
13 WRENCH; MONKEY
TOOL B KIT(SL1) L=255 		1-85117-002-1 01 1 0612-0907
13 WRENCH; MONKEY
TOOL B KIT(SL1) L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
TOOL B KIT(SL1) L=255 		8-98270-303-0 01 1 1408-
17 HAMMER
TOOL B KIT(SL1) 		9-85121-406-0 01 1 0612-
19 WRENCH; 7X8
TOOL B KIT(SL1) 7X8 		9-09592-107-0 01 1 0612-
20 WRENCH; 10X12
TOOL B KIT(SL1) 10X12 		0-95902-510-0 01 1 0612-
21 WRENCH; 14X17
TOOL B KIT(SL1) 14X17 		0-95902-514-0 01 1 0612-
22 WRENCH; 19X22
TOOL B KIT(SL1) 19X22 		0-95902-519-0 01 1 0612-
23 WRENCH; 24X27
TOOL B KIT(SL1) 24X27 		0-95902-524-0 01 1 0612-
29 DRIVER; SCREW
TOOL B KIT(SL1) (C) <+>,<-> L=160 		8-94242-798-1 01 1 0612-
29 DRIVER; SCREW
TOOL B KIT(SL1) (B) <+> L=270 		9-09595-523-0 01 1 0612-
29 DRIVER; SCREW
TOOL B KIT(SL1) (A) <-> L=320 		9-09595-729-0 01 1 0612-
115 PLIER
TOOL B KIT(SL1) 		5-85171-002-0 01 1 0612-1410
115 PLIER
TOOL B KIT(SL1) 		8-98282-845-0 01 1 1411-
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-2 01 1 0612-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0612-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 02 1 0612-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0612-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-

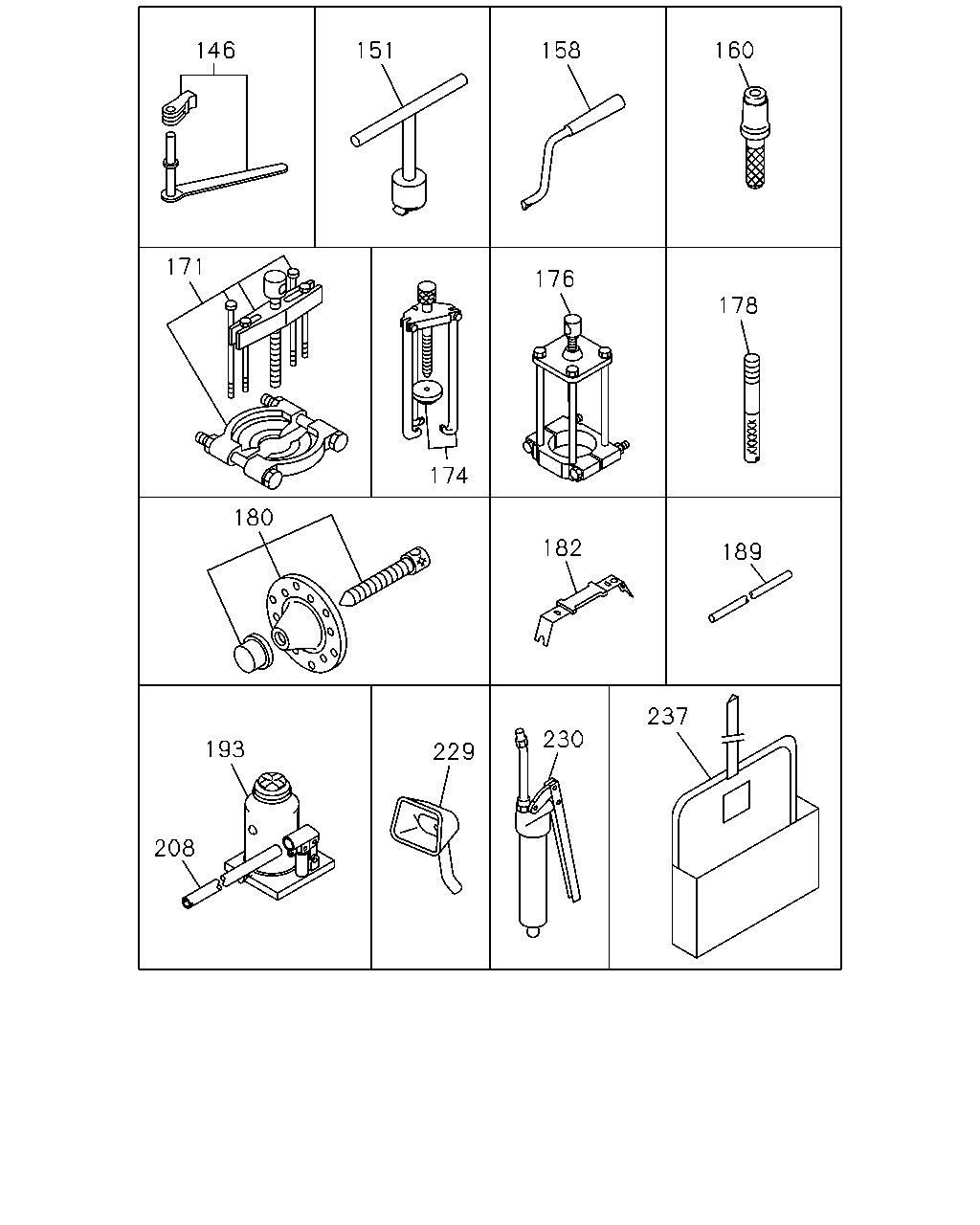

çizim 139215
146 151 158 160 171 176 178 174 180 182 189 237 230 193 229 208
BalonParca AdiParca NoAdetTipApplied Date
146 REPLACER KIT; LEAF SPR 1-85237-017-0 01 1 0612-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0612-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0612-
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 0612-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0612-
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0612-
176 PULLER ASM; COUNTER SHAFT MAIN 9-85210-169-0 01 1 0612-
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0612-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0612-
182 REMOVER ASM 1-85239-008-0 01 1 0612-
189 TUBE; AIR BREATHER
TOOL B KIT(SL1) L=460 		9-85291-414-0 01 1 0612-
193 JACK ASM
TOOL A KIT(SK9),TOOL B KIT(SL1) 10TON 		8-97607-599-0 01 1 0612-
208 HANDLE; JACK
TOOL A KIT(SK9),TOOL B KIT(SL1) L=600 		1-85515-009-0 01 1 0612-1107
208 HANDLE; JACK
TOOL A KIT(SK9),TOOL B KIT(SL1) L=600 		8-98181-437-0 01 1 1108-
229 FUNNEL; RAD
INTERNATIONAL STD ISO<B3V> TOOL B KIT(SL1) 		9-85531-110-1 01 1 0612-
230 PUMP; GREASE
TOOL B KIT(SL1) 		1-85556-007-5 01 1 0612-
237 BAG; TOOL
TOOL B KIT(SL1) 		8-97130-902-1 01 1 0612-
