8-28 — CHASSIS ELECTRICAL (#27800) — 97 parça
çizim 139203
132 267 450 132 273 282 41 267 280 261
BalonParca AdiParca NoAdetTipApplied Date
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0612-0612
41 NUT; BRKT,MAG VLV
BRK SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 0701-0712
41 NUT; BRKT,MAG VLV
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 02 1 0801-
41 NUT; BRKT,MAG VLV
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 0801-
132 CONNECTOR; OUTLET,MAG VLV
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0801-
132 CONNECTOR; OUTLET,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0612-0612
132 CONNECTOR; OUTLET,MAG VLV
BRK SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0701-0712
132 CONNECTOR; OUTLET,MAG VLV
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0801-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0612-0612
261 PLUG; MAG VLV
BRK SYSTEM RETARDER<RE2> PT1/4 		9-99204-513-0 01 1 0701-0712
261 PLUG; MAG VLV
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) PT1/4 		9-99204-513-0 01 1 0801-
261 PLUG; MAG VLV
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> PT1/4 		9-99204-513-0 01 1 0801-
267 BOLT; VLV TO BRKT
(A) M8X60 FLANGE 		0-28050-860-0 02 1 0612-0612
267 BOLT; VLV TO BRKT
BRK SYSTEM RETARDER<RE2> (A) M8X60 FLANGE 		0-28050-860-0 02 1 0701-0712
267 BOLT; VLV TO BRKT
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X60 FLANGE 		0-28050-860-0 02 1 0801-
267 BOLT; VLV TO BRKT
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> (A) M8X60 FLANGE 		0-28050-860-0 02 1 0801-
267 BOLT; VLV TO BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0612-
273 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0612-
280 CONNECTOR; IN,MAG VLV
DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0612-0612
280 CONNECTOR; IN,MAG VLV
BRK SYSTEM RETARDER<RE2> DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0701-0712
280 CONNECTOR; IN,MAG VLV
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801-
280 CONNECTOR; IN,MAG VLV
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801-
282 BRACKET; MAG VLV 1-47471-225-0 01 1 0612-0612
282 BRACKET; MAG VLV
BRK SYSTEM RETARDER<RE2> 		1-47471-225-0 01 1 0701-0712
282 BRACKET; MAG VLV
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-47471-225-0 01 1 0801-
282 BRACKET; MAG VLV
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> 		1-47471-225-0 01 1 0801-
450 VALVE; MAG 1-82563-597-5 01 1 0612-0612
450 VALVE; MAG
BRK SYSTEM RETARDER<RE2> 		1-82563-597-5 01 1 0701-0712
450 VALVE; MAG
BRK SYSTEM RETARDER<RE2> EXC. TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-82563-597-5 01 1 0801-
450 VALVE; MAG
LOW DECK WO/REAR BODY<PK4> BRK SYSTEM RETARDER<RE2> 		1-82563-597-5 01 1 0801-

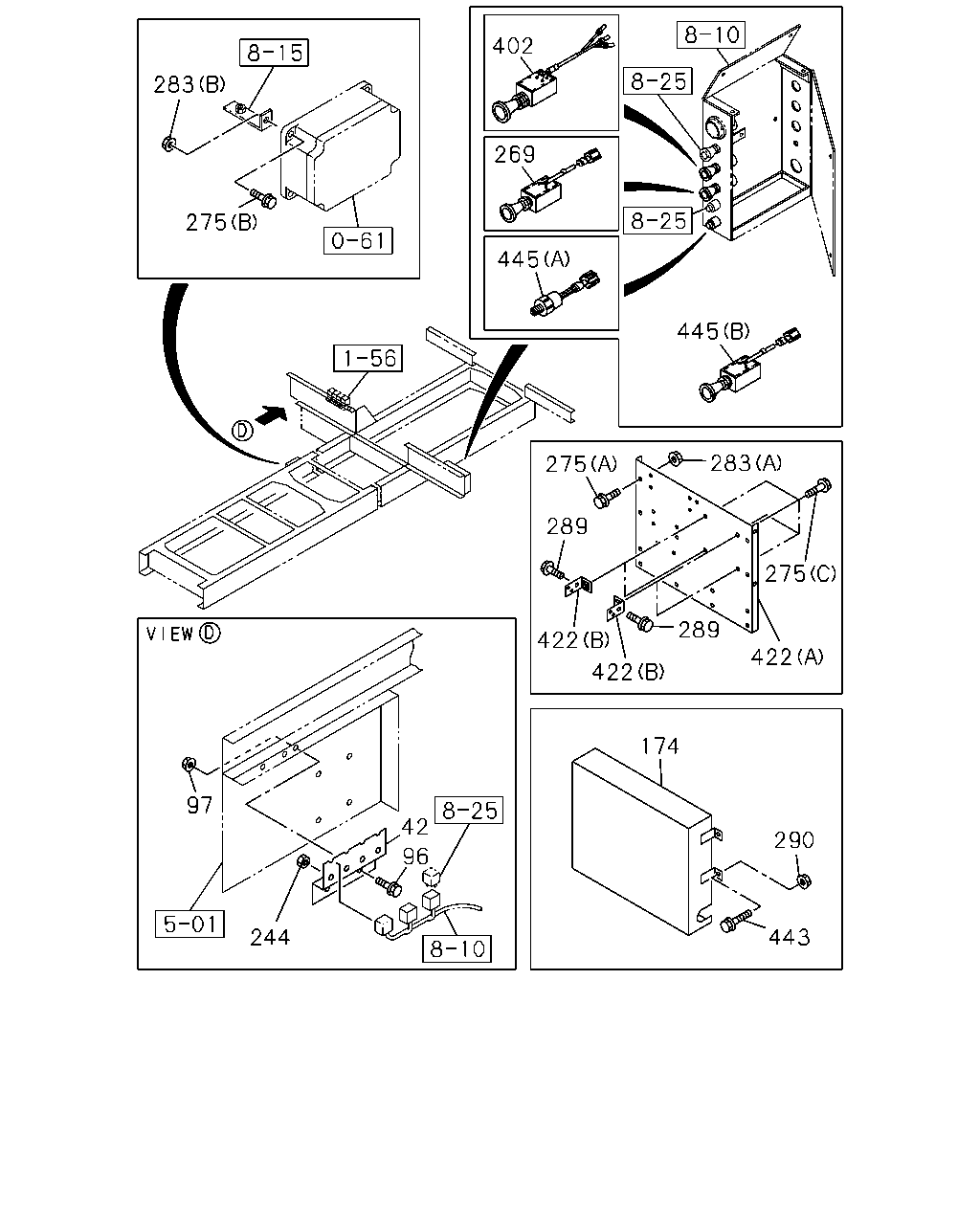

çizim 139207
283 275 402 269 445 445 283 275 289 422 422 289 275 422 174 290 443 42 96 244 97
BalonParca AdiParca NoAdetTipApplied Date
42 BRACKET; RELAY 1-82698-594-0 01 1 0612-
96 BOLT; BRKT FIX
M6X16 FLANGE 		0-28650-616-0 02 1 0612-
97 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 02 1 0612-
174 COVER 1-85599-033-1 01 1 0612-0612
244 NUT; FUSE BOX
M5 		0-91110-505-0 02 1 0612-
269 SWITCH; BATTERY,ENG ROOM
ELEC SW BOX ENG ROOM<TEK> 		1-82340-358-1 01 1 0612-0706
269 SWITCH; BATTERY,ENG ROOM
ELEC SW BOX ENG ROOM<TEK> 		8-97621-398-0 01 1 0707-
275 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 08 1 0612-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0612-0706
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0707-0712
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0707-0712
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0801-
275 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0801-
275 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0612-
283 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0612-0706
283 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0707-0712
283 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0707-0712
283 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 0801-
283 NUT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> (B) M8 FLANGE 		0-91180-108-0 04 1 0801-
283 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0612-
289 BOLT
M6X12 FLANGE 		0-28050-612-0 04 1 0612-
290 NUT
M8 FLANGE 		0-91180-108-0 04 1 0612-0612
402 SWITCH; IGNITION SAFETY
ELEC SW BOX ENG ROOM<TEK> 		1-82340-382-1 01 1 0612-0706
402 SWITCH; IGNITION SAFETY
ELEC SW BOX ENG ROOM<TEK> 		8-97621-399-0 01 1 0707-
422 BRACKET; CONT UNIT
(A) 		1-53456-456-0 01 1 0612-
422 BRACKET; CONT UNIT
(B) 		1-53456-480-0 04 1 0612-
443 BOLT; COVER
M8X25 FLANGE 		0-28650-825-0 04 1 0612-0612
445 SWITCH; ENG STOP
(B) 		8-98106-482-0 01 1 0905-
445 SWITCH; ENG STOP
ELEC SW BOX ENG ROOM<TEK> (A) 		1-82380-107-1 01 1 0612-

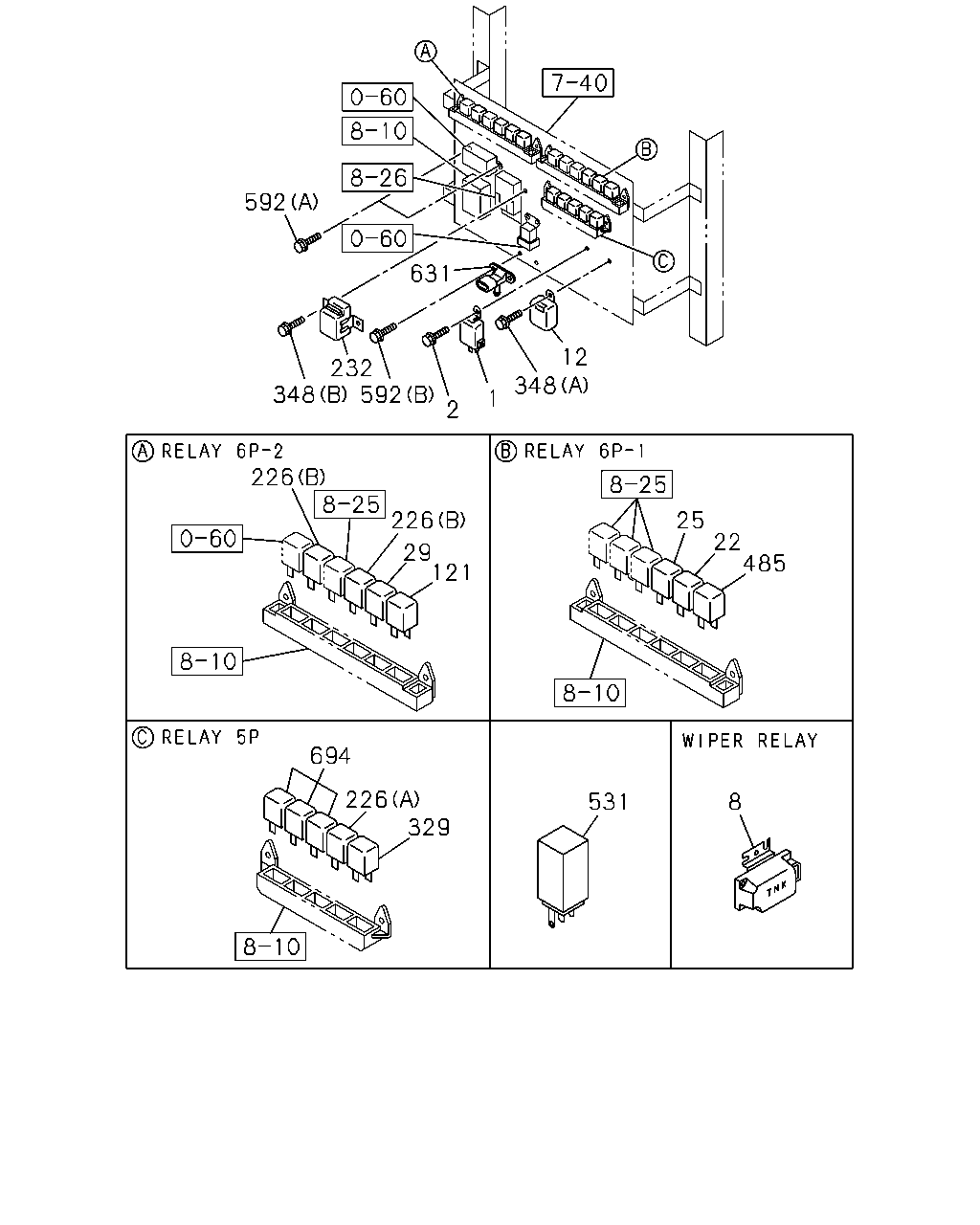

çizim 139208
592 12 348 232 1 2 226 226 25 22 485 29 121 694 226 329 531 8 631 348 592
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-060-1 01 1 0612-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 0612-
8 RELAY; WIPER
PARL WIPER<SBT> WIPER MTR KIT<ST7> ASMO 		1-82550-169-0 01 1 0612-
12 RELAY; LAMP,FAILURE INDICATOR 1-82550-143-2 01 1 0612-
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
226 RELAY; EXH BRK
ANTILOCK BRK SYSTEM<BFA> (A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
226 RELAY; EXH BRK
FOOT BRK W/EXH BRK<SJB> (B) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0612-
232 RELAY; WARNING BUZZER
ENG OVERRUN BUZZER<SK4> 		1-82550-119-1 01 1 0612-
232 RELAY; WARNING BUZZER
INDICATOR WARNING BUZZER<WF9> EXC. ENG OVERRUN BUZZER<SK4> 		1-82550-119-1 01 1 0612-
329 RELAY; BACK LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
348 SCREW; LAMP FAILURE RELAY
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0612-
348 SCREW; LAMP FAILURE RELAY
ENG OVERRUN BUZZER<SK4> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0612-
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER<WF9> EXC. ENG OVERRUN BUZZER<SK4> (B) M6X16 FLANGE 		0-28650-616-0 02 1 0612-
485 RELAY; ABS
ANTILOCK BRK SYSTEM<BFA> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0612-
531 RELAY; MAIN
24V 		1-82550-308-1 01 1 0612-1005
531 RELAY; MAIN
24V 		8-98167-175-0 01 1 1006-
592 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0612-
592 BOLT; SENSOR
(B) M6X20 FLANGE 		0-28650-620-0 02 1 0612-
631 SENSOR; AIR PRESS 8-98020-514-0 01 1 0612-
694 RELAY; RR FOG LAMP
LIGHTING SYSTEM ECE<SLC> 24V 12.5A PANASONIC 		8-97262-933-0 03 1 0612-
çizim 139212
86 58 312 312 197 77 46 46 424 505 49 44 45 49
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE
EXC. AIR HORN(WB8) 		1-83410-065-1 01 1 0612-
45 HORN; LOW NOTE
EXC. AIR HORN(WB8) 		1-83410-064-1 01 1 0612-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0612-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-075-0 01 1 0612-0612
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 0701-
77 HORN ASM
AIR HORN(WB8) 		1-83430-041-2 01 1 0612-
86 NUT; BUZZER
M6 FLANGE 		0-91180-106-0 01 1 0612-
197 BUZZER; WARNING,AIR HEAT OIL BRK
ENG OVERRUN BUZZER<SK4> 		1-83460-051-1 01 1 0612-
197 BUZZER; WARNING,AIR HEAT OIL BRK
INDICATOR WARNING BUZZER<WF9> EXC. ENG OVERRUN BUZZER<SK4> 		1-83460-051-1 01 1 0612-
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 0612-
312 BOLT; BUZZER
ENG OVERRUN BUZZER<SK4> M6X16 FLANGE 		0-28650-616-0 01 1 0612-
312 BOLT; BUZZER
INDICATOR WARNING BUZZER<WF9> EXC. ENG OVERRUN BUZZER<SK4> M6X16 FLANGE 		0-28650-616-0 01 1 0612-
424 ADAPTER
AIR HORN(WB8) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0612-
505 JOINT; AIR HORN
AIR HORN(WB8) 		1-83439-006-0 01 1 0612-
