Isuzu WW
▶
BUSES
▶
LT
▶
11032 - LT134(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#27798) — 43 parça
◀
[825A] NO.2 (6 parça)
[825A] NO.3 (4 parça)
[825A] NO.1 (17 parça)
[825A] NO.4 (16 parça)
▶
21
337
540
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
SWITCH; CLU
1-82380-114-3
01
1
0612-
337
SWITCH; EXH
FOOT BRK W/EXH BRK<SJB>
1-82350-220-2
01
1
0612-
540
BEZEL; SW
1-82490-017-0
01
1
0612-
540
BEZEL; SW
LIGHTING SYSTEM ECE<SLC>
1-82490-017-0
01
1
0612-
540
BEZEL; SW
1-82490-017-0
01
1
0612-
540
BEZEL; SW
FOOT BRK W/EXH BRK<SJB>
1-82490-017-0
01
1
0612-

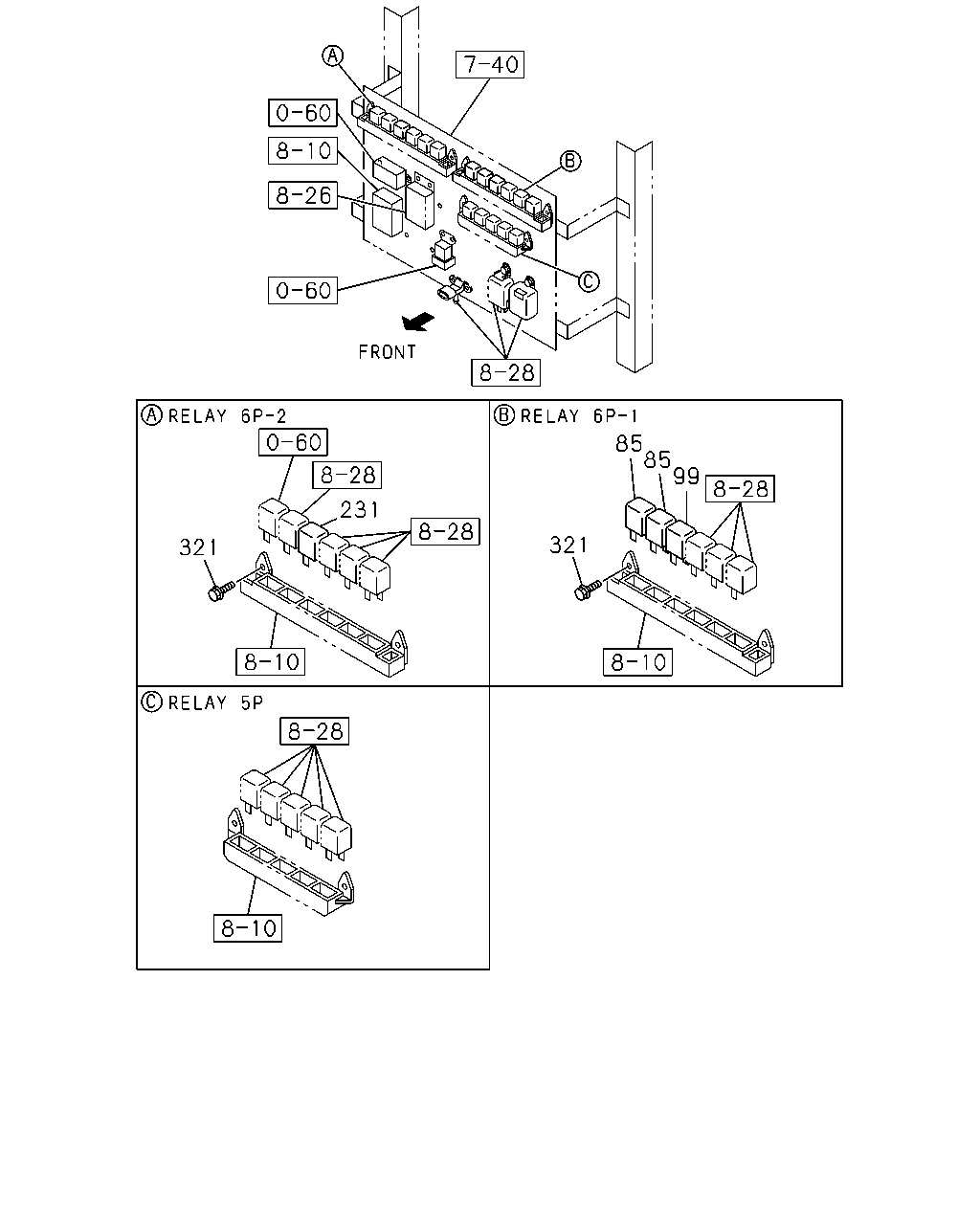

85
85
99
231
321
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
RELAY; HEADLAMP
24V 12.5A PANASONIC
8-97262-933-0
02
1
0612-
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0612-
231
RELAY; NEUTRAL
ELEC SW BOX ENG ROOM<TEK> 24V 12.5A PANASONIC
8-97262-933-0
01
1
0612-
321
BOLT; RELAY
M6X16 FLANGE
0-28650-616-0
06
1
0612-

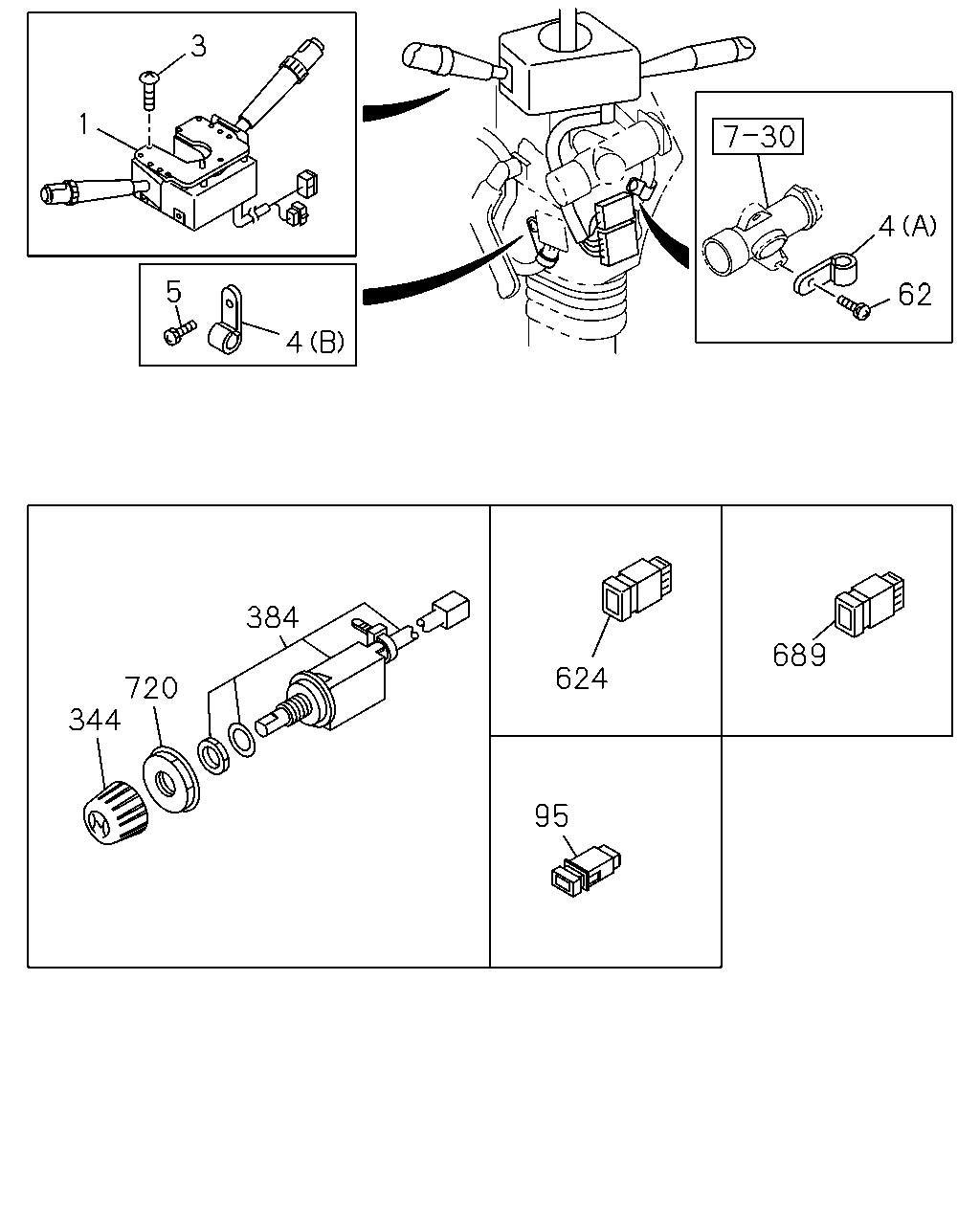

3
1
4
5
62
4
384
689
624
720
344
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRK SYSTEM RETARDER<RE2> LIGHTING SYSTEM ECE<SLC>
1-82360-769-0
01
1
0612-0805
1
SWITCH; COMB
BRK SYSTEM RETARDER<RE2> EXC. LIGHTING SYSTEM ECE<SLC>
1-82360-760-0
01
1
0612-0805
1
SWITCH; COMB
BRK SYSTEM RETARDER<RE2>
1-82360-760-0
01
1
0806-
1
SWITCH; COMB
EXC. BRK SYSTEM RETARDER<RE2>,LIGHTING SYSTEM ECE<SLC>
1-82360-767-0
01
1
0612-0805
1
SWITCH; COMB
EXC. BRK SYSTEM RETARDER<RE2>
1-82360-767-0
01
1
0806-
1
SWITCH; COMB
LIGHTING SYSTEM ECE<SLC> EXC. BRK SYSTEM RETARDER<RE2>
1-82360-768-0
01
1
0612-0805
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0612-
4
CLIP; COMB SW
(A) ID=16 L=20
0-95235-535-0
01
1
0612-
4
CLIP; COMB SW
(B) ID=14.5 L=30
9-09916-893-1
01
1
0612-
5
SCREW; COMB SW CABLE
M6X12 W/PL WASHER
8-97806-950-0
01
1
0612-
62
BOLT; STARTER SW
M8X30 W/PL WASHER
1-09980-621-1
02
1
0612-
95
SWITCH; RR FOG LAMP
LIGHTING SYSTEM ECE<SLC>
1-82340-628-0
01
1
0612-
344
KNOB; SW,IDLE
8-98013-420-0
01
1
0612-
384
SWITCH; IDLING CONT,ELEC
8-98013-418-0
01
1
0612-
624
SWITCH; WARM UP
1-82340-697-0
01
1
0612-
689
SWITCH; DPD
1-82340-693-0
01
1
0612-
720
HOLDER; SW,IDLE
8-97352-127-0
01
1
0612-
271
60
728
732
730
733
731
397
729
727
728
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
SWITCH; STARTER SUB
ELEC SW BOX ENG ROOM<TEK>
1-82380-107-1
01
1
0612-
271
SWITCH; OIL PRESS METER
ELEC SW BOX ENG ROOM<TEK>
1-82340-526-1
01
1
0612-0706
271
SWITCH; OIL PRESS METER
ELEC SW BOX ENG ROOM<TEK>
8-97621-401-0
01
1
0707-
397
NUT; BRKT FIX
LOW DECK WO/REAR BODY<PK4> M8 FLANGE
0-91180-108-0
01
1
0801-
482
BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE
0-28650-830-0
01
1
0801-
727
BRACKET; UNION
8-98054-519-0
01
1
0612-
728
BOLT; BRACKET FIX
(B) M8X20 FLANGE
0-28650-820-0
02
1
0612-
728
BOLT; BRACKET FIX
(A) M10X25 FLANGE
0-28651-025-0
02
1
0612-
729
NUT; BRACKET FIX
M8 FLANGE
0-91180-208-0
02
1
0612-0801
729
NUT; BRACKET FIX
M8 FLANGE
0-91180-108-0
02
1
0802-
730
BRACKET; CLIP
8-98054-520-0
01
1
0612-
731
BOLT; CLIP FIX
M8X20 FLANGE
0-28650-820-0
01
1
0612-
732
NUT; CLIP FIX
M8 FLANGE
0-91180-208-0
01
1
0612-0801
732
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
0802-
733
CLIP; HOSE
ID=16 H=45 L=20
1-09701-161-0
01
1
0612-0703
733
CLIP; HOSE
ID=18 L=28 H=30
1-09701-110-0
01
1
0704-
