11032 - LT134(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

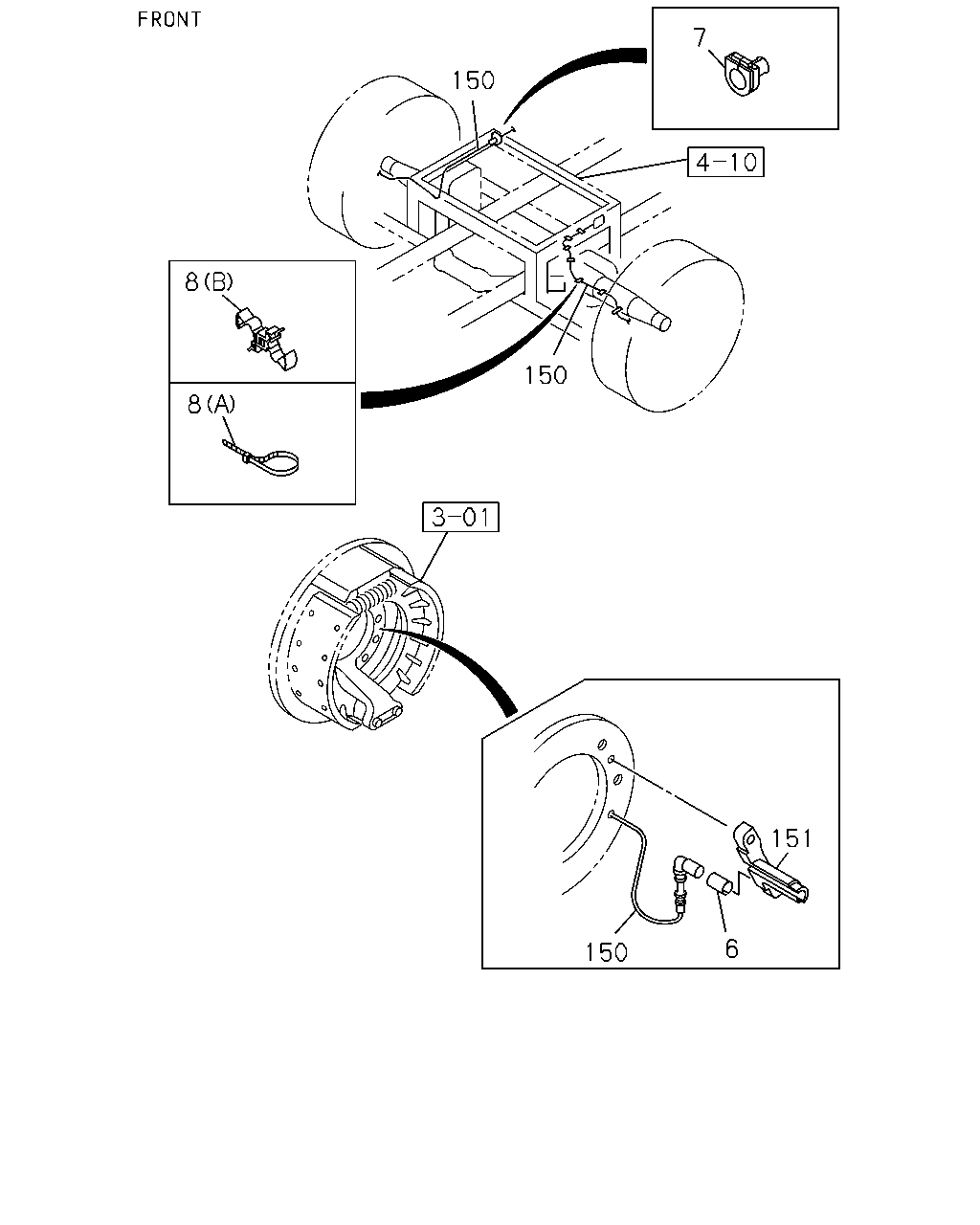

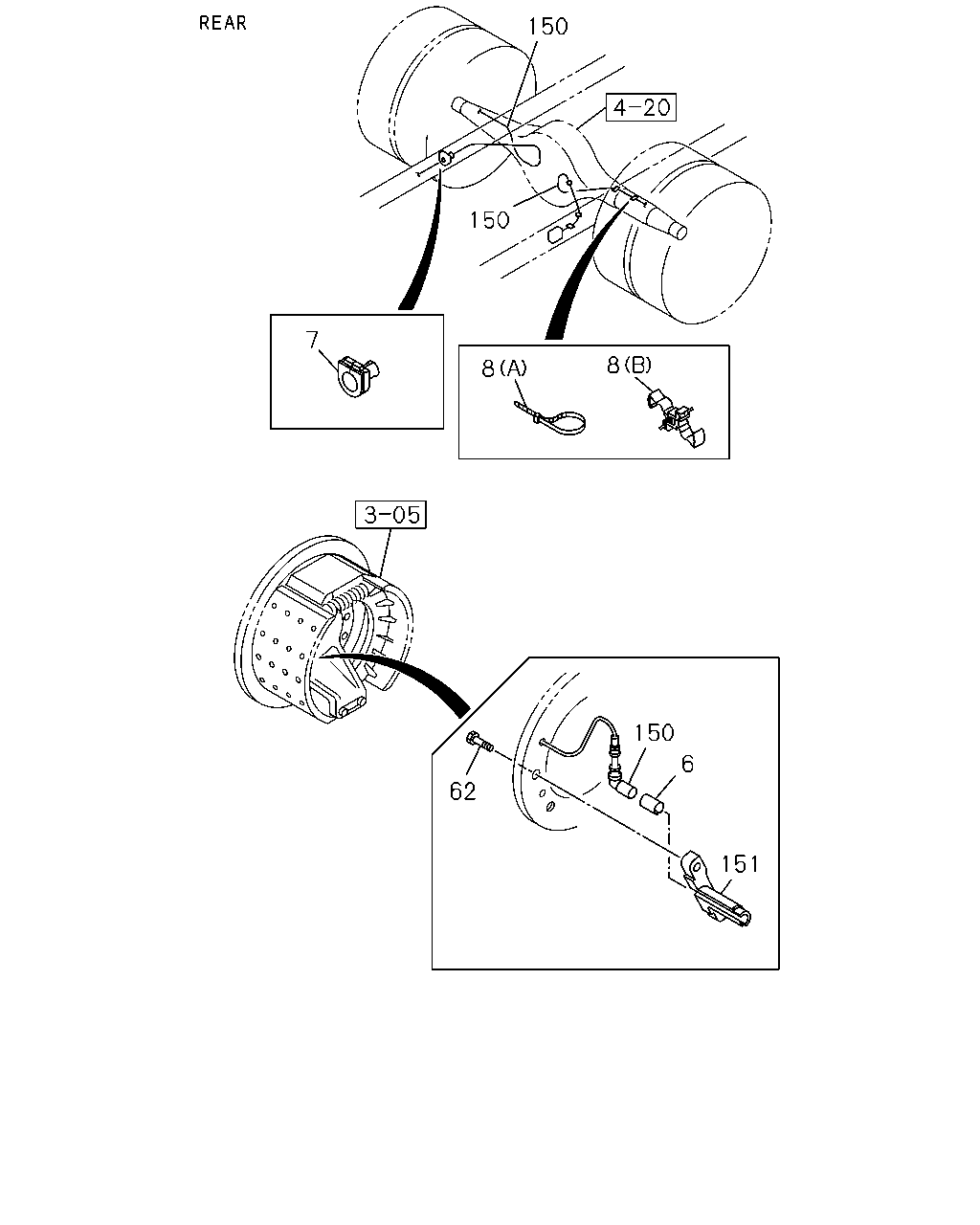

8-20 - METER CABLE
▶
8-20 — METER CABLE
(#27796) — 39 parça
◀
[820A] NO.2 (17 parça)
[820A] NO.1 (3 parça)
[820A] NO.3 (19 parça)
▶
7
150
8
150
8
151
6
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HOLDER; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA>
1-83129-260-1
02
1
0612-
6
HOLDER; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA>
1-83129-260-1
02
1
0612-
7
GROMMET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> ID=8
1-82699-740-1
01
1
0612-
7
GROMMET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> ID=8
1-82699-740-1
02
1
0612-
8
CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (B) ID=6-10 & 6-10
1-09709-192-1
01
1
0612-
8
CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (B) ID=6-10 & 6-10
1-09709-192-1
01
1
0612-
8
CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) L=140
5-09707-031-1
01
1
0612-
8
CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) L=140
5-09707-031-1
02
1
0612-
150
SENSOR; SPEED,ABS
ANTILOCK BRK SYSTEM<BFA> FRONT
1-83227-030-0
02
1
0612-
150
SENSOR; SPEED,ABS
ANTILOCK BRK SYSTEM<BFA> REAR
1-83227-028-0
01
1
0612-
150
SENSOR; SPEED,ABS
ANTILOCK BRK SYSTEM<BFA> REAR
1-83227-029-0
01
1
0612-
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> REAR
1-83129-403-0
01
1
0612-1504
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> REAR
8-98299-396-0
01
1
1505-
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> REAR
1-83129-404-0
01
1
0612-1504
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> REAR
8-98299-397-0
01
1
1505-
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> FRONT
1-83129-421-0
01
1
0612-
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> FRONT
1-83129-422-0
01
1
0612-
228
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
132
SENSOR; SPD,SPEEDOMETER
25 PULSE ALUMINUM
8-97328-058-1
01
1
0612-
228
PROTECTOR; SENSOR
8-97168-308-0
01
1
0612-0808
228
PROTECTOR; SENSOR
8-98119-901-0
01
1
0809-
150
150
7
8
8
150
6
62
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HOLDER; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA>
1-83129-260-1
02
1
0612-
6
HOLDER; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA>
1-83129-260-1
02
1
0612-
7
GROMMET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> ID=8
1-82699-740-1
01
1
0612-
7
GROMMET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> ID=8
1-82699-740-1
02
1
0612-
8
CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (B) ID=6-10 & 6-10
1-09709-192-1
01
1
0612-
8
CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (B) ID=6-10 & 6-10
1-09709-192-1
01
1
0612-
8
CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) L=140
5-09707-031-1
01
1
0612-
8
CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) L=140
5-09707-031-1
02
1
0612-
62
BOLT; SENSOR
ANTILOCK BRK SYSTEM<BFA> M8X16
9-05820-816-0
02
1
0612-1506
62
BOLT; SENSOR
ANTILOCK BRK SYSTEM<BFA> M8X16 HEX SOCKET
0-58330-816-0
02
1
1507-
150
SENSOR; SPEED,ABS
ANTILOCK BRK SYSTEM<BFA> FRONT
1-83227-030-0
02
1
0612-
150
SENSOR; SPEED,ABS
ANTILOCK BRK SYSTEM<BFA> REAR
1-83227-028-0
01
1
0612-
150
SENSOR; SPEED,ABS
ANTILOCK BRK SYSTEM<BFA> REAR
1-83227-029-0
01
1
0612-
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> REAR
1-83129-403-0
01
1
0612-1504
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> REAR
8-98299-396-0
01
1
1505-
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> REAR
1-83129-404-0
01
1
0612-1504
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> REAR
8-98299-397-0
01
1
1505-
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> FRONT
1-83129-421-0
01
1
0612-
151
BRACKET; SPD SENSOR
ANTILOCK BRK SYSTEM<BFA> FRONT
1-83129-422-0
01
1
0612-
