◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#27795) — 418 parça

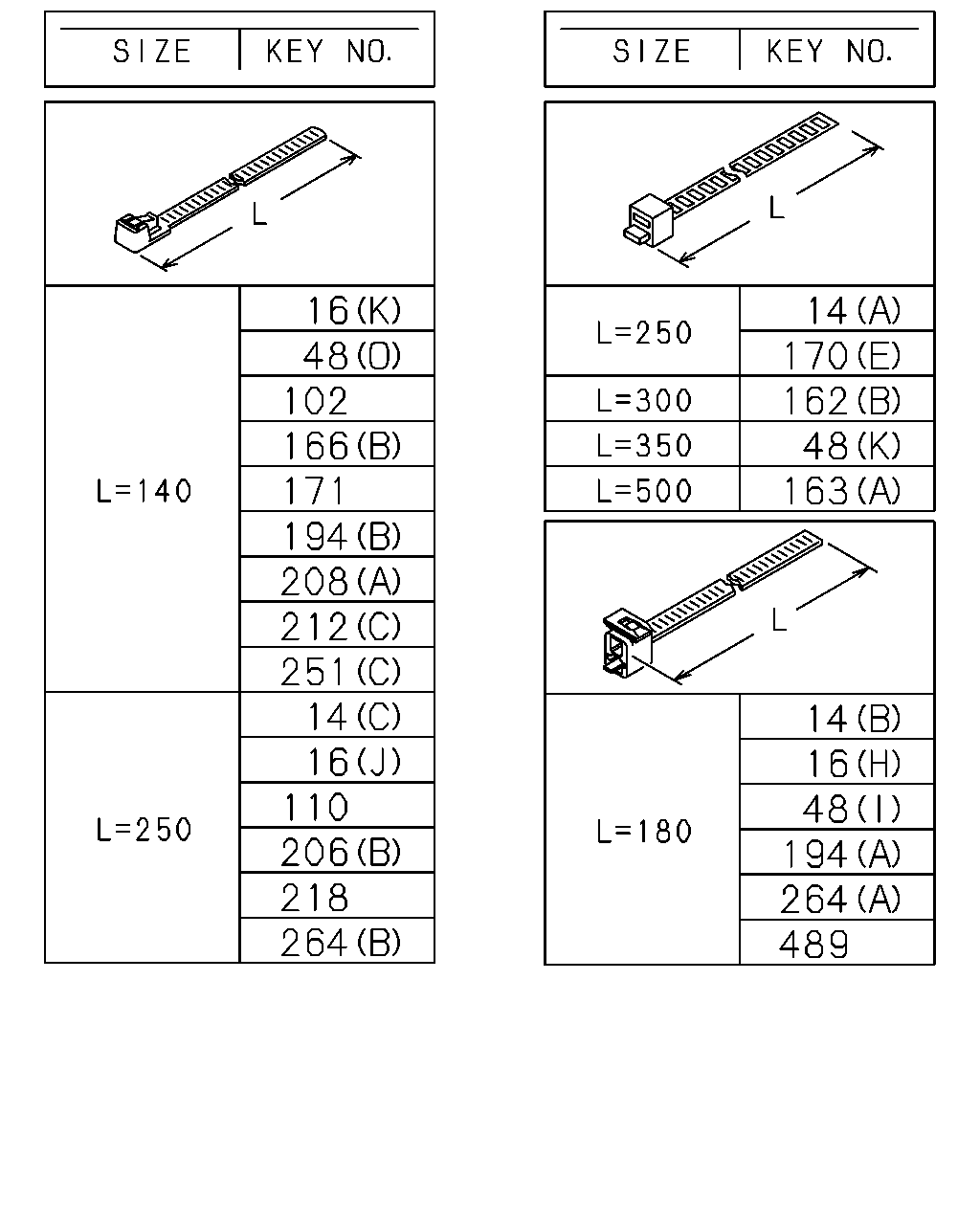

çizim 139171
16 48 102 171 208 194 212 251 14 16 110 206 218 264 14 162 170 48 163 14 16 48 194 264 489 166
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 15 1 0612-0702
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 16 1 0703-0905
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 17 1 0906-1205
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 17 1 1206-
14 CLIP; BAND,HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) L=250 		1-09707-126-0 02 1 0612-
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0612-1207
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 01 1 1208-
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 0612-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) ID=11 L=20 		0-95235-035-0 04 1 0907-
16 CLIP; HARNESS
LOW DECK WO/REAR BODY<PK4> (B) ID=11 L=41 		1-09700-403-0 10 1 0801-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0612-0706
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0707-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0612-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 15 1 0612-0706
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 09 1 0707-0712
16 CLIP; HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=11 L=41 		1-09700-403-0 09 1 0801-
16 CLIP; HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0612-
16 CLIP; HARNESS
(D) ID=11X2 L=20 		1-09700-871-0 02 1 0612-0706
16 CLIP; HARNESS
(D) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (D) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (D) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 02 1 0612-
16 CLIP; HARNESS
(G) ID=40 L=90 		1-09701-290-0 04 1 0612-0712
16 CLIP; HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (G) ID=40 L=90 		1-09701-290-0 04 1 0801-
16 CLIP; HARNESS
(H) L=180 		1-09707-162-1 01 1 0612-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0612-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 06 1 0612-0705
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0612-0705
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(L) ID=20 L=50 		9-09917-430-0 07 1 0612-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (P) ID=28 L=58 		1-09700-400-0 03 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 24 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (Q) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (D) ID=35 L=33 		1-09700-945-0 05 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (R) ID=33 L=83 		1-09701-291-0 01 1 0801-
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (J) ID=33 L=63 		1-09700-807-0 23 1 0612-0802
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (J) ID=33 L=63 		1-09700-807-0 19 1 0803-
48 CLIP; FRAME HARNESS
WB 5700MM(57W) (J) ID=33 L=63 		1-09700-807-0 25 1 0612-0712
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 25 1 0801-0802
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 21 1 0803-
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 04 1 0612-
48 CLIP; FRAME HARNESS
(I) L=180 		1-09707-162-1 04 1 0612-
48 CLIP; FRAME HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0612-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 03 1 0612-
48 CLIP; FRAME HARNESS
(D) ID=35 L=33 		1-09700-945-0 04 1 0612-0712
48 CLIP; FRAME HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (D) ID=35 L=33 		1-09700-945-0 04 1 0801-
48 CLIP; FRAME HARNESS
(E) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0612-
48 CLIP; FRAME HARNESS
(F) ID=28 L=40 		1-09701-261-0 01 1 0612-
48 CLIP; FRAME HARNESS
(G) ID=25 L=75 		1-09701-275-0 04 1 0612-
48 CLIP; FRAME HARNESS
(H) ID=40 L=90 		1-09701-290-0 04 1 0612-0802
48 CLIP; FRAME HARNESS
(H) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (H) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(K) L=350 		1-09707-183-0 01 1 0612-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 01 1 0612-
48 CLIP; FRAME HARNESS
ANTILOCK BRK SYSTEM<BFA> (M) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (N) ID=11 L=41 		1-09700-403-0 01 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (O) L=140 		5-09707-031-1 01 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (L) ID=20 L=50 		9-09917-430-0 02 1 0612-
102 CLIP; BAND
L=140 		5-09707-031-1 01 1 0612-
110 CLIP; BAND,DASH HARNESS
L=250 		5-09707-030-1 01 1 0801-0801
162 CLIP; SW HARNESS
(E) ID=22 L=52 		9-09917-431-0 01 1 0706-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0612-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0612-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0612-0705
162 CLIP; SW HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0706-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0706-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0612-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0612-0705
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0706-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0612-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0612-
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0612-
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 0612-
170 CLIP; ELEC HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0612-
170 CLIP; ELEC HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0612-
170 CLIP; ELEC HARNESS
ANTILOCK BRK SYSTEM<BFA> (E) L=250 		1-09707-126-0 03 1 0612-
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRK SYSTEM<BFA> (E) L=250 		1-09707-126-0 01 1 0612-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 02 1 0612-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 04 1 0612-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 02 1 0612-
194 CLIP; BAND
DOOR CONT AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (B) L=140 		5-09707-031-1 01 1 0612-
206 CLIP; FUEL TANK HARNESS
LOW DECK WO/REAR BODY<PK4> (B) L=250 		5-09707-030-1 04 1 0801-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0612-0712
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0801-
206 CLIP; FUEL TANK HARNESS
LOW DECK WO/REAR BODY<PK4> (A) ID=11 L=41 		1-09700-403-0 02 1 0801-
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0612-0712
206 CLIP; FUEL TANK HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (B) L=250 		5-09707-030-1 02 1 0801-
208 CLIP; HARNESS,MAG VLV
(A) L=140 		5-09707-031-1 01 1 0612-
208 CLIP; HARNESS,MAG VLV
BRK SYSTEM RETARDER<RE2> (B) ID=11 L=41 		1-09700-403-0 02 1 0612-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0612-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (B) ID=11 L=41 		1-09700-403-0 01 1 0612-
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 0612-
251 CLIP; WATER LEVEL HARNESS
WB 5700MM(57W) (B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0801-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0612-0712
251 CLIP; WATER LEVEL HARNESS
WB 5000MM(50W) (B) ID=11 H=20 L=20 		8-98033-780-0 02 1 0801-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0612-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0612-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 0612-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 0612-
489 CLIP; HARNESS,OIL PRESS SW
L=180 		1-09707-162-1 01 1 0612-
çizim 139172
242 139 38 304 38 242 304 313 38 139 38 38 38 169 371 38 139 150 242 38 139 313 242 38 38 173 173 219 47 219 294 297 340 515 525 552 55 423
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28650-820-0 03 1 0907-
38 BOLT; CLIP,HARNESS
(I) M8X12 FLANGE 		0-28050-812-0 01 1 0806-
38 BOLT; CLIP,HARNESS
WB 5000MM(50W) (F) M8X25 FLANGE 		0-28650-825-0 02 1 0801-
38 BOLT; CLIP,HARNESS
WB 5700MM(57W) (F) M8X25 FLANGE 		0-28650-825-0 03 1 0801-
38 BOLT; CLIP,HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) M8X16 FLANGE 		0-28050-816-0 04 1 0707-
38 BOLT; CLIP,HARNESS
ANTILOCK BRK SYSTEM<BFA> (E) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 01 1 0707-0906
38 BOLT; CLIP,HARNESS
ANTILOCK BRK SYSTEM<BFA> (G) M8X30 FLANGE 		0-28650-830-0 01 1 0707-0906
38 BOLT; CLIP,HARNESS
ANTILOCK BRK SYSTEM<BFA> (G) M8X30 FLANGE 		0-28650-830-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 06 1 0612-0906
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0907-
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28650-825-0 14 1 0612-0706
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28650-825-0 04 1 0707-0712
38 BOLT; CLIP,HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (F) M8X25 FLANGE 		0-28650-825-0 04 1 0801-
38 BOLT; CLIP,HARNESS
(C) M10X20 FLANGE 		0-28751-020-0 01 1 0612-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28050-825-0 05 1 0612-0805
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28050-825-0 04 1 0806-
38 BOLT; CLIP,HARNESS
(D) M6X20 FLANGE 		0-28650-620-0 02 1 0612-
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28650-820-0 03 1 0612-0906
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28650-820-0 03 1 0612-0906
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28650-820-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28650-825-0 04 1 0612-0706
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28650-825-0 06 1 0707-
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 01 1 0612-0706
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28650-825-0 08 1 0707-0712
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28650-825-0 05 1 0801-0801
38 BOLT; CLIP,HARNESS
(F) M8X25 FLANGE 		0-28650-825-0 05 1 0801-
38 BOLT; CLIP,HARNESS
LOW DECK WO/REAR BODY<PK4> (F) M8X25 FLANGE 		0-28650-825-0 05 1 0801-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0612-1201
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1202-
47 NUT; GEN TERMINAL
M8 FLANGE 		0-91180-108-0 03 1 0612-
55 WASHER; PL,CLIP
ID=6.4 		0-91610-606-0 02 1 0612-
139 BOLT; BRKT
ANTILOCK BRK SYSTEM<BFA> (B) M8X25 FLANGE 		0-28650-825-0 06 1 0707-
139 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> (D) M8X35 FLANGE 		0-28650-835-0 05 1 0801-
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 07 1 0612-0906
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 01 1 0612-
139 BOLT; BRKT
ANTILOCK BRK SYSTEM<BFA> (C) M8X10 FLANGE 		0-28050-810-0 01 1 0612-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0612-
173 BOLT; STARTER EARTH
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0612-1201
173 BOLT; STARTER EARTH
(B) M10X20 W/PL WASHER 		8-98164-838-0 01 1 1202-
219 NUT
WB 5000MM(50W) (B) M8 FLANGE 		0-91180-108-0 02 1 0801-
219 NUT
WB 5700MM(57W) (B) M8 FLANGE 		0-91180-108-0 03 1 0801-
219 NUT
ANTILOCK BRK SYSTEM<BFA> (B) M8 FLANGE 		0-91180-108-0 01 1 0707-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 14 1 0707-0712
219 NUT
(B) M8 FLANGE 		0-91180-108-0 11 1 0801-0906
219 NUT
(B) M8 FLANGE 		0-91180-108-0 10 1 0907-
219 NUT
LOW DECK WO/REAR BODY<PK4> (B) M8 FLANGE 		0-91180-108-0 05 1 0801-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 22 1 0612-0705
219 NUT
(B) M8 FLANGE 		0-91180-108-0 20 1 0706-0706
219 NUT
(B) M8 FLANGE 		0-91180-108-0 06 1 0707-
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 0612-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0612-0712
219 NUT
EXC. LOW DECK WO/REAR BODY<PK4> (B) M8 FLANGE 		0-91180-108-0 04 1 0801-
242 BOLT; BRKT,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
242 BOLT; BRKT,HARNESS
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0612-
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0612-
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 01 1 0612-
294 NUT
ANTILOCK BRK SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 06 1 0707-
294 NUT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0801-
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 0612-0906
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0907-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0612-
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28050-812-0 04 1 0612-
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0612-
313 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0612-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0612-
371 BOLT; GEN HARNESS
M8X20 FLANGE 		0-28650-820-0 04 1 0612-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0612-
515 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 04 1 0801-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0612-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0612-
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0612-

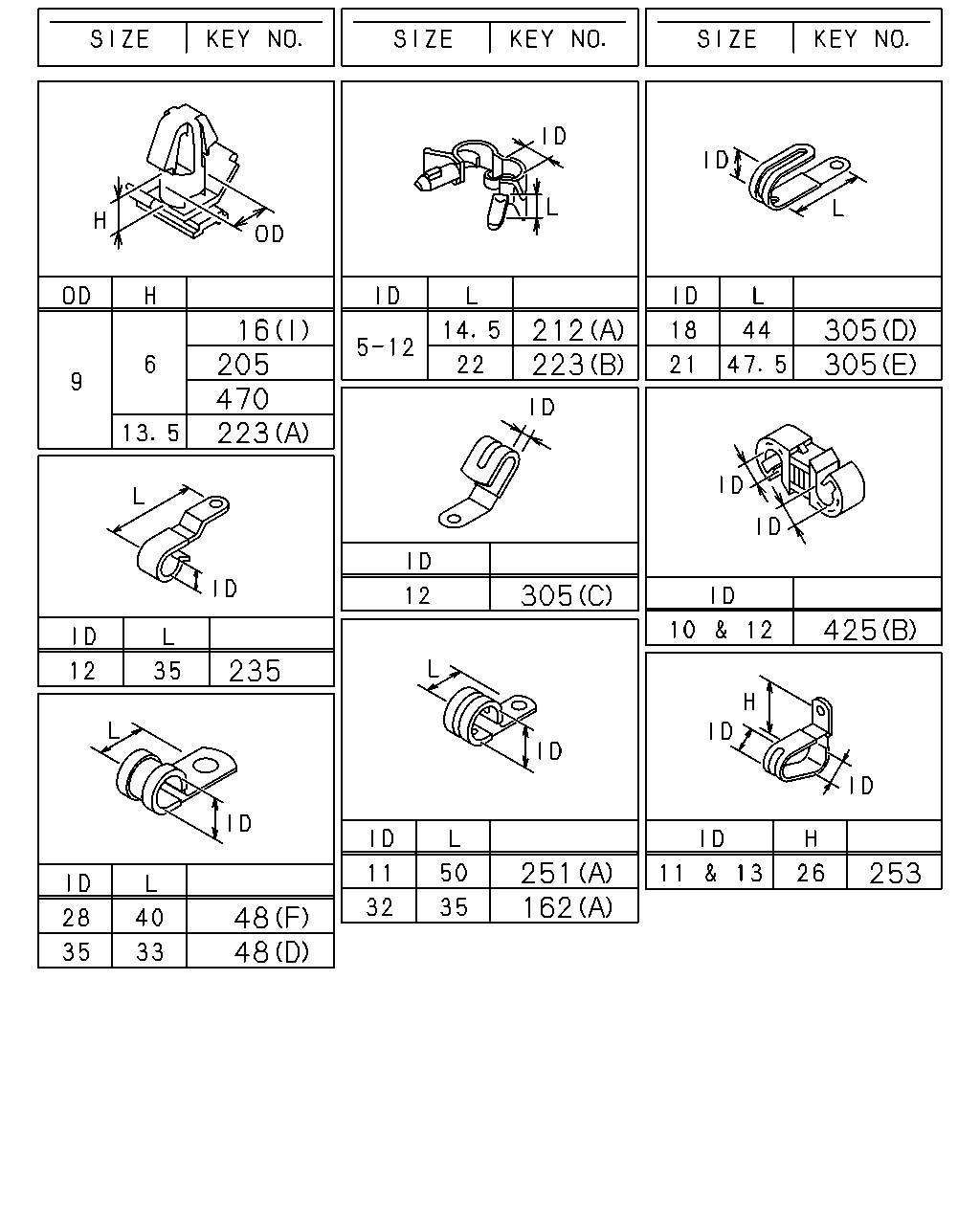

çizim 139180
16 205 470 223 212 223 305 305 305 425 235 251 162 253 48 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) ID=11 L=20 		0-95235-035-0 04 1 0907-
16 CLIP; HARNESS
LOW DECK WO/REAR BODY<PK4> (B) ID=11 L=41 		1-09700-403-0 10 1 0801-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0612-0706
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0707-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0612-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 15 1 0612-0706
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 09 1 0707-0712
16 CLIP; HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=11 L=41 		1-09700-403-0 09 1 0801-
16 CLIP; HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0612-
16 CLIP; HARNESS
(D) ID=11X2 L=20 		1-09700-871-0 02 1 0612-0706
16 CLIP; HARNESS
(D) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (D) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (D) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 02 1 0612-
16 CLIP; HARNESS
(G) ID=40 L=90 		1-09701-290-0 04 1 0612-0712
16 CLIP; HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (G) ID=40 L=90 		1-09701-290-0 04 1 0801-
16 CLIP; HARNESS
(H) L=180 		1-09707-162-1 01 1 0612-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0612-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 06 1 0612-0705
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0612-0705
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(L) ID=20 L=50 		9-09917-430-0 07 1 0612-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (P) ID=28 L=58 		1-09700-400-0 03 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 24 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (Q) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (D) ID=35 L=33 		1-09700-945-0 05 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (R) ID=33 L=83 		1-09701-291-0 01 1 0801-
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (J) ID=33 L=63 		1-09700-807-0 23 1 0612-0802
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (J) ID=33 L=63 		1-09700-807-0 19 1 0803-
48 CLIP; FRAME HARNESS
WB 5700MM(57W) (J) ID=33 L=63 		1-09700-807-0 25 1 0612-0712
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 25 1 0801-0802
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 21 1 0803-
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 04 1 0612-
48 CLIP; FRAME HARNESS
(I) L=180 		1-09707-162-1 04 1 0612-
48 CLIP; FRAME HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0612-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 03 1 0612-
48 CLIP; FRAME HARNESS
(D) ID=35 L=33 		1-09700-945-0 04 1 0612-0712
48 CLIP; FRAME HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (D) ID=35 L=33 		1-09700-945-0 04 1 0801-
48 CLIP; FRAME HARNESS
(E) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0612-
48 CLIP; FRAME HARNESS
(F) ID=28 L=40 		1-09701-261-0 01 1 0612-
48 CLIP; FRAME HARNESS
(G) ID=25 L=75 		1-09701-275-0 04 1 0612-
48 CLIP; FRAME HARNESS
(H) ID=40 L=90 		1-09701-290-0 04 1 0612-0802
48 CLIP; FRAME HARNESS
(H) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (H) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(K) L=350 		1-09707-183-0 01 1 0612-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 01 1 0612-
48 CLIP; FRAME HARNESS
ANTILOCK BRK SYSTEM<BFA> (M) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (N) ID=11 L=41 		1-09700-403-0 01 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (O) L=140 		5-09707-031-1 01 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (L) ID=20 L=50 		9-09917-430-0 02 1 0612-
162 CLIP; SW HARNESS
(E) ID=22 L=52 		9-09917-431-0 01 1 0706-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0612-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0612-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0612-0705
162 CLIP; SW HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0706-
205 CLIP; BACK LAMP HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0612-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0612-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (B) ID=11 L=41 		1-09700-403-0 01 1 0612-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=13.5 		1-09709-180-0 01 1 0612-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=22 		1-09709-288-0 01 1 0612-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0612-
251 CLIP; WATER LEVEL HARNESS
WB 5700MM(57W) (B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0801-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0612-0712
251 CLIP; WATER LEVEL HARNESS
WB 5000MM(50W) (B) ID=11 H=20 L=20 		8-98033-780-0 02 1 0801-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0612-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0612-
253 CLIP; CABLE FIX
LOW DECK WO/REAR BODY<PK4> ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 0801-
253 CLIP; CABLE FIX
ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0612-0712
253 CLIP; CABLE FIX
EXC. LOW DECK WO/REAR BODY<PK4> ID=11 & 13 H=26 L=48 		1-09701-270-0 06 1 0801-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 05 1 0612-0702
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 04 1 0703-0801
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 04 1 0802-
305 CLIP; ENG HARNESS
(A) T=0.8 ID=11 L=20 		0-95235-035-0 02 1 0612-
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 01 1 0612-
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 0612-
305 CLIP; ENG HARNESS
(A) T=1.2 ID=11 L=20 		0-95235-036-0 01 1 0612-
305 CLIP; ENG HARNESS
(C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0612-0801
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
425 CLIP; MODULATOR
ANTILOCK BRK SYSTEM<BFA> (A) ID=11 L=41 		1-09700-403-0 01 1 0612-
425 CLIP; MODULATOR
ANTILOCK BRK SYSTEM<BFA> (B) ID=10 & 12 		1-09709-278-1 02 1 0612-
425 CLIP; MODULATOR
ANTILOCK BRK SYSTEM<BFA> (C) ID=14 L=44 		9-09917-427-0 02 1 0612-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0612-
çizim 139186
1 1 1 1 178 178 178 596 596
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=17 OD=21 L=40 		1-09337-012-0 03 1 0612-
1 SLEEVE; RUBBER
(C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0612-
1 SLEEVE; RUBBER
(D) ID=6 L=30 		5-09360-352-0 01 1 0612-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0612-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 02 1 0612-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=12 		9-09956-093-1 01 1 0612-
178 GROMMET; HARNESS
ANTILOCK BRK SYSTEM<BFA> (C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0612-
596 GROMMET
(A) ID=32 OD=40 T=18 		1-09891-003-0 01 1 0612-
596 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0612-

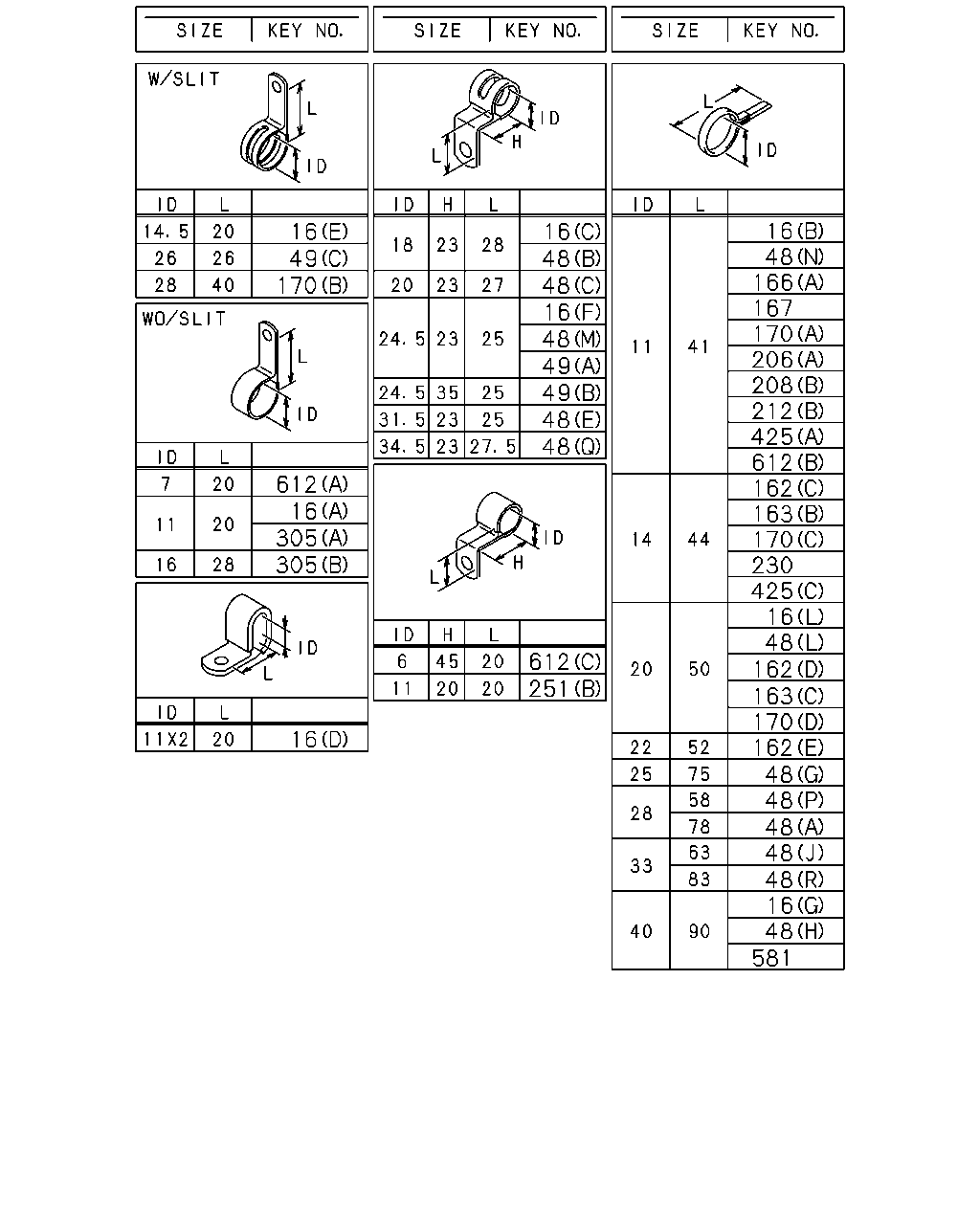

çizim 139187
16 48 166 167 170 206 208 212 425 612 162 163 170 230 425 16 48 162 163 170 162 48 48 48 48 48 16 48 581 16 49 170 16 48 48 16 48 49 49 48 48 612 16 305 305 612 251 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) ID=11 L=20 		0-95235-035-0 04 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) ID=11 L=20 		0-95235-035-0 04 1 0907-
16 CLIP; HARNESS
LOW DECK WO/REAR BODY<PK4> (B) ID=11 L=41 		1-09700-403-0 10 1 0801-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 04 1 0612-0706
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 06 1 0707-
16 CLIP; HARNESS
(F) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0612-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 15 1 0612-0706
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 09 1 0707-0712
16 CLIP; HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=11 L=41 		1-09700-403-0 09 1 0801-
16 CLIP; HARNESS
(C) ID=18 H=23 L=28 		1-09700-860-0 01 1 0612-
16 CLIP; HARNESS
(D) ID=11X2 L=20 		1-09700-871-0 02 1 0612-0706
16 CLIP; HARNESS
(D) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (D) ID=11X2 L=20 		1-09700-871-0 02 1 0707-0906
16 CLIP; HARNESS
ANTILOCK BRK SYSTEM<BFA> (D) ID=11X2 L=20 		1-09700-871-0 02 1 0907-
16 CLIP; HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 02 1 0612-
16 CLIP; HARNESS
(G) ID=40 L=90 		1-09701-290-0 04 1 0612-0712
16 CLIP; HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (G) ID=40 L=90 		1-09701-290-0 04 1 0801-
16 CLIP; HARNESS
(H) L=180 		1-09707-162-1 01 1 0612-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0612-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 06 1 0612-0705
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 05 1 0706-
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0612-0705
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 02 1 0706-
16 CLIP; HARNESS
(L) ID=20 L=50 		9-09917-430-0 07 1 0612-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (P) ID=28 L=58 		1-09700-400-0 03 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 24 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (Q) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (D) ID=35 L=33 		1-09700-945-0 05 1 0801-
48 CLIP; FRAME HARNESS
LOW DECK WO/REAR BODY<PK4> (R) ID=33 L=83 		1-09701-291-0 01 1 0801-
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (J) ID=33 L=63 		1-09700-807-0 23 1 0612-0802
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (J) ID=33 L=63 		1-09700-807-0 19 1 0803-
48 CLIP; FRAME HARNESS
WB 5700MM(57W) (J) ID=33 L=63 		1-09700-807-0 25 1 0612-0712
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 25 1 0801-0802
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (J) ID=33 L=63 		1-09700-807-0 21 1 0803-
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 04 1 0612-
48 CLIP; FRAME HARNESS
(I) L=180 		1-09707-162-1 04 1 0612-
48 CLIP; FRAME HARNESS
(B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0612-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 03 1 0612-
48 CLIP; FRAME HARNESS
(D) ID=35 L=33 		1-09700-945-0 04 1 0612-0712
48 CLIP; FRAME HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (D) ID=35 L=33 		1-09700-945-0 04 1 0801-
48 CLIP; FRAME HARNESS
(E) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0612-
48 CLIP; FRAME HARNESS
(F) ID=28 L=40 		1-09701-261-0 01 1 0612-
48 CLIP; FRAME HARNESS
(G) ID=25 L=75 		1-09701-275-0 04 1 0612-
48 CLIP; FRAME HARNESS
(H) ID=40 L=90 		1-09701-290-0 04 1 0612-0802
48 CLIP; FRAME HARNESS
(H) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (H) ID=40 L=90 		1-09701-290-0 04 1 0803-
48 CLIP; FRAME HARNESS
(K) L=350 		1-09707-183-0 01 1 0612-
48 CLIP; FRAME HARNESS
(L) ID=20 L=50 		9-09917-430-0 01 1 0612-
48 CLIP; FRAME HARNESS
ANTILOCK BRK SYSTEM<BFA> (M) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (N) ID=11 L=41 		1-09700-403-0 01 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (O) L=140 		5-09707-031-1 01 1 0612-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (L) ID=20 L=50 		9-09917-430-0 02 1 0612-
49 CLIP; GEN HARNESS
(C) ID=26 L=26 		1-09701-236-0 02 1 0612-
49 CLIP; GEN HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0612-
49 CLIP; GEN HARNESS
(B) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 0612-
162 CLIP; SW HARNESS
(E) ID=22 L=52 		9-09917-431-0 01 1 0706-
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 0612-
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 0612-
162 CLIP; SW HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0612-0705
162 CLIP; SW HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0706-
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0706-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0612-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0612-0705
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 0706-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0612-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0612-
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 02 1 0612-
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0612-
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 0612-
170 CLIP; ELEC HARNESS
(C) ID=14 L=44 		9-09917-427-0 04 1 0612-
170 CLIP; ELEC HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0612-
170 CLIP; ELEC HARNESS
ANTILOCK BRK SYSTEM<BFA> (E) L=250 		1-09707-126-0 03 1 0612-
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRK SYSTEM<BFA> (E) L=250 		1-09707-126-0 01 1 0612-
206 CLIP; FUEL TANK HARNESS
LOW DECK WO/REAR BODY<PK4> (B) L=250 		5-09707-030-1 04 1 0801-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0612-0712
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0801-
206 CLIP; FUEL TANK HARNESS
LOW DECK WO/REAR BODY<PK4> (A) ID=11 L=41 		1-09700-403-0 02 1 0801-
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 02 1 0612-0712
206 CLIP; FUEL TANK HARNESS
EXC. LOW DECK WO/REAR BODY<PK4> (B) L=250 		5-09707-030-1 02 1 0801-
208 CLIP; HARNESS,MAG VLV
(A) L=140 		5-09707-031-1 01 1 0612-
208 CLIP; HARNESS,MAG VLV
BRK SYSTEM RETARDER<RE2> (B) ID=11 L=41 		1-09700-403-0 02 1 0612-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (C) L=140 		5-09707-031-1 01 1 0706-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0612-0705
212 CLIP; HORN HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 0706-
212 CLIP; HORN HARNESS
EXC. AIR HORN(WB8) (B) ID=11 L=41 		1-09700-403-0 01 1 0612-
230 CLIP; C/MBR HARNESS
ANTILOCK BRK SYSTEM<BFA> ID=14 L=44 		9-09917-427-0 04 1 0612-
251 CLIP; WATER LEVEL HARNESS
WB 5700MM(57W) (B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0801-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0612-0712
251 CLIP; WATER LEVEL HARNESS
WB 5000MM(50W) (B) ID=11 H=20 L=20 		8-98033-780-0 02 1 0801-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 02 1 0612-
251 CLIP; WATER LEVEL HARNESS
(C) L=140 		5-09707-031-1 01 1 0612-
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 05 1 0612-0702
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 04 1 0703-0801
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-97367-985-1 04 1 0802-
305 CLIP; ENG HARNESS
(A) T=0.8 ID=11 L=20 		0-95235-035-0 02 1 0612-
305 CLIP; ENG HARNESS
(B) ID=16 L=28 		0-95235-556-0 01 1 0612-
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 0612-
305 CLIP; ENG HARNESS
(A) T=1.2 ID=11 L=20 		0-95235-036-0 01 1 0612-
305 CLIP; ENG HARNESS
(C) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0612-0801
305 CLIP; ENG HARNESS
(C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
425 CLIP; MODULATOR
ANTILOCK BRK SYSTEM<BFA> (A) ID=11 L=41 		1-09700-403-0 01 1 0612-
425 CLIP; MODULATOR
ANTILOCK BRK SYSTEM<BFA> (B) ID=10 & 12 		1-09709-278-1 02 1 0612-
425 CLIP; MODULATOR
ANTILOCK BRK SYSTEM<BFA> (C) ID=14 L=44 		9-09917-427-0 02 1 0612-
581 CLIP; HARNESS,REAR SUSP
LOW DECK WO/REAR BODY<PK4> ID=40 L=90 		1-09701-290-0 04 1 0801-
612 CLIP; HARNESS DPD
(A) ID=7 L=20 		0-95234-635-0 01 1 0612-
612 CLIP; HARNESS DPD
(B) ID=11 L=41 		1-09700-403-0 04 1 0612-
612 CLIP; HARNESS DPD
(C) ID=6 H=45 L=20 		1-09700-824-0 01 1 0612-

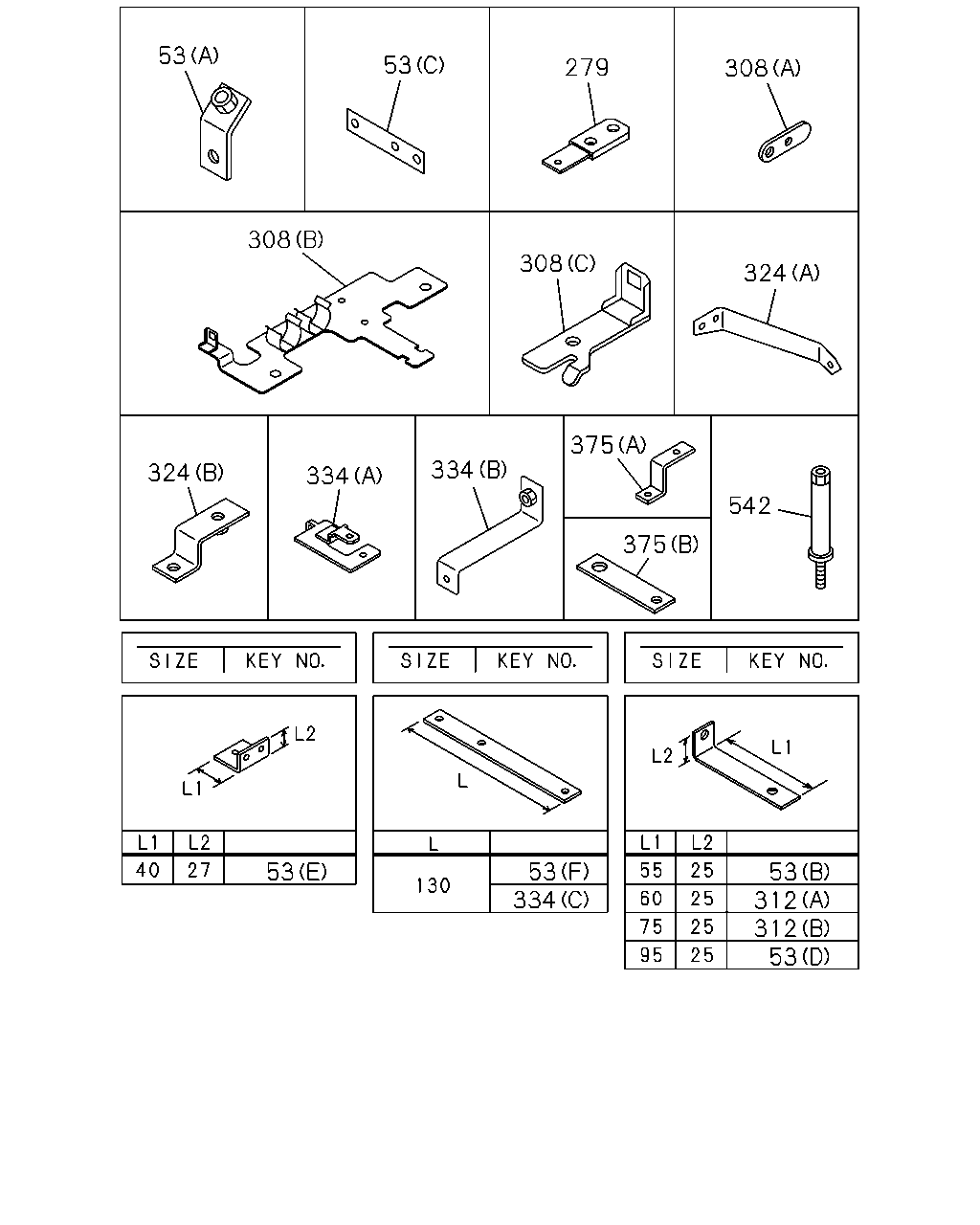

çizim 139197
53 53 279 308 308 308 324 375 334 324 334 542 375 53 334 53 53 312 312 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
LOW DECK WO/REAR BODY<PK4> (E) 		1-47478-422-0 01 1 0801-
53 BRACKET; HARNESS
LOW DECK WO/REAR BODY<PK4> (F) L=130 		1-47478-959-0 01 1 0801-
53 BRACKET; HARNESS
LOW DECK WO/REAR BODY<PK4> (D) L=95 		1-82699-085-0 01 1 0801-
53 BRACKET; HARNESS
(B) L=55 		1-47476-177-0 01 1 0612-
53 BRACKET; HARNESS
(C) 		1-47479-118-0 01 1 0612-
53 BRACKET; HARNESS
(D) L=95 		1-82699-085-0 03 1 0612-
53 BRACKET; HARNESS
ANTILOCK BRK SYSTEM<BFA> (A) 		8-98014-419-0 01 1 0612-
279 STAY; HARNESS 1-82699-873-0 02 1 0612-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 01 1 0612-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97612-280-1 01 1 0612-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0612-
312 BRACKET; CLIP HARNESS
(A) L=60 		1-47475-455-0 01 1 0612-
312 BRACKET; CLIP HARNESS
(B) L=75 		1-47478-323-0 01 1 0612-
324 BRACKET; CLIP
(A) 		8-98044-308-0 01 1 0612-0706
324 BRACKET; CLIP
(A) 		8-98044-308-0 01 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRK SYSTEM<BFA> (A) 		8-98044-308-0 01 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRK SYSTEM<BFA> (A) 		8-98044-308-0 01 1 0907-
324 BRACKET; CLIP
(A) 		8-98044-309-0 01 1 0612-0706
324 BRACKET; CLIP
(A) 		8-98044-309-0 01 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRK SYSTEM<BFA> (A) 		8-98044-309-0 01 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRK SYSTEM<BFA> (A) 		8-98044-309-0 01 1 0907-
324 BRACKET; CLIP
(B) 		1-47476-393-0 02 1 0612-0706
324 BRACKET; CLIP
(B) 		1-47476-393-0 02 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRK SYSTEM<BFA> (B) 		1-47476-393-0 02 1 0707-0906
324 BRACKET; CLIP
ANTILOCK BRK SYSTEM<BFA> (B) 		1-47476-393-0 02 1 0907-
334 BRACKET
LOW DECK WO/REAR BODY<PK4> (C) L=130 		1-47478-959-0 01 1 0801-
334 BRACKET
(A) 		1-82698-495-2 01 1 0612-
334 BRACKET
(B) L=110 		1-82699-589-0 01 1 0612-0706
334 BRACKET
(B) L=110 		1-82699-589-0 01 1 0707-0906
334 BRACKET
ANTILOCK BRK SYSTEM<BFA> (B) L=110 		1-82699-589-0 01 1 0707-0906
334 BRACKET
ANTILOCK BRK SYSTEM<BFA> (B) L=110 		1-82699-589-0 01 1 0907-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		8-98056-647-0 01 1 0612-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47475-702-0 01 1 0612-
542 TUBE; DISTANCE,FUEL 8-97377-804-0 01 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
