◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10B - RADIATOR ▶
1-10B — RADIATOR (#2779) — 61 parça

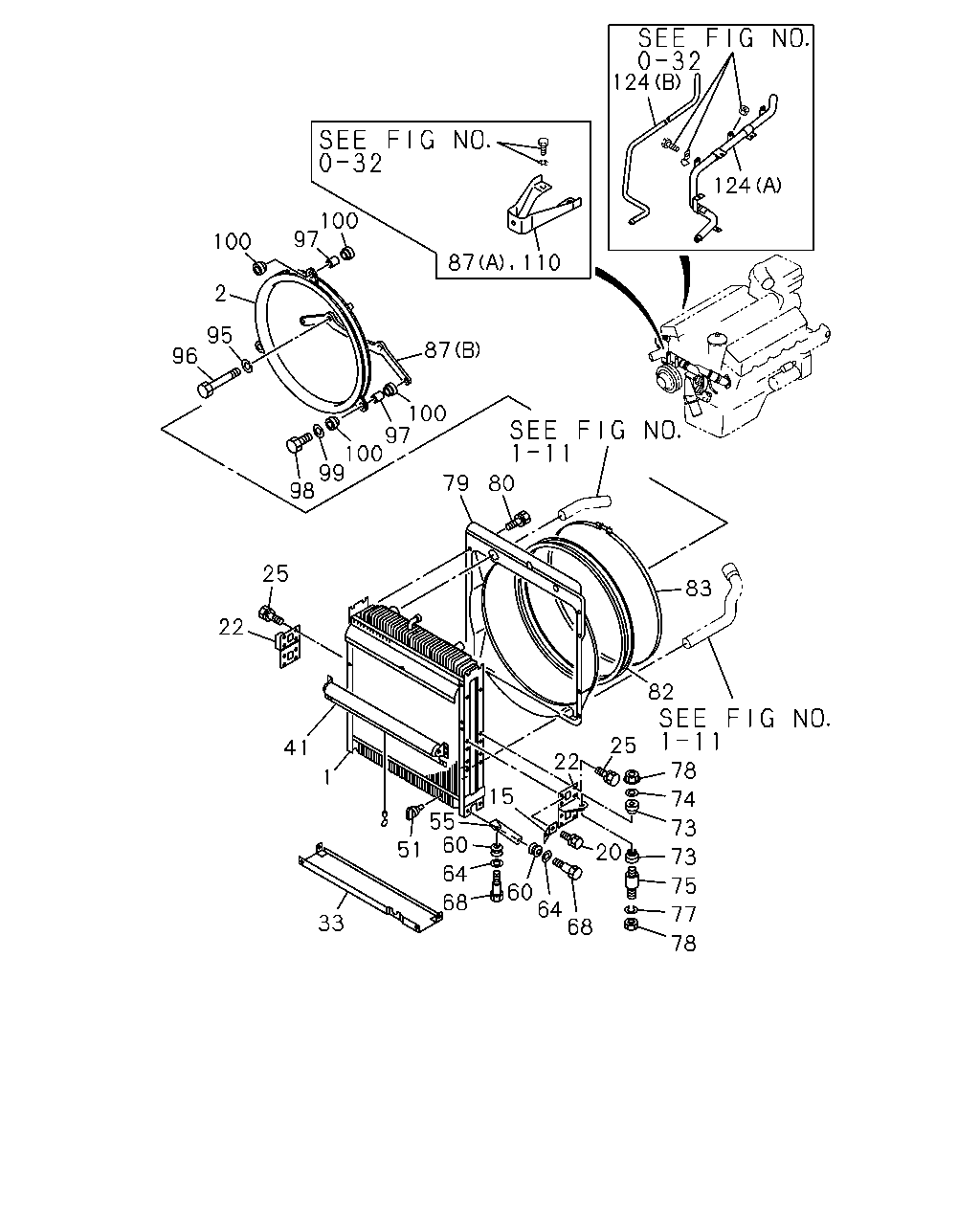

çizim 29845
124 124 110 87 100 97 100 2 95 96 87 100 97 100 99 98 80 79 25 22 41 1 51 55 15 60 64 68 33 60 64 68 20 22 25 82 83 78 74 73 73 75 77 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-569-0 01 1 9002- ●
1 RADIATOR ASM 1-21410-555-0 01 1 9307- ●
2 GUIDE; FAN 1-21551-235-3 01 1 9002- ● ●
15 BRACKET; PIPE,RAD 1-21464-283-0 01 1 9002-9404 ●
15 BRACKET; PIPE,RAD 1-21469-088-0 01 1 9405- ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9404 ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9405- ●
20 BOLT; PIPE BRKT,RAD
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9405- ●
22 BRACKET; RAD MTG 1-21464-094-1 01 1 9002- ●
22 BRACKET; RAD MTG 1-21464-093-1 01 1 9002- ●
22 BRACKET; RAD MTG 1-21464-278-1 01 1 9307- ●
22 BRACKET; RAD MTG 1-21464-277-0 01 1 9307- ●
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		9-01960-818-0 15 1 9002- ●
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		0-50140-818-0 15 1 9405- ●
25 BOLT; BRKT
M8X16 W/LK WASHER 		9-01900-816-0 16 1 9307- ●
33 PROTECTOR; RAD
L=120 		1-21419-030-2 01 1 9002- ●
33 PROTECTOR; RAD
L=76 		1-21419-043-0 01 1 9307- ●
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-090-1 01 1 9002-9306 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9002- ● ●
55 STAY; RAD TO UPR MBR 1-21464-079-2 01 1 9002- ●
55 STAY; RAD TO UPR MBR 1-21464-078-2 01 1 9002- ●
55 STAY; RAD TO UPR MBR 1-21464-253-0 01 1 9307- ●
55 STAY; RAD TO UPR MBR 1-21464-252-0 01 1 9307- ●
60 GROMMET 1-09332-117-0 04 1 9002- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9002- ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 04 1 9002- ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9002- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-1 02 1 9002- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9002- ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9002- ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		5-09440-006-0 02 1 9002- ● ●
78 NUT; CUSHION RUBBER
M12 		9-99110-412-0 02 1 9002-9304 ●
78 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9305- ● ●
79 GUIDE; FAN,RAD 1-21551-313-0 01 1 9002- ●
79 GUIDE; FAN,RAD 1-21551-218-3 01 1 9307- ●
80 BOLT; FAN GUIDE
M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9307- ●
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 17 1 9002-9306 ●
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9002-9306 ●
80 BOLT; FAN GUIDE
M8X16 W/LK&PL WASHER 		0-50140-816-0 12 1 9405- ●
80 BOLT; FAN GUIDE
M8X14 		9-01960-814-0 12 1 9307- ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9002- ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9002- ● ●
87 STAY; FAN GUIDE
(A) 		1-21559-104-2 01 1 9002- ●
87 STAY; FAN GUIDE
(B) 		1-21559-285-0 01 1 9002- ● ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9002- ●
96 BOLT; STAY FIX
M12X20 		9-02341-220-0 01 1 9002-9204 ●
96 BOLT; STAY FIX
M12X20 		0-23801-220-0 01 1 9205- ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 01 1 9002- ● ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 9311- ● ●
97 TUBE; DIST,FAN GUIDE 1-21559-071-0 03 1 9002-9310 ● ●
98 BOLT; RAD FAN GUIDE
M8X50 		9-01055-850-0 03 1 9002-9005 ●
98 BOLT; RAD FAN GUIDE
M8X50 		0-10805-850-0 03 1 9006-9310 ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9311- ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9311- ● ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 06 1 9002-9310 ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9002- ● ●
110 STAY; FAN GUIDE 1-21559-104-2 01 1 9307- ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-479-1 01 1 9002- ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-375-0 01 1 9002- ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-464-2 01 1 9307- ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-352-0 01 1 9307- ●
