Isuzu WW
▶
BUSES
▶
LT
▶
11032 - LT134(LHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

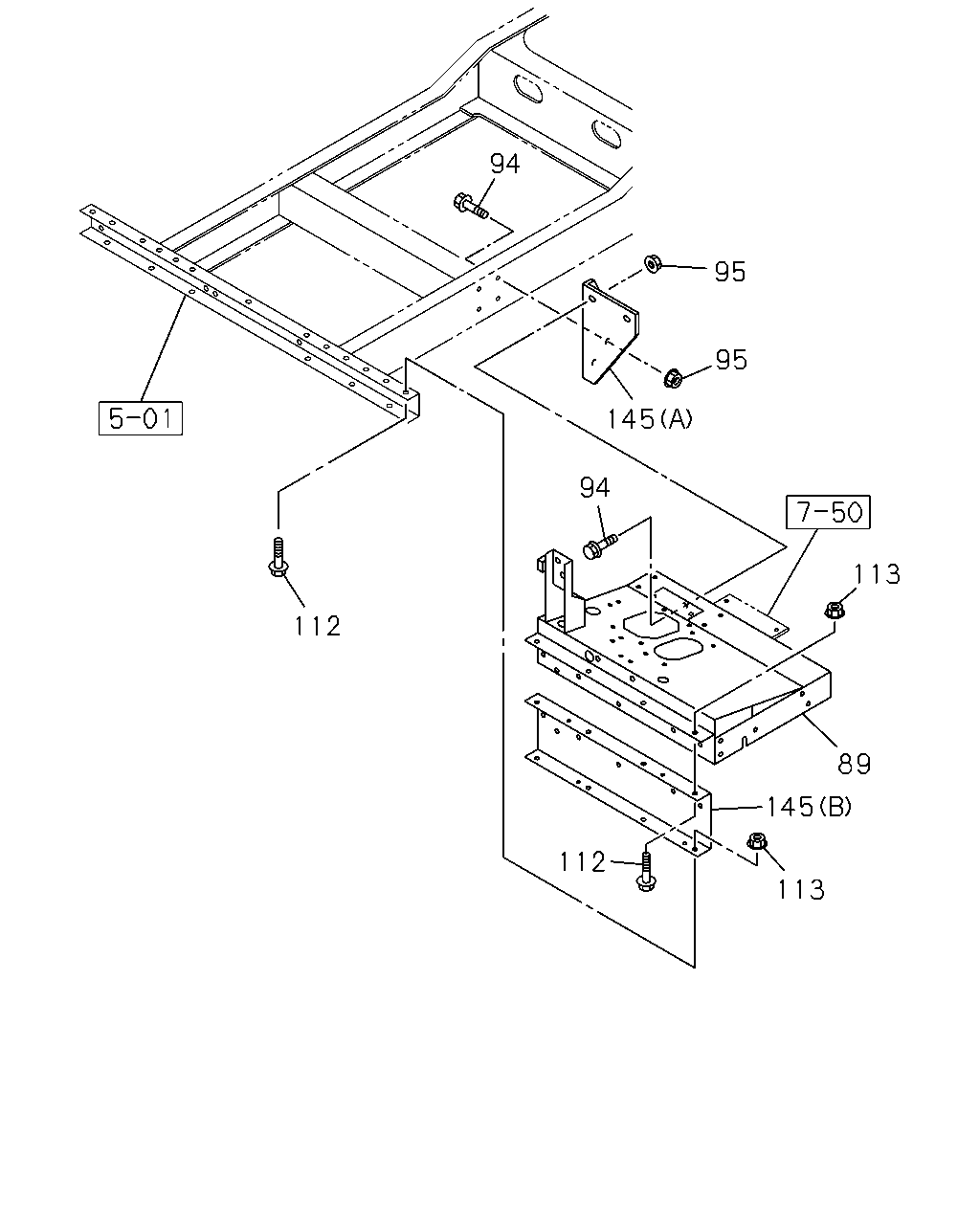

6-70 — FLOOR PANEL
(#27785) — 19 parça
94
95
95
145
94
113
112
89
145
112
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
BOARD ASM; PEDAL
1-65600-721-3
01
1
0612-1212
89
BOARD ASM; PEDAL
8-98231-846-0
01
1
1301-1302
89
BOARD ASM; PEDAL
8-98232-614-0
01
1
1303-
94
BOLT; BRKT,PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> M10X35 FLANGE
0-28651-035-0
06
1
0801-
94
BOLT; BRKT,PEDAL BOARD
M10X35 FLANGE
0-28651-035-0
04
1
0612-0712
94
BOLT; BRKT,PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> M10X35 FLANGE
0-28651-035-0
04
1
0801-
95
NUT; BRKT,PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> M10 FLANGE
0-91180-210-0
06
1
0801-
95
NUT; BRKT,PEDAL BOARD
M10 FLANGE
0-91180-210-0
04
1
0612-0712
95
NUT; BRKT,PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE
0-91180-210-0
04
1
0801-
112
BOLT; PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE
0-28651-235-0
10
1
0801-
112
BOLT; PEDAL BOARD
M12X35 FLANGE
0-28651-235-0
06
1
0612-0712
112
BOLT; PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE
0-28651-235-0
06
1
0801-
113
NUT; PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> M12 FLANGE
0-91180-212-0
10
1
0801-
113
NUT; PEDAL BOARD
M12 FLANGE
0-91180-212-0
06
1
0612-0712
113
NUT; PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> M12 FLANGE
0-91180-212-0
06
1
0801-
145
BRACKET; PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> (A)
8-98072-380-2
01
1
0801-
145
BRACKET; PEDAL BOARD
LOW DECK WO/REAR BODY<PK4> (B)
8-98072-381-0
01
1
0801-
145
BRACKET; PEDAL BOARD
(A)
1-47478-510-2
01
1
0612-0712
145
BRACKET; PEDAL BOARD
EXC. LOW DECK WO/REAR BODY<PK4> (A)
1-47478-510-2
01
1
0801-
