◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#27784) — 16 parça

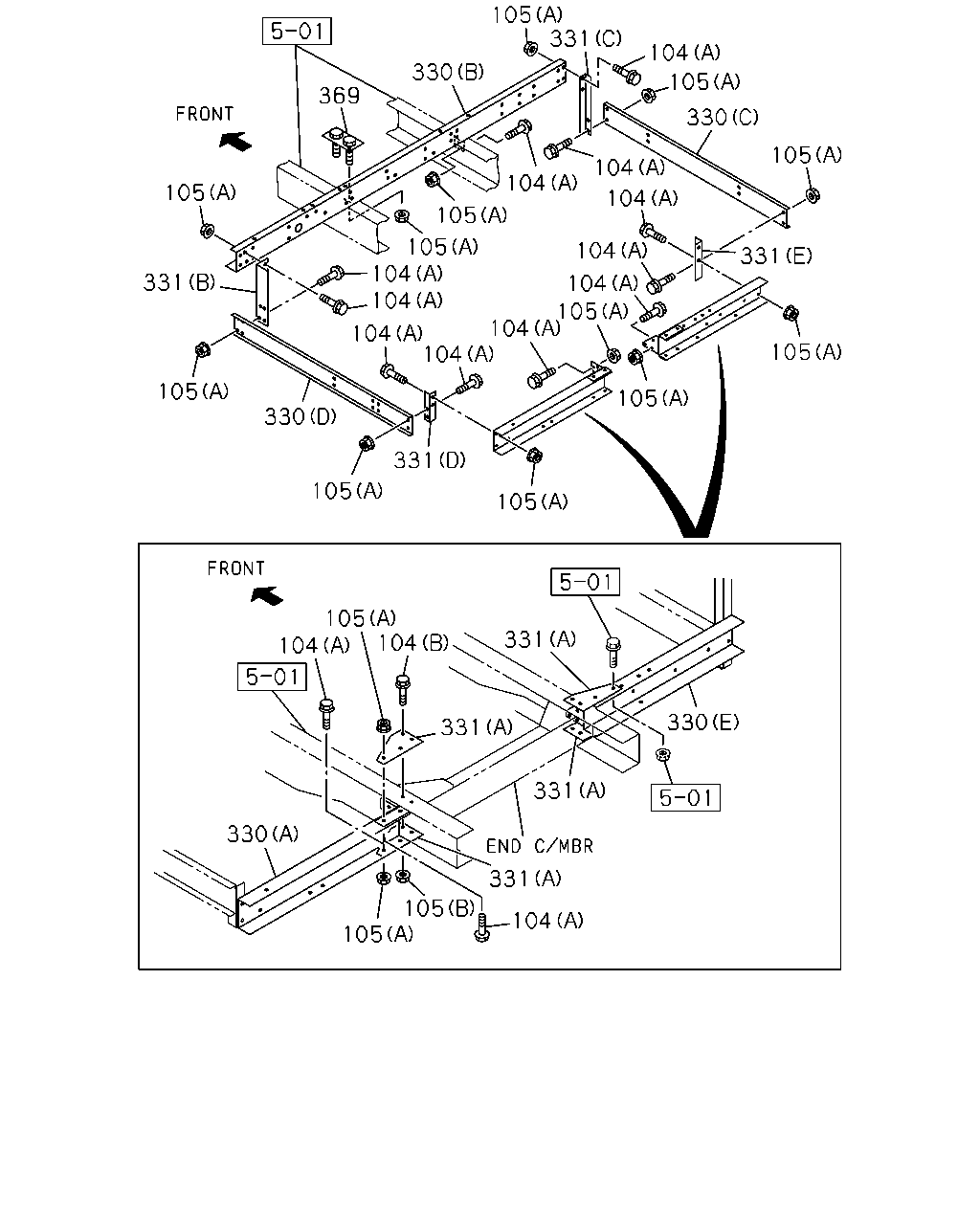

çizim 139184
105 331 104 330 105 369 330 105 104 104 105 104 105 105 104 104 104 331 331 104 105 104 104 104 105 105 105 330 331 105 105 105 104 104 331 330 331 331 330 331 105 104 105
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 36 1 0612-
104 BOLT; BRKT
(B) M12X30 FLANGE 		0-28651-230-0 08 1 0612-
105 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 08 1 0612-0806
105 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 08 1 0807-
105 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 38 1 0612-
330 BRACKET; ENG COVER
(A) 		1-65600-696-0 01 1 0612-
330 BRACKET; ENG COVER
(B) 		1-65600-722-5 01 1 0612-
330 BRACKET; ENG COVER
(C) 		1-65600-723-2 01 1 0612-
330 BRACKET; ENG COVER
(D) 		1-65600-724-0 01 1 0612-
330 BRACKET; ENG COVER
(E) 		1-65600-729-1 01 1 0612-
331 BRACKET; ENG COVER BRKT
(A) 		1-65600-677-0 04 1 0612-
331 BRACKET; ENG COVER BRKT
(C) 		1-65600-726-1 01 1 0612-
331 BRACKET; ENG COVER BRKT
(E) 		1-65600-728-0 01 1 0612-
331 BRACKET; ENG COVER BRKT
(B) 		1-65600-725-0 01 1 0612-
331 BRACKET; ENG COVER BRKT
(D) 		1-65600-727-0 01 1 0612-
369 PLATE 1-53497-674-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
