Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#27780) — 294 parça

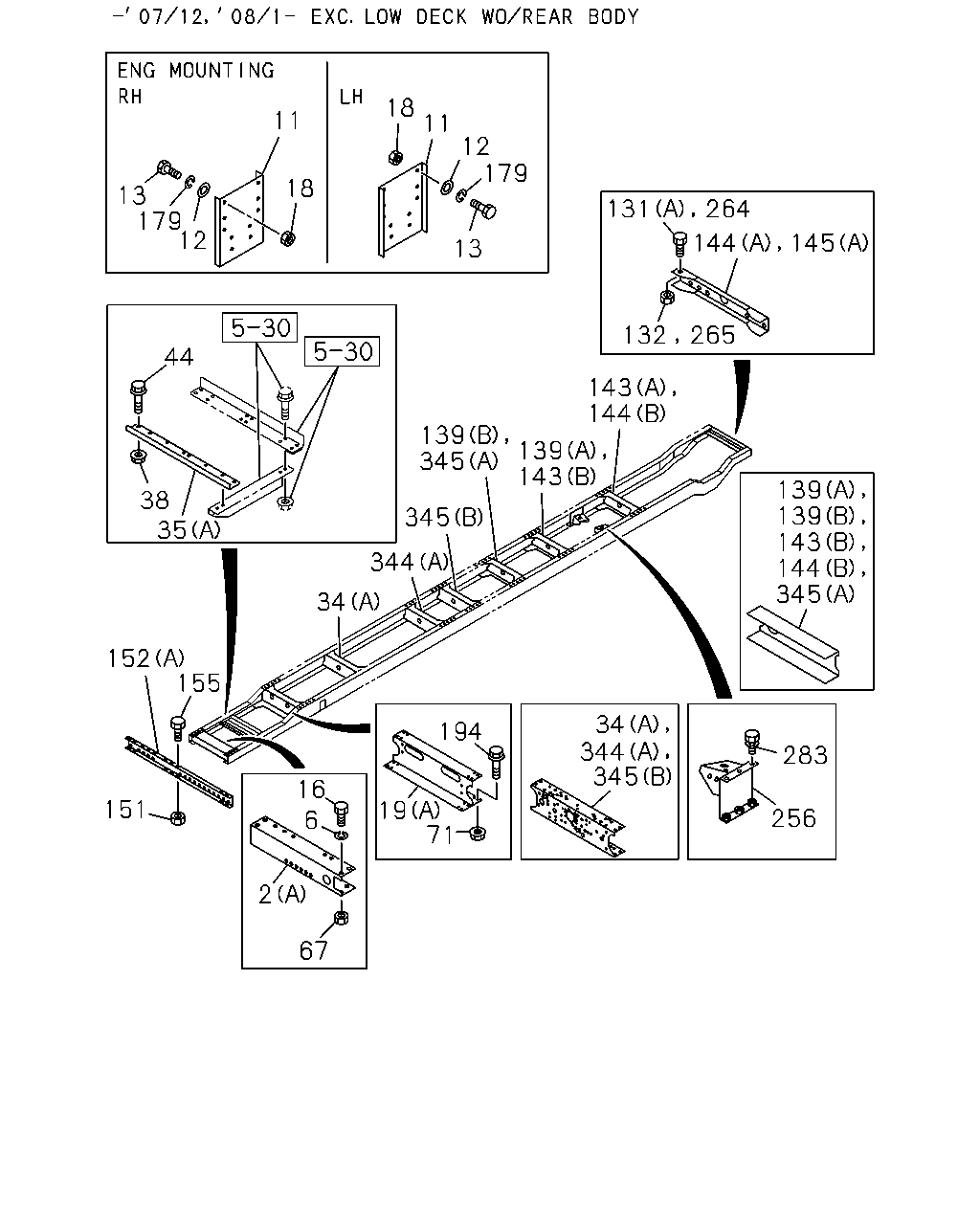

18 11 11 12 179 18 13 179 12 131 264 145 144 13 44 143 144 139 345 139 143 139 139 143 144 345 38 35 345 344 34 152 155 34 344 345 194 283 16 151 19 71 256 6 2 67 132 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST LOW DECK WO/REAR BODY<PK4> (B)	8-98069-070-0	01	1	0801-	●
2	MEMBER; CROSS,1ST (A)	1-53182-078-3	01	1	0612-0712	●	●
2	MEMBER; CROSS,1ST (A)	1-53182-078-3	01	1	0801-		●
2	MEMBER; CROSS,1ST EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-078-3	01	1	0801-	●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	02	1	0801-0912	●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	04	1	1001-	●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0612-0712	●	●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0801-		●
6	WASHER; LK,1ST C/MBR EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-614-0	02	1	0801-	●
11	BRACKET; ENG MTG	1-53221-188-1	01	1	0612-	●	●
11	BRACKET; ENG MTG	1-53221-220-1	01	1	0612-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	0612-1201	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	12	1	1202-	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	12	1	0612-	●	●
16	BOLT; 1ST C/MBR TO S/MBR LOW DECK WO/REAR BODY<PK4> M14X30	0-20951-430-0	02	1	0801-	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0612-0712	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0801-		●
16	BOLT; 1ST C/MBR TO S/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14X30	0-20851-430-0	02	1	0801-	●
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	06	1	0612-	●	●
19	MEMBER; CROSS,2ND LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0801-	●
19	MEMBER; CROSS,2ND (A)	1-53182-079-1	01	1	0612-0712	●	●
19	MEMBER; CROSS,2ND (A)	1-53182-079-1	01	1	0801-		●
19	MEMBER; CROSS,2ND EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-079-1	01	1	0801-	●
34	MEMBER; CROSS,3RD LOW DECK WO/REAR BODY<PK4> (B)	8-98069-072-0	01	1	0801-	●
34	MEMBER; CROSS,3RD (A)	1-53181-731-8	01	1	0612-0712	●	●
34	MEMBER; CROSS,3RD (A)	1-53181-731-8	01	1	0801-		●
34	MEMBER; CROSS,3RD EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-731-8	01	1	0801-	●
35	MEMBER; UNDER LOW DECK WO/REAR BODY<PK4> (B)	8-98085-826-0	01	1	0801-	●
35	MEMBER; UNDER (A)	1-53618-064-1	01	1	0612-0712	●	●
35	MEMBER; UNDER (A)	1-53618-064-1	01	1	0801-		●
35	MEMBER; UNDER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53618-064-1	01	1	0801-	●
38	NUT; UNDER MBR M12 FLANGE	0-91180-212-0	02	1	0612-	●	●
44	BOLT; UNDER MBR M12X35 FLANGE	0-28651-235-0	04	1	0612-0703	●	●
44	BOLT; UNDER MBR M12X30 FLANGE	0-28651-230-0	04	1	0704-	●	●
67	NUT; C/MBR M14	0-91110-514-0	02	1	0612-	●	●
71	NUT; 2ND C/MBR M14 FLANGE	0-91150-214-0	02	1	0612-0712	●	●
71	NUT; 2ND C/MBR M14 FLANGE	0-91150-214-0	02	1	0801-		●
71	NUT; 2ND C/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14 FLANGE	0-91150-214-0	02	1	0801-	●
131	BOLT; END C/MBR LOW DECK WO/REAR BODY<PK4> (B) M12X35 FLANGE	0-28661-235-0	08	1	0801-	●
131	BOLT; END C/MBR (A) M12X35 FLANGE	0-28651-235-0	08	1	0612-0712	●	●
131	BOLT; END C/MBR (A) M12X35 FLANGE	0-28651-235-0	08	1	0801-		●
131	BOLT; END C/MBR EXC. LOW DECK WO/REAR BODY<PK4> (A) M12X35 FLANGE	0-28651-235-0	08	1	0801-	●
132	NUT; END C/MBR M12 FLANGE	0-91180-212-0	08	1	0612-	●	●
139	MEMBER; CROSS,6TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0801-	●
139	MEMBER; CROSS,6TH (A)	8-98057-557-0	01	1	0612-		●
139	MEMBER; CROSS,6TH (B)	1-53181-733-9	01	1	0612-0712	●
139	MEMBER; CROSS,6TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-733-9	01	1	0801-	●
143	MEMBER; CROSS,7TH LOW DECK WO/REAR BODY<PK4> (C)	8-98085-824-0	01	1	0801-	●
143	MEMBER; CROSS,7TH (B)	8-98057-557-0	01	1	0612-0712	●
143	MEMBER; CROSS,7TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	8-98057-557-0	01	1	0801-	●
143	MEMBER; CROSS,7TH (A)	1-53182-080-3	01	1	0612-		●
144	MEMBER; CROSS,8TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-074-0	01	1	0801-	●
144	MEMBER; CROSS,8TH (A)	1-53182-094-0	01	1	0612-		●
144	MEMBER; CROSS,8TH (B)	1-53182-080-3	01	1	0612-0712	●
144	MEMBER; CROSS,8TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	0801-	●
145	MEMBER; CROSS,9TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-075-0	01	1	0801-	●
145	MEMBER; CROSS,9TH (A)	1-53182-094-0	01	1	0612-0712	●
145	MEMBER; CROSS,9TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-094-0	01	1	0801-	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	02	1	0612-	●	●
152	OUTRIGGER LOW DECK WO/REAR BODY<PK4> (B)	8-98072-366-0	01	1	0801-	●
152	OUTRIGGER (A)	1-53456-455-0	01	1	0612-0712	●	●
152	OUTRIGGER (A)	1-53456-455-0	01	1	0801-		●
152	OUTRIGGER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53456-455-0	01	1	0801-	●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28651-235-0	02	1	0612-	●	●
179	WASHER; LK ID=14.2	0-91510-614-0	12	1	0612-	●	●
194	BOLT; 2ND C/MBR M14X35 FLANGE	0-28651-435-0	02	1	0612-0712	●	●
194	BOLT; 2ND C/MBR M14X35 FLANGE	0-28651-435-0	02	1	0801-		●
194	BOLT; 2ND C/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14X35 FLANGE	0-28651-435-0	02	1	0801-	●
256	BRACKET; S/ABS	1-51681-479-1	01	1	0612-	●	●
256	BRACKET; S/ABS	1-51681-480-2	01	1	0612-	●	●
264	BOLT; FRT C/MBR M12X35 FLANGE	0-28651-235-0	08	1	0612-0702	●	●
264	BOLT; FRT C/MBR M12X35 FLANGE	0-28651-235-0	08	1	0703-		●
265	NUT; FRT C/MBR M12 FLANGE	0-91180-212-0	08	1	0612-0702	●	●
265	NUT; FRT C/MBR M12 FLANGE	0-91180-212-0	08	1	0703-		●
283	BOLT; BRKT,S/ABS LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28661-235-0	12	1	0801-	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0612-0712	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0801-		●
283	BOLT; BRKT,S/ABS EXC. LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28651-235-0	12	1	0801-	●
344	MEMBER; CROSS,4TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0801-	●
344	MEMBER; CROSS,4TH (A)	1-53181-732-9	01	1	0612-0712	●	●
344	MEMBER; CROSS,4TH (A)	1-53181-732-9	01	1	0801-		●
344	MEMBER; CROSS,4TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-732-9	01	1	0801-	●
345	MEMBER; CROSS,5TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0801-	●
345	MEMBER; CROSS,5TH (A)	1-53181-733-9	01	1	0612-		●
345	MEMBER; CROSS,5TH (B)	1-53181-732-9	01	1	0612-0712	●
345	MEMBER; CROSS,5TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-732-9	01	1	0801-	●

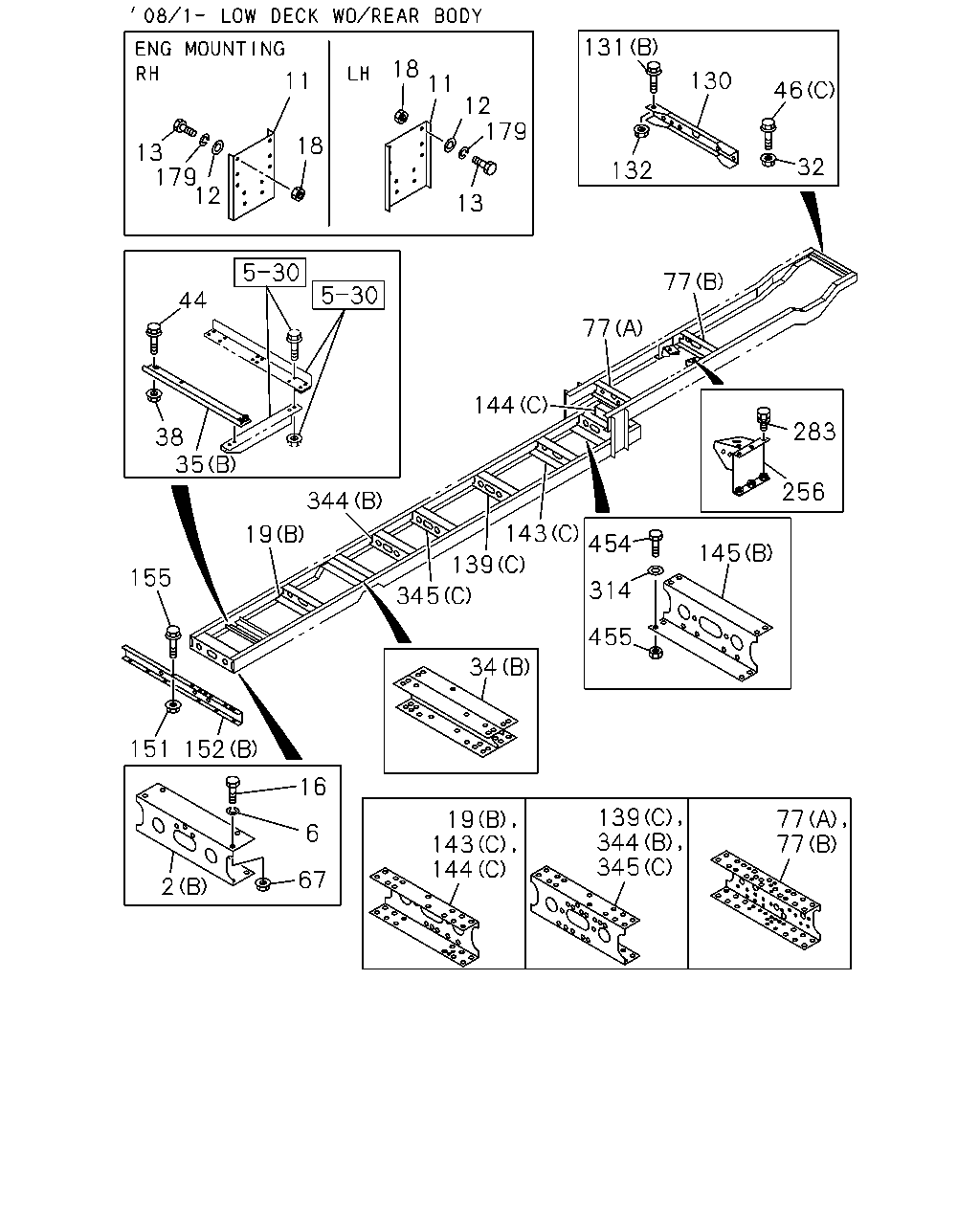

131 18 130 11 11 46 12 179 18 13 179 12 32 132 13 77 44 77 144 283 38 35 256 344 143 454 19 145 139 155 314 345 455 34 151 152 16 139 344 345 77 77 19 143 144 6 67 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST LOW DECK WO/REAR BODY<PK4> (B)	8-98069-070-0	01	1	0801-	●
2	MEMBER; CROSS,1ST (A)	1-53182-078-3	01	1	0612-0712	●	●
2	MEMBER; CROSS,1ST (A)	1-53182-078-3	01	1	0801-		●
2	MEMBER; CROSS,1ST EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-078-3	01	1	0801-	●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	02	1	0801-0912	●
6	WASHER; LK,1ST C/MBR LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	04	1	1001-	●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0612-0712	●	●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0801-		●
6	WASHER; LK,1ST C/MBR EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-614-0	02	1	0801-	●
11	BRACKET; ENG MTG	1-53221-188-1	01	1	0612-	●	●
11	BRACKET; ENG MTG	1-53221-220-1	01	1	0612-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	0612-1201	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	12	1	1202-	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	12	1	0612-	●	●
16	BOLT; 1ST C/MBR TO S/MBR LOW DECK WO/REAR BODY<PK4> M14X30	0-20951-430-0	02	1	0801-	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0612-0712	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0801-		●
16	BOLT; 1ST C/MBR TO S/MBR EXC. LOW DECK WO/REAR BODY<PK4> M14X30	0-20851-430-0	02	1	0801-	●
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	06	1	0612-	●	●
19	MEMBER; CROSS,2ND LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0801-	●
19	MEMBER; CROSS,2ND (A)	1-53182-079-1	01	1	0612-0712	●	●
19	MEMBER; CROSS,2ND (A)	1-53182-079-1	01	1	0801-		●
19	MEMBER; CROSS,2ND EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-079-1	01	1	0801-	●
32	NUT; BRKT FIX LOW DECK WO/REAR BODY<PK4> M6 FLANGE	0-91180-206-0	04	1	0801-0910	●
34	MEMBER; CROSS,3RD LOW DECK WO/REAR BODY<PK4> (B)	8-98069-072-0	01	1	0801-	●
34	MEMBER; CROSS,3RD (A)	1-53181-731-8	01	1	0612-0712	●	●
34	MEMBER; CROSS,3RD (A)	1-53181-731-8	01	1	0801-		●
34	MEMBER; CROSS,3RD EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-731-8	01	1	0801-	●
35	MEMBER; UNDER LOW DECK WO/REAR BODY<PK4> (B)	8-98085-826-0	01	1	0801-	●
35	MEMBER; UNDER (A)	1-53618-064-1	01	1	0612-0712	●	●
35	MEMBER; UNDER (A)	1-53618-064-1	01	1	0801-		●
35	MEMBER; UNDER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53618-064-1	01	1	0801-	●
38	NUT; UNDER MBR M12 FLANGE	0-91180-212-0	02	1	0612-	●	●
44	BOLT; UNDER MBR M12X35 FLANGE	0-28651-235-0	04	1	0612-0703	●	●
44	BOLT; UNDER MBR M12X30 FLANGE	0-28651-230-0	04	1	0704-	●	●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (C) M6X30 FLANGE	0-28650-630-0	04	1	0801-0910	●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (B) M14X60	0-20951-460-0	12	1	0801-	●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0612-0712	●	●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0801-		●
46	BOLT; BRKT FIX EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0801-	●
67	NUT; C/MBR M14	0-91110-514-0	02	1	0612-	●	●
77	MEMBER; CROSS,TRUNNION RR LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	0801-	●
77	MEMBER; CROSS,TRUNNION RR LOW DECK WO/REAR BODY<PK4> (A)	8-98057-557-0	01	1	0801-	●
130	MEMBER; CROSS,END LOW DECK WO/REAR BODY<PK4>	1-53182-094-0	01	1	0801-	●
131	BOLT; END C/MBR LOW DECK WO/REAR BODY<PK4> (B) M12X35 FLANGE	0-28661-235-0	08	1	0801-	●
131	BOLT; END C/MBR (A) M12X35 FLANGE	0-28651-235-0	08	1	0612-0712	●	●
131	BOLT; END C/MBR (A) M12X35 FLANGE	0-28651-235-0	08	1	0801-		●
131	BOLT; END C/MBR EXC. LOW DECK WO/REAR BODY<PK4> (A) M12X35 FLANGE	0-28651-235-0	08	1	0801-	●
132	NUT; END C/MBR M12 FLANGE	0-91180-212-0	08	1	0612-	●	●
139	MEMBER; CROSS,6TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0801-	●
139	MEMBER; CROSS,6TH (A)	8-98057-557-0	01	1	0612-		●
139	MEMBER; CROSS,6TH (B)	1-53181-733-9	01	1	0612-0712	●
139	MEMBER; CROSS,6TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-733-9	01	1	0801-	●
143	MEMBER; CROSS,7TH LOW DECK WO/REAR BODY<PK4> (C)	8-98085-824-0	01	1	0801-	●
143	MEMBER; CROSS,7TH (B)	8-98057-557-0	01	1	0612-0712	●
143	MEMBER; CROSS,7TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	8-98057-557-0	01	1	0801-	●
143	MEMBER; CROSS,7TH (A)	1-53182-080-3	01	1	0612-		●
144	MEMBER; CROSS,8TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-074-0	01	1	0801-	●
144	MEMBER; CROSS,8TH (A)	1-53182-094-0	01	1	0612-		●
144	MEMBER; CROSS,8TH (B)	1-53182-080-3	01	1	0612-0712	●
144	MEMBER; CROSS,8TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53182-080-3	01	1	0801-	●
145	MEMBER; CROSS,9TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-075-0	01	1	0801-	●
145	MEMBER; CROSS,9TH (A)	1-53182-094-0	01	1	0612-0712	●
145	MEMBER; CROSS,9TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53182-094-0	01	1	0801-	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	02	1	0612-	●	●
152	OUTRIGGER LOW DECK WO/REAR BODY<PK4> (B)	8-98072-366-0	01	1	0801-	●
152	OUTRIGGER (A)	1-53456-455-0	01	1	0612-0712	●	●
152	OUTRIGGER (A)	1-53456-455-0	01	1	0801-		●
152	OUTRIGGER EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53456-455-0	01	1	0801-	●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28651-235-0	02	1	0612-	●	●
179	WASHER; LK ID=14.2	0-91510-614-0	12	1	0612-	●	●
256	BRACKET; S/ABS	1-51681-479-1	01	1	0612-	●	●
256	BRACKET; S/ABS	1-51681-480-2	01	1	0612-	●	●
283	BOLT; BRKT,S/ABS LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28661-235-0	12	1	0801-	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0612-0712	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0801-		●
283	BOLT; BRKT,S/ABS EXC. LOW DECK WO/REAR BODY<PK4> M12X35 FLANGE	0-28651-235-0	12	1	0801-	●
314	WASHER; PL,C/MBR LOW DECK WO/REAR BODY<PK4> ID=12.5 OD=22	0-91610-512-0	08	1	0801-	●
344	MEMBER; CROSS,4TH LOW DECK WO/REAR BODY<PK4> (B)	8-98069-071-0	01	1	0801-	●
344	MEMBER; CROSS,4TH (A)	1-53181-732-9	01	1	0612-0712	●	●
344	MEMBER; CROSS,4TH (A)	1-53181-732-9	01	1	0801-		●
344	MEMBER; CROSS,4TH EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53181-732-9	01	1	0801-	●
345	MEMBER; CROSS,5TH LOW DECK WO/REAR BODY<PK4> (C)	8-98069-073-0	01	1	0801-	●
345	MEMBER; CROSS,5TH (A)	1-53181-733-9	01	1	0612-		●
345	MEMBER; CROSS,5TH (B)	1-53181-732-9	01	1	0612-0712	●
345	MEMBER; CROSS,5TH EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-53181-732-9	01	1	0801-	●
454	BOLT; 9TH C/MBR LOW DECK WO/REAR BODY<PK4> M12X35	0-20951-235-0	04	1	0801-	●
455	NUT; 9TH C/MBR LOW DECK WO/REAR BODY<PK4> M12	0-91110-512-0	04	1	0801-	●

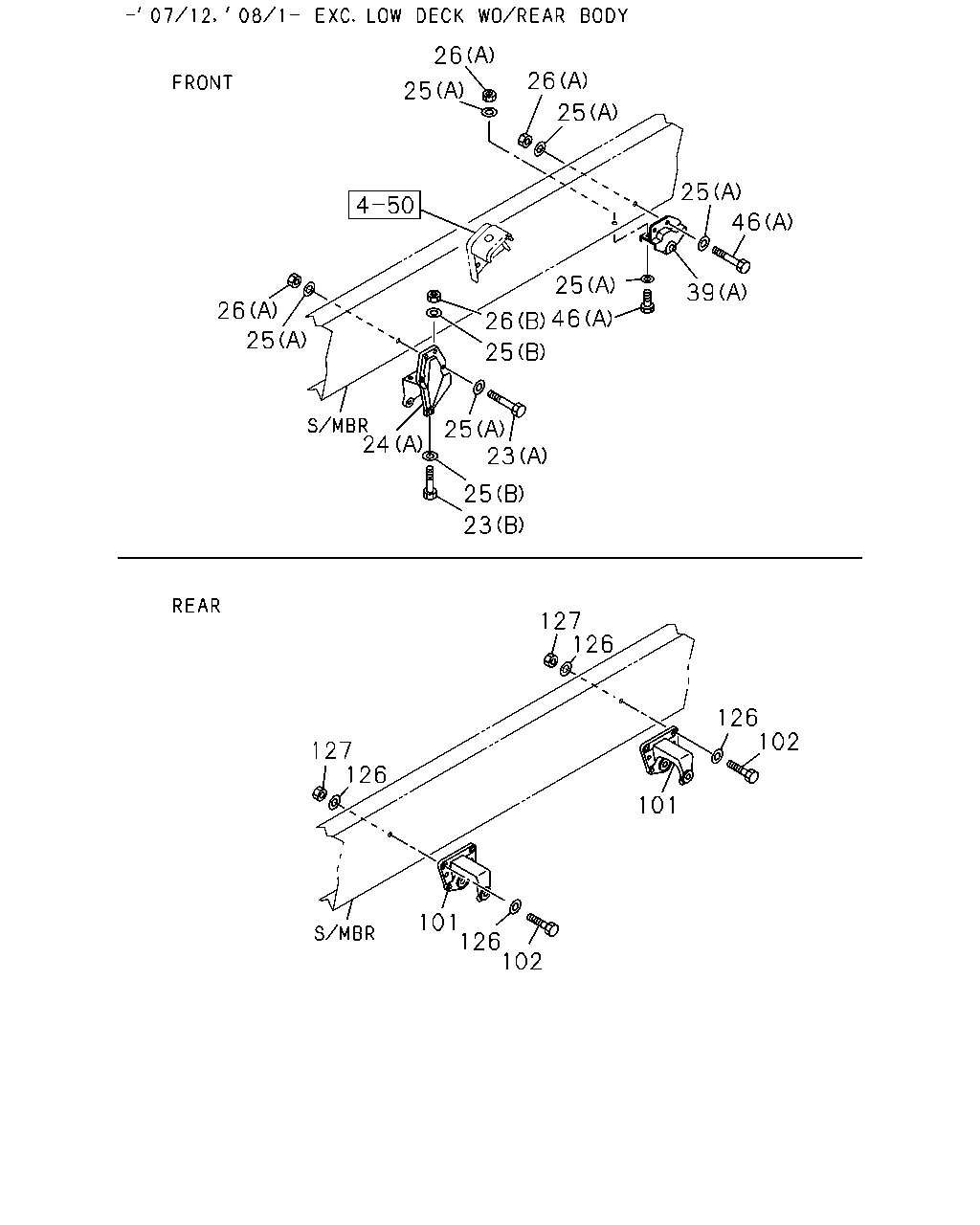

26 25 39 25 46 26 25 24 25 23 127 126 126 102 127 126 101 101 126 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (C) M14X50	0-20951-450-0	02	1	0801-	●
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (C) M14X60	0-20951-460-0	10	1	0801-	●
23	BOLT; BRKT,SPR (B) M16X55	9-91066-655-0	04	1	0612-0712	●	●
23	BOLT; BRKT,SPR (B) M16X55	9-91066-655-0	04	1	0801-		●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M16X55	9-91066-655-0	04	1	0801-	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	08	1	0612-0712	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	08	1	0801-		●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0801-	●
24	BRACKET; FRT SPR,FRT LOW DECK WO/REAR BODY<PK4> (B)	1-53354-067-0	01	1	0801-	●
24	BRACKET; FRT SPR,FRT LOW DECK WO/REAR BODY<PK4> (B)	1-53354-068-0	01	1	0801-	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-178-0	01	1	0612-0712	●	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-178-0	01	1	0801-		●
24	BRACKET; FRT SPR,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53351-178-0	01	1	0801-	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-179-0	01	1	0612-0712	●	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-179-0	01	1	0801-		●
24	BRACKET; FRT SPR,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53351-179-0	01	1	0801-	●
25	WASHER; PL,BRKT LOW DECK WO/REAR BODY<PK4> (C) ID=15	8-98010-627-1	48	1	0801-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0612-0712	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0801-		●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=16.2	1-09503-223-0	08	1	0801-	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	32	1	0612-0712	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	32	1	0801-1201		●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	9-09651-069-0	32	1	0801-1201	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	32	1	1202-		●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	8-98010-627-1	32	1	1202-	●
26	NUT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (A) M14	0-91110-514-0	24	1	0801-	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	0612-0712	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	0801-		●
26	NUT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14	0-91110-514-0	16	1	0801-	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0612-0712	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0801-		●
26	NUT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M16	0-91110-516-0	04	1	0801-	●
39	BRACKET; FRT SPR,RR LOW DECK WO/REAR BODY<PK4> (B)	8-98070-025-0	02	1	0801-	●
39	BRACKET; FRT SPR,RR (A)	1-53352-152-0	01	1	0612-0712	●	●
39	BRACKET; FRT SPR,RR (A)	1-53352-152-0	01	1	0801-		●
39	BRACKET; FRT SPR,RR EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53352-152-0	01	1	0801-	●
39	BRACKET; FRT SPR,RR (A)	1-53352-153-0	01	1	0612-0712	●	●
39	BRACKET; FRT SPR,RR (A)	1-53352-153-0	01	1	0801-		●
39	BRACKET; FRT SPR,RR EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53352-153-0	01	1	0801-	●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (C) M6X30 FLANGE	0-28650-630-0	04	1	0801-0910	●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (B) M14X60	0-20951-460-0	12	1	0801-	●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0612-0712	●	●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0801-		●
46	BOLT; BRKT FIX EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0801-	●
101	BRACKET; RR SPR,FRT	1-53354-067-0	02	1	0612-	●	●
101	BRACKET; RR SPR,FRT	1-53354-068-0	02	1	0612-	●	●
102	BOLT; BRKT,RR SPR LOW DECK WO/REAR BODY<PK4> M14X50	0-20951-450-0	04	1	0801-	●
102	BOLT; BRKT,RR SPR LOW DECK WO/REAR BODY<PK4> M14X60	0-20951-460-0	20	1	0801-	●
102	BOLT; BRKT,RR SPR M14X50	0-10956-450-0	04	1	0612-0712	●	●
102	BOLT; BRKT,RR SPR M14X50	0-10956-450-0	04	1	0801-		●
102	BOLT; BRKT,RR SPR EXC. LOW DECK WO/REAR BODY<PK4> M14X50	0-10956-450-0	04	1	0801-	●
102	BOLT; BRKT,RR SPR M14X55	9-91066-455-0	20	1	0612-0712	●	●
102	BOLT; BRKT,RR SPR M14X55	9-91066-455-0	20	1	0801-		●
102	BOLT; BRKT,RR SPR EXC. LOW DECK WO/REAR BODY<PK4> M14X55	9-91066-455-0	20	1	0801-	●
126	WASHER; PL,BRKT LOW DECK WO/REAR BODY<PK4> ID=15	8-98010-627-1	48	1	0801-1201	●
126	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0612-0712	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0801-1201		●
126	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> ID=15	9-09651-069-0	48	1	0801-1201	●
127	NUT; BRKT M14	0-91110-514-0	24	1	0612-	●	●

26 26 25 25 25 46 25 39 26 26 46 25 25 24 25 23 25 23 127 126 126 102 127 126 101 101 126 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (C) M14X50	0-20951-450-0	02	1	0801-	●
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (C) M14X60	0-20951-460-0	10	1	0801-	●
23	BOLT; BRKT,SPR (B) M16X55	9-91066-655-0	04	1	0612-0712	●	●
23	BOLT; BRKT,SPR (B) M16X55	9-91066-655-0	04	1	0801-		●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M16X55	9-91066-655-0	04	1	0801-	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	08	1	0612-0712	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	08	1	0801-		●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0801-	●
24	BRACKET; FRT SPR,FRT LOW DECK WO/REAR BODY<PK4> (B)	1-53354-067-0	01	1	0801-	●
24	BRACKET; FRT SPR,FRT LOW DECK WO/REAR BODY<PK4> (B)	1-53354-068-0	01	1	0801-	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-178-0	01	1	0612-0712	●	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-178-0	01	1	0801-		●
24	BRACKET; FRT SPR,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53351-178-0	01	1	0801-	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-179-0	01	1	0612-0712	●	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-179-0	01	1	0801-		●
24	BRACKET; FRT SPR,FRT EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53351-179-0	01	1	0801-	●
25	WASHER; PL,BRKT LOW DECK WO/REAR BODY<PK4> (C) ID=15	8-98010-627-1	48	1	0801-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0612-0712	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0801-		●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (B) ID=16.2	1-09503-223-0	08	1	0801-	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	32	1	0612-0712	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	32	1	0801-1201		●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	9-09651-069-0	32	1	0801-1201	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	32	1	1202-		●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=15	8-98010-627-1	32	1	1202-	●
26	NUT; BRKT,SPR LOW DECK WO/REAR BODY<PK4> (A) M14	0-91110-514-0	24	1	0801-	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	0612-0712	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	0801-		●
26	NUT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (A) M14	0-91110-514-0	16	1	0801-	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0612-0712	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0801-		●
26	NUT; BRKT,SPR EXC. LOW DECK WO/REAR BODY<PK4> (B) M16	0-91110-516-0	04	1	0801-	●
39	BRACKET; FRT SPR,RR LOW DECK WO/REAR BODY<PK4> (B)	8-98070-025-0	02	1	0801-	●
39	BRACKET; FRT SPR,RR (A)	1-53352-152-0	01	1	0612-0712	●	●
39	BRACKET; FRT SPR,RR (A)	1-53352-152-0	01	1	0801-		●
39	BRACKET; FRT SPR,RR EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53352-152-0	01	1	0801-	●
39	BRACKET; FRT SPR,RR (A)	1-53352-153-0	01	1	0612-0712	●	●
39	BRACKET; FRT SPR,RR (A)	1-53352-153-0	01	1	0801-		●
39	BRACKET; FRT SPR,RR EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53352-153-0	01	1	0801-	●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (C) M6X30 FLANGE	0-28650-630-0	04	1	0801-0910	●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY<PK4> (B) M14X60	0-20951-460-0	12	1	0801-	●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0612-0712	●	●
46	BOLT; BRKT FIX (A) M14X45	9-92061-445-0	08	1	0801-		●
46	BOLT; BRKT FIX EXC. LOW DECK WO/REAR BODY<PK4> (A) M14X45	9-92061-445-0	08	1	0801-	●
101	BRACKET; RR SPR,FRT	1-53354-067-0	02	1	0612-	●	●
101	BRACKET; RR SPR,FRT	1-53354-068-0	02	1	0612-	●	●
102	BOLT; BRKT,RR SPR LOW DECK WO/REAR BODY<PK4> M14X50	0-20951-450-0	04	1	0801-	●
102	BOLT; BRKT,RR SPR LOW DECK WO/REAR BODY<PK4> M14X60	0-20951-460-0	20	1	0801-	●
102	BOLT; BRKT,RR SPR M14X50	0-10956-450-0	04	1	0612-0712	●	●
102	BOLT; BRKT,RR SPR M14X50	0-10956-450-0	04	1	0801-		●
102	BOLT; BRKT,RR SPR EXC. LOW DECK WO/REAR BODY<PK4> M14X50	0-10956-450-0	04	1	0801-	●
102	BOLT; BRKT,RR SPR M14X55	9-91066-455-0	20	1	0612-0712	●	●
102	BOLT; BRKT,RR SPR M14X55	9-91066-455-0	20	1	0801-		●
102	BOLT; BRKT,RR SPR EXC. LOW DECK WO/REAR BODY<PK4> M14X55	9-91066-455-0	20	1	0801-	●
126	WASHER; PL,BRKT LOW DECK WO/REAR BODY<PK4> ID=15	8-98010-627-1	48	1	0801-1201	●
126	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0612-0712	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0801-1201		●
126	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY<PK4> ID=15	9-09651-069-0	48	1	0801-1201	●
127	NUT; BRKT M14	0-91110-514-0	24	1	0612-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
