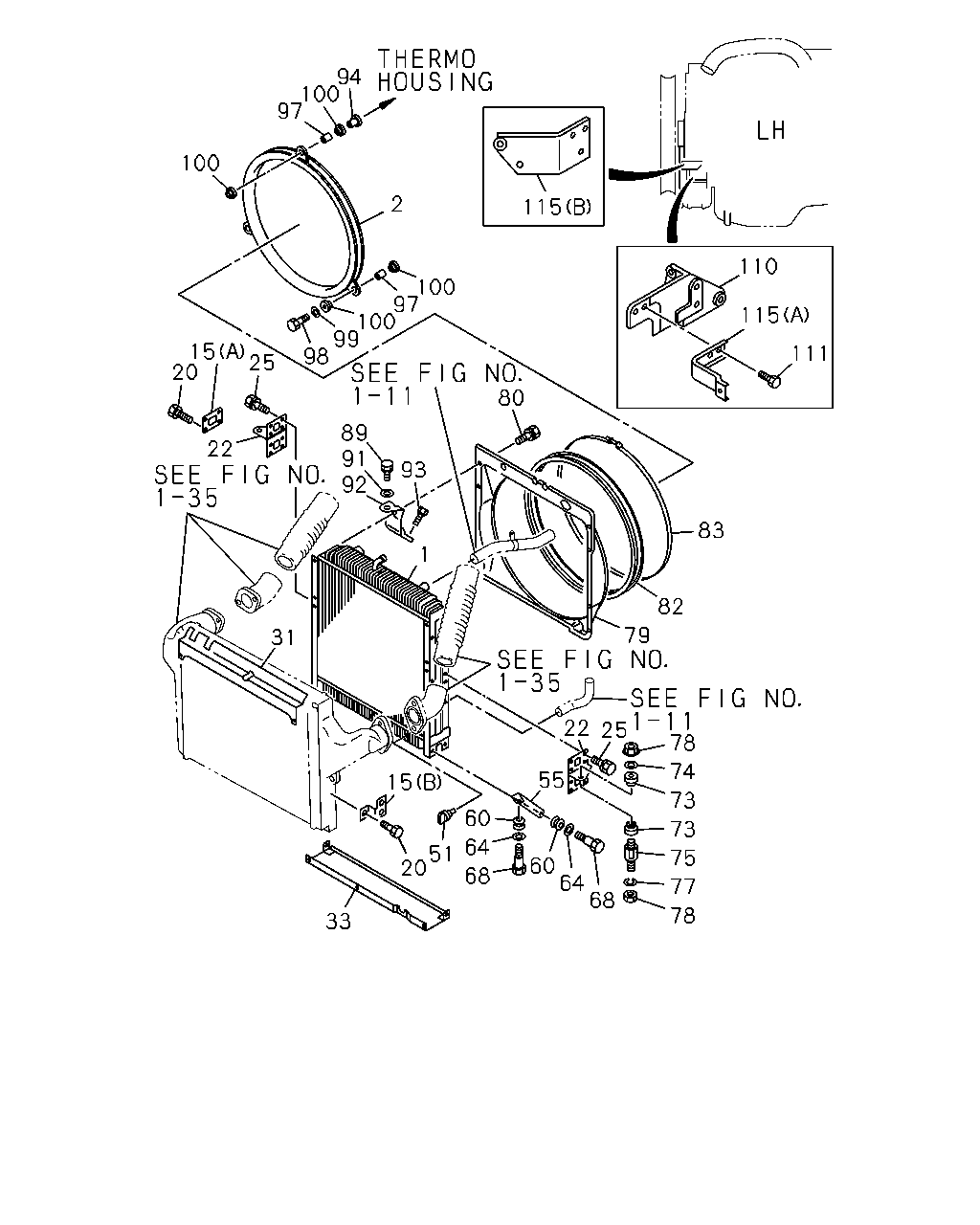

1-10A — RADIATOR (#2778) — 198 parça

94 100 97 100 2 115 100 97 100 99 98 25 15 20 22 89 91 92 93 80 110 115 111 83 82 31 15 20 33 51 68 64 60 55 22 25 78 74 73 73 75 77 78 68 64 60 79 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-531-2	01	1	9002-9306	●
1	RADIATOR ASM FIRE TRUCK<RA9>	1-21410-506-1	01	1	9002-		●
1	RADIATOR ASM EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05>	1-21410-501-1	01	1	9002-		●
1	RADIATOR ASM RADIATOR HEAVY DUTY<V05>	1-21410-634-0	01	1	9002-		●
1	RADIATOR ASM	1-21410-577-1	01	1	9002-			●
2	GUIDE; FAN	1-21551-235-3	01	1	9002-	●	●	●
15	BRACKET; PIPE,RAD (A)	1-21464-242-0	02	1	9002-	●		●
15	BRACKET; PIPE,RAD RADIATOR HEAVY DUTY<V05> (A)	1-21464-284-0	01	1	9002-		●
15	BRACKET; PIPE,RAD EXC. RADIATOR HEAVY DUTY<V05> (A)	1-21464-244-0	01	1	9002-		●
15	BRACKET; PIPE,RAD (B)	1-21464-211-0	01	1	9002-			●
20	BOLT; PIPE BRKT,RAD M10X16	9-02041-016-0	02	1	9002-	●		●
20	BOLT; PIPE BRKT,RAD M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9404		●
20	BOLT; PIPE BRKT,RAD EXC. RADIATOR HEAVY DUTY<V05> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9405-		●
20	BOLT; PIPE BRKT,RAD RADIATOR HEAVY DUTY<V05> M8X20	9-01970-820-0	01	1	9002-		●
20	BOLT; PIPE BRKT,RAD M10X22	9-02041-022-0	01	1	9002-			●
22	BRACKET; RAD MTG	1-21464-096-2	01	1	9002-9306	●
22	BRACKET; RAD MTG	1-21464-095-2	01	1	9002-9306	●
22	BRACKET; RAD MTG	1-21464-115-1	01	1	9002-		●
22	BRACKET; RAD MTG	1-21464-114-1	01	1	9002-		●
22	BRACKET; RAD MTG	1-21464-182-0	01	1	9002-			●
22	BRACKET; RAD MTG	1-21464-181-0	01	1	9002-			●
25	BOLT; BRKT M8X18 W/LK&PL WASHER	9-01960-818-0	12	1	9002-9306	●
25	BOLT; BRKT M8X22 W/LK&PL WASHER	9-01960-822-0	04	1	9002-9306	●
25	BOLT; BRKT RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER	9-01970-818-0	15	1	9002-		●
25	BOLT; BRKT EXC. RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER	9-01960-818-0	19	1	9002-		●
25	BOLT; BRKT M8X20 W/LK&PL WASHER	9-01960-820-0	14	1	9002-			●
25	BOLT; BRKT M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-			●
31	BRACKET; UPR,RAD	1-21460-072-2	01	1	9002-9306	●
31	BRACKET; UPR,RAD FIRE TRUCK<RA9>	1-21460-078-3	01	1	9002-		●
31	BRACKET; UPR,RAD EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05>	1-21460-076-4	01	1	9002-		●
31	BRACKET; UPR,RAD RADIATOR HEAVY DUTY<V05>	1-21460-080-1	01	1	9002-		●
31	BRACKET; UPR,RAD	1-21460-081-0	01	1	9002-			●
33	PROTECTOR; RAD L=120	1-21419-030-2	01	1	9002-	●		●
33	PROTECTOR; RAD EXC. FIRE TRUCK<RA9> L=120	1-21419-030-2	01	1	9002-		●
33	PROTECTOR; RAD FIRE TRUCK<RA9>	1-21419-034-1	01	1	9002-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9002-	●	●	●
55	STAY; RAD TO UPR MBR	1-21464-081-1	01	1	9002-	●		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-081-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR	1-21464-080-1	01	1	9002-	●		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-080-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-113-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-112-1	01	1	9002-		●
60	GROMMET	1-09332-117-0	04	1	9002-	●	●	●
64	WASHER; STAY TO RAD ID=12.5 OD=26	9-09160-612-0	04	1	9002-	●	●	●
68	BOLT; STAY TO BRKT M8X30	1-09009-020-1	04	1	9002-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9002-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9002-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	9002-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-006-0	02	1	9002-			●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	5-09440-006-0	02	1	9002-	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-412-0	02	1	9002-9304	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-512-0	02	1	9305-	●	●	●
79	GUIDE; FAN,RAD	1-21551-275-0	01	1	9002-9306	●
79	GUIDE; FAN,RAD RADIATOR HEAVY DUTY<V05>	1-21551-216-1	01	1	9002-		●
79	GUIDE; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21551-242-1	01	1	9002-		●
79	GUIDE; FAN,RAD	1-21551-293-1	01	1	9002-			●
80	BOLT; FAN GUIDE M8X16 W/LK&PL WASHER	9-01960-816-0	16	1	9002-9306	●	●
80	BOLT; FAN GUIDE M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9307-		●
80	BOLT; FAN GUIDE RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER	9-01960-816-0	17	1	9002-9306		●
80	BOLT; FAN GUIDE EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9002-9306		●
80	BOLT; FAN GUIDE M8X16 W/LK&PL WASHER	9-01960-816-0	16	1	9002-			●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9002-	●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9002-	●	●	●
89	BOLT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●	●	●
89	BOLT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9302	●	●	●
89	BOLT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
91	WASHER; PL ID=8.4 OD=22	9-09164-708-0	02	1	9002-	●	●	●
92	BRACKET; FAN GUIDE	1-21559-220-1	01	1	9002-	●	●	●
93	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●	●
93	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302	●	●	●
93	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
93	BOLT; BRKT FIX M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005	●	●	●
93	BOLT; BRKT FIX M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9302	●	●	●
93	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
94	TUBE; DIST	1-11369-113-2	01	1	9002-	●	●	●
97	TUBE; DIST,FAN GUIDE	1-21559-183-0	03	1	9002-	●		●
97	TUBE; DIST,FAN GUIDE ID=11.8 L=27	1-21559-149-0	03	1	9002-9310		●
97	TUBE; DIST,FAN GUIDE ID=11.8 L=27	1-21559-149-0	03	1	9311-		●
98	BOLT; RAD FAN GUIDE M8X60	9-01055-860-0	02	1	9002-9005	●		●
98	BOLT; RAD FAN GUIDE M8X60	0-10805-860-0	02	1	9006-	●		●
98	BOLT; RAD FAN GUIDE M8X105	9-09801-346-1	01	1	9002-	●		●
98	BOLT; RAD FAN GUIDE M8X45	9-01055-845-0	02	1	9002-9005		●
98	BOLT; RAD FAN GUIDE M8X45	0-10805-845-0	02	1	9006-9310		●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	02	1	9311-		●
98	BOLT; RAD FAN GUIDE M8X85	9-01055-885-0	01	1	9002-9005		●
98	BOLT; RAD FAN GUIDE M8X85	0-10805-885-0	01	1	9006-		●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9002-9310	●	●	●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9311-		●	●
100	RUBBER; MTG	1-09337-017-0	06	1	9002-	●	●	●
110	STAY; FAN GUIDE	1-83571-391-0	01	1	9002-	●		●
110	STAY; FAN GUIDE	1-83571-318-1	01	1	9002-		●
111	BOLT; BRKT M10X20 W/LK WASHER	9-01931-020-0	02	1	9002-9002	●	●	●
111	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	02	1	9003-	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-210-0	01	1	9002-	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-219-1	01	1	9002-	●	●	●

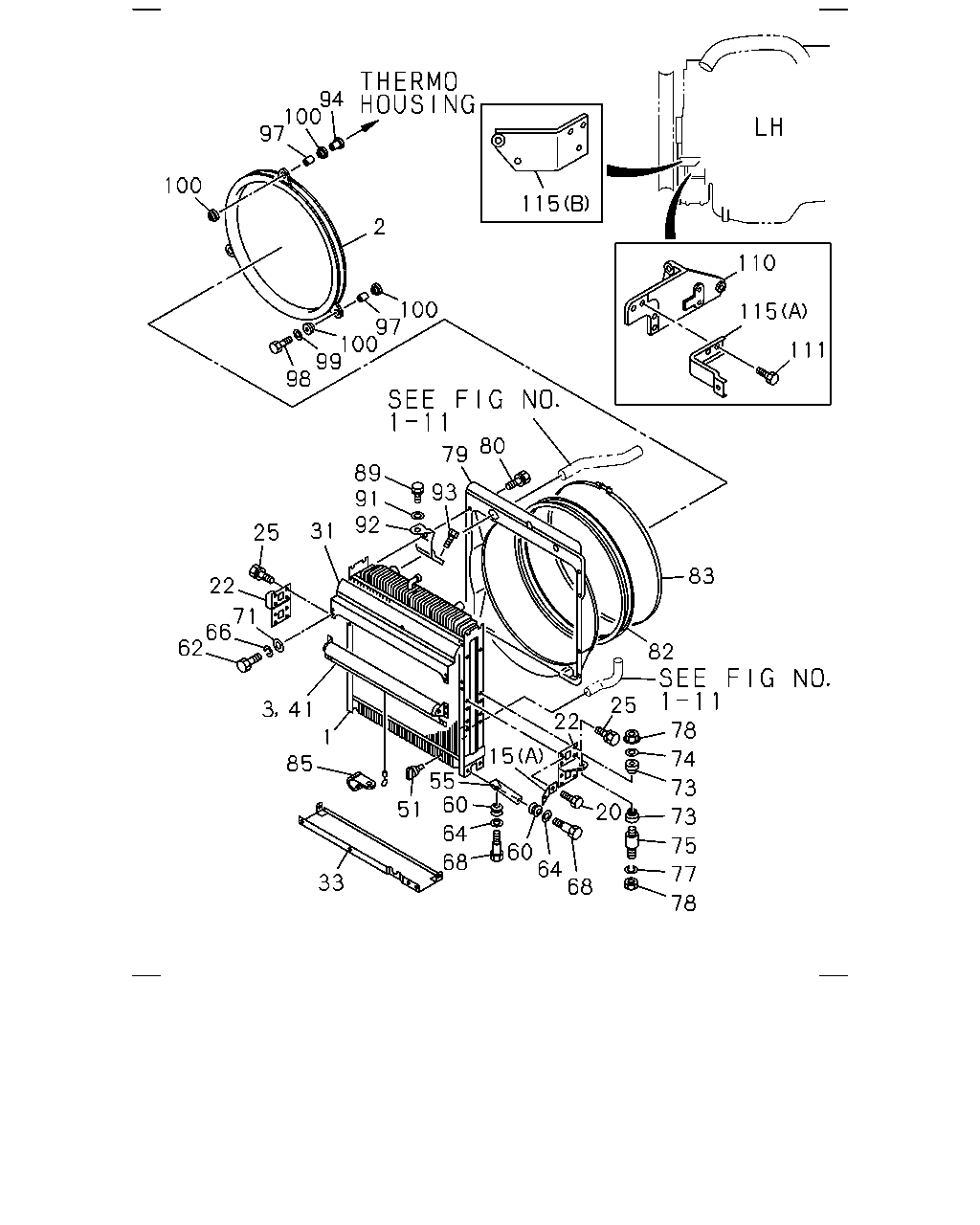

94 100 97 100 2 100 97 100 99 98 115 110 115 111 89 79 80 93 91 92 31 25 22 71 66 62 3 41 1 85 33 51 55 60 64 68 60 64 68 15 22 25 82 83 78 74 20 73 73 75 77 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-531-2	01	1	9002-9306	●
1	RADIATOR ASM FIRE TRUCK<RA9>	1-21410-506-1	01	1	9002-		●
1	RADIATOR ASM EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05>	1-21410-501-1	01	1	9002-		●
1	RADIATOR ASM RADIATOR HEAVY DUTY<V05>	1-21410-634-0	01	1	9002-		●
1	RADIATOR ASM	1-21410-577-1	01	1	9002-			●
2	GUIDE; FAN	1-21551-235-3	01	1	9002-	●	●	●
3	COVER; RAD RADIATOR CURTAIN<SK7> EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05>	1-21511-090-1	01	1	9002-9306		●
15	BRACKET; PIPE,RAD (A)	1-21464-242-0	02	1	9002-	●		●
15	BRACKET; PIPE,RAD RADIATOR HEAVY DUTY<V05> (A)	1-21464-284-0	01	1	9002-		●
15	BRACKET; PIPE,RAD EXC. RADIATOR HEAVY DUTY<V05> (A)	1-21464-244-0	01	1	9002-		●
15	BRACKET; PIPE,RAD (B)	1-21464-211-0	01	1	9002-			●
20	BOLT; PIPE BRKT,RAD M10X16	9-02041-016-0	02	1	9002-	●		●
20	BOLT; PIPE BRKT,RAD M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9404		●
20	BOLT; PIPE BRKT,RAD EXC. RADIATOR HEAVY DUTY<V05> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9405-		●
20	BOLT; PIPE BRKT,RAD RADIATOR HEAVY DUTY<V05> M8X20	9-01970-820-0	01	1	9002-		●
20	BOLT; PIPE BRKT,RAD M10X22	9-02041-022-0	01	1	9002-			●
22	BRACKET; RAD MTG	1-21464-096-2	01	1	9002-9306	●
22	BRACKET; RAD MTG	1-21464-095-2	01	1	9002-9306	●
22	BRACKET; RAD MTG	1-21464-115-1	01	1	9002-		●
22	BRACKET; RAD MTG	1-21464-114-1	01	1	9002-		●
22	BRACKET; RAD MTG	1-21464-182-0	01	1	9002-			●
22	BRACKET; RAD MTG	1-21464-181-0	01	1	9002-			●
25	BOLT; BRKT M8X18 W/LK&PL WASHER	9-01960-818-0	12	1	9002-9306	●
25	BOLT; BRKT M8X22 W/LK&PL WASHER	9-01960-822-0	04	1	9002-9306	●
25	BOLT; BRKT RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER	9-01970-818-0	15	1	9002-		●
25	BOLT; BRKT EXC. RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER	9-01960-818-0	19	1	9002-		●
25	BOLT; BRKT M8X20 W/LK&PL WASHER	9-01960-820-0	14	1	9002-			●
25	BOLT; BRKT M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-			●
31	BRACKET; UPR,RAD	1-21460-072-2	01	1	9002-9306	●
31	BRACKET; UPR,RAD FIRE TRUCK<RA9>	1-21460-078-3	01	1	9002-		●
31	BRACKET; UPR,RAD EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05>	1-21460-076-4	01	1	9002-		●
31	BRACKET; UPR,RAD RADIATOR HEAVY DUTY<V05>	1-21460-080-1	01	1	9002-		●
31	BRACKET; UPR,RAD	1-21460-081-0	01	1	9002-			●
33	PROTECTOR; RAD L=120	1-21419-030-2	01	1	9002-	●		●
33	PROTECTOR; RAD EXC. FIRE TRUCK<RA9> L=120	1-21419-030-2	01	1	9002-		●
33	PROTECTOR; RAD FIRE TRUCK<RA9>	1-21419-034-1	01	1	9002-		●
41	SHUTTER ASM; RAD RADIATOR CURTAIN<SK7>	1-21511-090-1	01	1	9002-9306		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9002-	●	●	●
55	STAY; RAD TO UPR MBR	1-21464-081-1	01	1	9002-	●		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-081-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR	1-21464-080-1	01	1	9002-	●		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-080-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-113-1	01	1	9002-		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-112-1	01	1	9002-		●
60	GROMMET	1-09332-117-0	04	1	9002-	●	●	●
62	BOLT; STAY RADIATOR HEAVY DUTY<V05> M10X20	9-02041-020-0	04	1	9002-		●
64	WASHER; STAY TO RAD ID=12.5 OD=26	9-09160-612-0	04	1	9002-	●	●	●
66	WASHER; LK,STAY RADIATOR HEAVY DUTY<V05> ID=10.2	9-09150-510-0	04	1	9002-		●
68	BOLT; STAY TO BRKT M8X30	1-09009-020-1	04	1	9002-	●	●	●
71	WASHER; PL,STAY RADIATOR HEAVY DUTY<V05> ID=10.5 OD=22	9-09160-610-0	04	1	9002-		●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	9002-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9002-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	9002-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-006-0	02	1	9002-			●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	5-09440-006-0	02	1	9002-	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-412-0	02	1	9002-9304	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-512-0	02	1	9305-	●	●	●
79	GUIDE; FAN,RAD	1-21551-275-0	01	1	9002-9306	●
79	GUIDE; FAN,RAD RADIATOR HEAVY DUTY<V05>	1-21551-216-1	01	1	9002-		●
79	GUIDE; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21551-242-1	01	1	9002-		●
79	GUIDE; FAN,RAD	1-21551-293-1	01	1	9002-			●
80	BOLT; FAN GUIDE M8X16 W/LK&PL WASHER	9-01960-816-0	16	1	9002-9306	●	●
80	BOLT; FAN GUIDE M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9307-		●
80	BOLT; FAN GUIDE RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER	9-01960-816-0	17	1	9002-9306		●
80	BOLT; FAN GUIDE EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9002-9306		●
80	BOLT; FAN GUIDE M8X16 W/LK&PL WASHER	9-01960-816-0	16	1	9002-			●
82	COVER; FAN,RAD	1-21559-134-1	01	1	9002-	●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	9002-	●	●	●
85	CLIP RADIATOR CURTAIN<SK7> EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05>	9-09520-835-0	01	1	9002-9306		●
89	BOLT M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●	●	●
89	BOLT M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-9302	●	●	●
89	BOLT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
91	WASHER; PL ID=8.4 OD=22	9-09164-708-0	02	1	9002-	●	●	●
92	BRACKET; FAN GUIDE	1-21559-220-1	01	1	9002-	●	●	●
93	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●	●
93	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302	●	●	●
93	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
93	BOLT; BRKT FIX M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005	●	●	●
93	BOLT; BRKT FIX M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9302	●	●	●
93	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
94	TUBE; DIST	1-11369-113-2	01	1	9002-	●	●	●
97	TUBE; DIST,FAN GUIDE	1-21559-183-0	03	1	9002-	●		●
97	TUBE; DIST,FAN GUIDE ID=11.8 L=27	1-21559-149-0	03	1	9002-9310		●
97	TUBE; DIST,FAN GUIDE ID=11.8 L=27	1-21559-149-0	03	1	9311-		●
98	BOLT; RAD FAN GUIDE M8X60	9-01055-860-0	02	1	9002-9005	●		●
98	BOLT; RAD FAN GUIDE M8X60	0-10805-860-0	02	1	9006-	●		●
98	BOLT; RAD FAN GUIDE M8X105	9-09801-346-1	01	1	9002-	●		●
98	BOLT; RAD FAN GUIDE M8X45	9-01055-845-0	02	1	9002-9005		●
98	BOLT; RAD FAN GUIDE M8X45	0-10805-845-0	02	1	9006-9310		●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	02	1	9311-		●
98	BOLT; RAD FAN GUIDE M8X85	9-01055-885-0	01	1	9002-9005		●
98	BOLT; RAD FAN GUIDE M8X85	0-10805-885-0	01	1	9006-		●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9002-9310	●	●	●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9311-		●	●
100	RUBBER; MTG	1-09337-017-0	06	1	9002-	●	●	●
110	STAY; FAN GUIDE	1-83571-391-0	01	1	9002-	●		●
110	STAY; FAN GUIDE	1-83571-318-1	01	1	9002-		●
111	BOLT; BRKT M10X20 W/LK WASHER	9-01931-020-0	02	1	9002-9002	●	●	●
111	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	02	1	9003-	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-210-0	01	1	9002-	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-219-1	01	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
