4-60 — REAR SUSPENSION (#27776) — 47 parça

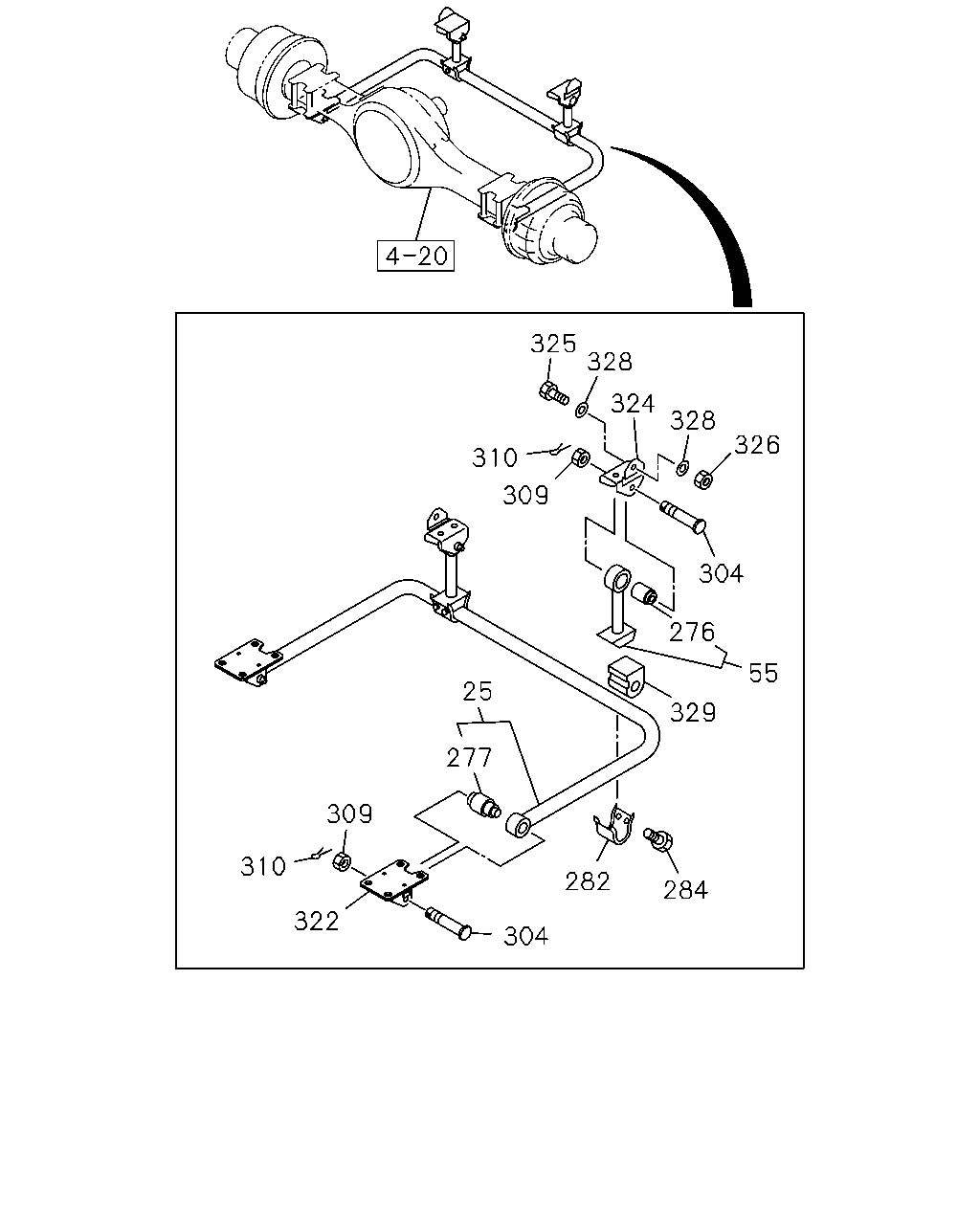

325 328 324 328 326 310 309 304 276 55 25 329 277 309 310 282 284 322 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BAR ASM; STAB,RR SUSP STAB SHF<FE6>	1-51770-188-0	01	1	0612-
55	ROD; STAB STAB SHF<FE6>	1-51770-024-1	02	1	0612-
276	BUSHING; STAB ROD STAB SHF<FE6>	1-51779-019-0	02	1	0612-
277	BUSHING; STAB,RR UPR STAB SHF<FE6>	1-51779-067-0	02	1	0612-
282	RETAINER; STAB BAR STAB SHF<FE6>	1-51789-015-2	02	1	0612-
284	BOLT; RET TO RET STAB SHF<FE6> M10X25	8-94463-351-0	08	1	0612-
304	PIN; STAB ROD STAB SHF<FE6>	1-51789-020-2	04	1	0612-
309	NUT; STAB ROD STAB SHF<FE6> M24	9-99116-424-0	04	1	0612-
310	PIN; SPLIT,STAB ROD STAB SHF<FE6> OD=4.6 L=45	0-81125-045-0	04	1	0612-
322	BRACKET; STAB BAR TO RR AXLE STAB SHF<FE6>	1-51781-038-1	01	1	0612-
322	BRACKET; STAB BAR TO RR AXLE STAB SHF<FE6>	1-51781-128-0	01	1	0612-
324	BRACKET; STAB BAR TO FRAME STAB SHF<FE6>	1-51781-059-0	02	1	0612-
325	BOLT; BRKT TO FRAME STAB SHF<FE6> M14X40	0-20951-440-0	06	1	0612-
326	NUT; BRKT TO FRAME STAB SHF<FE6> M14	0-91110-514-0	06	1	0612-
328	WASHER; PL,BRKT STAB SHF<FE6> ID=15	9-09651-069-0	12	1	0612-1201
328	WASHER; PL,BRKT STAB SHF<FE6> ID=15	8-98010-627-1	12	1	1202-
329	BUSHING; STAB ROD STAB SHF<FE6>	1-51789-017-0	02	1	0612-

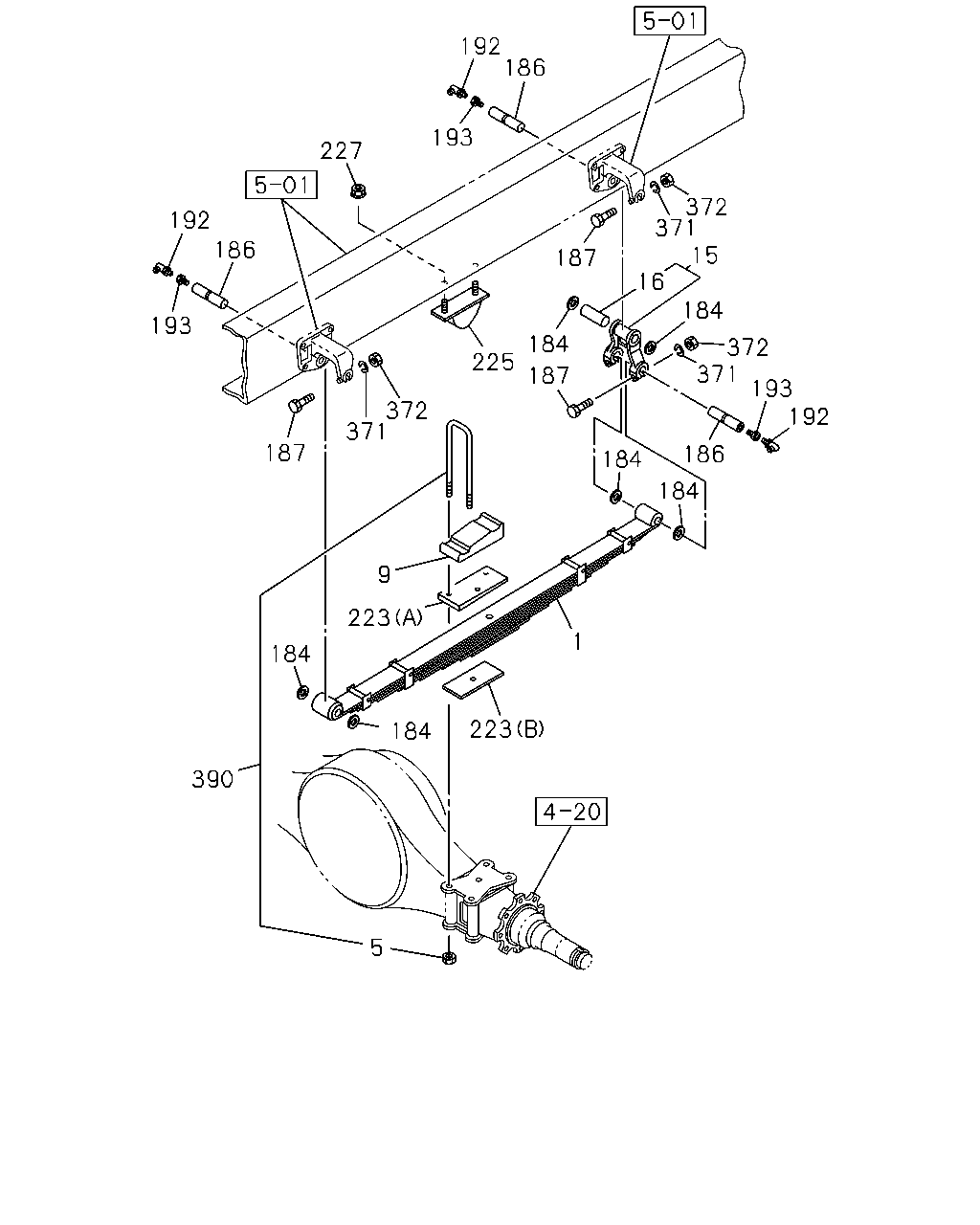

192 186 193 227 372 371 15 192 186 187 16 184 193 184 372 371 225 187 193 192 372 371 187 186 184 184 9 223 1 184 223 184 390 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF	1-51410-185-0	02	1	0612-0706
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF	1-51410-185-1	02	1	0709-0709
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> 5-LEAF	8-98096-766-1	02	1	0710-0712
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. LOW DECK WO/REAR BODY<PK4> 5-LEAF	8-98096-766-1	02	1	0801-1210
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. LOW DECK WO/REAR BODY<PK4> 5-LEAF	8-98202-919-0	02	1	1211-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> TAPER LEAF SUSP RR<SAT> 5-LEAF	8-98073-398-2	02	1	0801-1210
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. LOW DECK WO/REAR BODY<PK4> TAPER LEAF SUSP RR<SAT> 5-LEAF	8-98202-921-0	02	1	1211-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF	1-51410-185-1	02	1	0612-0709
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. TAPER LEAF SUSP RR<SAT> 12-LEAF	1-51410-185-1	02	1	0710-
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0612-
9	PAD; U BOLT,RR SPR	1-51372-052-0	02	1	0612-
15	SHACKLE; RR SPR	1-51162-039-2	02	1	0612-0705
15	SHACKLE; RR SPR	1-51162-029-5	02	1	0706-
16	BUSHING; SHACKLE,RR SPR OD=38	1-51351-009-0	02	1	0612-0902
16	BUSHING; SHACKLE,RR SPR OD=38	8-98081-829-0	02	1	0903-
184	WASHER; SPRING PIN ID=32.4	1-51169-018-0	12	1	0612-
186	PIN; SHACKLE,RR SPR	1-51161-031-0	06	1	0612-
187	BOLT; SPR & SHACKLE M12X80	0-10856-280-0	08	1	0612-
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 ELBOW	0-90301-610-0	06	1	0612-
193	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	0612-
223	SPACER; U BOLT,RR SPR (B)	1-51377-177-0	02	1	0612-
223	SPACER; U BOLT,RR SPR (A)	1-51377-194-1	02	1	0612-
225	RUBBER; CUSHION,RR SPR	9-53366-088-3	02	1	0612-
227	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	04	1	0612-
371	WASHER; LK,SHACKLE ID=12.2	0-91510-612-0	08	1	0612-
372	NUT; SHACKLE M12	0-91110-512-0	08	1	0612-
390	U-BOLT SET; RR SPRING L=445	1-87870-323-1	04	1	0612-0709
390	U-BOLT SET; RR SPRING EXC. TAPER LEAF SUSP RR<SAT> L=445	1-87870-323-1	04	1	0710-
390	U-BOLT SET; RR SPRING STAB SHF<FE6> TAPER LEAF SUSP RR<SAT> M24 L=425	1-87870-281-1	04	1	0710-
390	U-BOLT SET; RR SPRING TAPER LEAF SUSP RR<SAT> EXC. STAB SHF<FE6> L=395	1-87870-292-1	04	1	0710-
