◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11032 - LT134(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#27775) — 48 parça

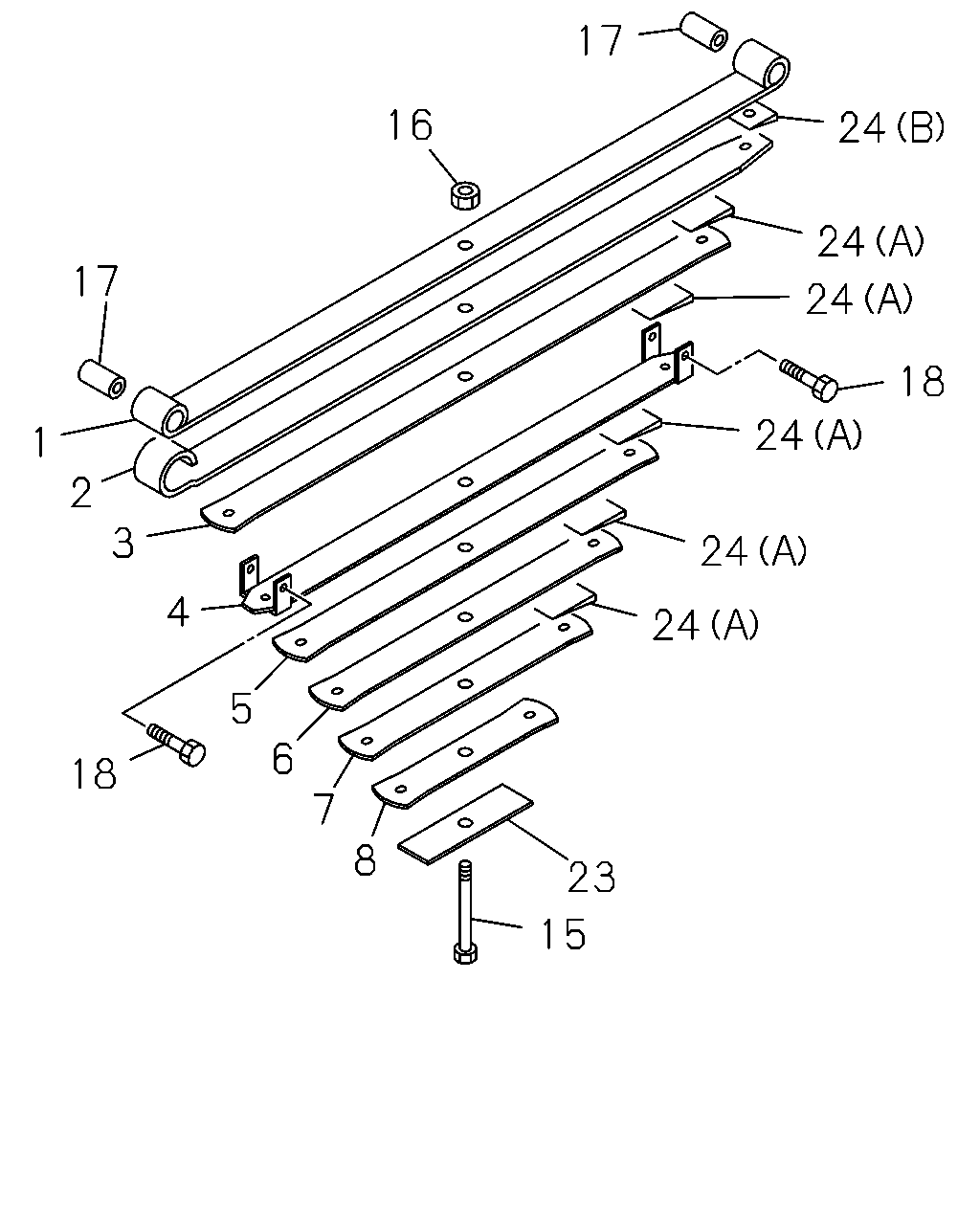

çizim 139163
17 16 24 24 17 24 18 24 1 2 3 24 4 24 5 6 7 8 18 23 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-969-1 		8-98053-053-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98072-392-0, E = 8-98202-923-0 		8-98098-326-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98096-765-0, D = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-969-1 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98072-392-0, E = 8-98202-923-0 		8-98098-327-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98096-765-0, D = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-969-1 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98072-392-0, E = 8-98202-923-0 		8-98098-328-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98096-765-0, D = 8-98202-922-0 		8-98099-131-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-969-1 		1-51114-825-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51130-969-1 		1-51115-825-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51130-969-1 		1-51116-825-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51130-969-1 		1-51117-825-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51130-969-1 		1-51118-825-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: A = 1-51130-969-1, C = 8-98096-765-0, D = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: B = 8-98072-392-0, E = 8-98202-923-0 		8-98098-335-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-969-1, B = 8-98072-392-0, C = 8-98096-765-0, D = 8-98202-922-0, E = 8-98202-923-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 8-98072-392-0, C = 8-98096-765-0, D = 8-98202-922-0, E = 8-98202-923-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-969-1 		1-51351-009-0 02 1 0709-
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-969-1 		1-51351-030-0 02 1 -0708
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-969-1, B = 8-98072-392-0, C = 8-98096-765-0, D = 8-98202-922-0, E = 8-98202-923-0 		1-09000-328-0 02 1 -
23 SPRING; LEAF,INTER
ASM PART: A = 1-51130-969-1 		1-51159-042-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: A = 1-51130-969-1 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: A = 1-51130-969-1 		1-51159-023-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: B = 8-98072-392-0, C = 8-98096-765-0 		1-51159-023-0 04 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: D = 8-98202-922-0, E = 8-98202-923-0 		8-98202-886-1 04 1 -

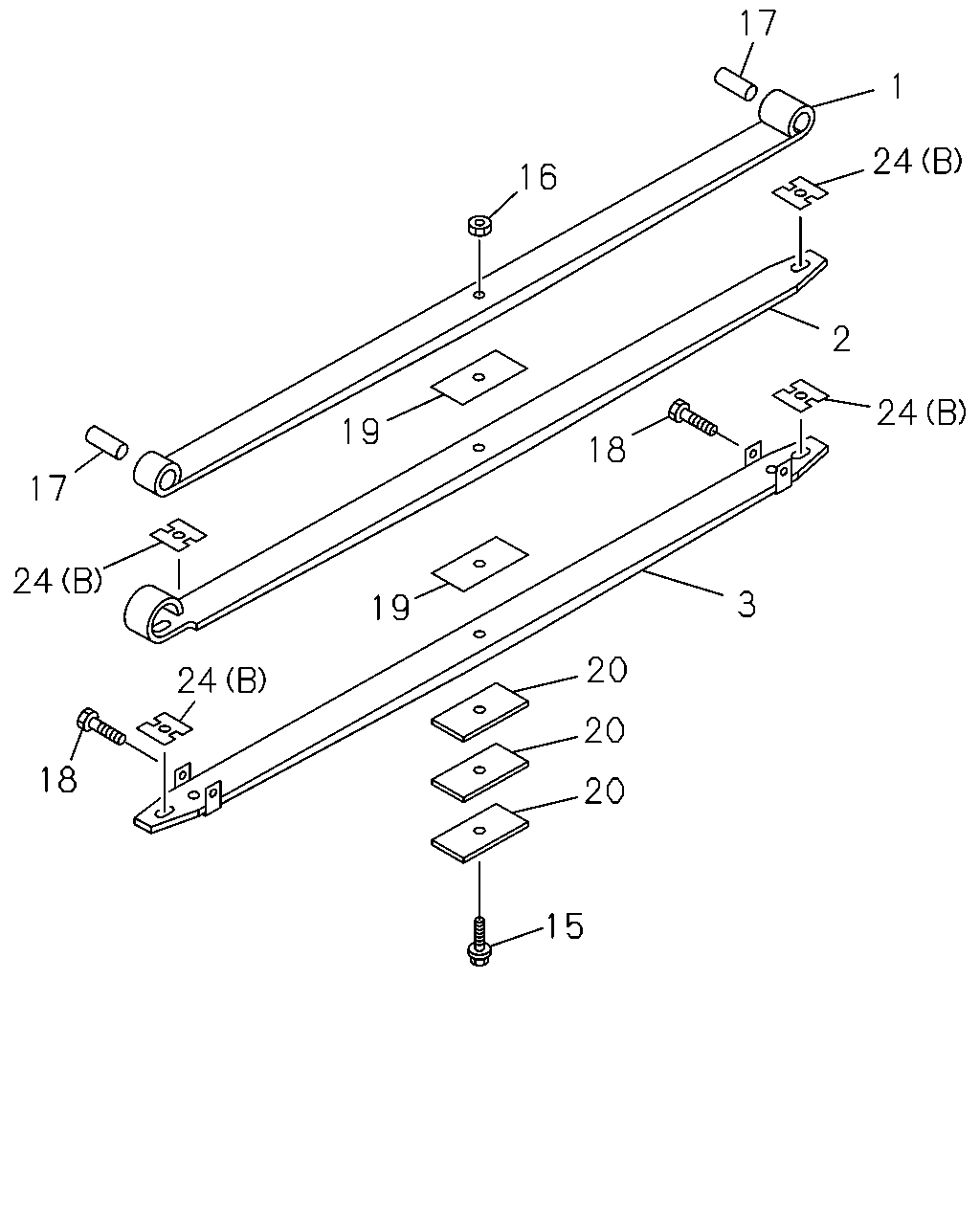

çizim 139219
17 1 24 16 2 24 19 18 17 24 3 19 20 24 20 18 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-969-1 		8-98053-053-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98072-392-0, E = 8-98202-923-0 		8-98098-326-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98096-765-0, D = 8-98202-922-0 		8-98099-129-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-969-1 		1-51112-825-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98072-392-0, E = 8-98202-923-0 		8-98098-327-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98096-765-0, D = 8-98202-922-0 		8-98099-130-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-969-1 		1-51113-825-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98072-392-0, E = 8-98202-923-0 		8-98098-328-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98096-765-0, D = 8-98202-922-0 		8-98099-131-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: A = 1-51130-969-1, C = 8-98096-765-0, D = 8-98202-922-0 		1-51156-346-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: B = 8-98072-392-0, E = 8-98202-923-0 		8-98098-335-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-969-1, B = 8-98072-392-0, C = 8-98096-765-0, D = 8-98202-922-0, E = 8-98202-923-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: B = 8-98072-392-0, C = 8-98096-765-0, D = 8-98202-922-0, E = 8-98202-923-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-969-1 		1-51351-009-0 02 1 0709-
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-969-1 		1-51351-030-0 02 1 -0708
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-969-1, B = 8-98072-392-0, C = 8-98096-765-0, D = 8-98202-922-0, E = 8-98202-923-0 		1-09000-328-0 02 1 -
19 SPACER; LEAF SPRING,FRT
ASM PART: B = 8-98072-392-0, C = 8-98096-765-0, D = 8-98202-922-0, E = 8-98202-923-0 		8-98098-338-0 02 1 -
20 SEAT; LEAF SPR,FRT
T=12 ASM PART: C = 8-98096-765-0, D = 8-98202-922-0 		1-51177-107-0 03 1 -
24 LINER; LEAF SPR,FWD FRT
(A) ASM PART: A = 1-51130-969-1 		1-51159-022-0 10 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: A = 1-51130-969-1 		1-51159-023-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: B = 8-98072-392-0, C = 8-98096-765-0 		1-51159-023-0 04 1 -
24 LINER; LEAF SPR,FWD FRT
(B) ASM PART: D = 8-98202-922-0, E = 8-98202-923-0 		8-98202-886-1 04 1 -
