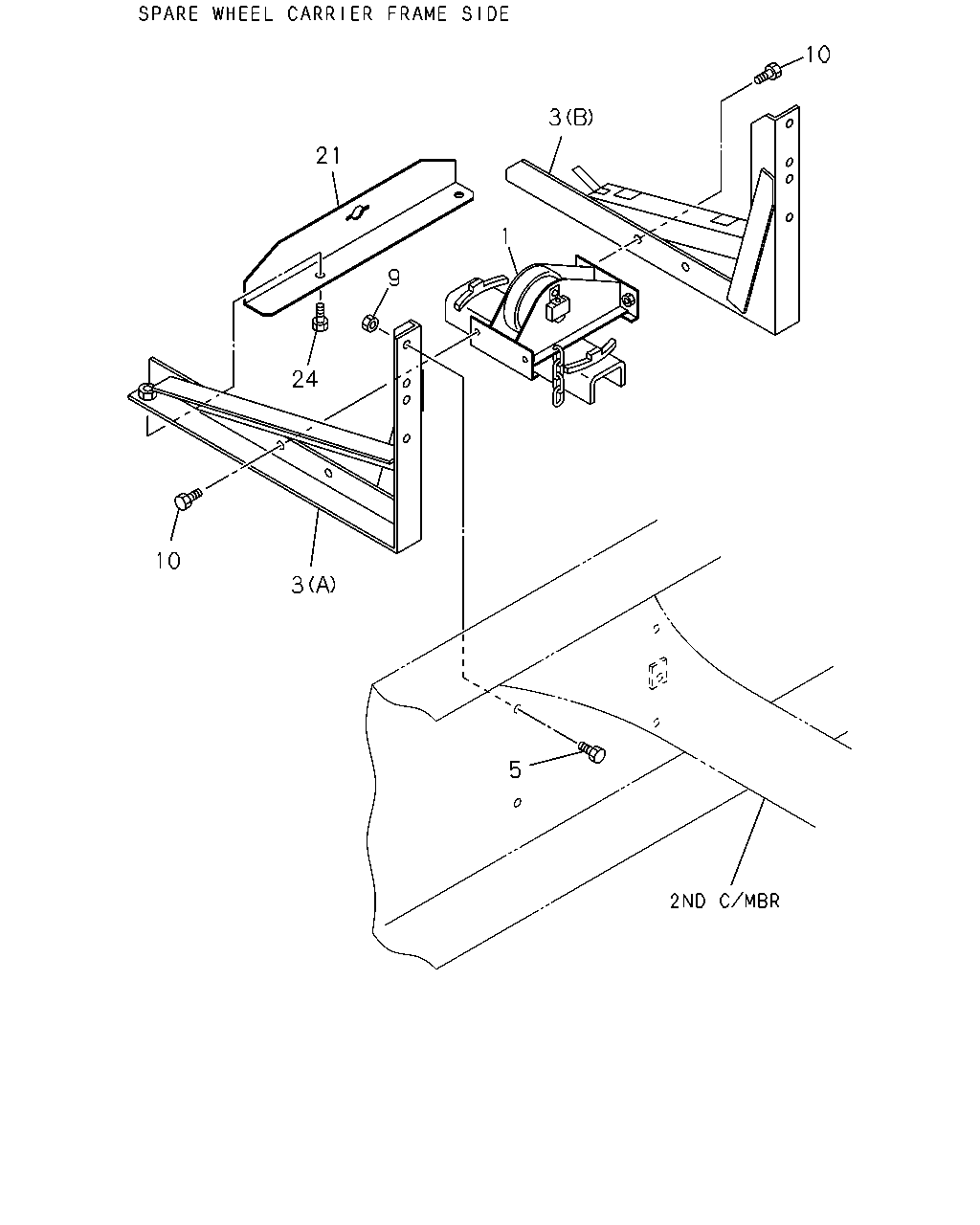

Sayfa 5-30 - Isuzu EPC

10 3 21 1 9 24 10 3 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	1-53630-210-1	01	1	0105-
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-389-0	01	1	0105-
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-393-0	01	1	0105-
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE	0-28681-240-0	06	1	0105-
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0105-
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0105-
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-128-1	01	1	0105-
24	BOLT; SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28681-225-0	02	1	0105-

10 19 1 15 10 20 15 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	1-53630-210-1	01	1	0105-
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	04	1	0105-
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-395-1	02	1	0105-
19	BOLT; C/MBR FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE	0-28081-035-0	08	1	0105-
19	BOLT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE	0-28081-040-0	08	1	0105-
20	NUT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0105-
