Isuzu WW
▶
TRUCKS
▶
CXH
▶
10883 - CXH LHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

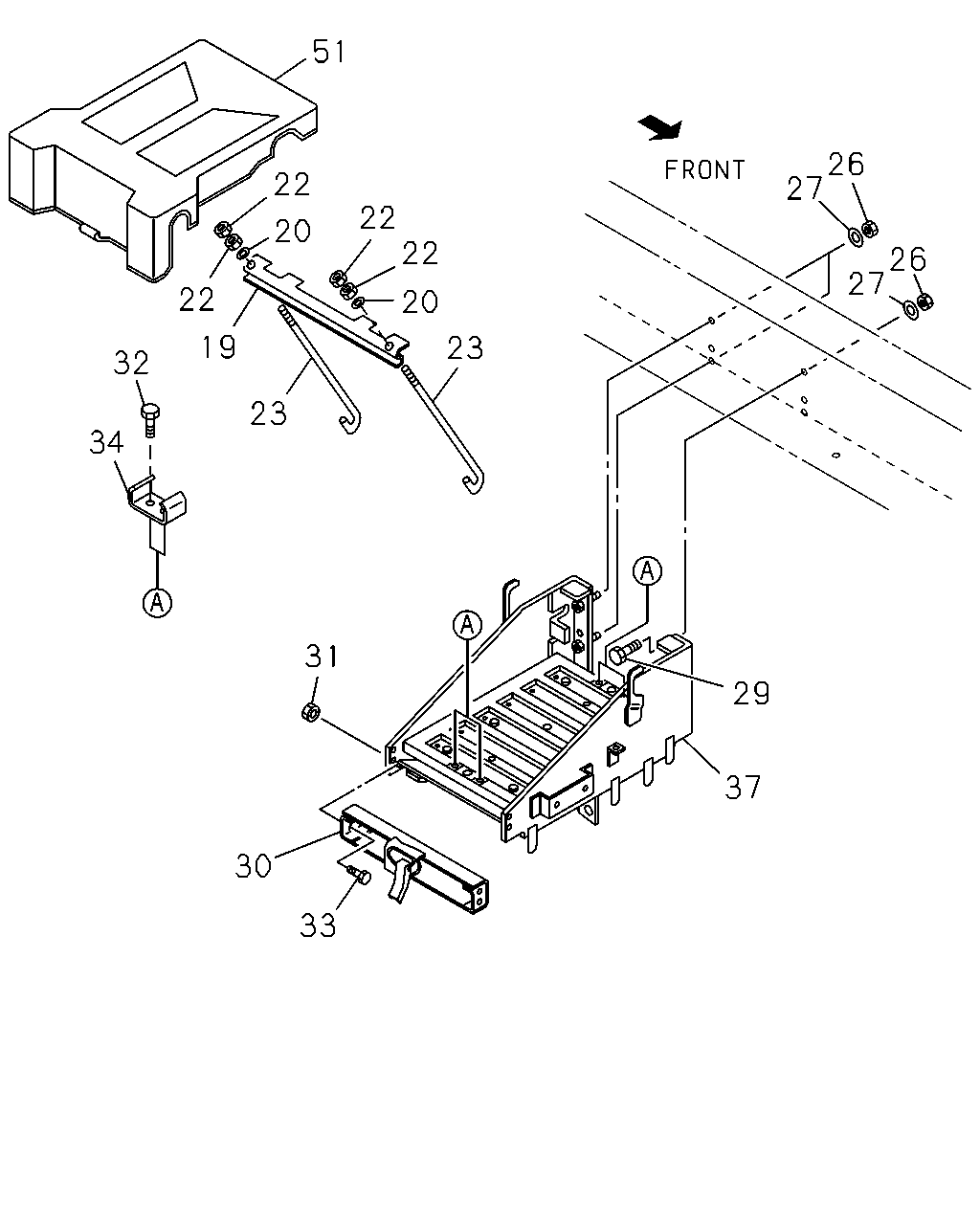

5-20 — BATTERY CARRIER
(#27762) — 16 parça
51
26
27
22
22
22
20
26
27
22
20
19
23
32
23
34
31
29
37
30
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
1-53618-039-2
01
1
0105-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0105-
22
NUT; STAY
M8
9-09110-408-0
04
1
0105-
23
BOLT; STAY
L=250
1-53616-108-0
02
1
0105-
26
NUT; BRKT
M14
9-99110-514-0
04
1
0105-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0105-
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
02
1
0105-
30
PLATE; BATTERY
1-53619-086-0
01
1
0105-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0105-
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
0105-
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
0105-
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
0105-
37
BRACKET; BATTERY
WHEEL BASE 6300MM(63W)
1-53610-130-0
01
1
0105-
37
BRACKET; BATTERY
WHEEL BASE 6600MM(66W)
1-53610-131-1
01
1
0105-0302
37
BRACKET; BATTERY
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W)
1-53610-131-1
01
1
0303-
51
COVER; BATTERY
1-53612-040-1
01
1
0105-
