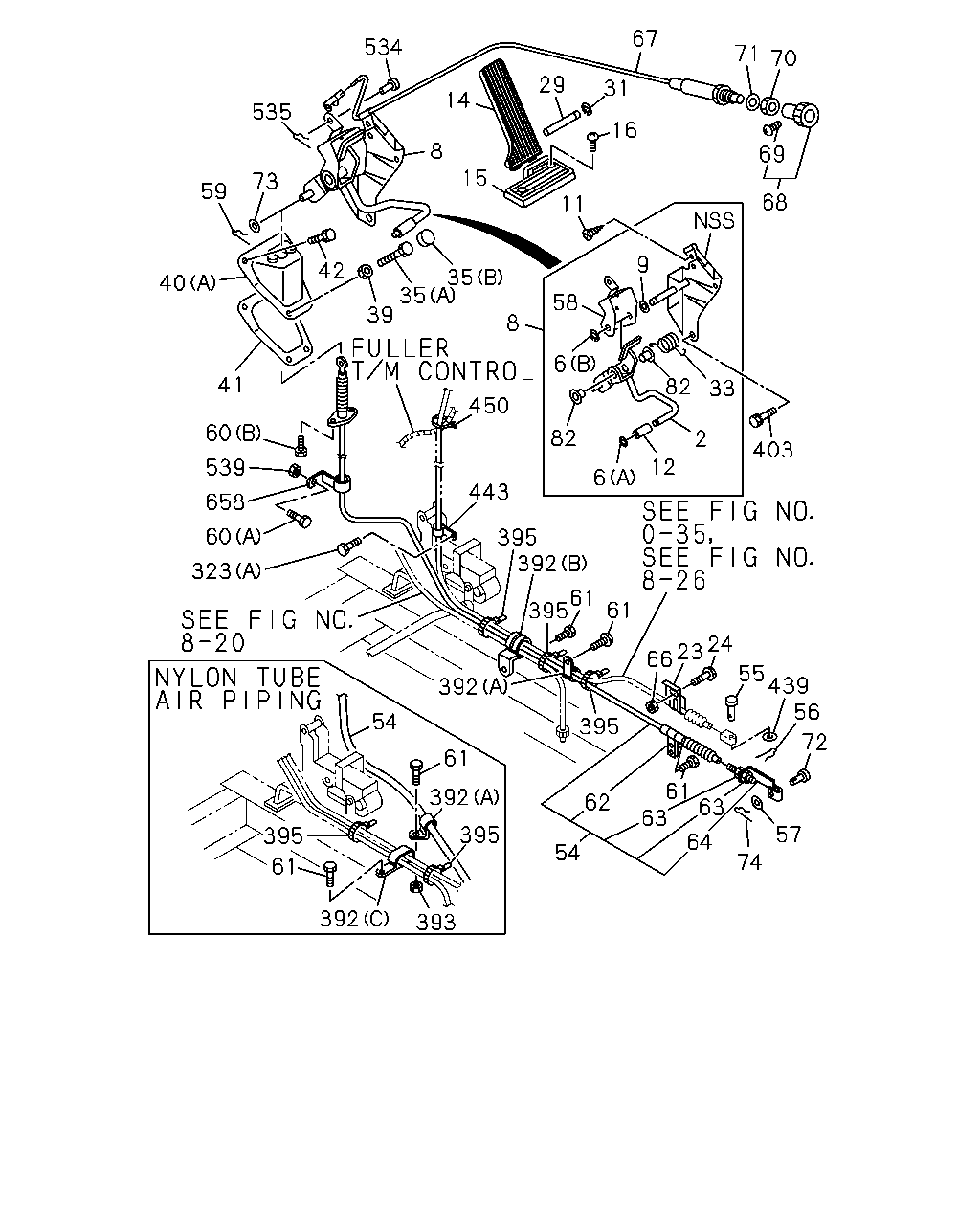

1-01A — ACCELERATOR PEDAL AND CONTROL (#2776) — 79 parça

534 14 8 15 535 73 59 42 40 35 35 39 8 41 60 539 658 60 323 450 443 395 392 61 395 61 392 54 61 392 395 393 392 61 395 29 31 67 71 70 69 68 16 11 9 58 6 82 82 33 2 12 6 403 66 23 24 55 439 56 72 57 74 64 63 61 63 62 54 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT	1-73997-904-1	01	1	9002-	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	9002-	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9002-	●	●	●
8	LINK ASM; ENG CONT	1-23240-067-2	01	1	9002-	●	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9002-	●	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9002-	●	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	9002-9305	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●	●
33	SPRING; IDLING CONT LEVER	1-73997-906-0	01	1	9002-	●	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●	●
35	STOPPER; ACCEL PEDAL (B)	1-23249-009-0	01	1	9002-	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●	●
40	BRACKET; ENG CONT CABLE (A)	1-73997-632-1	01	1	9002-	●	●	●
41	SEAL; BRKT,ENG CONT CABLE	1-73998-451-0	01	1	9002-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●	●
54	CABLE; ENG CONT L=2445	1-23210-794-6	01	1	9002-	●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●	●
58	LEVER; IDLING CONT	1-73997-905-1	01	1	9002-	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9002-9301	●	●	●
60	BOLT; CABLE (B) M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●	●
60	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	1-09980-492-0	01	1	9002-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9307-9404	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	02	1	9307-9404			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	02	1	9405-			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	9307-9307	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X16 FLANGE	0-28080-616-0	02	1	9405-	●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204		●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY(E1Q) M8X16 W/LK WASHER	9-01900-816-0	01	1	9010-9204	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302		●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY(E1Q) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-9306		●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE AIR COMPRESSOR HEAVY DUTY(E1Q) M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9307-	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9307-			●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●	●
66	NUT; BRKT M8	9-09110-408-0	01	1	9002-	●	●	●
67	CABLE ASM; IDLE CONT L=422	1-73997-647-0	01	1	9002-	●	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●	●
323	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9307-	●		●
392	CLIP; ACCEL CONT CABLE (A) ID=9	9-09524-825-0	01	1	9010-9306		●	●
392	CLIP; ACCEL CONT CABLE AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=9	9-09524-825-0	01	1	9010-9306	●
392	CLIP; ACCEL CONT CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9307-	●
392	CLIP; ACCEL CONT CABLE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9307-			●
392	CLIP; ACCEL CONT CABLE NYLON TUBE AIR PIPING<Z29> (A) ID=9X2 L=20	9-09534-835-0	01	1	9307-			●
392	CLIP; ACCEL CONT CABLE AIR COMPRESSOR HEAVY DUTY(E1Q) (C) ID=9 L=20	9-09524-835-0	01	1	9307-	●
392	CLIP; ACCEL CONT CABLE NYLON TUBE AIR PIPING<Z29> (C) ID=9 L=20	9-09524-835-0	01	1	9307-			●
392	CLIP; ACCEL CONT CABLE (C) ID=9 L=20	9-09524-835-0	01	1	9307-			●
393	NUT; CLIP TO FRAME NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-			●
395	CLIP; BAND,ACCEL CONT CABLE L=100	5-09707-036-0	02	1	9002-9306	●	●	●
395	CLIP; BAND,ACCEL CONT CABLE L=100	5-09707-036-1	03	1	9307-	●		●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	01	1	9307-	●		●
450	CLIP; BAND FULLER M/T<X9B> L=140	5-09707-031-1	01	1	9008-	●	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●	●
539	NUT; CLIP M6 FLANGE	1-09984-141-0	01	1	9002-	●	●	●
658	CLIP; ENG CONT CABLE ID=13 H=24 L=20	9-09527-012-0	02	1	9002-	●	●	●
