5-01 — FRAME AND OTHER PARTS (#27757) — 130 parça

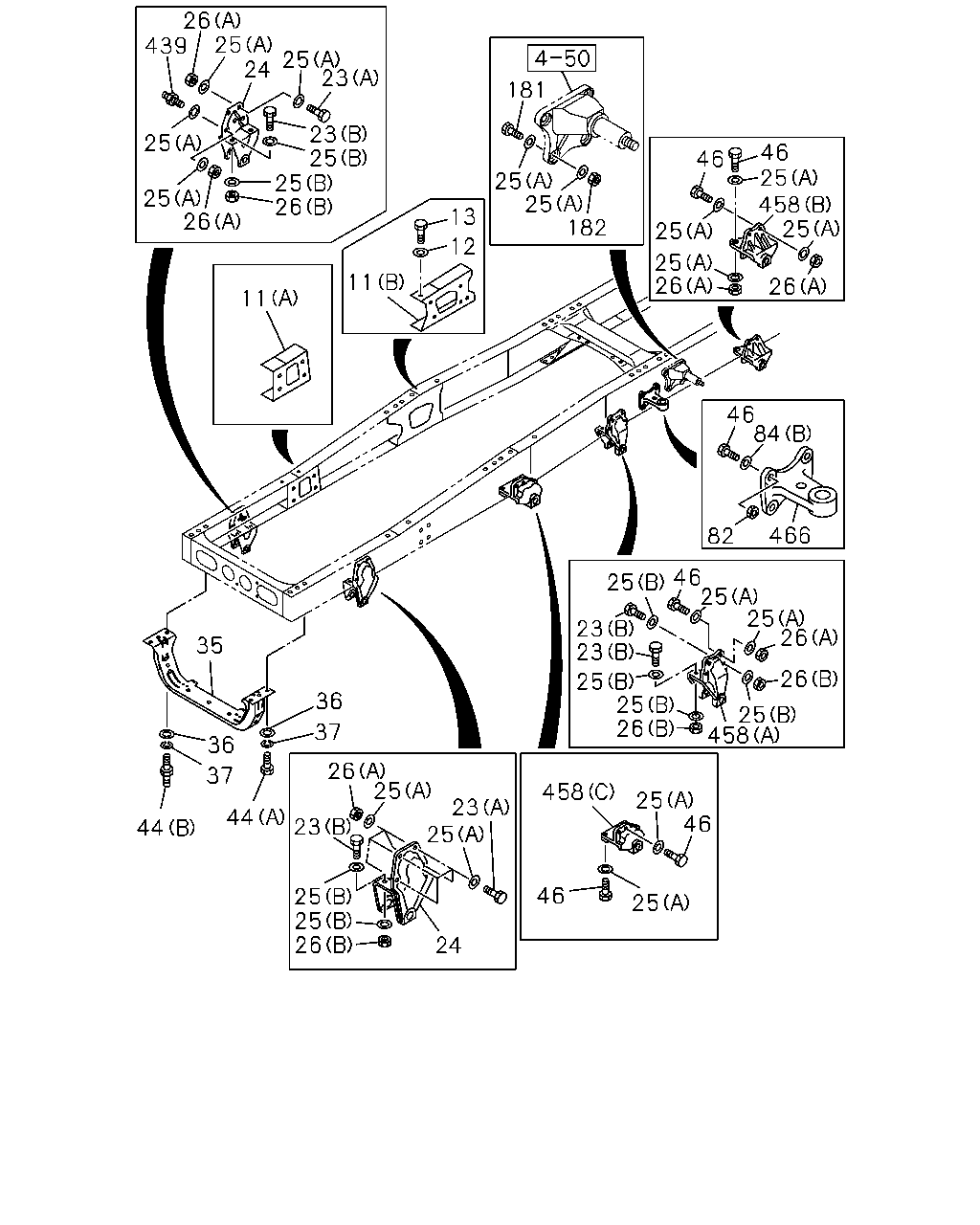

çizim 23313
26 24 25 23 181 25 25 182 23 25 25 26 25 46 46 25 458 25 25 26 13 25 12 11 25 26 26 11 46 84 466 82 46 25 25 25 26 23 23 35 26 25 25 26 36 25 458 37 36 26 25 37 458 25 46 23 25 44 23 44 46 25 25 26 25 24 25 439
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
(B) 		1-53219-789-1 01 1 0105- ●
11 BRACKET; ENG MTG
(B) 		1-53219-788-1 01 1 0105- ●
11 BRACKET; ENG MTG
(A) 		1-53219-472-1 01 1 0105-0302 ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-472-1 01 1 0303- ● ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-471-0 01 1 0105-0302 ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-471-0 01 1 0303- ● ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-742-0 01 1 0105-0302 ●
11 BRACKET; ENG MTG
(B) 		1-53219-742-0 01 1 0303- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-741-0 01 1 0105-0302 ●
11 BRACKET; ENG MTG
(B) 		1-53219-741-0 01 1 0303- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 AR 1 0105-0302 ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 AR 1 0303- ● ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 AR 1 0105-0302 ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 AR 1 0303- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 AR 1 0105-0302 ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 AR 1 0105-0302 ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 AR 1 0303- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 AR 1 0303- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0105-0302 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0303- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0105-0302 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0303- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 AR 1 0105-0302 ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 AR 1 0105-0302 ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 AR 1 0303- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 AR 1 0303- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 AR 1 0105-0302 ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 AR 1 0303- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 AR 1 0105-0302 ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 AR 1 0303- ● ● ●
35 MEMBER; UNDER 1-53174-214-2 01 1 0105- ● ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 AR 1 0105-0302 ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 AR 1 0303- ● ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 AR 1 0105-0302 ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 AR 1 0303- ● ● ●
44 BOLT; UNDER MBR
(B) M10X20,M16X50 L=81 		1-09029-069-0 AR 1 0105-0302 ● ●
44 BOLT; UNDER MBR
(A) M16X45 		9-92061-645-0 AR 1 0105-0302 ● ●
44 BOLT; UNDER MBR
(B) M10X20,M16X50 L=81 		1-09029-069-0 AR 1 0303- ● ● ●
44 BOLT; UNDER MBR
(A) M16X45 		9-92061-645-0 AR 1 0303- ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 AR 1 0105-0302 ● ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 AR 1 0105-0302 ● ●
46 BOLT; BRKT FIX
M14X60 		9-92061-460-0 AR 1 0105-0302 ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 AR 1 0303- ● ● ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 AR 1 0303- ● ● ●
46 BOLT; BRKT FIX
M14X60 		9-92061-460-0 AR 1 0303- ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 AR 1 0105-0302 ● ●
82 NUT; BRKT
M14 		9-99110-514-0 AR 1 0303- ● ● ●
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 AR 1 0105-0302 ● ●
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 AR 1 0303- ● ● ●
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 AR 1 0105-0302 ● ●
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 AR 1 0303- ● ● ●
181 BOLT; S/ABS BRKT TO FRAME
M14X50 		9-92061-450-0 AR 1 0105-0302 ● ●
181 BOLT; S/ABS BRKT TO FRAME
M14X50 		9-92061-450-0 AR 1 0303- ● ● ●
182 NUT; S/ABS BRKT TO FRAME
M14 		9-99110-514-0 AR 1 0105-0302 ● ●
182 NUT; S/ABS BRKT TO FRAME
M14 		9-99110-514-0 AR 1 0303- ● ● ●
439 STUD; BRKT,SPR
M12X35,M14X45 L=100 		1-09029-075-0 AR 1 0105-0302 ● ●
439 STUD; BRKT,SPR
M12X35,M14X45 L=100 		1-09029-075-0 AR 1 0303- ● ● ●
458 BRACKET; LEAF SPRING
(B) 		1-53352-067-3 02 1 0105-0302 ● ●
458 BRACKET; LEAF SPRING
(B) 		1-53352-067-3 02 1 0303- ● ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-218-0 01 1 0105-0302 ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-218-0 01 1 0303- ● ● ●
458 BRACKET; LEAF SPRING
(C) 		1-53352-153-0 01 1 0105-0302 ● ●
458 BRACKET; LEAF SPRING
(C) 		1-53352-153-0 01 1 0303- ● ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-217-0 01 1 0105-0302 ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-217-0 01 1 0303- ● ● ●
458 BRACKET; LEAF SPRING
(C) 		1-53352-152-0 01 1 0105-0302 ● ●
458 BRACKET; LEAF SPRING
(C) 		1-53352-152-0 01 1 0303- ● ● ●
466 BRACKET; BOOSTER 1-44515-073-0 01 1 0105-0302 ● ●
466 BRACKET; BOOSTER 1-44515-073-0 01 1 0303- ● ● ●

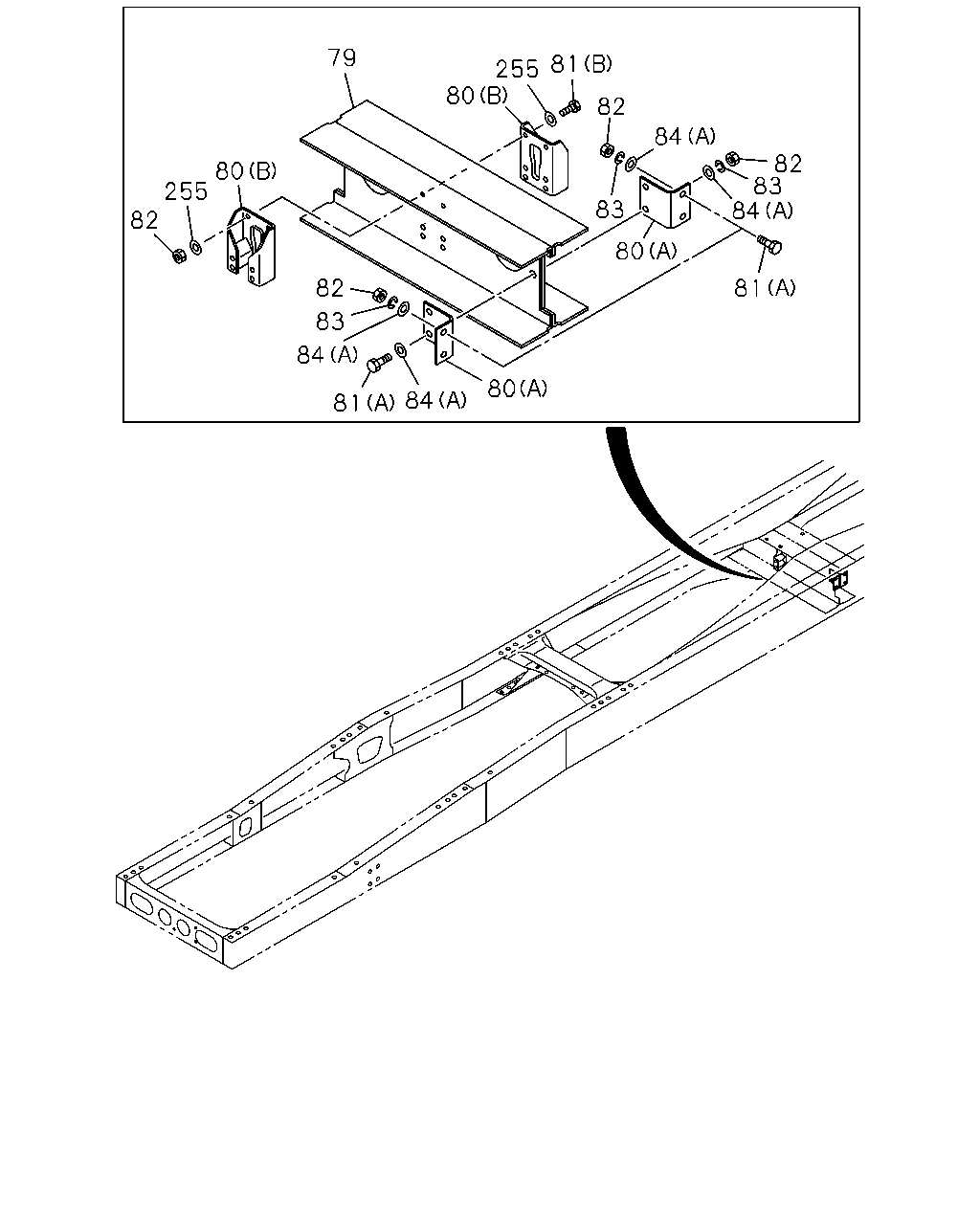

çizim 81307
79 81 255 80 82 84 82 83 84 80 255 82 83 80 82 81 83 84 80 84 81
BalonParca AdiParca NoAdetTipApplied Date A B C
79 MEMBER; CROSS,TRUNNION ASM 1-53181-374-0 01 1 0105-0302 ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-374-0 01 1 0303- ● ● ●
80 BRACKET; C/MBR
(B) 		1-53363-031-2 02 1 0105-0302 ● ●
80 BRACKET; C/MBR
(B) 		1-53363-031-2 02 1 0303- ● ● ●
80 BRACKET; C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53167-288-0 04 1 0105- ● ● ●
80 BRACKET; C/MBR
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53167-610-0 04 1 0105- ● ● ●
81 BOLT; BRKT
(A) M14X55 		9-91066-455-0 AR 1 0105-0302 ● ●
81 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X45 		9-92061-445-0 AR 1 0105-0302 ● ●
81 BOLT; BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X38 		9-92061-438-0 AR 1 0105-0302 ● ●
81 BOLT; BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X38 		9-92061-438-0 AR 1 0303-0312 ● ● ●
81 BOLT; BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X40 		9-92061-440-0 AR 1 0401- ● ● ●
81 BOLT; BRKT
(A) M14X55 		9-91066-455-0 AR 1 0303- ● ● ●
81 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X45 		9-92061-445-0 AR 1 0303- ● ● ●
81 BOLT; BRKT
(B) M14X205 		1-09000-147-0 AR 1 0105-0302 ● ●
81 BOLT; BRKT
(B) M14X205 		1-09000-147-0 AR 1 0303- ● ● ●
81 BOLT; BRKT
(B) M14X50 		9-92061-450-0 AR 1 0105-0302 ● ●
81 BOLT; BRKT
(B) M14X50 		9-92061-450-0 AR 1 0303- ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 AR 1 0105-0302 ● ●
82 NUT; BRKT
M14 		9-99110-514-0 AR 1 0303- ● ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 AR 1 0105-0302 ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 AR 1 0303- ● ● ●
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 AR 1 0105-0302 ● ●
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		9-09164-514-0 AR 1 0303- ● ● ●
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 AR 1 0105-0302 ● ●
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 AR 1 0303- ● ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 AR 1 0105-0302 ● ●
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 AR 1 0303- ● ● ●

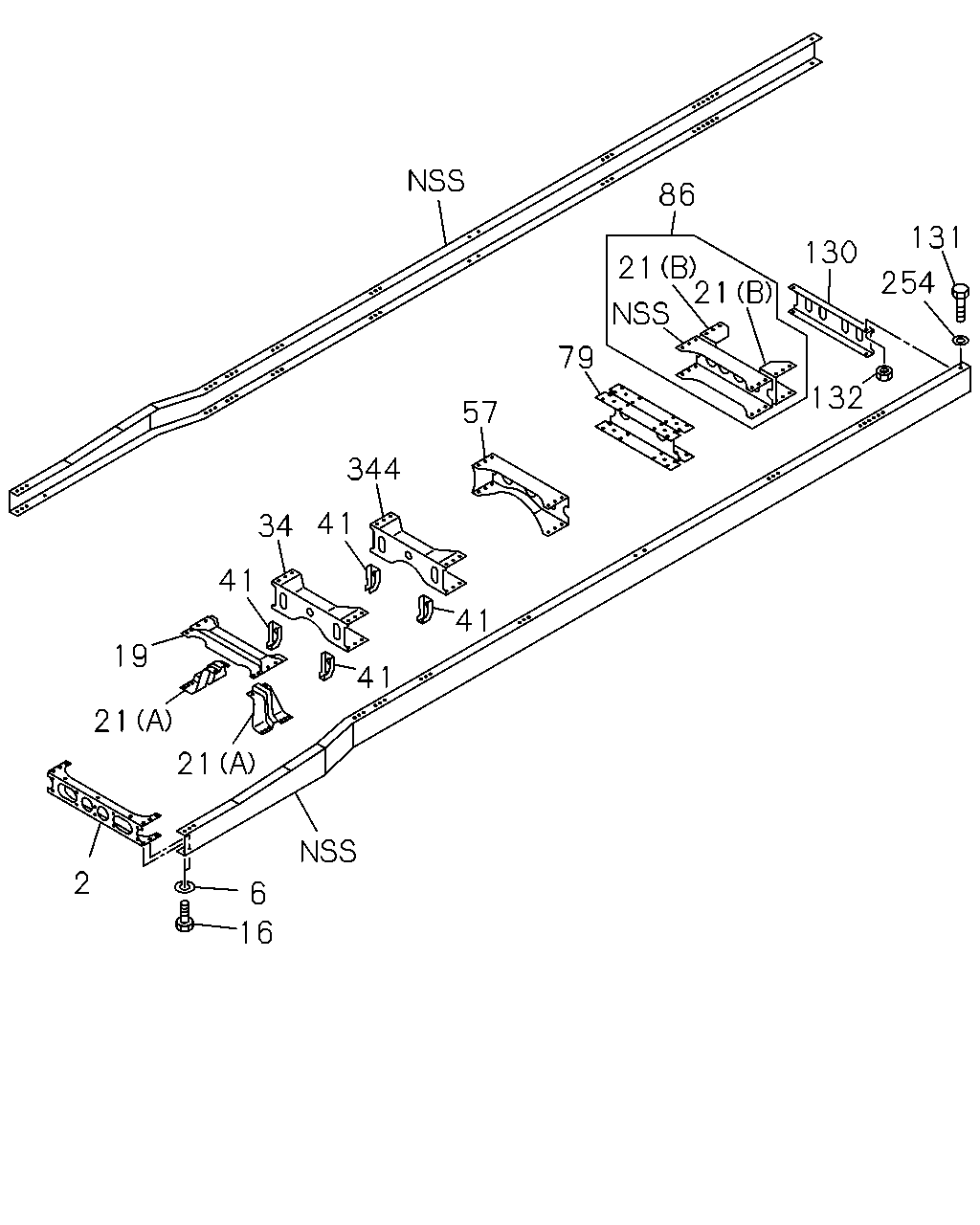

çizim 83169
86 131 130 21 21 254 79 132 57 344 41 34 41 41 19 41 21 21 2 6 16
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 1-53181-710-1 01 1 0105-0302 ● ●
2 MEMBER; CROSS,1ST 1-53181-710-1 01 1 0303- ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> ID=16.2 		9-09150-616-0 AR 1 0105-0112 ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> ID=16.2 		9-09150-516-0 AR 1 0201- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M16X40 		0-20801-640-0 AR 1 0105-0302 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M16X40 		0-20801-640-0 AR 1 0303- ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0105-0302 ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0303- ● ● ●
21 GUSSET; 2ND CROSS
(A) 		1-53164-208-0 02 1 0105-0302 ● ●
21 GUSSET; 2ND CROSS
(A) 		1-53164-208-0 02 1 0303- ● ● ●
21 GUSSET; 2ND CROSS
(B) 		1-53167-287-1 02 1 0105-0302 ● ●
21 GUSSET; 2ND CROSS
(B) 		1-53167-287-2 02 1 0303- ● ● ●
34 MEMBER; CROSS,3RD 1-53181-644-1 01 1 0105-0302 ● ●
34 MEMBER; CROSS,3RD 1-53181-644-1 01 1 0303- ● ● ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=295 		1-53271-304-1 02 1 0105-0302 ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=295 		1-53271-304-1 02 1 0303- ● ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=320 		1-53271-296-1 02 1 0105-0302 ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=320 		1-53271-296-1 02 1 0303- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-2 01 1 0105-0302 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-3 01 1 0303- ● ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-374-0 01 1 0105-0302 ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-374-0 01 1 0303- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-134-1 01 1 0105-0302 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-134-1 01 1 0303- ● ● ●
130 MEMBER; CROSS,END 1-53171-876-2 01 1 0105-0302 ● ●
130 MEMBER; CROSS,END 1-53171-876-3 01 1 0303- ● ● ●
131 BOLT; END C/MBR
M14X50 		9-92061-450-0 AR 1 0105- ●
131 BOLT; END C/MBR
M14X40 		9-92061-440-0 AR 1 0105-0302 ●
131 BOLT; END C/MBR
M14X40 		9-92061-440-0 AR 1 0303- ● ●
132 NUT; END C/MBR
M14 		9-99110-514-0 AR 1 0105-0302 ● ●
132 NUT; END C/MBR
M14 		9-99110-514-0 AR 1 0303- ● ● ●
254 WASHER; PL,C/MBR
ID=15 		9-09651-069-0 AR 1 0105-0302 ● ●
254 WASHER; PL,C/MBR
ID=15 		9-09651-069-0 AR 1 0303- ● ● ●
344 MEMBER; CROSS,4TH 1-53181-644-1 01 1 0303- ●
