4-80 — ROAD WHEEL (#27756) — 69 parça

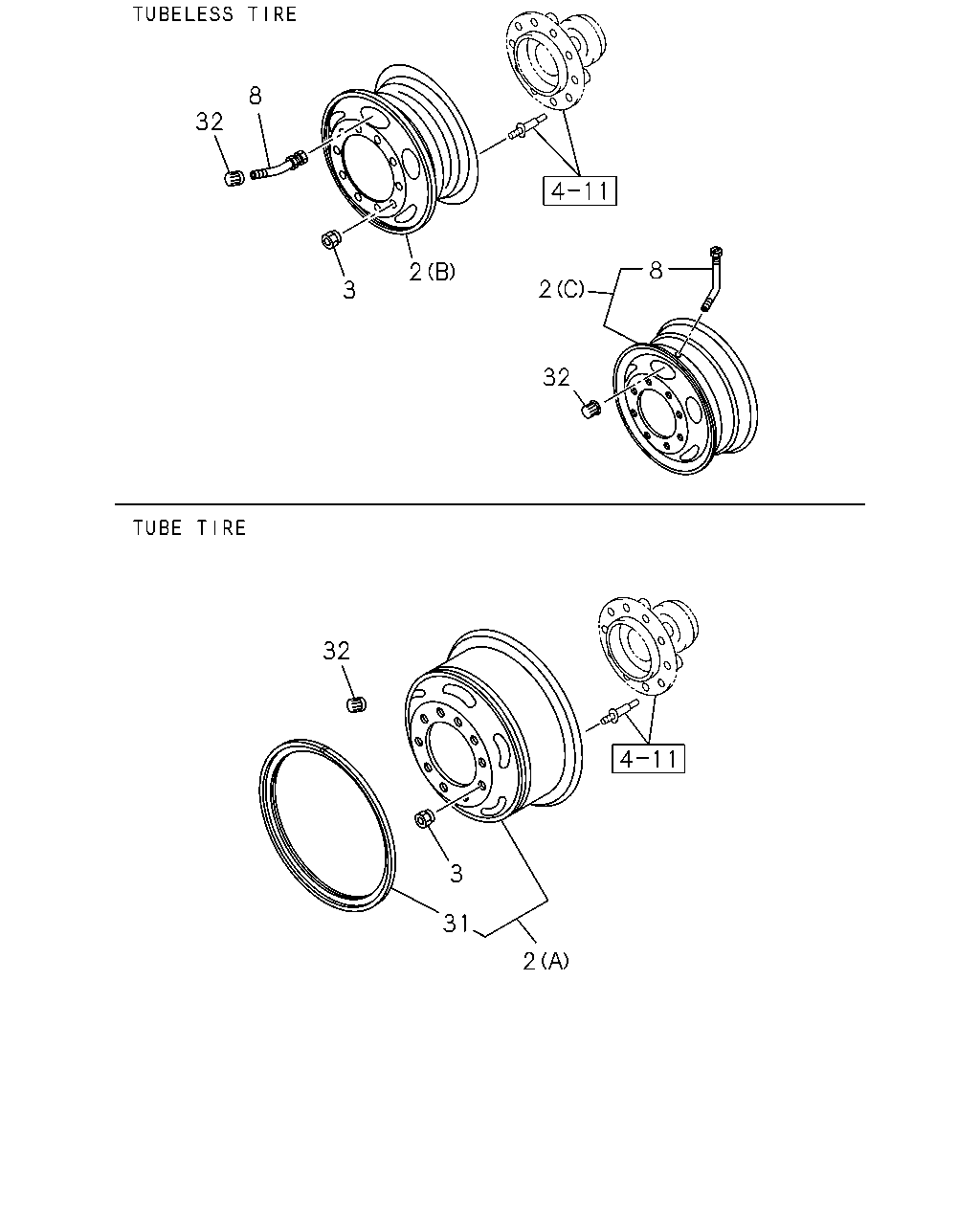

8 32 8 2 2 3 32 32 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE	1-42350-538-0	01	1	0207-0308
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE	1-42350-637-1	01	1	0309-
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C)	1-42350-538-0	12	1	0207-0308
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C)	1-42350-637-1	12	1	0309-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> (C)	1-42350-646-0	13	1	0205-0206
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (C)	1-42350-646-0	13	1	0207-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-590-0	12	1	0105-0204
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) WHEEL PAINTED LIGHT ARGENT<SKD> (A)	1-42350-590-0	12	1	0205-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-590-0	01	1	0105-0204
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-590-0	01	1	0205-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) SPARE	1-42350-470-1	01	1	0105-0206
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-470-1	01	1	0207-
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-470-1	12	1	0105-0206
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B)	1-42350-470-1	12	1	0207-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22	1-42333-043-0	40	1	0205-
3	NUT; WHEEL,FRT AXLE M22 RH THREAD	1-42333-048-1	40	1	0105-0204
3	NUT; WHEEL,FRT AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 RH THREAD	1-42333-048-1	40	1	0205-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE	1-42370-041-1	01	1	0309-
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU>	1-42370-041-1	12	1	0309-
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT>	1-42370-020-3	13	1	0208-
8	VALVE; TIRE EXC. DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42370-020-3	12	1	0105-0206
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU>	1-42370-020-3	12	1	0207-0308
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	12	1	0207-0308
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0309-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE	1-42370-020-3	01	1	0105-0206
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE	1-42370-020-3	01	1	0207-0308
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0207-0308
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	12	1	0309-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-044-0	12	1	0105-0204
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) WHEEL PAINTED LIGHT ARGENT<SKD>	1-42355-044-0	12	1	0205-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-044-0	01	1	0105-0204
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE	1-42355-044-0	01	1	0205-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	09	1	0105-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	08	1	0105-

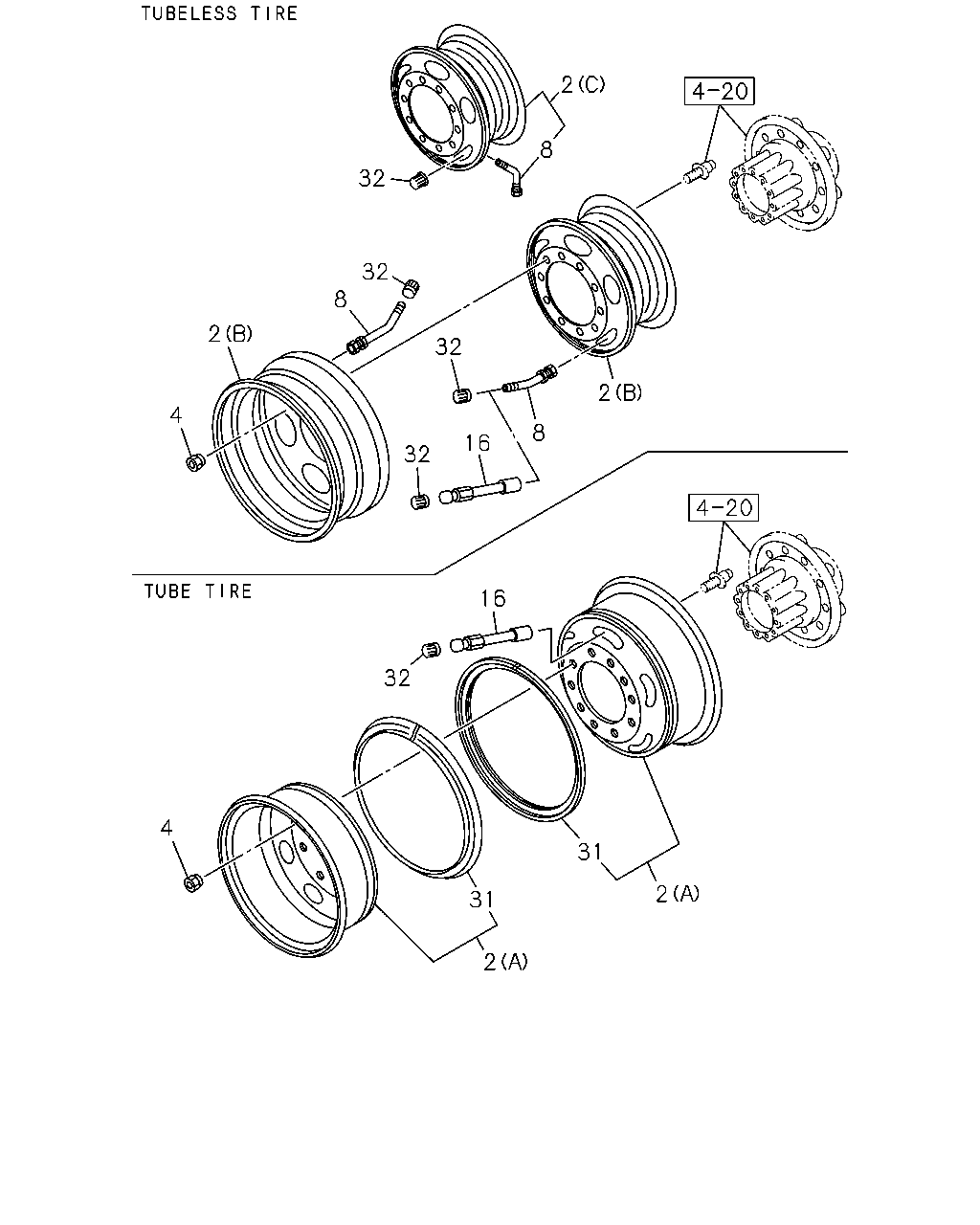

2 8 32 32 8 2 32 2 4 8 16 32 16 32 4 31 2 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE	1-42350-538-0	01	1	0207-0308
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE	1-42350-637-1	01	1	0309-
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C)	1-42350-538-0	12	1	0207-0308
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C)	1-42350-637-1	12	1	0309-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> (C)	1-42350-646-0	13	1	0205-0206
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (C)	1-42350-646-0	13	1	0207-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-590-0	12	1	0105-0204
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) WHEEL PAINTED LIGHT ARGENT<SKD> (A)	1-42350-590-0	12	1	0205-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-590-0	01	1	0105-0204
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42350-590-0	01	1	0205-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) SPARE	1-42350-470-1	01	1	0105-0206
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> (B) SPARE	1-42350-470-1	01	1	0207-
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B)	1-42350-470-1	12	1	0105-0206
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B)	1-42350-470-1	12	1	0207-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22	1-42333-043-0	40	1	0205-
4	NUT; WHEEL,RR AXLE M22 RH THREAD	1-42333-048-1	40	1	0105-0204
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 RH THREAD	1-42333-048-1	40	1	0205-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE	1-42370-041-1	01	1	0309-
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU>	1-42370-041-1	12	1	0309-
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT>	1-42370-020-3	13	1	0208-
8	VALVE; TIRE EXC. DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42370-020-3	12	1	0105-0206
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU>	1-42370-020-3	12	1	0207-0308
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	12	1	0207-0308
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0309-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE	1-42370-020-3	01	1	0105-0206
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE	1-42370-020-3	01	1	0207-0308
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0207-0308
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	12	1	0309-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	0105-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-044-0	12	1	0105-0204
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) WHEEL PAINTED LIGHT ARGENT<SKD>	1-42355-044-0	12	1	0205-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-044-0	01	1	0105-0204
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE	1-42355-044-0	01	1	0205-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	09	1	0105-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	08	1	0105-
