4-55 — FRONT LEAF SPRING (#27753) — 37 parça

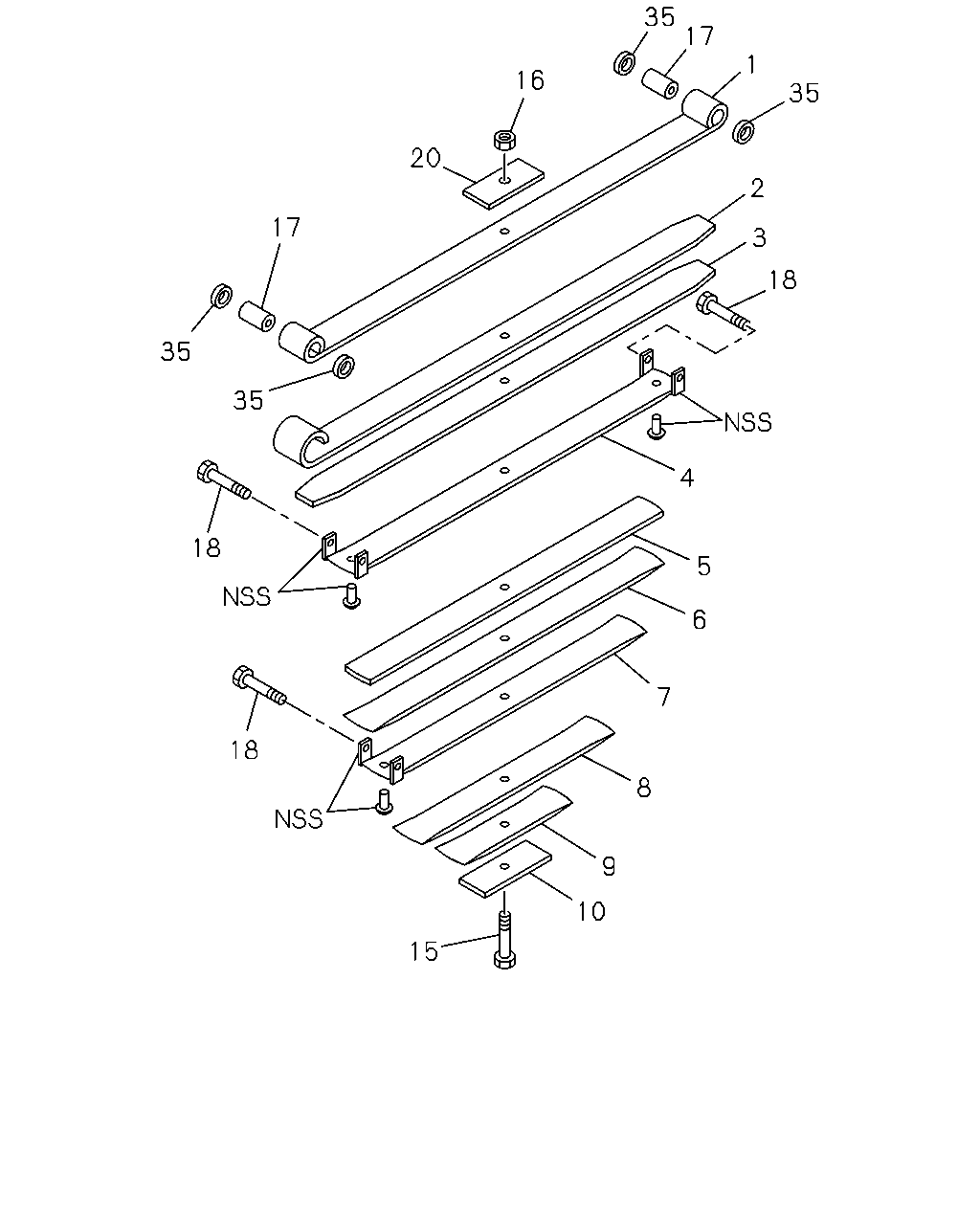

35 17 1 16 35 20 2 17 3 18 35 35 4 18 5 6 7 18 8 9 10 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51131-818-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51132-818-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51133-818-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51134-818-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51135-818-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51136-818-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51137-818-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51138-818-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51139-818-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51141-818-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: B = 1-51130-819-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: A = 1-51130-818-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-09000-328-0	03	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-818-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT T=5 ASM PART: B = 1-51130-819-0	1-51177-306-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51177-321-0	04	1	-

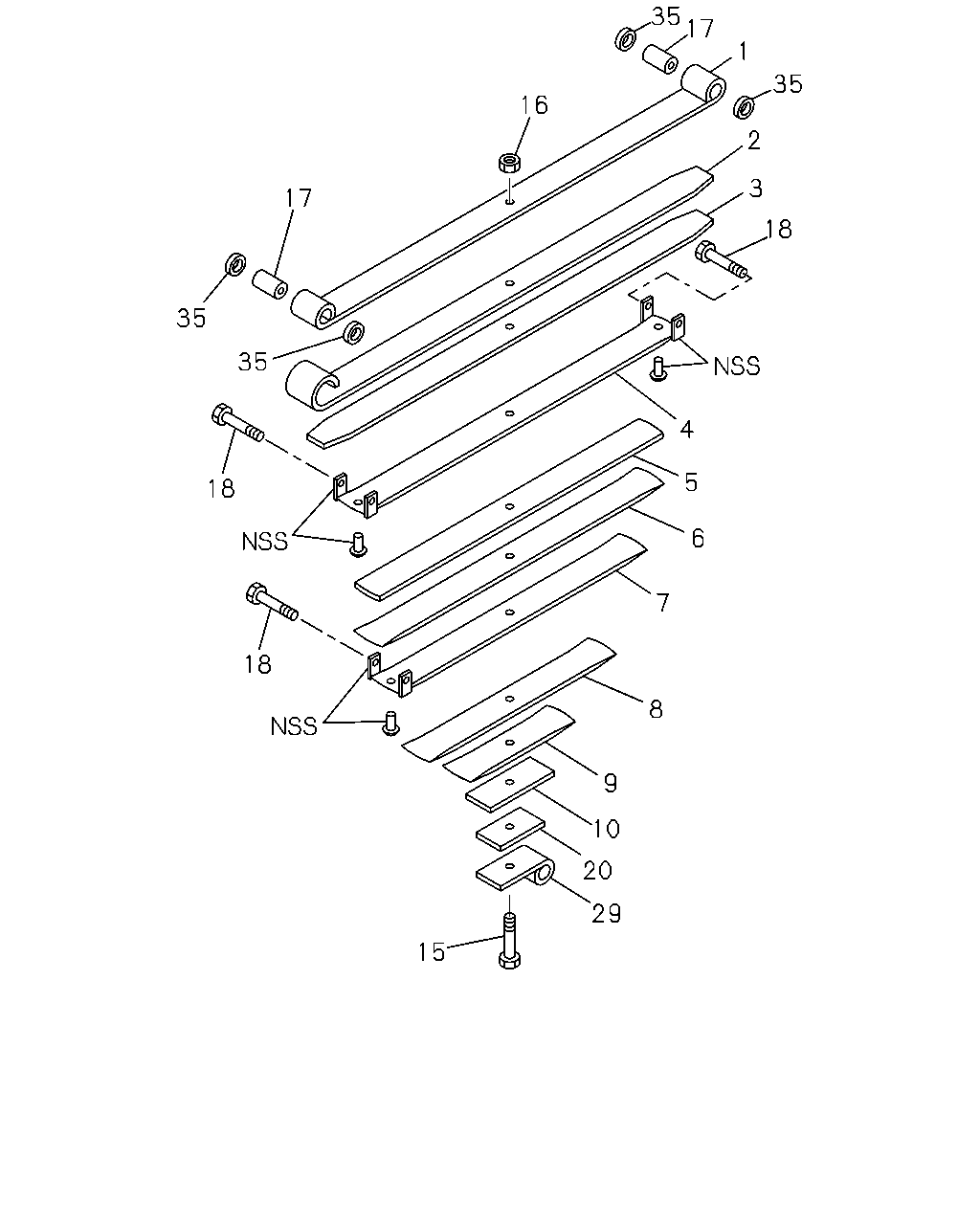

35 17 1 35 16 2 3 17 18 35 35 4 5 18 6 7 18 8 9 10 20 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51131-818-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51132-818-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51133-818-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51134-818-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51135-818-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51136-818-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51137-818-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51138-818-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51139-818-0	01	1	-
10	SPRING; LEAF,NO 10,FRT ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51141-818-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: B = 1-51130-819-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: A = 1-51130-818-0	1-51156-366-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-09000-328-0	03	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-818-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT T=5 ASM PART: B = 1-51130-819-0	1-51177-306-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: B = 1-51130-819-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-818-0, B = 1-51130-819-0	1-51177-321-0	04	1	-
