4-50 — FRONT SUSPENSION (#27752) — 101 parça

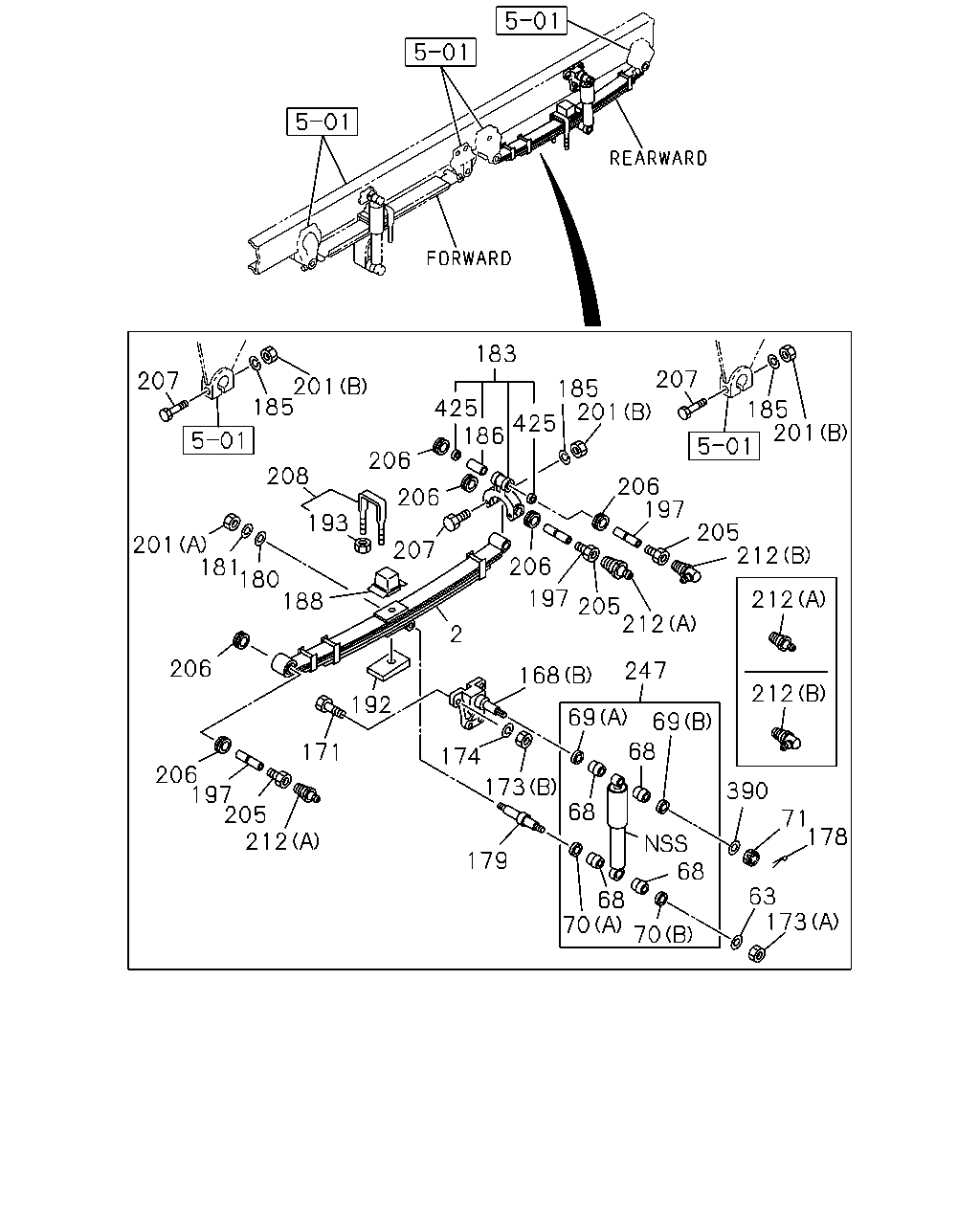

çizim 21310
183 207 207 201 185 185 201 425 425 186 185 201 206 208 206 197 206 193 205 212 201 181 180 188 207 206 197 205 212 212 2 206 247 168 212 192 69 69 68 171 174 206 197 205 212 173 390 68 71 178 68 179 63 173 68 70 70
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 10-LEAF 		1-51130-818-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 10-LEAF 		1-51130-819-0 02 1 0105-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 02 1 0105-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0105-0302
68 BUSHING; S/ABS 9-51631-026-0 08 1 0303-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0303-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0105-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0105-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0105-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0105-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0105-
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> M14X45 		9-92061-445-0 08 1 0105-
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 08 1 0105-
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 04 1 0105-0311
173 NUT; S/ABS
(A) LOWER M20 		9-99110-520-0 04 1 0312-
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 0105-
174 WASHER; LK,S/ABS
UPPER ID=14.2 		9-09150-614-0 08 1 0105-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0105-
179 PIN 1-51682-094-1 04 1 0105-0302
179 PIN 1-51682-094-1 02 1 0303-
179 PIN 1-51682-094-1 02 1 0303-
180 WASHER; PL,PIN 1-09503-169-0 04 1 0105-0302
180 WASHER; PL,PIN 1-09503-169-0 02 1 0303-
180 WASHER; PL,PIN 1-09503-169-0 02 1 0303-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 0105-0302
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0303-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0303-
183 SHACKLE; FRT SUSP 1-51162-064-0 04 1 0105-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0105-
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 04 1 0105-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FORWARD 		1-51172-081-0 02 1 0408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FORWARD,REARWARD 		1-51172-088-0 04 1 0105-0407
188 RUBBER; CLAMP,U-BOLT,FRT SPR
REARWARD 		1-51172-088-0 02 1 0408-
192 PIECE; DIST
REARWARD 		1-51177-281-0 02 1 0105-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0105-
197 PIN; FRT SPR,FRT 1-51161-031-0 12 1 0105-
201 NUT; PIN LK
(A) M24 		9-99110-424-0 02 1 0105-
201 NUT; PIN LK
(B) M12 		9-99110-512-0 24 1 0105-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0105-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0105-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0105-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 08 1 0105-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 09 1 0105-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 03 1 0105-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-443-0 02 1 0105-
390 WASHER; PL,S/ABS,UPR
ID=21 		9-09160-520-0 02 1 0105-
425 SEAL; DUST 1-51177-321-0 08 1 0105-

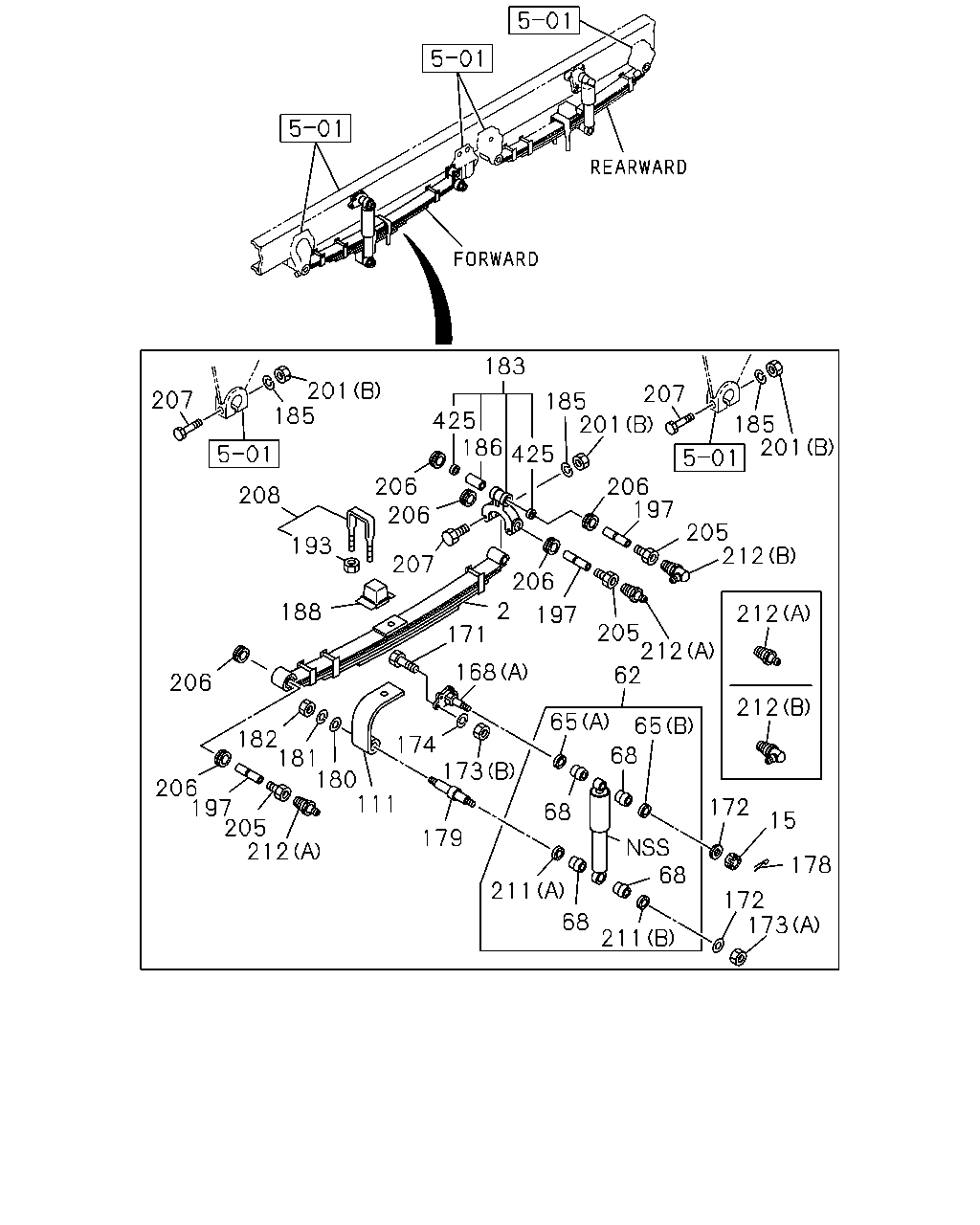

çizim 22322
183 201 185 207 207 185 201 425 186 425 185 201 206 206 206 197 208 205 212 193 207 2 188 212 197 205 212 62 171 168 206 212 65 182 181 180 111 65 174 173 68 206 197 205 212 172 68 15 68 179 178 211 172 173 68 211 206
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 10-LEAF 		1-51130-818-0 02 1 0105-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 10-LEAF 		1-51130-819-0 02 1 0105-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0105-0302
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 01 1 0303-0303
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 01 1 0303-0303
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0304-
62 ABSORBER ASM; SHOCK,FRT 1-51630-429-0 02 1 0105-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0105-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0105-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0105-0302
68 BUSHING; S/ABS 9-51631-026-0 08 1 0303-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0303-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 02 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0105-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0105-
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> M14X45 		9-92061-445-0 08 1 0105-
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 08 1 0105-
172 WASHER; PL,S/ABS BRKT
ID=21 		9-09160-520-0 04 1 0105-
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 04 1 0105-0311
173 NUT; S/ABS
(A) LOWER M20 		9-99110-520-0 04 1 0312-
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 0105-
174 WASHER; LK,S/ABS
UPPER ID=14.2 		9-09150-614-0 08 1 0105-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0105-
179 PIN 1-51682-094-1 04 1 0105-0302
179 PIN 1-51682-094-1 02 1 0303-
179 PIN 1-51682-094-1 02 1 0303-
180 WASHER; PL,PIN 1-09503-169-0 04 1 0105-0302
180 WASHER; PL,PIN 1-09503-169-0 02 1 0303-
180 WASHER; PL,PIN 1-09503-169-0 02 1 0303-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 0105-0302
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0303-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0303-
182 NUT; S/ABS LWR
FORWARD M24 		9-99110-424-0 02 1 0105-
183 SHACKLE; FRT SUSP 1-51162-064-0 04 1 0105-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0105-
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 04 1 0105-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FORWARD 		1-51172-081-0 02 1 0408-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FORWARD,REARWARD 		1-51172-088-0 04 1 0105-0407
188 RUBBER; CLAMP,U-BOLT,FRT SPR
REARWARD 		1-51172-088-0 02 1 0408-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0105-
197 PIN; FRT SPR,FRT 1-51161-031-0 12 1 0105-
201 NUT; PIN LK
(A) M24 		9-99110-424-0 02 1 0105-
201 NUT; PIN LK
(B) M12 		9-99110-512-0 24 1 0105-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0105-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0105-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0105-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 08 1 0105-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0105-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0105-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 09 1 0105-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 03 1 0105-
425 SEAL; DUST 1-51177-321-0 08 1 0105-
