◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#27750) — 23 parça

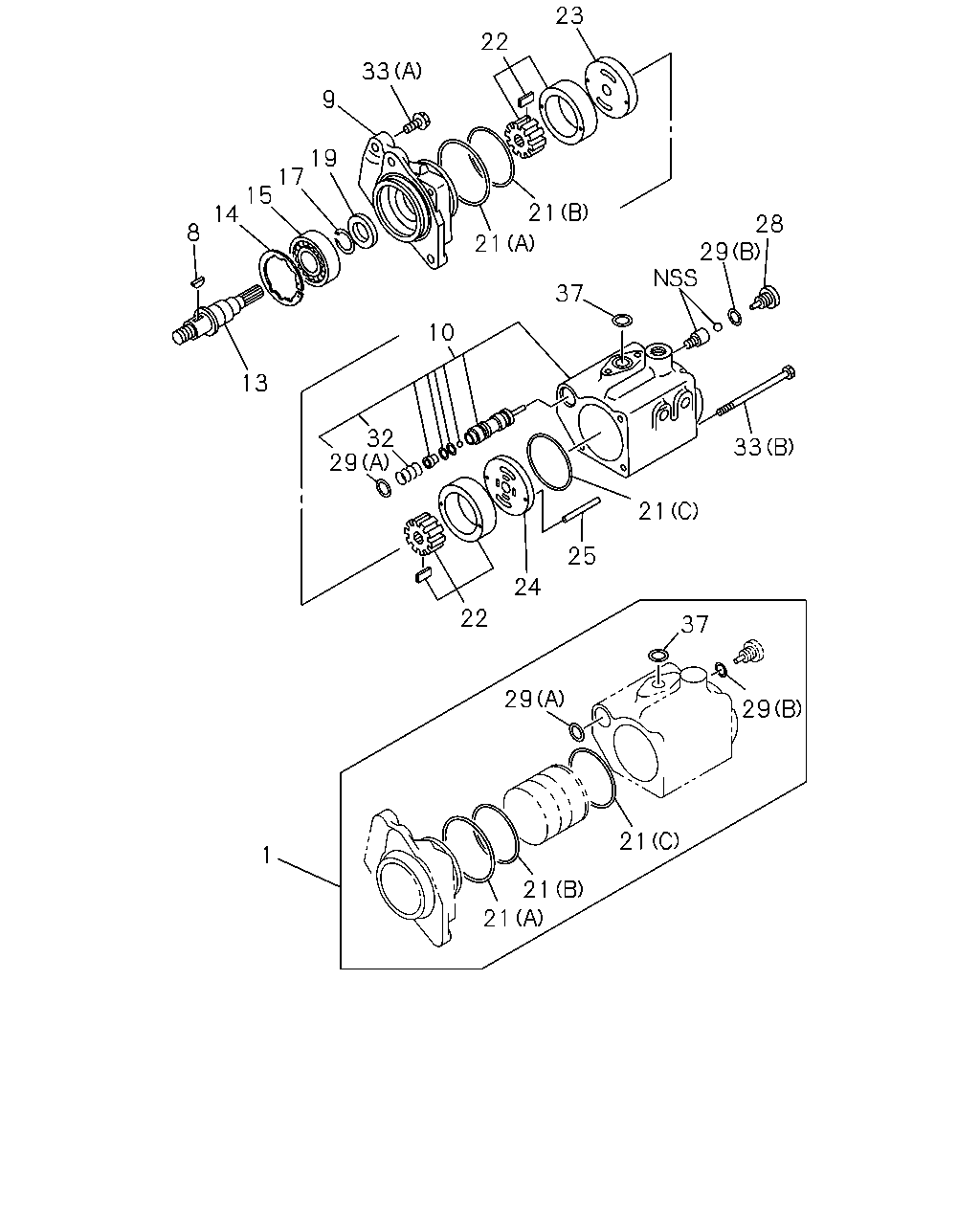

çizim 80794
23 22 33 9 19 17 15 14 21 28 29 8 21 37 10 13 32 29 33 21 25 24 22 37 29 29 21 1 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-505-2 		1-85574-032-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-505-2 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19511-175-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19511-140-1 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-505-2 		1-19521-032-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19519-172-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19515-004-0 01 1 -
17 RING; RET
ASM PART: A = 1-19500-505-2 		1-19519-094-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19519-252-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-505-2 		1-19519-290-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: A = 1-19500-505-2 		1-19519-295-0 01 1 -
21 GASKET; FRT COVER TO BODY
(C) ASM PART: A = 1-19500-505-2 		1-19519-296-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19519-322-0 02 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19519-282-1 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-505-2 		1-19515-015-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-505-2 		1-33739-594-0 02 1 -
28 PLUG; DRAIN,OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19519-297-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 1-19500-505-2 		1-19519-289-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 1-19500-505-2 		1-19519-298-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19519-288-0 01 1 -
33 BOLT; COVER
(A) ASM PART: A = 1-19500-505-2 		1-19519-243-0 01 1 -
33 BOLT; COVER
(B) ASM PART: A = 1-19500-505-2 		1-19519-291-0 03 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-505-2 		1-19519-292-0 01 1 -
