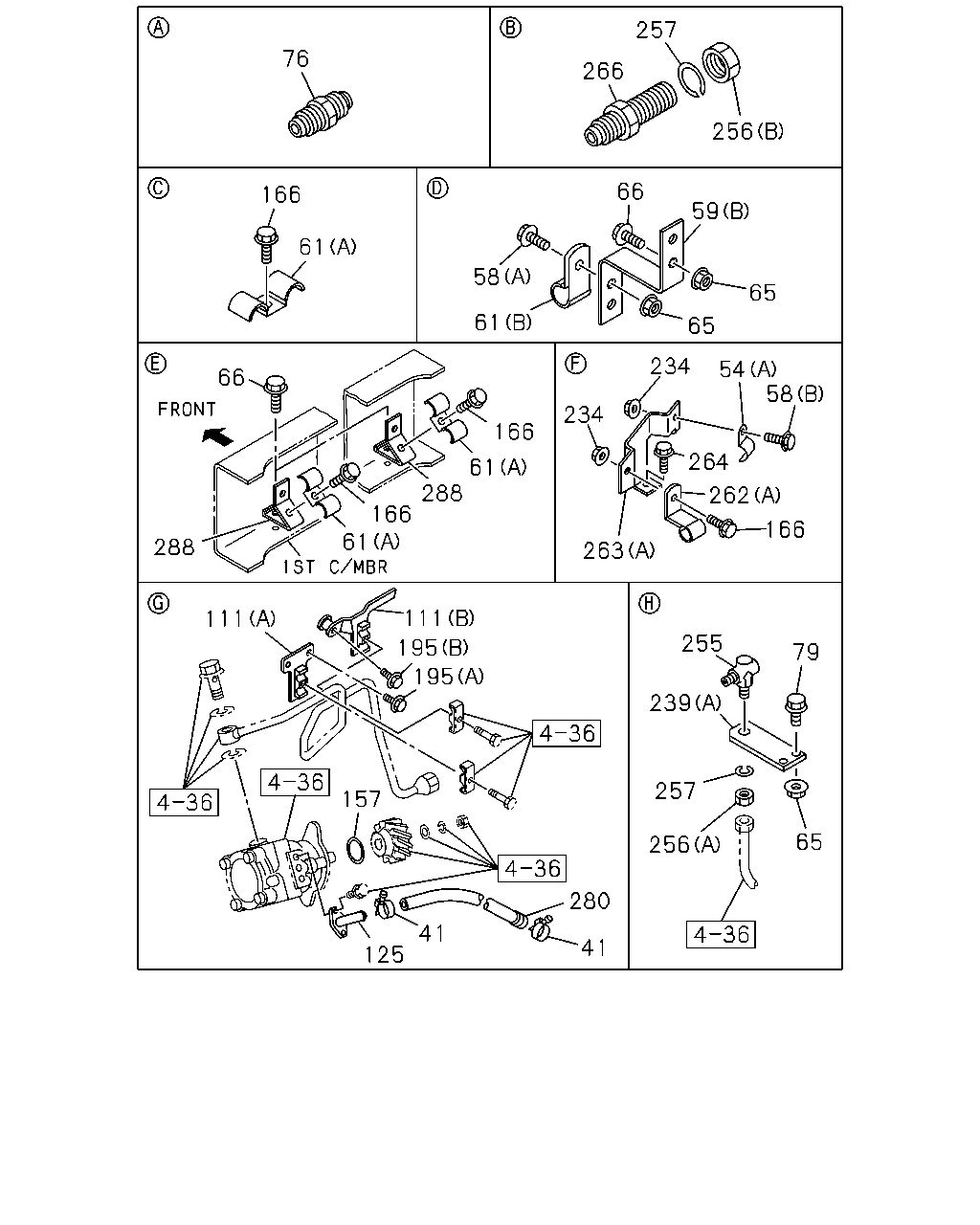

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#27747) — 152 parça

257 76 266 256 66 166 59 61 58 65 61 65 234 54 58 66 234 166 264 61 288 262 166 61 166 288 263 111 111 255 195 79 195 239 257 157 65 256 280 41 41 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0105-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	9-09535-236-0	04	1	0105-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28080-850-0	02	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-963-1	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (C)	1-47479-033-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-47477-833-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-47477-145-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0105-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0105-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0105-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0105-
125	CONNECTOR; P/S PUMP	1-13313-533-0	01	1	0105-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0105-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-
239	BRACKET; FLEX HOSE (A)	1-47476-679-4	01	1	0105-
239	BRACKET; FLEX HOSE (B)	1-47478-218-0	01	1	0105-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0105-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0105-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0105-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0105-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0105-

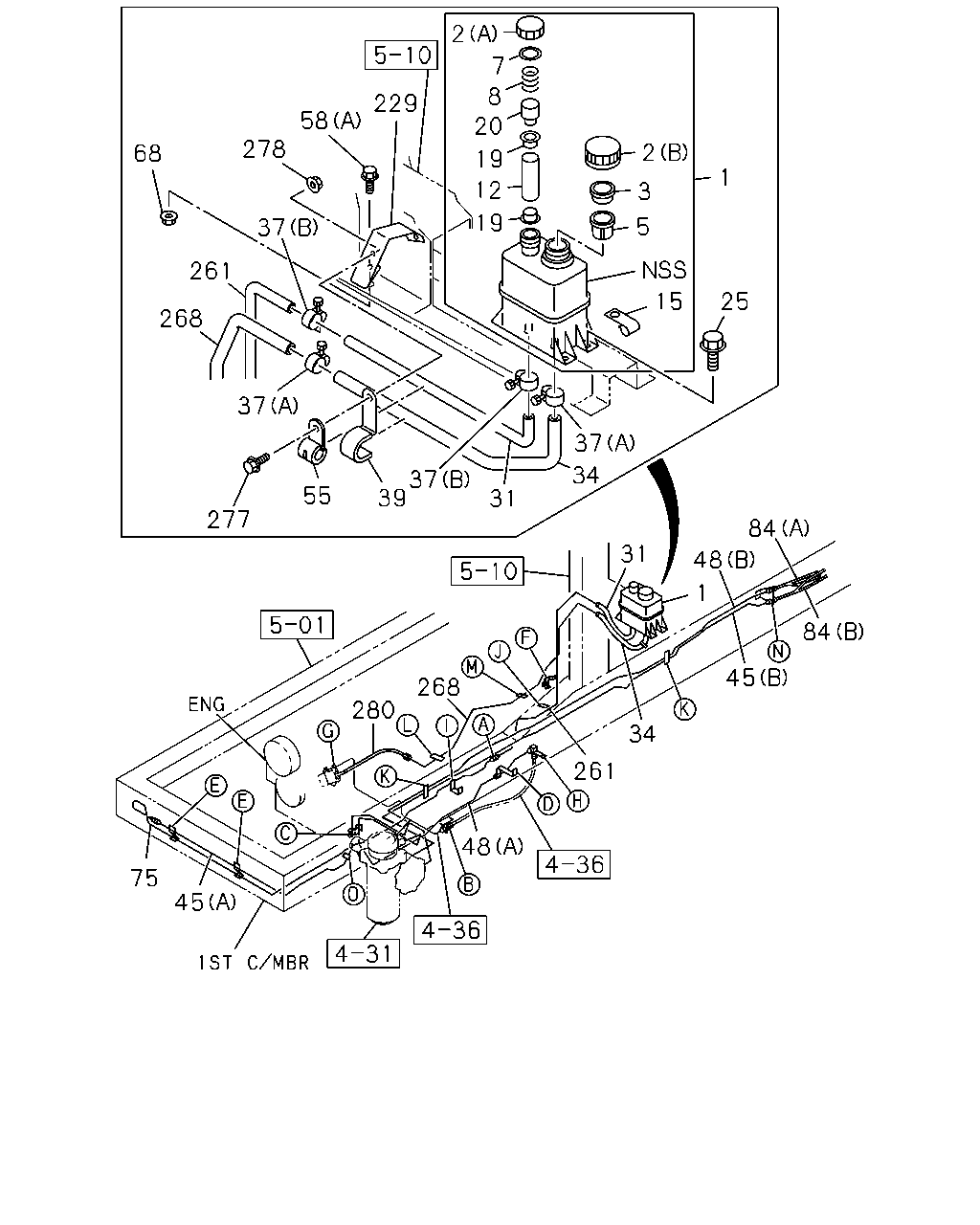

2 7 8 20 229 58 278 2 68 19 1 12 3 19 5 37 261 15 25 268 37 37 34 37 39 55 31 277 84 31 48 1 84 45 268 280 34 261 48 75 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0105-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0105-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-835-0	01	1	0105-0407
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21117-586-0	01	1	0408-
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21116-837-0	01	1	0105-0407
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21117-587-0	01	1	0408-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	1-21116-470-0	01	1	0105-0108
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	1-21117-132-0	01	1	0109-0407
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21117-588-0	01	1	0408-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21116-838-0	01	1	0105-0105
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21117-059-0	01	1	0106-0407
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	1-21117-585-0	01	1	0408-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0105-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28080-850-0	02	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION	1-21116-836-0	01	1	0105-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0105-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0105-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0105-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21116-854-0	01	1	0105-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0105-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-

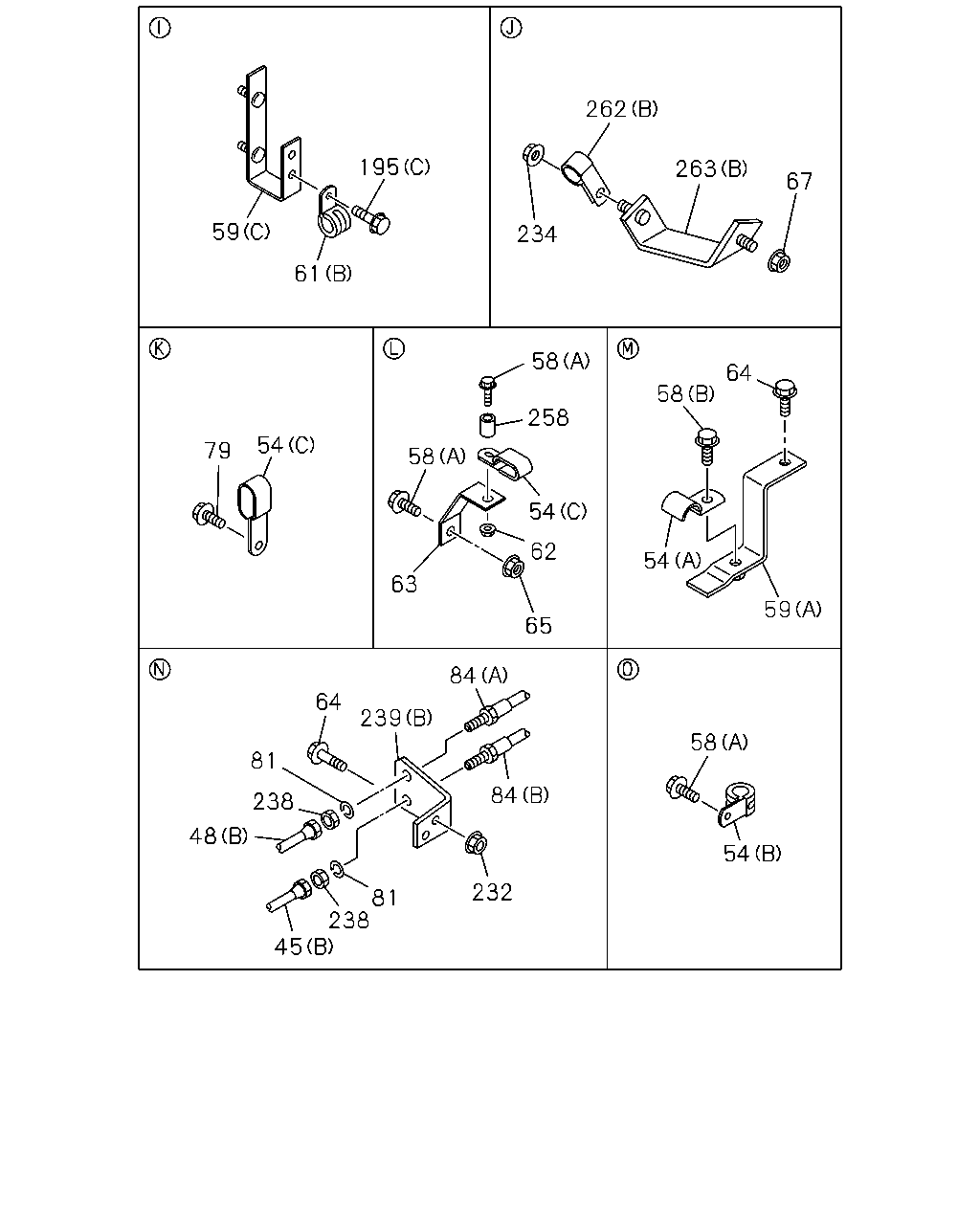

262 195 263 67 59 234 61 58 64 58 258 54 79 58 54 62 54 63 59 65 84 64 239 58 81 84 238 48 54 232 81 238 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-835-0	01	1	0105-0407
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21117-586-0	01	1	0408-
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21116-837-0	01	1	0105-0407
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21117-587-0	01	1	0408-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	1-21116-470-0	01	1	0105-0108
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	1-21117-132-0	01	1	0109-0407
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21117-588-0	01	1	0408-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21116-838-0	01	1	0105-0105
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21117-059-0	01	1	0106-0407
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	1-21117-585-0	01	1	0408-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	9-09535-236-0	04	1	0105-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28080-850-0	02	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-963-1	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (C)	1-47479-033-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-47477-833-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-47477-145-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0105-
63	BRACKET; CLIP,P/S	1-47478-371-0	02	1	0105-
64	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	01	1	0105-
64	BOLT; CLIP BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	01	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	0105-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0105-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0105-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0105-
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-
238	NUT; FLEX HOSE M20	9-99111-420-0	02	1	0105-
239	BRACKET; FLEX HOSE (A)	1-47476-679-4	01	1	0105-
239	BRACKET; FLEX HOSE (B)	1-47478-218-0	01	1	0105-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	02	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
