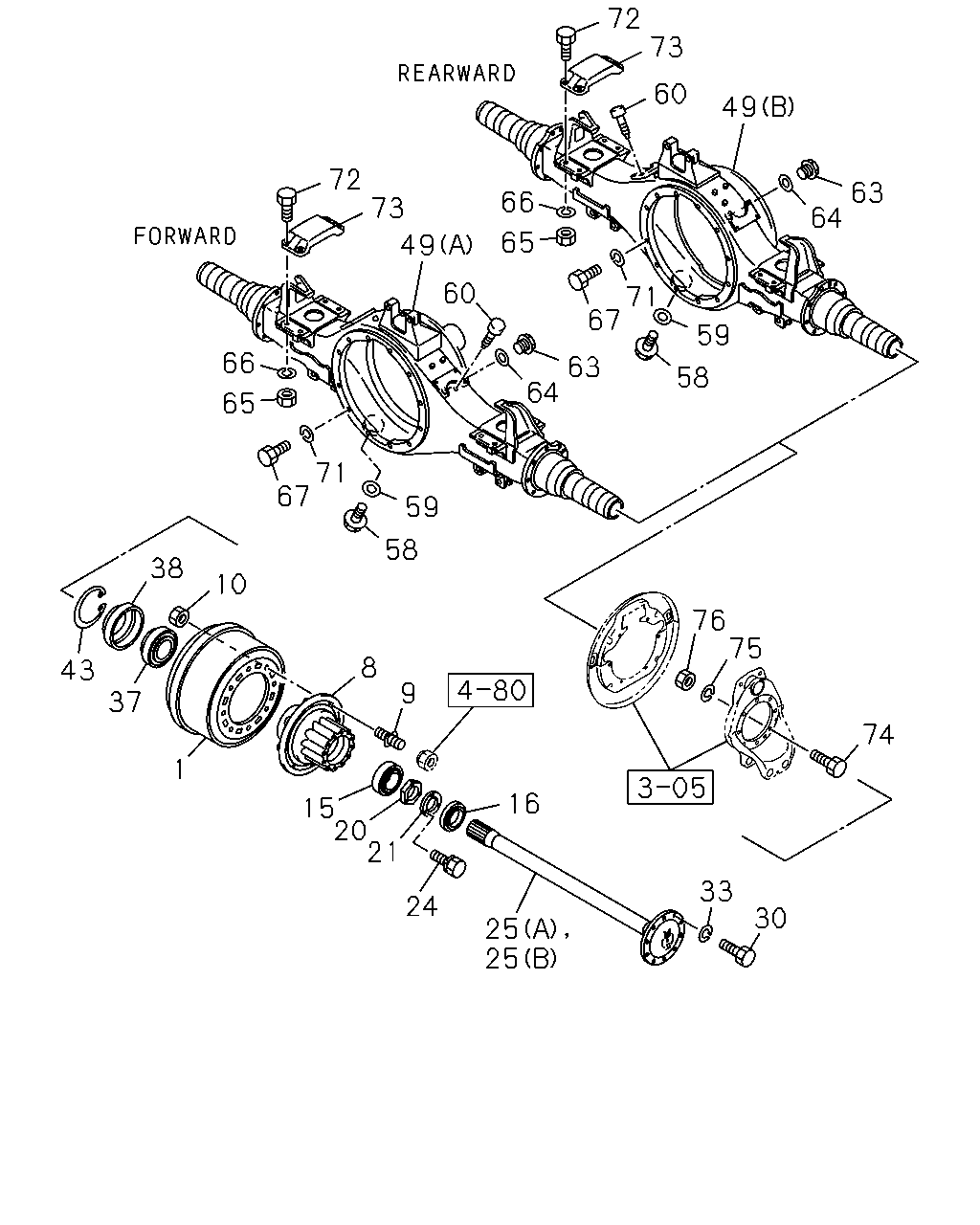

4-20 — REAR AXLE CASE AND SHAFT (#27742) — 115 parça

72 73 60 49 72 73 63 64 66 65 49 71 67 60 59 66 63 64 58 65 71 67 59 58 38 10 76 75 8 43 9 37 74 1 16 15 20 21 33 24 30 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> HEAVY DUTY BRAKE SYSTEM(WG3)	1-42315-324-0	02	1	0205-
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> HEAVY DUTY BRAKE SYSTEM(WG3)	1-42315-324-0	02	1	0205-
1	DRUM; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-42315-220-4	02	1	0105-
1	DRUM; BRK,RR EXC. HEAVY DUTY BRAKE SYSTEM(WG3)	1-42315-220-4	02	1	0105-
1	DRUM; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3)	1-42315-264-3	02	1	0105-0204
1	DRUM; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3)	1-42315-264-3	02	1	0105-0204
1	DRUM; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-264-3	02	1	0205-
1	DRUM; BRK,RR HEAVY DUTY BRAKE SYSTEM(WG3) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42315-264-3	02	1	0205-
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B>	1-42311-085-0	02	1	0205-
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B>	1-42311-085-0	02	1	0205-
8	HUB; RR AXLE	1-42331-143-0	02	1	0105-0204
8	HUB; RR AXLE	1-42331-143-0	02	1	0105-0204
8	HUB; RR AXLE REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42331-143-0	02	1	0205-
8	HUB; RR AXLE REAR AXLE RT210<C2A>,REAR AXLE RT260<C2B> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42331-143-0	02	1	0205-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0205-0208
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0205-0208
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0205-0208
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0205-0208
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M22X59.8,M22X53.5 RH THREAD	1-42337-069-0	20	1	0209-0302
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> M22X59.8,M22X53.5 RH THREAD	1-42337-069-0	20	1	0209-0302
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M22X59.8,M22X53.5 RH THREAD	1-42337-069-0	20	1	0209-0302
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) M22X59.8,M22X53.5 RH THREAD	1-42337-069-0	20	1	0209-0302
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0303-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0303-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0303-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0303-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> HEAVY DUTY BRAKE SYSTEM(WG3) M22X93 RH THREAD	1-42337-030-0	20	1	0205-0302
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> HEAVY DUTY BRAKE SYSTEM(WG3) M22X93 RH THREAD	1-42337-030-0	20	1	0205-0302
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> HEAVY DUTY BRAKE SYSTEM(WG3) M22X93 RH THREAD	1-42337-066-2	20	1	0303-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> HEAVY DUTY BRAKE SYSTEM(WG3) M22X93 RH THREAD	1-42337-066-2	20	1	0303-
9	PIN; WHEEL,RR AXLE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	0105-0302
9	PIN; WHEEL,RR AXLE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M22X57,M22X53.5 RH THREAD	1-42337-055-0	20	1	0105-0302
9	PIN; WHEEL,RR AXLE REAR AXLE RT210<C2A> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,LOAD SENSING PROPORTIONING VALVE<JR7> M22X57,M22X53.5 RH THREAD	1-42337-055-1	20	1	0303-
9	PIN; WHEEL,RR AXLE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X57,M22X53.5 RH THREAD	1-42337-055-1	20	1	0303-
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) M22X57,M22X53.5 RH THREAD	1-42337-055-1	20	1	0303-
9	PIN; WHEEL,RR AXLE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,HEAVY DUTY BRAKE SYSTEM(WG3) M22X57,M22X53.5 RH THREAD	1-42337-055-1	20	1	0303-
9	PIN; WHEEL,RR AXLE HEAVY DUTY BRAKE SYSTEM(WG3) M22X52,M22X51.5 RH THREAD	1-42337-050-0	20	1	0105-0204
9	PIN; WHEEL,RR AXLE HEAVY DUTY BRAKE SYSTEM(WG3) M22X52,M22X51.5 RH THREAD	1-42337-050-0	20	1	0105-0204
9	PIN; WHEEL,RR AXLE HEAVY DUTY BRAKE SYSTEM(WG3) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X52,M22X51.5 RH THREAD	1-42337-050-1	20	1	0205-
9	PIN; WHEEL,RR AXLE HEAVY DUTY BRAKE SYSTEM(WG3) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X52,M22X51.5 RH THREAD	1-42337-050-1	20	1	0205-
10	NUT; WHEEL PIN,RR AXLE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M22	1-09400-071-0	20	1	0105-
10	NUT; WHEEL PIN,RR AXLE EXC. HEAVY DUTY BRAKE SYSTEM(WG3) M22	1-09400-071-0	20	1	0105-
10	NUT; WHEEL PIN,RR AXLE HEAVY DUTY BRAKE SYSTEM(WG3) M22 FLANGE	1-09440-065-0	20	1	0105-0204
10	NUT; WHEEL PIN,RR AXLE HEAVY DUTY BRAKE SYSTEM(WG3) M22 FLANGE	1-09440-065-0	20	1	0105-0204
10	NUT; WHEEL PIN,RR AXLE HEAVY DUTY BRAKE SYSTEM(WG3) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	20	1	0205-
10	NUT; WHEEL PIN,RR AXLE HEAVY DUTY BRAKE SYSTEM(WG3) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	20	1	0205-
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	0105-
15	BEARING; HUB OUTER,RR AXLE KOYO	1-09812-232-0	02	1	0105-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0105-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0105-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0105-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	0105-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0105-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0105-
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0105-
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0105-
25	SHAFT; AXLE,RR (B) L=976	1-42171-356-0	01	1	0105-
25	SHAFT; AXLE,RR (B) L=976	1-42171-356-0	01	1	0105-
25	SHAFT; AXLE,RR (A) L=1106	1-42171-357-0	01	1	0105-
25	SHAFT; AXLE,RR (A) L=1106	1-42171-357-0	01	1	0105-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0105-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0105-
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0105-
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0105-
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	0105-
37	BEARING; HUB INNER,RR AXLE KOYO	1-09812-233-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0105-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0105-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0105-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0105-
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD	1-42190-363-0	01	1	0303-
49	CASE; RR AXLE REAR AXLE RT210<C2A> (B) REARWARD	1-42160-976-1	01	1	0105-0302
49	CASE; RR AXLE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> (B) REARWARD	1-42160-976-1	01	1	0303-
49	CASE; RR AXLE REAR AXLE RT210<C2A> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (A) FORWARD	1-42160-934-1	01	1	0105-
49	CASE; RR AXLE REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) (B) REARWARD	1-42190-274-0	01	1	0105-0302
49	CASE; RR AXLE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> HEAVY DUTY BRAKE SYSTEM(WG3) (B) REARWARD	1-42190-274-0	01	1	0303-
49	CASE; RR AXLE REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B) REARWARD	1-42160-977-1	01	1	0105-0302
49	CASE; RR AXLE POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. HEAVY DUTY BRAKE SYSTEM(WG3) (B) REARWARD	1-42160-977-1	01	1	0303-
49	CASE; RR AXLE REAR AXLE RT260<C2B> LOAD SENSING PROPORTIONING VALVE<JR7> HEAVY DUTY BRAKE SYSTEM(WG3) (A) FORWARD	1-42190-271-0	01	1	0105-
49	CASE; RR AXLE REAR AXLE RT260<C2B> EXC. LOAD SENSING PROPORTIONING VALVE<JR7>,HEAVY DUTY BRAKE SYSTEM(WG3) (A) FORWARD	1-42160-935-1	01	1	0105-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0105-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0105-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0105-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0105-
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	0105-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0105-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0105-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0105-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0105-
65	NUT M14	9-99110-514-0	08	1	0105-
65	NUT M14	9-99110-514-0	08	1	0105-
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0105-
66	WASHER; LK ID=14.2	9-09150-814-0	08	1	0105-
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0105-
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	0105-
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	0105-
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	0105-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0105-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0105-
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0105-
72	BOLT; PAD FIX M14X45	9-92061-445-0	08	1	0105-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0105-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	0105-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0105-
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0105-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0105-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0105-
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0105-
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0105-

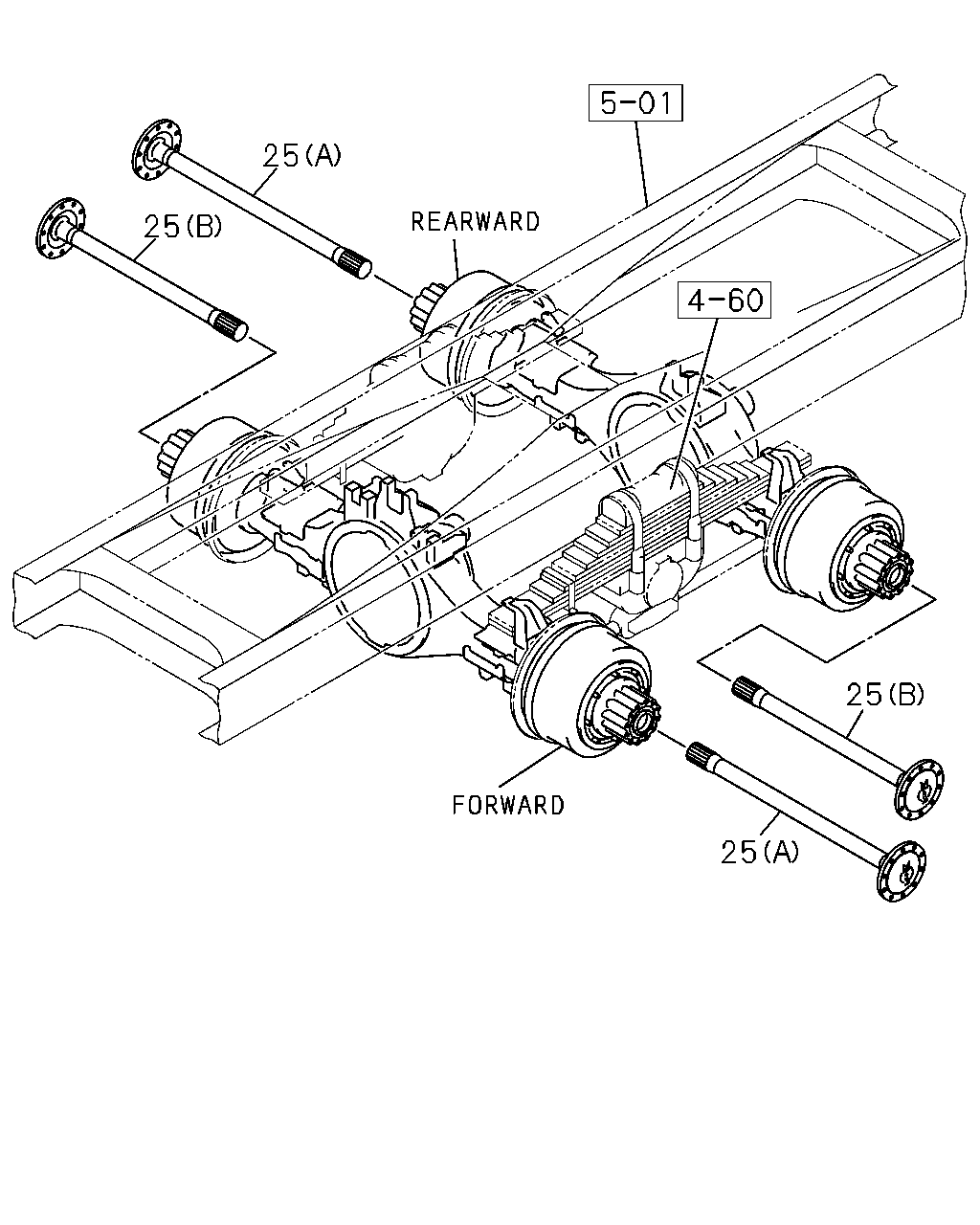

25 25 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SHAFT; AXLE,RR (B) L=976	1-42171-356-0	01	1	0105-
25	SHAFT; AXLE,RR (B) L=976	1-42171-356-0	01	1	0105-
25	SHAFT; AXLE,RR (A) L=1106	1-42171-357-0	01	1	0105-
25	SHAFT; AXLE,RR (A) L=1106	1-42171-357-0	01	1	0105-
