◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#27739) — 202 parça

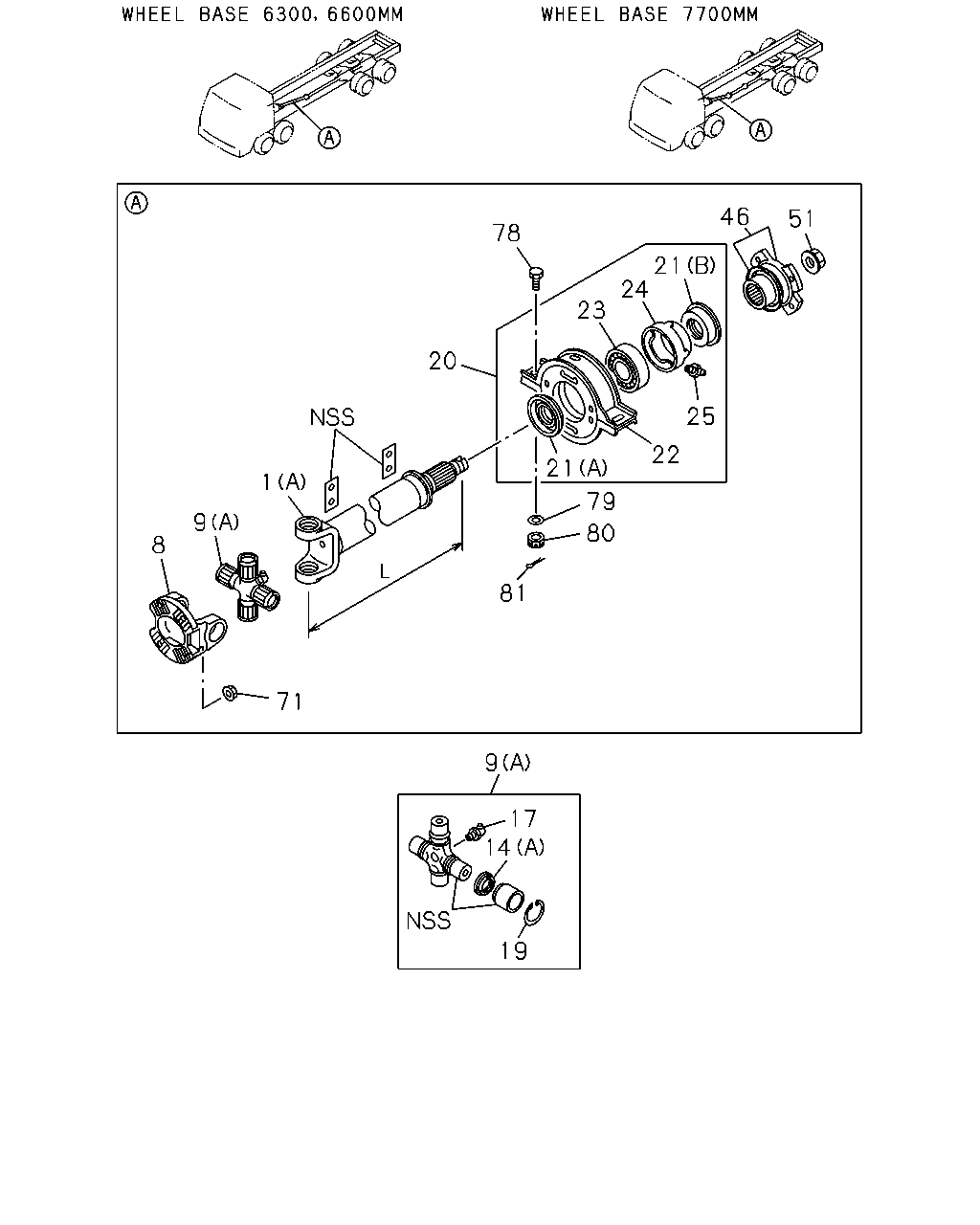

çizim 79107
46 51 78 21 24 23 20 25 22 21 1 79 9 80 8 81 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) END L=1494 		1-37124-622-0 01 1 0105- ●
1 SHAFT; PROP
ENGINE REAR PTO HEAVY DUTY(NJU) (A) 1ST L=843 		1-37153-086-0 01 1 0105- ●
1 SHAFT; PROP
EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (A) 1ST L=913 		1-37153-085-0 01 1 0105- ●
1 SHAFT; PROP
(B) END L=1394 		1-37124-963-0 01 1 0105-0302 ●
1 SHAFT; PROP
(B) END L=1394 		1-37124-963-0 01 1 0303- ● ●
1 SHAFT; PROP
(A) 1ST L=1343 		1-37153-087-0 01 1 0105-0302 ●
1 SHAFT; PROP
(A) 1ST L=1343 		1-37153-087-0 01 1 0303- ● ●
1 SHAFT; PROP
(C) 2ND L=1073 		1-37152-908-0 01 1 0303- ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-079-0 01 1 0105-0302 ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST,2ND 		1-37211-079-1 01 1 0303- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST,2ND 		1-37211-079-1 01 1 0303- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-079-0 02 1 0105-0302 ● ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-079-1 02 1 0303- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0105-0302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-110-0 01 1 0303-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-110-0 01 1 0303-0304 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-111-0 01 1 0305- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0105-0302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0303- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0105- ● ● ●
14 COVER; DUST,SPIDER
(A) 1ST,END 		1-37249-131-0 AR 1 0105-0302 ● ●
14 COVER; DUST,SPIDER
(A) 1ST,2ND,END 		1-37249-131-0 AR 1 0303- ● ● ●
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 AR 1 0105- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0105-0302 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0303- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST,END T=2.2 		1-09587-102-1 AR 1 0105-0302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST,2ND,END T=2.2 		1-09587-102-1 AR 1 0303- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST ID=60 		1-37510-115-0 01 1 0105-0302 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND ID=60 		1-37510-115-0 01 1 0303- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND ID=60 		1-37510-115-0 01 1 0303- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0105-0302 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0303- ● ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0303- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0105-0302 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0303- ● ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0303- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
1ST 		1-37516-048-2 01 1 0105-0302 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
1ST,2ND 		1-37516-048-2 01 1 0303- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
1ST,2ND 		1-37516-048-2 01 1 0303- ●
23 BEARING; CENTER,PROP SHAFT
1ST 		9-00090-256-0 01 1 0105-0302 ● ●
23 BEARING; CENTER,PROP SHAFT
1ST,2ND 		9-00090-256-0 01 1 0303- ● ● ●
23 BEARING; CENTER,PROP SHAFT
1ST,2ND 		9-00090-256-0 01 1 0303- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-109-0 01 1 0105-0302 ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		1-37529-109-0 01 1 0303- ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		1-37529-109-0 01 1 0303- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0105-0302 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0303- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0303- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-348-0 01 1 0105-0302 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		1-37245-348-0 01 1 0303- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		1-37245-348-0 01 1 0303- ●
51 NUT; FLANGE,SPLINED
1ST M39 FLANGE 		1-09440-046-0 01 1 0105-0302 ● ●
51 NUT; FLANGE,SPLINED
1ST,2ND M39 FLANGE 		1-09440-046-0 01 1 0303- ● ● ●
51 NUT; FLANGE,SPLINED
1ST,2ND M39 FLANGE 		1-09440-046-0 01 1 0303- ●
71 NUT; YOKE
1ST M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
1ST M16X45 		1-09042-030-0 02 1 0105- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
1ST ID=17 		1-09503-241-1 02 1 0105- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
1ST M16 SLOTTED 		9-99116-516-0 02 1 0105- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
1ST OD=3.7 L=25 		9-08114-025-0 02 1 0105- ● ● ●

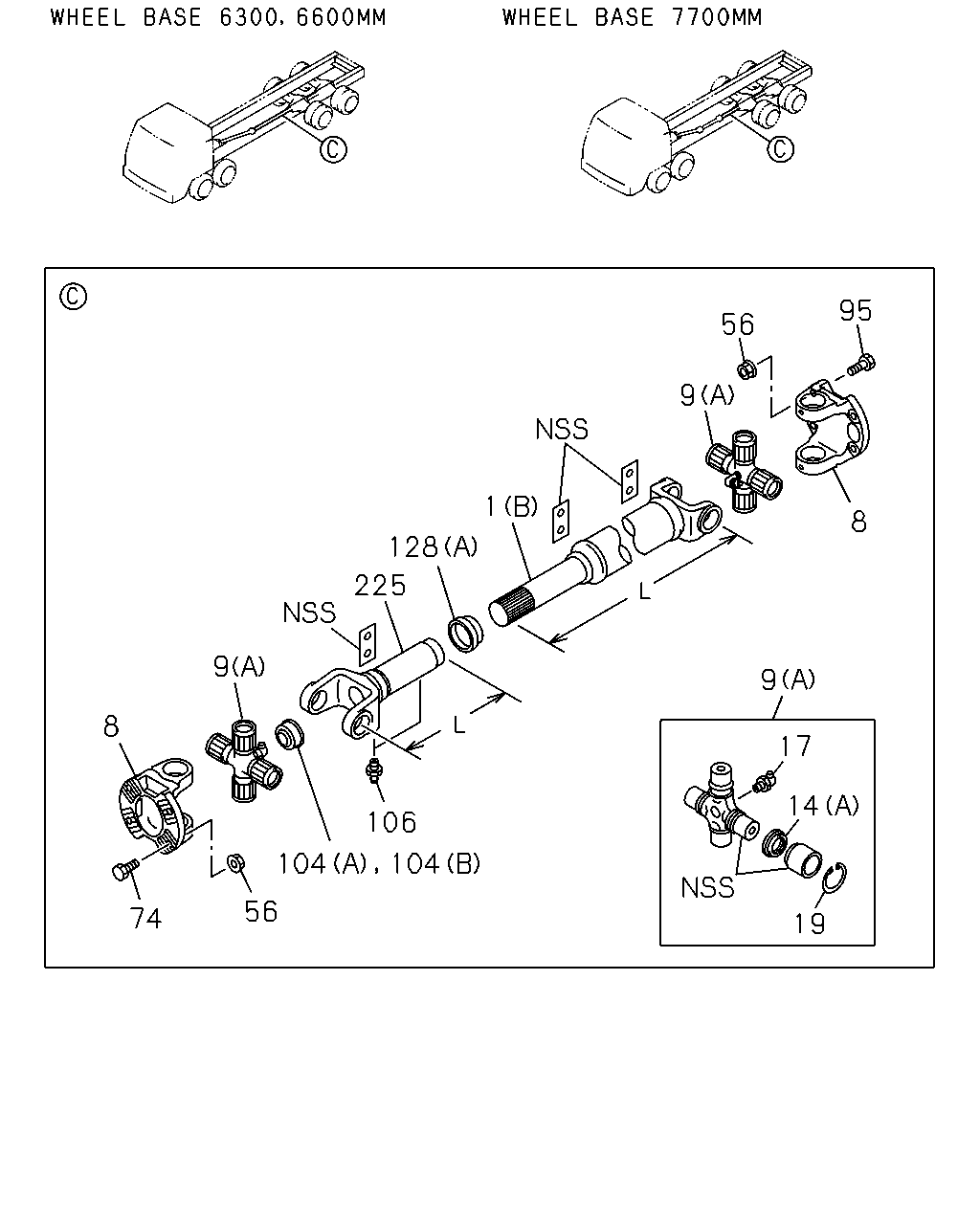

çizim 82972
95 56 9 1 8 128 225 9 8 17 14 106 104 104 56 74 19 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) END L=1494 		1-37124-622-0 01 1 0105- ●
1 SHAFT; PROP
ENGINE REAR PTO HEAVY DUTY(NJU) (A) 1ST L=843 		1-37153-086-0 01 1 0105- ●
1 SHAFT; PROP
EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (A) 1ST L=913 		1-37153-085-0 01 1 0105- ●
1 SHAFT; PROP
(B) END L=1394 		1-37124-963-0 01 1 0105-0302 ●
1 SHAFT; PROP
(B) END L=1394 		1-37124-963-0 01 1 0303- ● ●
1 SHAFT; PROP
(A) 1ST L=1343 		1-37153-087-0 01 1 0105-0302 ●
1 SHAFT; PROP
(A) 1ST L=1343 		1-37153-087-0 01 1 0303- ● ●
1 SHAFT; PROP
(C) 2ND L=1073 		1-37152-908-0 01 1 0303- ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-079-0 01 1 0105-0302 ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST,2ND 		1-37211-079-1 01 1 0303- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST,2ND 		1-37211-079-1 01 1 0303- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-079-0 02 1 0105-0302 ● ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-079-1 02 1 0303- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0105-0302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-110-0 01 1 0303-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-110-0 01 1 0303-0304 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-111-0 01 1 0305- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0105-0302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0303- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0105- ● ● ●
14 COVER; DUST,SPIDER
(A) 1ST,END 		1-37249-131-0 AR 1 0105-0302 ● ●
14 COVER; DUST,SPIDER
(A) 1ST,2ND,END 		1-37249-131-0 AR 1 0303- ● ● ●
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 AR 1 0105- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0105-0302 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0303- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST,END T=2.2 		1-09587-102-1 AR 1 0105-0302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST,2ND,END T=2.2 		1-09587-102-1 AR 1 0303- ● ● ●
56 NUT; YOKE
END M14 FLANGE 		1-09440-048-0 08 1 0105- ● ● ●
74 BOLT; YOKE,TRANS
END M14X50 		1-09000-645-0 04 1 0105-0302 ● ● ●
74 BOLT; YOKE,TRANS
2ND,END M14X50 		1-09000-645-0 04 1 0303- ● ● ●
74 BOLT; YOKE,TRANS
2ND,END M14X50 		1-09000-645-0 04 1 0303- ●
95 BOLT; YOKE,FINAL
END M14X50 		1-09000-645-0 04 1 0105- ● ● ●
104 PLUG; SLEEVE YOKE
(B) REAR 		1-09600-049-0 01 1 0105- ● ● ●
104 PLUG; SLEEVE YOKE
(A) END 		1-09600-067-0 01 1 0105-0302 ● ●
104 PLUG; SLEEVE YOKE
(A) END 		1-09600-067-0 01 1 0303- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END,REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0302 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END,REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0302 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END,REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0303- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END,REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0303- ● ● ●
128 SEAL; SLEEVE
(B) REAR 		1-37247-006-0 01 1 0105-0312 ● ● ●
128 SEAL; SLEEVE
(B) REAR 		8-97603-618-0 01 1 0401- ● ● ●
128 SEAL; SLEEVE
(A) END 		1-37247-019-0 01 1 0105-0302 ● ●
128 SEAL; SLEEVE
(A) END 		1-37247-019-0 01 1 0303- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
END L=330 		1-37241-124-0 01 1 0105-0302 ● ●
225 YOKE; SLEEVE,PROP SHAFT
END L=330 		1-37241-124-0 01 1 0303- ● ● ●

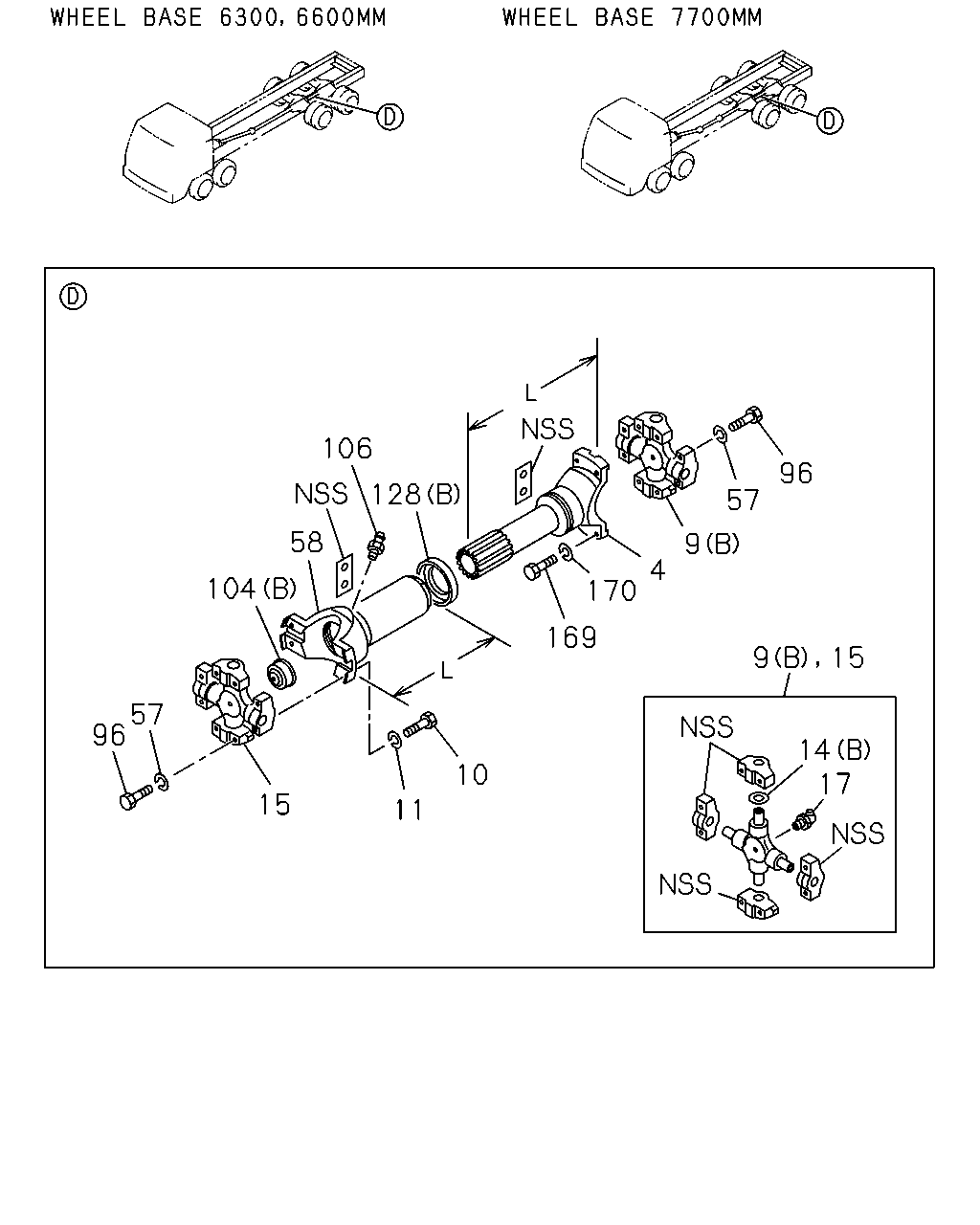

çizim 82973
106 96 128 57 58 9 4 170 104 169 9 15 57 96 14 17 10 15 11
BalonParca AdiParca NoAdetTipApplied Date A B C
4 SHAFT; PROP
REAR L=348 		1-37171-127-2 01 1 0105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0105-0302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-110-0 01 1 0303-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-110-0 01 1 0303-0304 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-111-0 01 1 0305- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0105-0302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0303- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0105- ● ● ●
10 BOLT; UJT
REAR M12X45 		9-91066-245-0 04 1 0105- ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
REAR ID=12.2 		9-09150-612-0 04 1 0105- ● ● ●
14 COVER; DUST,SPIDER
(A) 1ST,END 		1-37249-131-0 AR 1 0105-0302 ● ●
14 COVER; DUST,SPIDER
(A) 1ST,2ND,END 		1-37249-131-0 AR 1 0303- ● ● ●
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 AR 1 0105- ● ● ●
15 UNIVERSAL CENTER
REAR 		1-37300-100-1 01 1 0105- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0105-0302 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0303- ● ● ●
57 WASHER; LK,YOKE
REAR ID=12.2 		9-09150-612-0 08 1 0105- ● ● ●
58 FLANGE; SPLINED
REAR L=265 		1-37245-317-0 01 1 0105- ● ● ●
96 BOLT; PROP SHAFT
REAR M12X45 		9-91066-245-0 08 1 0105- ● ● ●
104 PLUG; SLEEVE YOKE
(B) REAR 		1-09600-049-0 01 1 0105- ● ● ●
104 PLUG; SLEEVE YOKE
(A) END 		1-09600-067-0 01 1 0105-0302 ● ●
104 PLUG; SLEEVE YOKE
(A) END 		1-09600-067-0 01 1 0303- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END,REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0302 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END,REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0302 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END,REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0303- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END,REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0303- ● ● ●
128 SEAL; SLEEVE
(B) REAR 		1-37247-006-0 01 1 0105-0312 ● ● ●
128 SEAL; SLEEVE
(B) REAR 		8-97603-618-0 01 1 0401- ● ● ●
128 SEAL; SLEEVE
(A) END 		1-37247-019-0 01 1 0105-0302 ● ●
128 SEAL; SLEEVE
(A) END 		1-37247-019-0 01 1 0303- ● ● ●
169 BOLT; YOKE,SLEEVE
REAR M12X45 		9-91066-245-0 04 1 0105- ● ● ●
170 WASHER; LK,YOKE,SLEEVE
REAR ID=12.2 		9-09150-612-0 04 1 0105- ● ● ●
çizim 83180
20 46 51 91 21 24 23 25 22 21 1 92 9 93 8 94 49 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) END L=1494 		1-37124-622-0 01 1 0105- ●
1 SHAFT; PROP
ENGINE REAR PTO HEAVY DUTY(NJU) (A) 1ST L=843 		1-37153-086-0 01 1 0105- ●
1 SHAFT; PROP
EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (A) 1ST L=913 		1-37153-085-0 01 1 0105- ●
1 SHAFT; PROP
(B) END L=1394 		1-37124-963-0 01 1 0105-0302 ●
1 SHAFT; PROP
(B) END L=1394 		1-37124-963-0 01 1 0303- ● ●
1 SHAFT; PROP
(A) 1ST L=1343 		1-37153-087-0 01 1 0105-0302 ●
1 SHAFT; PROP
(A) 1ST L=1343 		1-37153-087-0 01 1 0303- ● ●
1 SHAFT; PROP
(C) 2ND L=1073 		1-37152-908-0 01 1 0303- ●
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-079-0 01 1 0105-0302 ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST,2ND 		1-37211-079-1 01 1 0303- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
1ST,2ND 		1-37211-079-1 01 1 0303- ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-079-0 02 1 0105-0302 ● ●
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-079-1 02 1 0303- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-110-0 01 1 0105-0302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-110-0 01 1 0303-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-110-0 01 1 0303-0304 ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 1ST,2ND 		1-37300-111-0 01 1 0305- ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0105-0302 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-110-0 02 1 0303- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0105- ● ● ●
14 COVER; DUST,SPIDER
(A) 1ST,END 		1-37249-131-0 AR 1 0105-0302 ● ●
14 COVER; DUST,SPIDER
(A) 1ST,2ND,END 		1-37249-131-0 AR 1 0303- ● ● ●
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 AR 1 0105- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0105-0302 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0303- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST,END T=2.2 		1-09587-102-1 AR 1 0105-0302 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST,2ND,END T=2.2 		1-09587-102-1 AR 1 0303- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST ID=60 		1-37510-115-0 01 1 0105-0302 ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND ID=60 		1-37510-115-0 01 1 0303- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST,2ND ID=60 		1-37510-115-0 01 1 0303- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0105-0302 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0303- ● ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0303- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0105-0302 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0303- ● ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0303- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
1ST 		1-37516-048-2 01 1 0105-0302 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
1ST,2ND 		1-37516-048-2 01 1 0303- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
1ST,2ND 		1-37516-048-2 01 1 0303- ●
23 BEARING; CENTER,PROP SHAFT
1ST 		9-00090-256-0 01 1 0105-0302 ● ●
23 BEARING; CENTER,PROP SHAFT
1ST,2ND 		9-00090-256-0 01 1 0303- ● ● ●
23 BEARING; CENTER,PROP SHAFT
1ST,2ND 		9-00090-256-0 01 1 0303- ●
24 RETAINER; CENTER BRG,1ST
1ST 		1-37529-109-0 01 1 0105-0302 ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		1-37529-109-0 01 1 0303- ● ● ●
24 RETAINER; CENTER BRG,1ST
1ST,2ND 		1-37529-109-0 01 1 0303- ●
25 NIPPLE; GREASE,CENTER BRG
1ST MT6 STRAIGHT 		1-09380-006-0 01 1 0105-0302 ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0303- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
1ST,2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0303- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		1-37245-348-0 01 1 0105-0302 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		1-37245-348-0 01 1 0303- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST,2ND 		1-37245-348-0 01 1 0303- ●
49 NUT; YOKE
2ND M14 FLANGE 		1-09440-048-0 04 1 0303- ●
51 NUT; FLANGE,SPLINED
1ST M39 FLANGE 		1-09440-046-0 01 1 0105-0302 ● ●
51 NUT; FLANGE,SPLINED
1ST,2ND M39 FLANGE 		1-09440-046-0 01 1 0303- ● ● ●
51 NUT; FLANGE,SPLINED
1ST,2ND M39 FLANGE 		1-09440-046-0 01 1 0303- ●
74 BOLT; YOKE,TRANS
END M14X50 		1-09000-645-0 04 1 0105-0302 ● ● ●
74 BOLT; YOKE,TRANS
2ND,END M14X50 		1-09000-645-0 04 1 0303- ● ● ●
74 BOLT; YOKE,TRANS
2ND,END M14X50 		1-09000-645-0 04 1 0303- ●
91 BOLT; HOLDER SET,CTR BRG
2ND M16X45 		1-09042-030-0 02 1 0303- ●
92 WASHER; LK,HOLDER SET,CTR BRG
2ND ID=17 		1-09503-241-1 02 1 0303- ●
93 NUT; HOLDER SET,CTR BRG
2ND M16 SLOTTED 		9-99116-516-0 02 1 0303- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
2ND OD=3.7 L=25 		9-08114-025-0 02 1 0303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
