3-78 — FIXING PARTS; AIR PIPING (#27736) — 157 parça

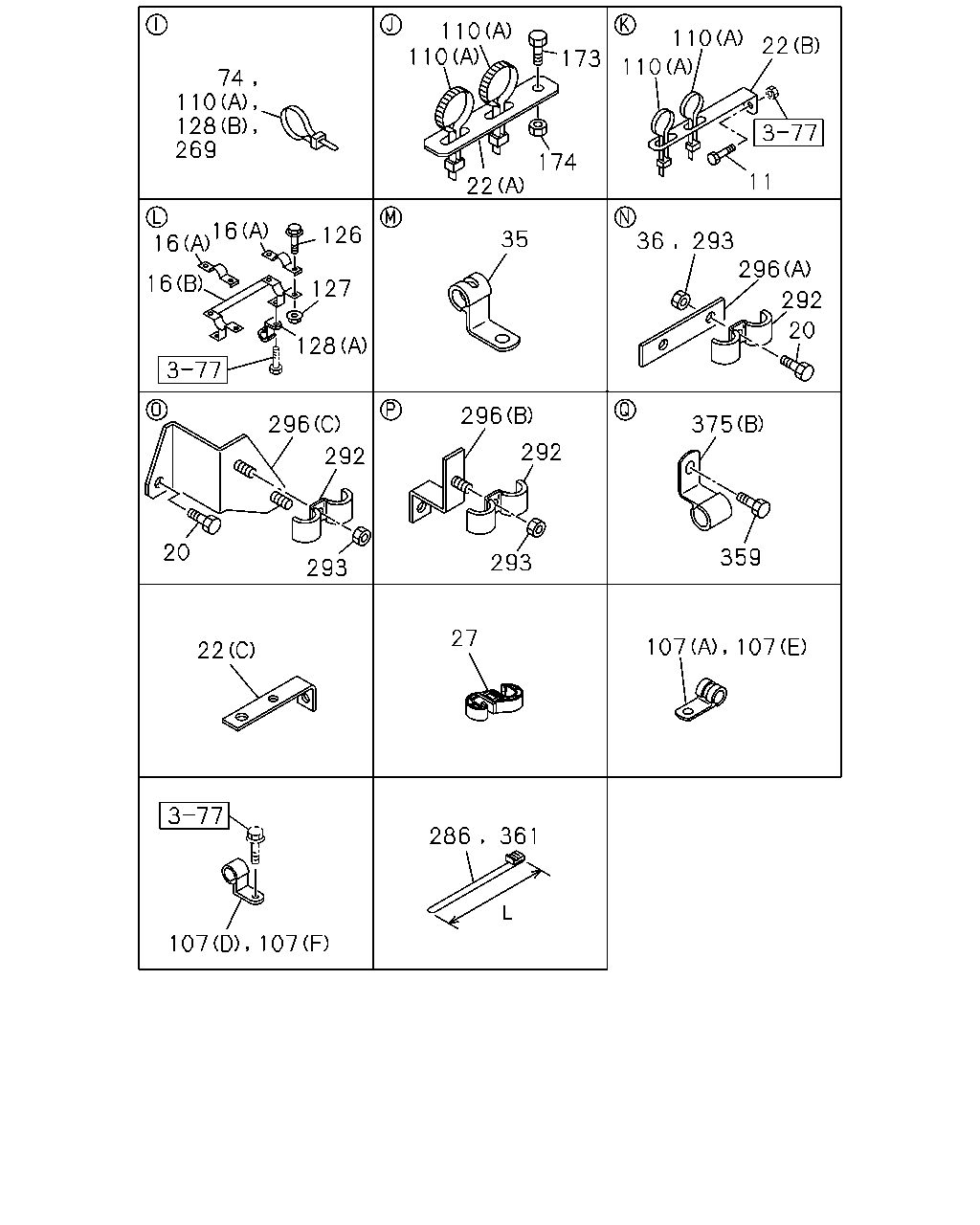

110 110 110 22 173 110 74 110 128 269 174 11 22 16 36 16 126 35 293 296 127 16 292 20 128 296 296 375 292 292 20 359 293 293 27 107 107 22 286 361 107 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0105-0304
11	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0305-
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) M8X35 FLANGE	0-28680-835-0	01	1	0305-
16	BRACKET; PIPE CLIP (A)	1-47477-743-0	04	1	0105-
16	BRACKET; PIPE CLIP (B)	1-47477-744-0	02	1	0105-
20	BOLT; CLIP EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	01	1	0303-
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	03	1	0105-
20	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	0105-0106
20	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	02	1	0107-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (B) L=100	1-47477-645-2	01	1	0305-
22	BRACKET; CLIP EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-47479-679-0	01	1	0303-
22	BRACKET; CLIP (B) L=150	1-47477-629-2	01	1	0105-
22	BRACKET; CLIP (A) L=130	1-47477-975-1	02	1	0105-
27	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	0105-
35	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106
35	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0107-
36	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106
36	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-
74	CLIP; NYLON TUBE L=250	1-09707-126-0	10	1	0105-
107	CLIP; NYLON TUBE (D) ID=22 L=32	1-09700-126-1	01	1	0105-0106
107	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
107	CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	0105-0302
107	CLIP; NYLON TUBE (F) ID=35 H=45 L=33	1-09700-947-0	01	1	0303-
107	CLIP; NYLON TUBE (E) ID=23 L=27	1-09700-946-0	01	1	0105-0106
107	CLIP; NYLON TUBE (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0105-0106
107	CLIP; NYLON TUBE (F) ID=25 H=30 L=35	1-09700-875-0	01	1	0107-
107	CLIP; NYLON TUBE (B) ID=32 L=35	1-09701-244-0	01	1	0105-0106
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=24 L=27	1-09700-809-0	01	1	0105-0106
107	CLIP; NYLON TUBE (B) ID=24 L=27	1-09700-809-0	01	1	0107-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=24 L=27	1-09700-809-0	01	1	0107-
110	CLIP; BAND,NYLON TUBE WHEEL BASE 7700MM(77W) (A) L=250	1-09707-126-0	02	1	0303-
110	CLIP; BAND,NYLON TUBE (B) ID=25 L=40	1-09700-215-1	01	1	0105-0204
110	CLIP; BAND,NYLON TUBE (B) ID=28 L=40	1-09700-995-1	01	1	0205-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	04	1	0105-0105
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	08	1	0106-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	14	1	0105-0106
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	15	1	0107-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	25	1	0105-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=250	1-09707-126-0	01	1	0109-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	08	1	0105-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-
128	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	04	1	0105-
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	08	1	0105-0109
128	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	09	1	0110-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	01	1	0105-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) L=250	1-09707-126-0	14	1	0105-0106
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6300MM(63W) L=250	1-09707-126-0	15	1	0107-
286	CLIP; NYLON TUBE L=250	5-09707-030-1	01	1	0105-0109
286	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0110-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	04	1	0105-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	08	1	0105-
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0105-
296	BRACKET; CLIP (B)	1-47477-235-0	02	1	0105-
296	BRACKET; CLIP (C)	1-47477-678-0	01	1	0105-
359	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	02	1	0105-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0105-
375	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
375	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0105-

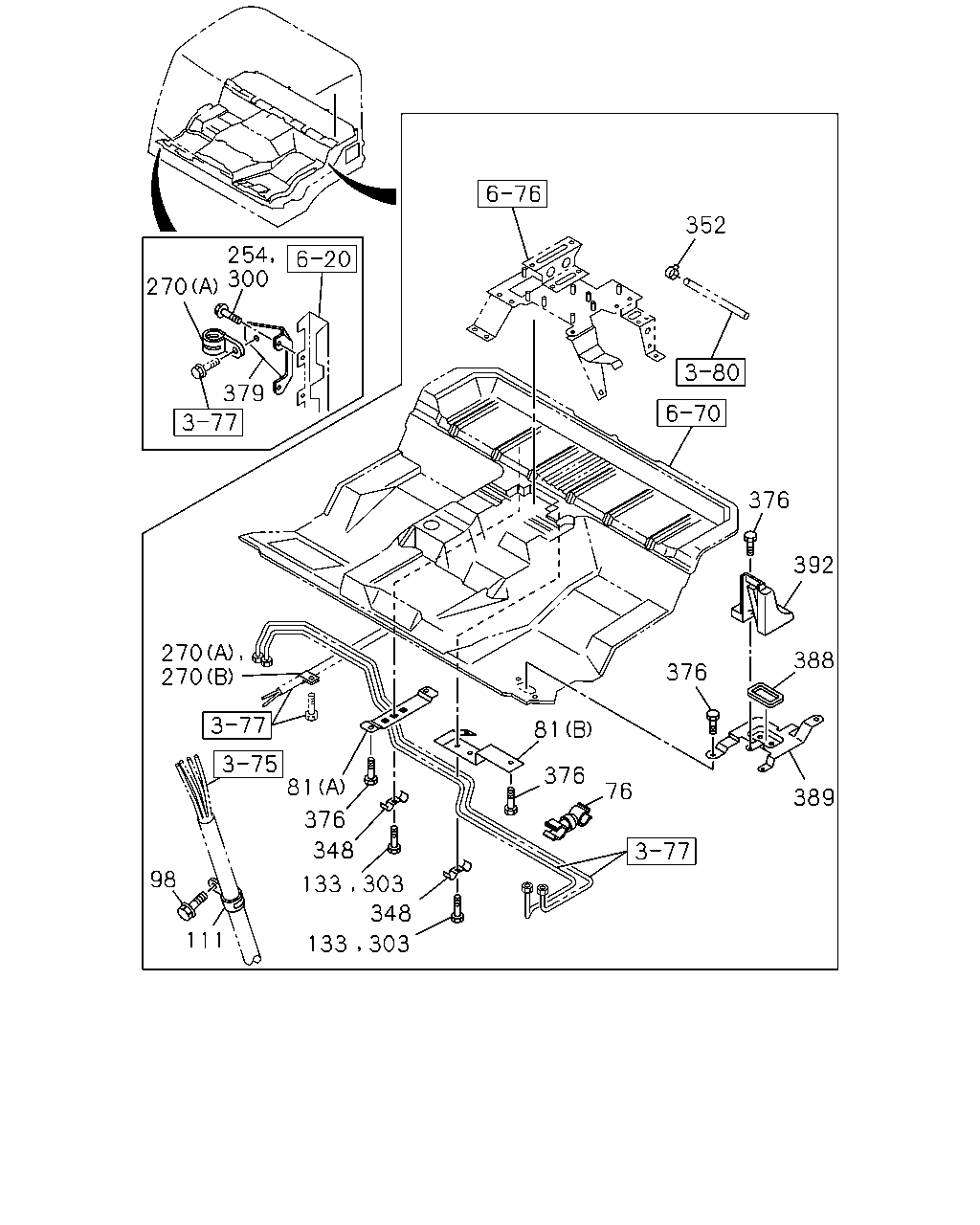

352 254 300 270 379 376 392 270 270 388 376 81 376 81 76 389 376 348 98 133 303 348 111 133 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0112
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	01	1	0201-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0105-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0105-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0110
98	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0111-
111	CLIP; AIR PIPE EXC. BUMPER W/HEADLAMPS<SLB> ID=35 L=33	1-09700-945-0	01	1	0105-0105
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0105-
133	BOLT; BRKT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	02	1	0303-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0105-0106
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-
133	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0204
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0309-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	04	1	0105-0308
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	0309-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0206-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0105-0208
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0209-0401
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0402-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	0209-0401
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	0105-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0105-0203
352	CLIP; EXH HOSE PARKING BRAKE VALVE LEVER TYPE<W48> ID=14	8-94238-572-0	02	1	0204-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0105-
388	SEAL L=215	1-79738-794-1	01	1	0105-
389	BRACKET; UNION	1-79738-790-1	01	1	0105-
392	COVER; BRKT	1-73996-264-1	01	1	0105-

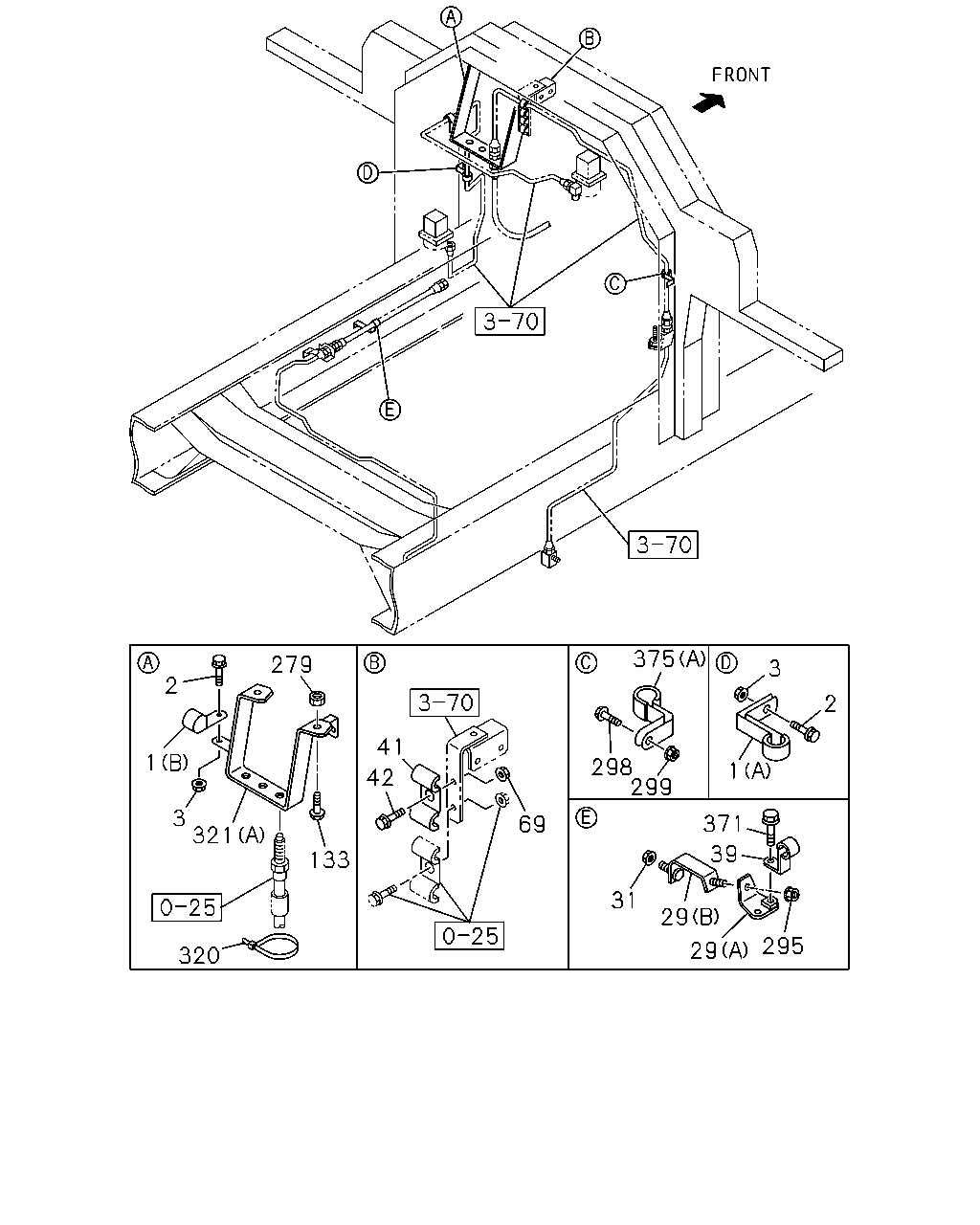

375 279 3 2 2 41 1 298 299 1 42 3 321 371 69 39 133 31 29 295 29 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
1	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0105-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0105-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
29	BRACKET; CLIP,AIR PIPE (A)	1-47478-743-0	01	1	0105-0105
29	BRACKET; CLIP,AIR PIPE (B)	1-47478-812-0	01	1	0105-0105
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0105
39	CLIP; AIR PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
41	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
42	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	01	1	0105-
69	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
133	BOLT; BRKT EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8X16 FLANGE	0-28080-816-0	02	1	0303-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0204
133	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0205-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0105-0106
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-
133	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0105-0106
279	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
298	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-
299	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0105-0105
321	BRACKET; CLIP (A)	1-47477-386-2	01	1	0105-
321	BRACKET; CLIP (B)	1-47477-746-0	01	1	0105-
371	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-
375	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
375	CLIP; AIR PIPE (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0105-

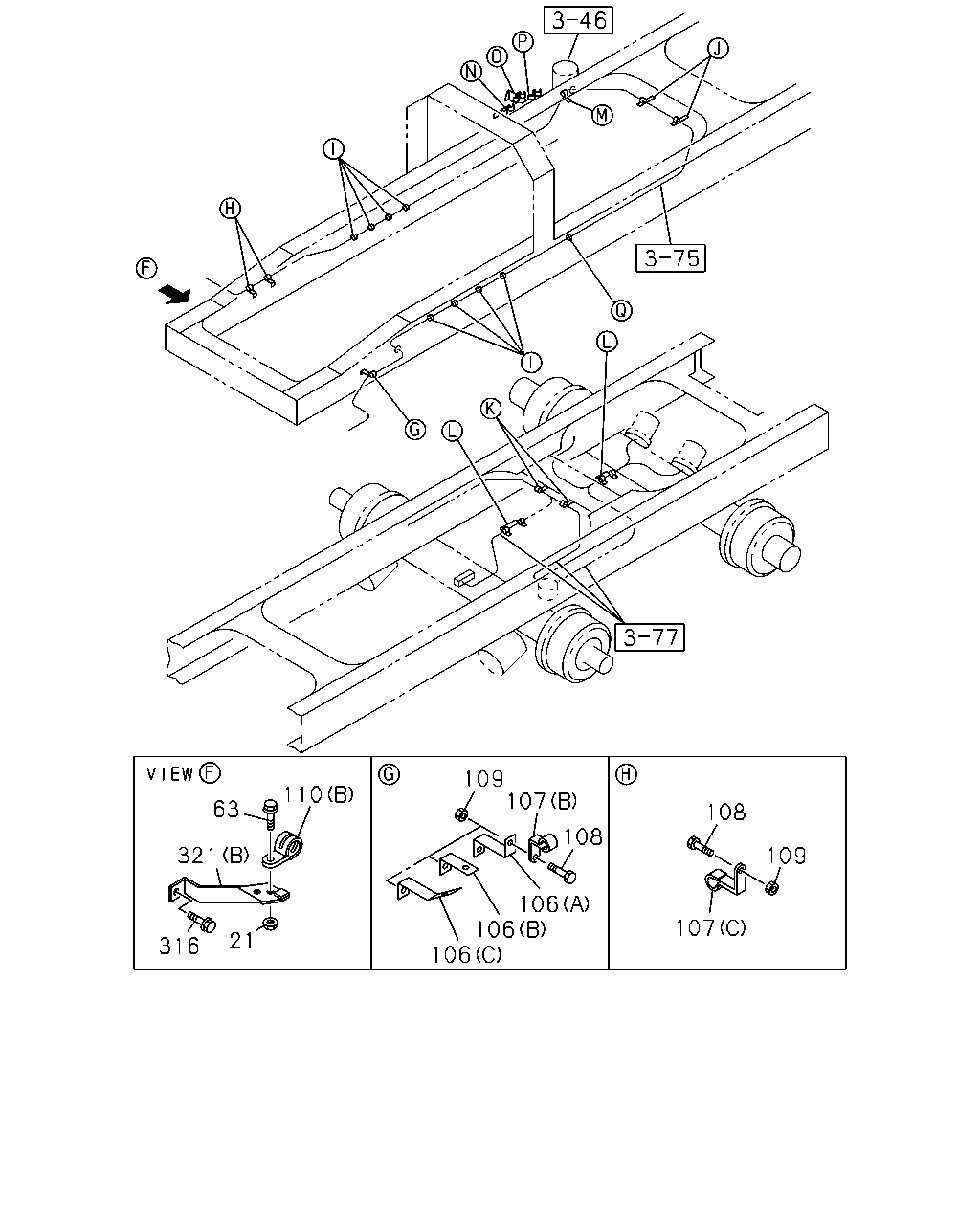

109 107 110 63 108 108 321 109 106 106 106 21 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> M8	9-09110-508-0	01	1	0303-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
106	BRACKET; TUBE CLIP (A)	1-47477-406-0	02	1	0105-0106
106	BRACKET; TUBE CLIP (B)	1-47477-694-0	01	1	0107-
106	BRACKET; TUBE CLIP (C)	1-47479-293-0	01	1	0107-
107	CLIP; NYLON TUBE (D) ID=22 L=32	1-09700-126-1	01	1	0105-0106
107	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
107	CLIP; NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	0105-0302
107	CLIP; NYLON TUBE (F) ID=35 H=45 L=33	1-09700-947-0	01	1	0303-
107	CLIP; NYLON TUBE (E) ID=23 L=27	1-09700-946-0	01	1	0105-0106
107	CLIP; NYLON TUBE (F) ID=31 H=30 L=35	1-09700-994-0	01	1	0105-0106
107	CLIP; NYLON TUBE (F) ID=25 H=30 L=35	1-09700-875-0	01	1	0107-
107	CLIP; NYLON TUBE (B) ID=32 L=35	1-09701-244-0	01	1	0105-0106
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=24 L=27	1-09700-809-0	01	1	0105-0106
107	CLIP; NYLON TUBE (B) ID=24 L=27	1-09700-809-0	01	1	0107-
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=24 L=27	1-09700-809-0	01	1	0107-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0105-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0105-
110	CLIP; BAND,NYLON TUBE WHEEL BASE 7700MM(77W) (A) L=250	1-09707-126-0	02	1	0303-
110	CLIP; BAND,NYLON TUBE (B) ID=25 L=40	1-09700-215-1	01	1	0105-0204
110	CLIP; BAND,NYLON TUBE (B) ID=28 L=40	1-09700-995-1	01	1	0205-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	04	1	0105-0105
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	08	1	0106-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	14	1	0105-0106
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	15	1	0107-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	25	1	0105-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=250	1-09707-126-0	01	1	0109-
316	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-
321	BRACKET; CLIP (A)	1-47477-386-2	01	1	0105-
321	BRACKET; CLIP (B)	1-47477-746-0	01	1	0105-
