◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#27733) — 176 parça

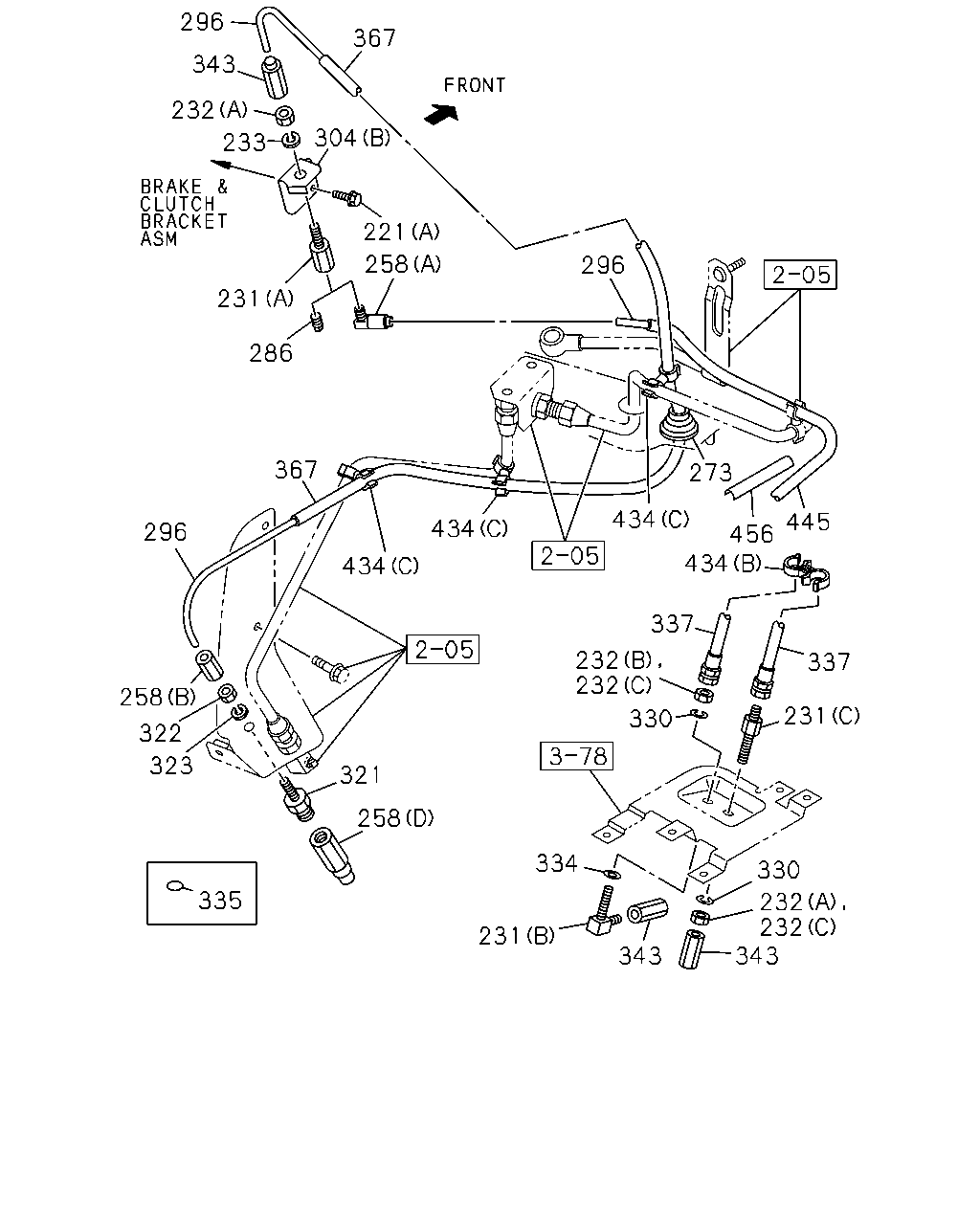

çizim 22531
296 367 343 232 304 233 221 258 296 231 286 367 273 434 445 434 296 456 434 434 337 232 232 337 258 231 330 322 323 321 258 334 330 335 232 232 343 231 343
BalonParca AdiParca NoAdetTipApplied Date
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (B) M10X35 FLANGE 		0-28681-035-0 02 1 0105-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0105-
231 UNION; AIR PIPE
(C) M10 STRAIGHT 		1-09654-361-0 01 1 0105-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0105-
232 NUT; UNION,AIR PIPE
(C) M10 H=8 		1-09400-029-0 02 1 0105-0312
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0401-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0105-0312
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0401-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0105-
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0105-
296 TUBE; NYLON
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-
304 BRACKET; UNION
(A) 		1-47477-182-1 01 1 0105-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 0105-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0105-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0105-0301
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0105-0301
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0105-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0105-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0105-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0105-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0105-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-0105
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0106-
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800 		1-83129-031-1 01 1 0105-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-0 01 1 0105-

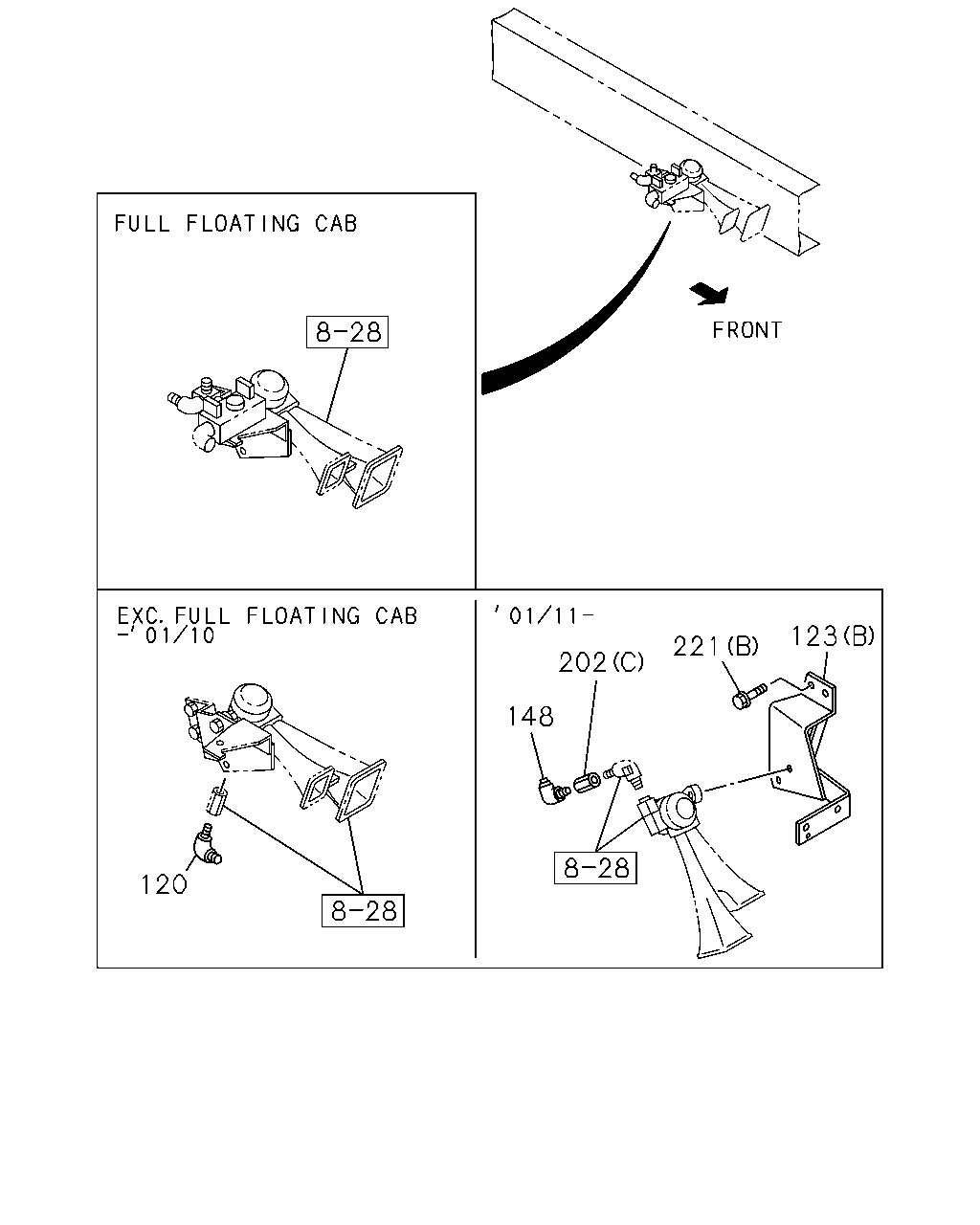

çizim 22833
123 221 202 148 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0110
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0105-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0105-
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-
202 ADAPTER
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (B) M10X35 FLANGE 		0-28681-035-0 02 1 0105-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-

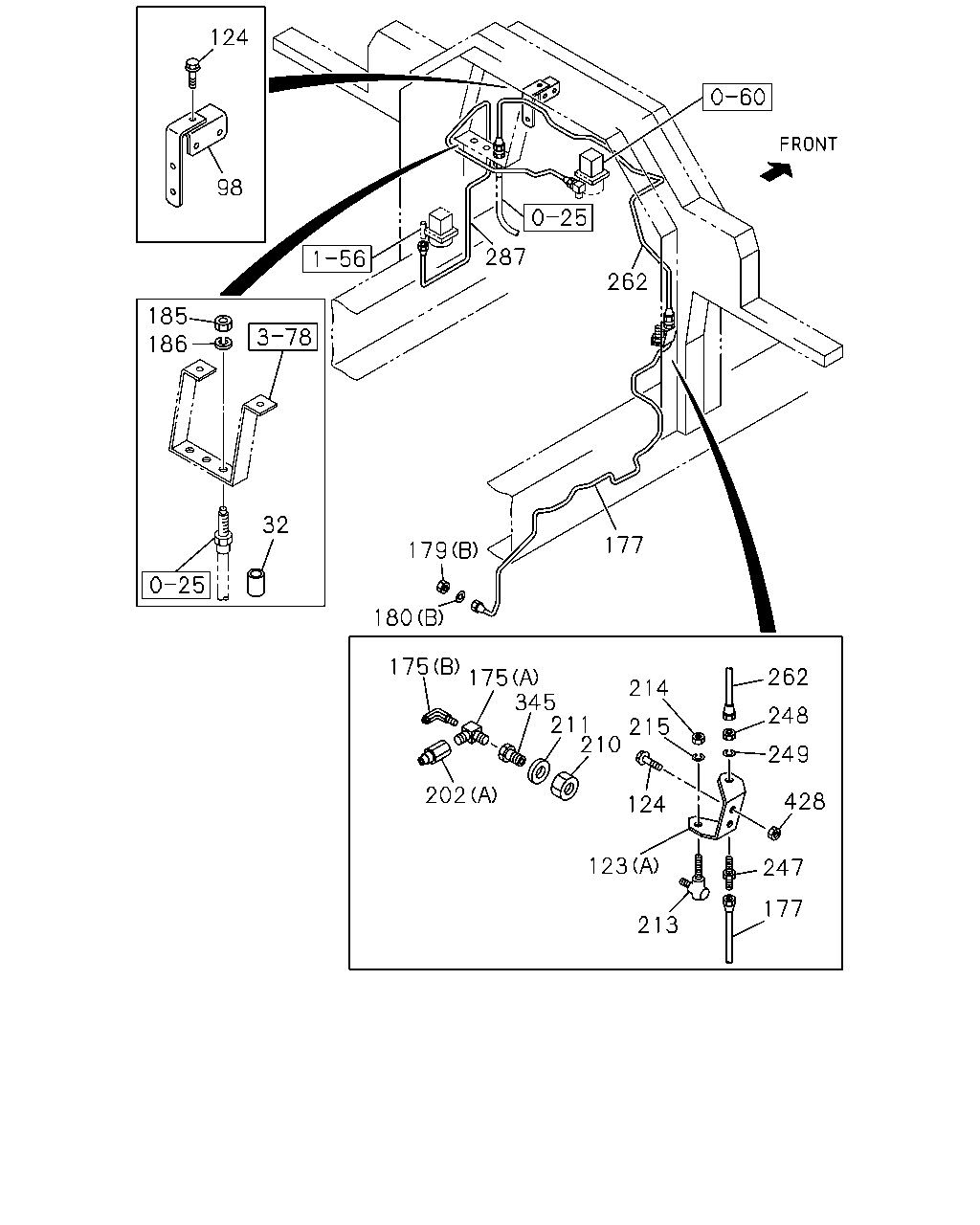

çizim 78166
124 98 287 262 185 186 32 177 179 180 175 262 175 345 211 215 210 214 248 249 202 428 124 123 247 177 213
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105-0105
98 BRACKET; AIR PIPE 1-47477-471-0 01 1 0105-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0105-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0105-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
175 CONNECTOR; AIR PIPE
(A) 		1-09656-586-1 01 1 0105-0106
175 CONNECTOR; AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-586-1 01 1 0107-
175 CONNECTOR; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-586-1 01 1 0107-
175 CONNECTOR; AIR PIPE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-0106
175 CONNECTOR; AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107-
175 CONNECTOR; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0107-
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1444 SERVICED BY L=1500 		1-47428-819-0 01 1 0105-
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> 		1-49122-248-0 01 1 0105-
179 NUT; UNION
(A) M22 		9-09111-422-0 01 1 0105-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0105-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0105-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 01 1 0105-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0105-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0105-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0105-
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-
202 ADAPTER
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
210 NUT; UNION
M12 		9-09840-280-0 01 1 0105-
211 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0105-
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0105-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0105-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0105-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 0105-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0105-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0105-
262 PIPE; AIR,UNION TO FLEX
L=896 		1-49121-787-0 01 1 0105-
287 PIPE; AIR,MAG VLV
L=1220 		1-49121-788-0 01 1 0105-
345 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09654-280-1 01 1 0105-0106
345 UNION; AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09654-280-1 01 1 0107-
345 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09654-280-1 01 1 0107-
345 UNION; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 ELBOW 		9-09225-206-1 01 1 0105-0106
345 UNION; AIR PIPE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 ELBOW 		9-09225-206-1 01 1 0107-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-

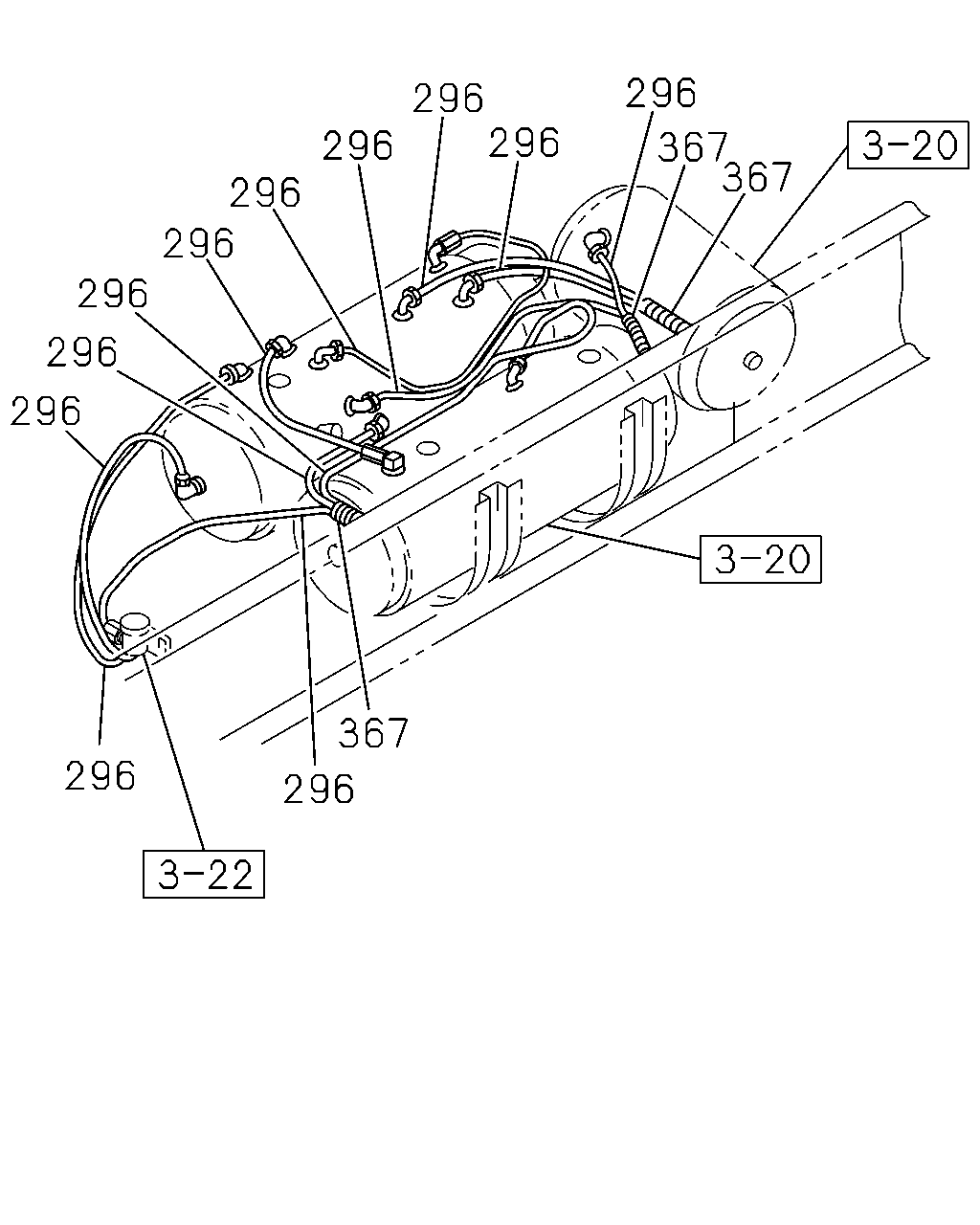

çizim 78669
296 296 296 296 367 367 296 296 296 296 296 367 296 296
BalonParca AdiParca NoAdetTipApplied Date
296 TUBE; NYLON
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-

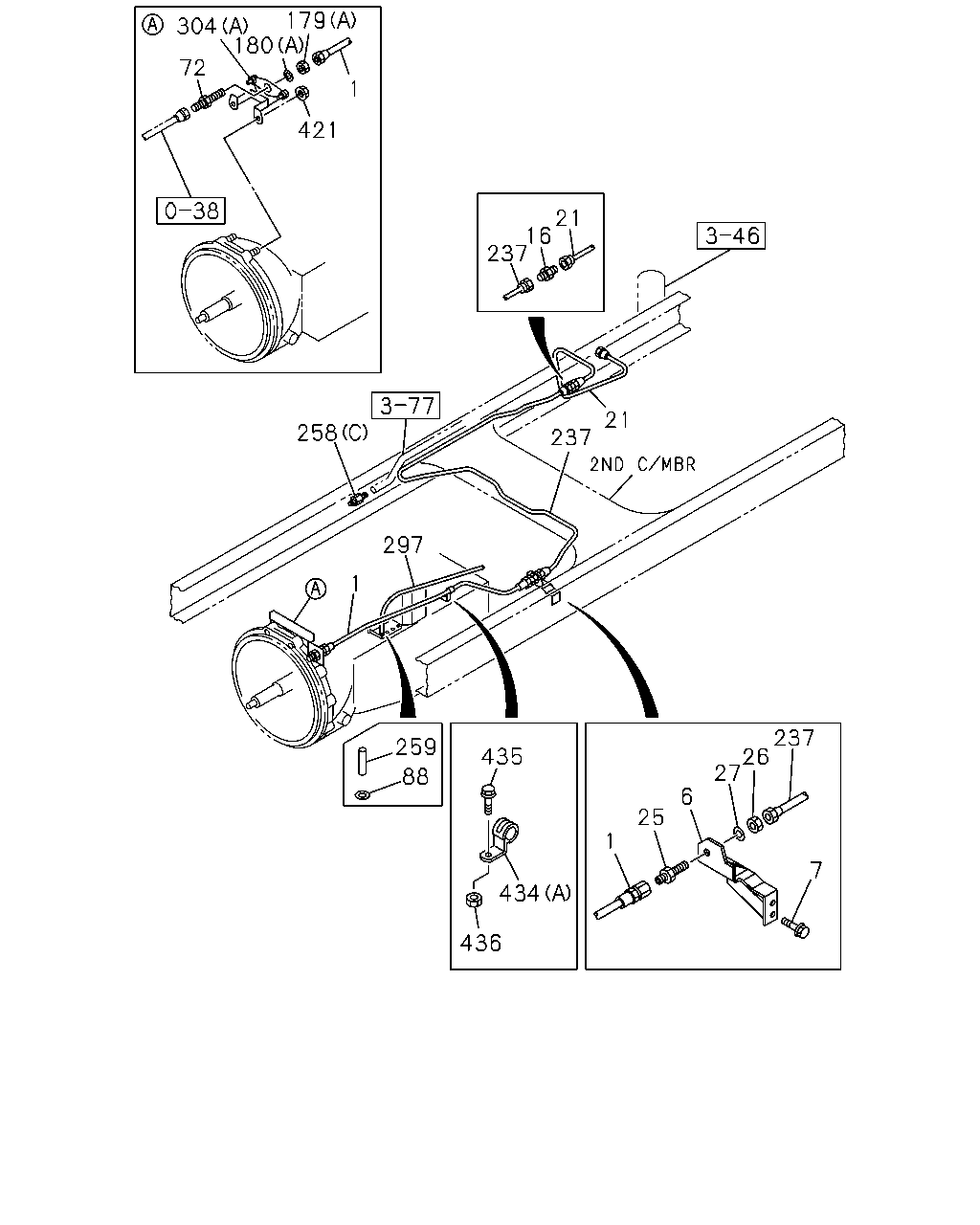

çizim 80732
179 304 180 72 1 421 21 16 237 21 258 237 297 1 237 26 27 259 435 88 6 25 1 7 434 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
MIXER TRUCK<RA2> 		1-09363-897-0 01 1 0201-
1 HOSE; FLEX,AIR TANK 1-09363-766-0 01 1 0105-0105
1 HOSE; FLEX,AIR TANK 1-09363-856-0 01 1 0106-0109
1 HOSE; FLEX,AIR TANK 1-09363-894-0 01 1 0110-0112
1 HOSE; FLEX,AIR TANK
EXC. MIXER TRUCK<RA2> 		1-09363-894-0 01 1 0201-
6 BRACKET; FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-47478-720-0 01 1 0105-0105
6 BRACKET; FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-47478-719-1 01 1 0105-0105
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0106-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28680-835-0 02 1 0105-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 0105-
16 UNION; AIR PIPE
M22 		9-09233-015-1 01 1 0105-
21 PIPE; AIR,UNION TO AIR DRYER 1-49116-586-0 01 1 0105-0110
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-341-0 01 1 0111-
25 VALVE; CHECK 1-48320-042-1 01 1 0105-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
M22 		9-09111-422-0 01 1 0105-
27 WASHER; LK,CHECK VLV
ID=22.5 		9-09150-522-0 01 1 0105-
72 UNION; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09654-318-1 01 1 0105-
72 UNION; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09654-097-1 01 1 0105-
88 GASKET; NYLON TUBE
ID=11 OD=18 		9-09572-510-0 01 1 0105-
179 NUT; UNION
(A) M22 		9-09111-422-0 01 1 0105-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0105-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0105-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 01 1 0105-
237 PIPE; AIR,FLEX HOSE TO UNION
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-49122-934-0 01 1 0105-0105
237 PIPE; AIR,FLEX HOSE TO UNION
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-49123-145-0 01 1 0106-
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-49122-937-0 01 1 0105-0105
237 PIPE; AIR,FLEX HOSE TO UNION
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-49123-146-0 01 1 0106-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0105-
259 SLEEVE; RUBBER,NYLON TUBE
ID=23 OD=27 L=40 		1-09337-015-0 02 1 0105-0108
259 SLEEVE; RUBBER,NYLON TUBE
L=175 		1-09707-178-0 01 1 0109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-
304 BRACKET; UNION
(A) 		1-47477-182-1 01 1 0105-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 0105-
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0105-0105
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0106-
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-

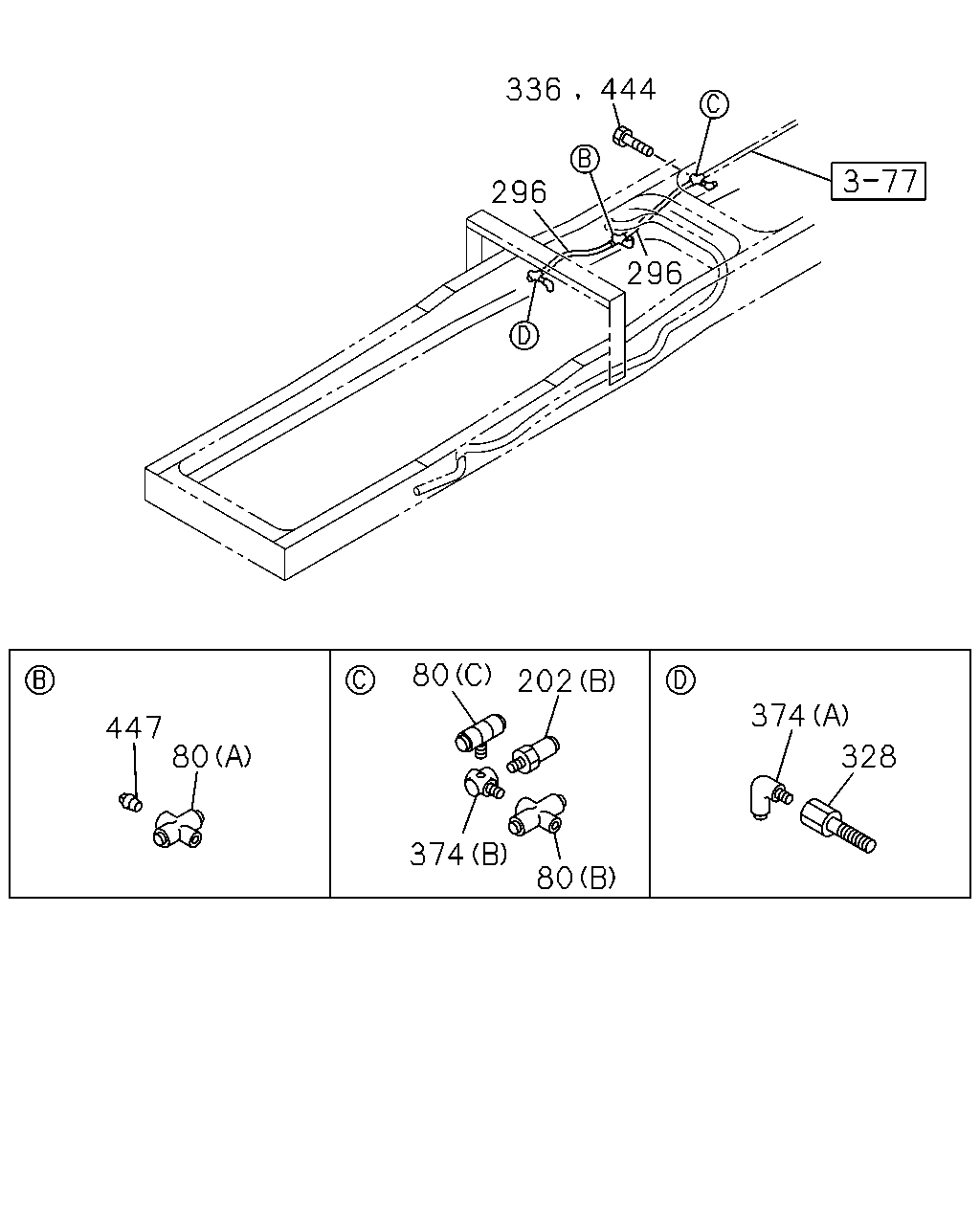

çizim 80830
336 444 296 296 80 202 374 447 80 328 374 80
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0105-
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0105-
80 UNION; 3 WAY
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0105-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (C) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0105-
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0105-
202 ADAPTER
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
296 TUBE; NYLON
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-
328 UNION; AIR PIPE 1-09654-280-1 01 1 0105-
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
374 CONNECTOR
(B) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0105-
374 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0105-
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
447 PLUG; UNION
PT3/8 		9-09204-517-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
