◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#27731) — 12 parça
çizim 21565
106 106
BalonParca AdiParca NoAdetTipApplied Date
106 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
106 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-

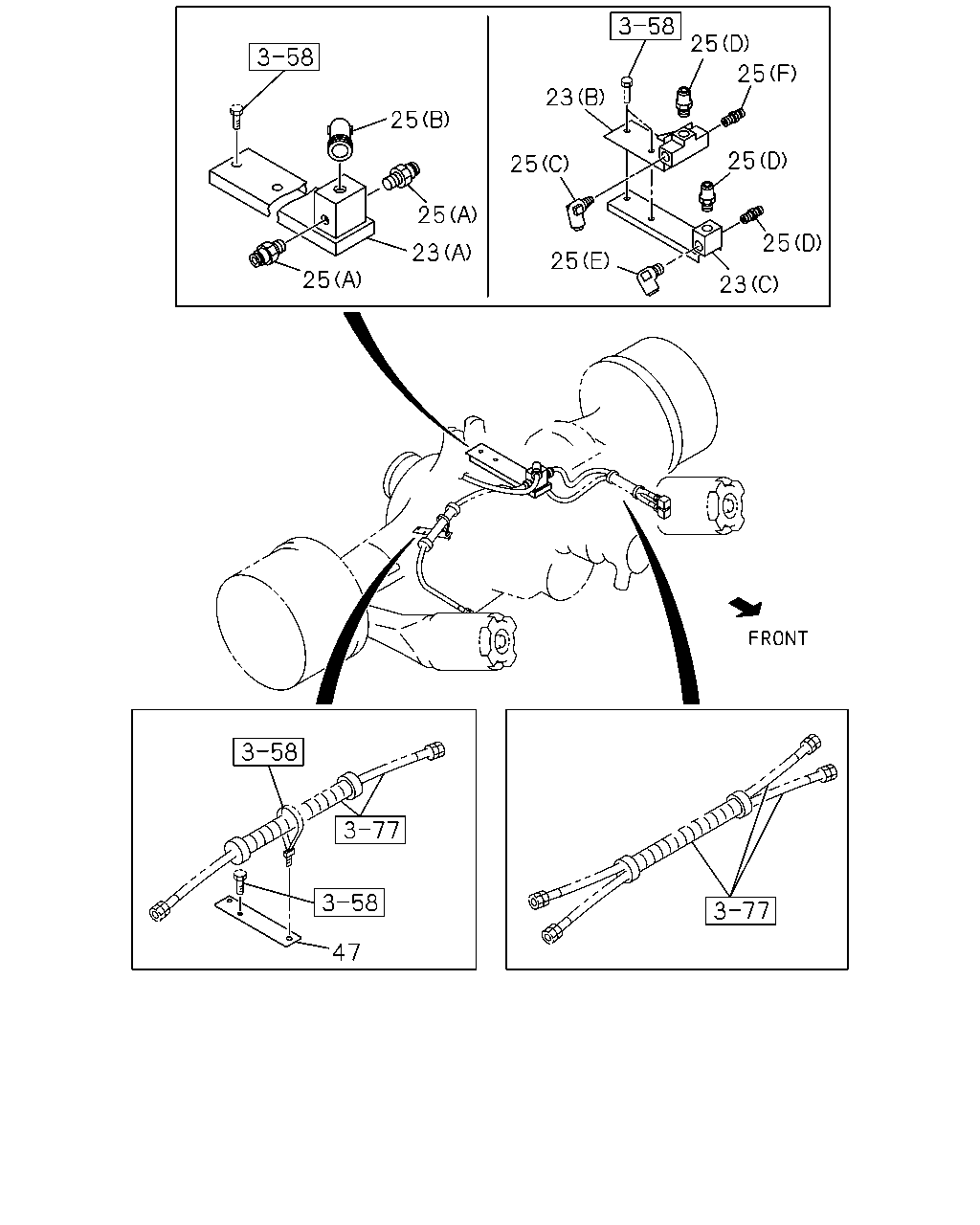

çizim 81308
25 25 23 25 25 25 25 25 23 25 25 23 47
BalonParca AdiParca NoAdetTipApplied Date
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) 		1-47470-489-0 01 1 0303-
23 NIPPLE; W/BRKT
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) 		1-47477-637-1 01 1 0303-
23 NIPPLE; W/BRKT
(A) 		1-47470-373-1 01 1 0105-
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0303-
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (F) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0303-
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0303-
25 CONNECTOR
EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) 		1-09660-969-0 01 1 0303-
25 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
25 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0105-
47 BRACKET 1-42119-065-0 01 1 0105-
