0-52A — OIL AND VACUUM PIPING; ENGINE (#2773) — 127 parça

153 3 3 2 154 156 156 115 132 3 84 3 40 47 37 100 99 101 103 102 40 91 164 91 90 164 106 105 104 105 114 21 77 81 44 48 120 62 120 44 74 76 45 118 101 48 2 182 180 181 181 2 117 119 114 181 181 2 117 111 111 2 113 111 111 110 112 109 2 114 111 111 117 47 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

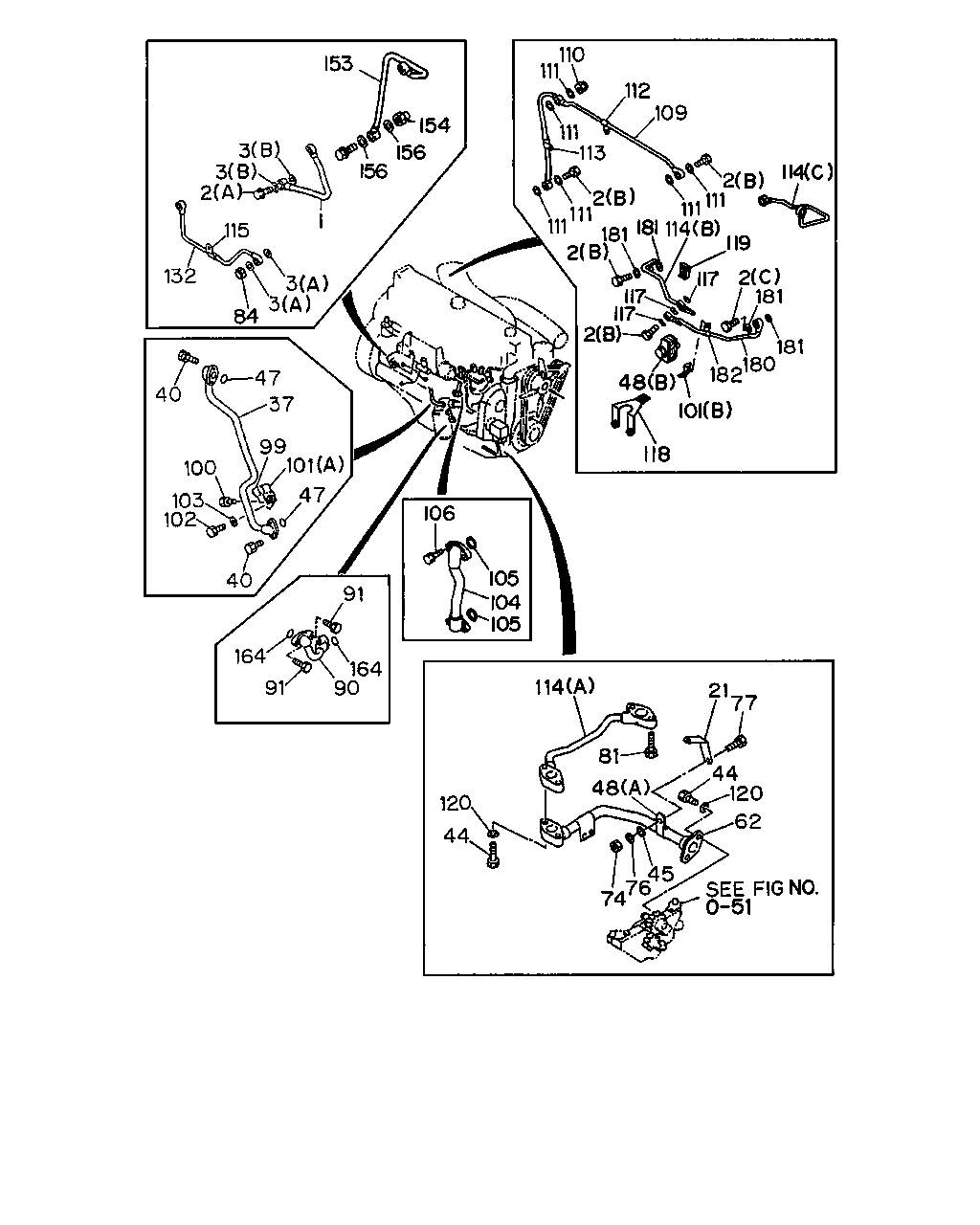

1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9002-
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	9002-
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	9002-
2	BOLT; EYE,OIL PIPE (C) M10X32	1-09675-119-0	01	1	9002-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M10X21 FLANGE	1-09675-077-0	01	1	9002-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9002-
21	STAY; OIL PIPE	1-13345-105-1	01	1	9002-
37	PIPE; OIL,FILTER TO COOLER	1-13311-848-0	01	1	9002-
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9002-9005
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9002-9005
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9002-
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	9002-9005
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	9002-9004
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	9002-9005
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-
44	BOLT; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M5X25	9-09602-082-0	01	1	9002-
45	WASHER; LK,CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=5.1	9-09150-505-0	01	1	9002-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	9002-9003
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-
48	CLIP; OIL PIPE (A)	1-09700-377-0	01	1	9002-
48	CLIP; OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-15419-612-0	01	1	9307-
62	PIPE; OIL,PUMP TO C/BL	1-13311-871-1	01	1	9002-
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9002-
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9002-
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-
84	NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9002-
90	PIPE ASM; OIL,C/BL TO FILTER	1-13311-849-1	01	1	9002-
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	02	1	9002-9005
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-
99	CLIP; OIL PIPE,FILTER TO COOLER ID=23.6 L=35	1-09700-634-0	01	1	9002-
100	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-
100	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005
100	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-
101	BRACKET; CLIP (A)	1-13345-118-0	01	1	9002-
101	BRACKET; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-23219-106-0	01	1	9010-
102	BOLT; BRKT M14X25	9-92351-425-0	01	1	9002-9005
102	BOLT; BRKT M14X25	0-23801-425-0	01	1	9006-
103	WASHER; LK,BRKT ID=14.2	9-09150-514-0	01	1	9002-
104	PIPE ASM; OIL,COOLER TO BODY FIRE TRUCK<RA9>	1-13312-466-1	01	1	9002-
104	PIPE ASM; OIL,COOLER TO BODY EXC. FIRE TRUCK<RA9>	1-13311-304-1	01	1	9002-
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	9002-9005
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	9002-9005
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-
109	PIPE ASM; OIL,BODY TO HD	1-13312-057-0	01	1	9002-
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	9002-
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9002-
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	9002-
113	CLIP; WATER OUTLET PIPE	1-09700-444-0	01	1	9002-
114	PIPE ASM; OIL,BODY (A) OD=15.0	1-13311-703-1	01	1	9002-
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13312-144-0	01	1	9002-
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) OD=6.35	1-13312-866-1	01	1	9002-9102
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) OD=6.35	1-13313-101-0	01	1	9103-
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	9002-9401
115	CLIP; PIPE,INJ PUMP	9-09917-649-0	01	1	9402-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	03	1	9002-
118	BRACKET; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13319-012-1	01	1	9002-9102
118	BRACKET; CLIP,OIL PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13319-016-0	01	1	9103-
119	CLIP; OIL PIPE,BODY TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09700-110-0	01	1	9002-9010
119	CLIP; OIL PIPE,BODY TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-15419-613-0	01	1	9011-
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9002-
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9002-
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9002-
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	9-13312-393-1	01	1	9002-
154	UNION; NIPPLE ENGINE REAR PTO(SV1)	9-09902-517-0	01	1	9002-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) ID=10.2 OD=15.2	1-09630-083-0	04	1	9002-
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-
180	PIPE ASM; OIL,FAN CENTER AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13312-463-0	01	1	9002-
180	PIPE ASM; OIL,FAN CENTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13312-500-0	01	1	9002-9101
180	PIPE ASM; OIL,FAN CENTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-100-0	01	1	9102-
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-
182	CLIP; OIL PIPE TO ELBOW AIR COMPRESSOR HEAVY DUTY(E1Q) ID=7 L=20	9-09524-635-0	02	1	9002-
182	CLIP; OIL PIPE TO ELBOW EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=7 L=20	9-09524-635-0	01	1	9002-

448 277 279 449 434 278 279 239 242 240 241 237 238 228 205 204 205 204 228 249 224 214 238 237 240 212 212 214 216 200 203 195 195 194 194 195 195 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

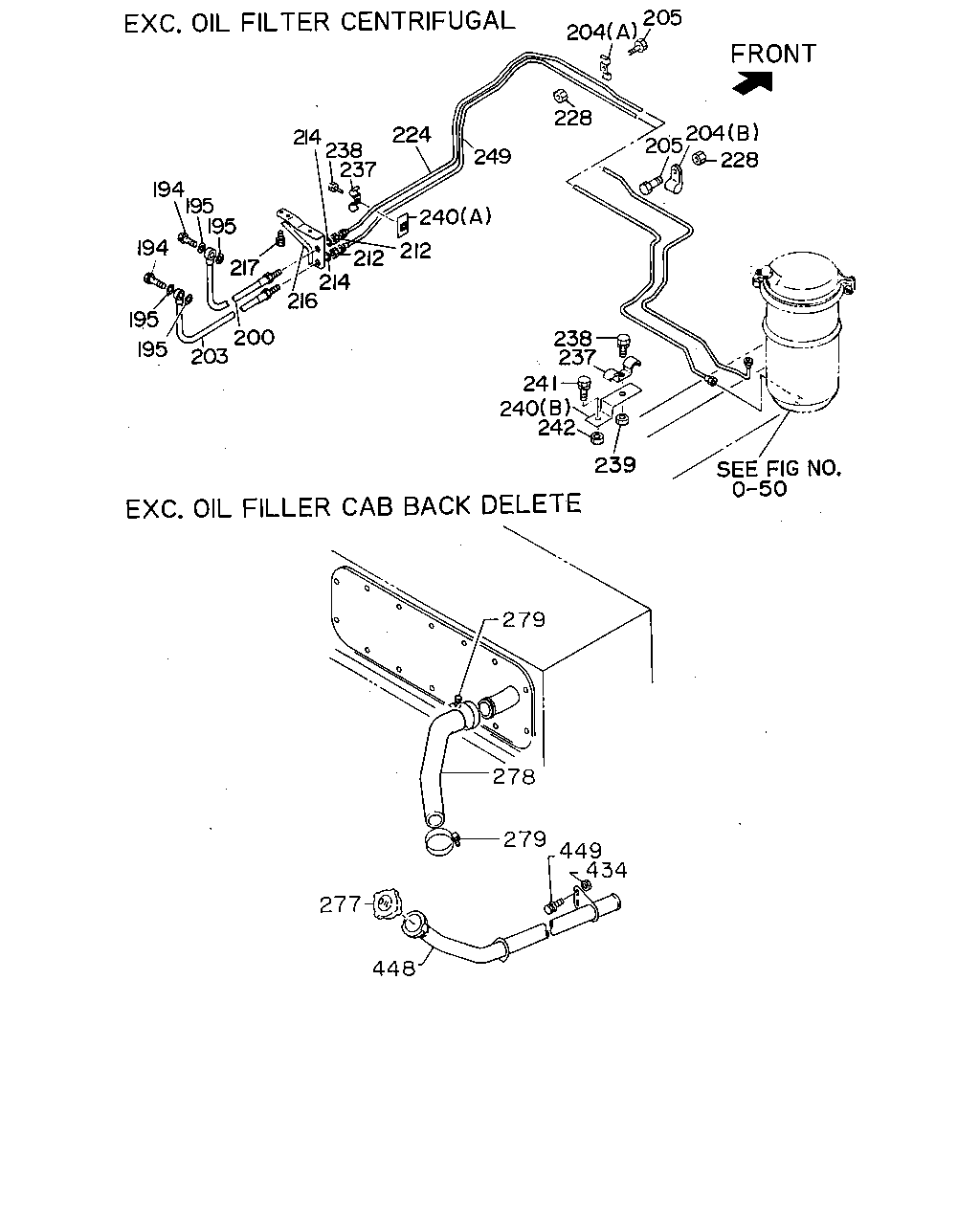

194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER EXC. OIL FILLER CAB BACK DELETE<E6X> M14X27 FLANGE	1-09675-086-0	02	1	9002-
195	GASKET; EYE BOLT,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S> L=500	1-09364-487-0	01	1	9002-
203	HOSE; FLEX,PARTIAL FILTER,RETURN EXC. OIL FILTER CENTRIFUGAL<E6S> L=500	1-09364-656-0	01	1	9002-
204	CLIP; OIL PIPE EXC. OIL FILTER CENTRIFUGAL<E6S> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9002-
204	CLIP; OIL PIPE EXC. OIL FILTER CENTRIFUGAL<E6S> (B) ID=11X2 L=20	9-09535-036-0	01	1	9002-
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 FLANGE	0-28080-816-0	02	1	9307-
212	NUT; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M16	9-99111-416-0	02	1	9002-
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=16.2	9-09150-516-0	02	1	9002-
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-47475-997-1	01	1	9002-
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-9301
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M10X30 FLANGE	0-28081-030-0	02	1	9302-9306
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M10X25 W/LK WASHER	0-50041-025-0	02	1	9307-9410
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9411-
224	PIPE; OIL,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13312-790-0	01	1	9002-9007
224	PIPE; OIL,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-027-0	01	1	9008-9306
224	PIPE; OIL,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-278-0	01	1	9307-
228	NUT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	02	1	9002-
237	CLIP; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=11 & 11 L=15 & 15	1-09700-656-0	04	1	9002-
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	04	1	9002-
240	BRACKET; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> (A) L=50	1-47475-299-2	04	1	9002-
240	BRACKET; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> (B)	1-47475-601-0	02	1	9002-
241	BOLT; CLIP BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
241	BOLT; CLIP BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306
241	BOLT; CLIP BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 FLANGE	0-28080-820-0	02	1	9307-
242	NUT; CLIP BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	02	1	9002-
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13312-791-0	01	1	9002-9007
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-028-0	01	1	9008-9306
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-280-0	01	1	9307-
277	CAP; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11750-024-1	01	1	9002-
278	HOSE; RUBBER,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11749-077-0	01	1	9002-
279	CLIP; RUBBER HOSE EXC. OIL FILLER CAB BACK DELETE<E6X> ID=40	9-09916-024-1	02	1	9002-
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	04	1	9002-
448	FILLER; OIL EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11740-213-1	01	1	9002-
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9002-9204
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-9304
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9305-
