3-45 — LOAD SENSING PROPORTIONING VALVE (#27729) — 71 parça

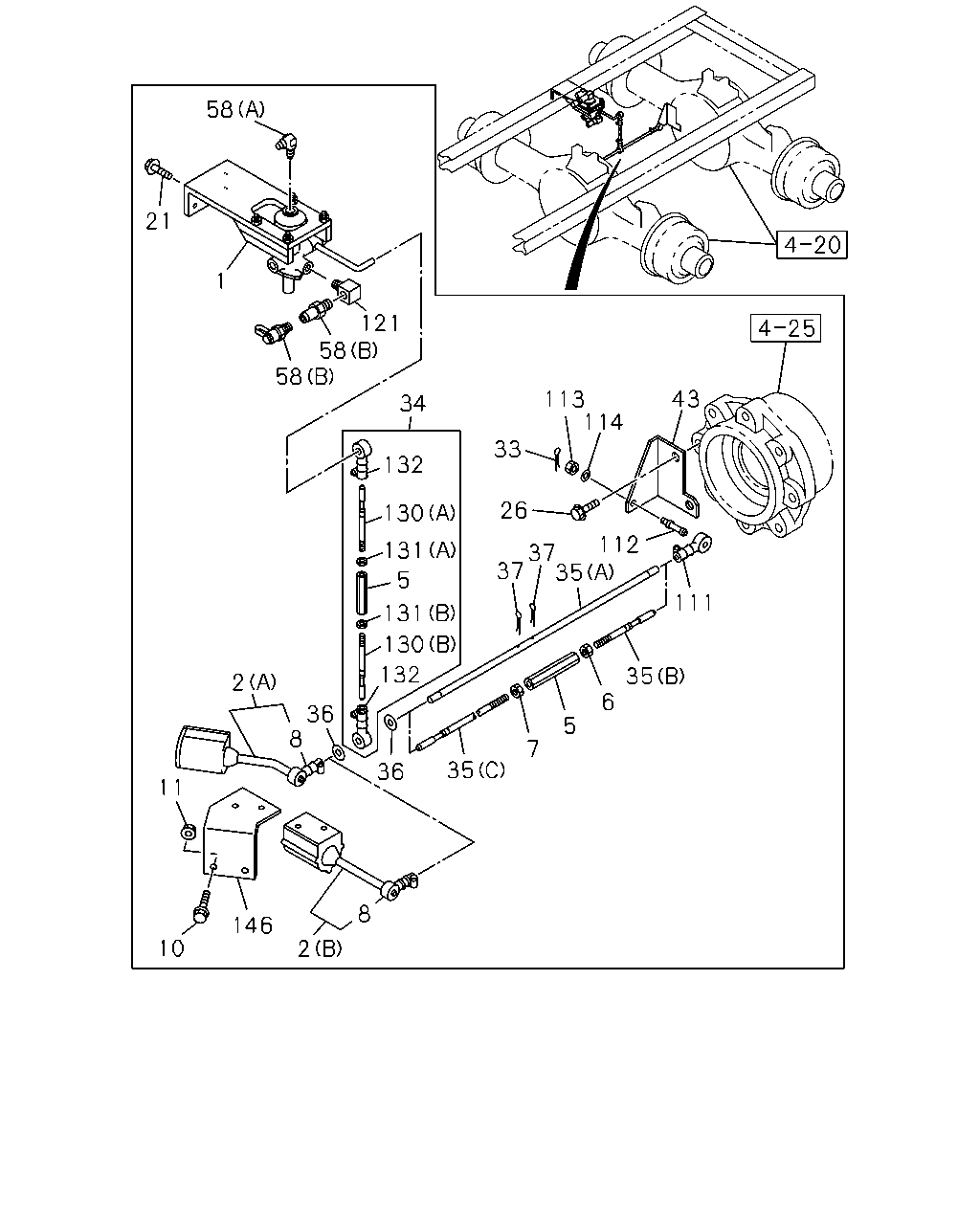

58 21 1 121 58 58 43 113 114 34 33 132 26 130 112 37 131 5 111 131 130 132 35 2 6 36 8 5 7 35 36 11 8 146 10 2 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING CHINA GB VAR1<JAC> LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-145-0	01	1	0303-
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-123-0	01	1	0105-0302
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. CHINA GB VAR1<JAC>	1-47720-123-0	01	1	0303-
2	DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47725-016-0	01	1	0105-0407
2	DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47725-047-0	01	1	0408-
5	JOINT LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-091-0	01	1	0105-0407
5	JOINT LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-091-0	02	1	0408-
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09111-408-0	01	1	0408-
7	NUT; LK,LWR LOAD SENSING PROPORTIONING VALVE<JR7> LH THREAD	1-09409-002-0	01	1	0408-
8	ROD END LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	0105-
10	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X25 FLANGE	0-28680-825-0	01	1	0408-
11	NUT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	02	1	0408-
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X35 FLANGE	0-28680-835-0	04	1	0105-
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28080-812-0	02	1	0105-
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	01	1	0105-
34	ROD; LEVER TO ROD,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-025-0	01	1	0105-
35	ROD; LINK,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-318-0	01	1	0408-
35	ROD; LINK,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09740-086-0	01	1	0105-0407
35	ROD; LINK,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-282-0	01	1	0408-
36	WASHER; PL,ROD LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	0105-
37	PIN; SPLIT,ROD LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	02	1	0105-
43	BRACKET; DAMPER TO AXLE LOAD SENSING PROPORTIONING VALVE<JR7>	1-42129-185-0	01	1	0105-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
111	RUBBER; JOINT,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	0105-
112	PIN; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-123-0	01	1	0105-
113	NUT; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	01	1	0105-
114	WASHER; PL,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	0105-
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7>	1-09660-778-1	01	1	0105-
130	ROD; JOINT LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-282-0	01	1	0105-
130	ROD; JOINT LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-283-0	01	1	0105-
131	NUT; JOINT LOAD SENSING PROPORTIONING VALVE<JR7> (A) LH THREAD	1-09409-002-0	01	1	0105-
131	NUT; JOINT LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-48119-089-0	01	1	0105-
132	RUBBER ASM; CONN LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	02	1	0105-0407
132	RUBBER ASM; CONN LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	03	1	0408-0410
132	RUBBER ASM; CONN LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	02	1	0411-
146	BRACKET; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7>	1-42129-510-0	01	1	0408-

65 1 100 50 64 84 93 94 83 61 62 92 91 85 88 6 87 116 97 83 53 117 82 98 89 90 96 99 85 62 63 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING CHINA GB VAR1<JAC> LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-145-0	01	1	0303-
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-123-0	01	1	0105-0302
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. CHINA GB VAR1<JAC>	1-47720-123-0	01	1	0303-
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09111-408-0	01	1	0408-
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-088-0	01	1	0105-
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-033-0	01	1	0105-
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-026-0	01	1	0105-
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-025-0	01	1	0105-
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-042-0	01	1	0105-
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-045-0	02	1	0105-
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-094-0	04	1	0105-
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-079-0	04	1	0105-
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-48199-320-0	05	1	0105-
82	GUIDE; PISTON,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-016-0	01	1	0105-
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-017-0	01	1	0105-
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-027-0	01	1	0105-
84	RETAINER; GASKET LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-021-0	02	1	0105-
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-023-0	01	1	0105-
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-043-0	01	1	0105-
87	RETAINER; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-086-0	01	1	0105-
88	GUIDE; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-032-0	01	1	0105-
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-083-0	01	1	0105-
90	SCREW; CAM LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-039-0	01	1	0105-
91	FILTER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-047-0	01	1	0105-
92	PIPE; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-048-0	01	1	0105-
93	CLIP; PIPE LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-050-0	01	1	0105-
94	SCREW; CLIP LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-144-0	02	1	0105-
96	ARM; OPERATING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-163-0	01	1	0105-
97	BOLT; OPERATING ARM LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-081-0	01	1	0105-
98	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=15	9-08112-015-0	01	1	0105-
99	CAP; SCREW LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-055-0	01	1	0105-
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-147-0	01	1	0105-
116	INDICATOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-078-0	01	1	0105-
117	CAM; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-038-0	01	1	0105-
